juce::Timer Class Reference

#include <juce_Timer.h>

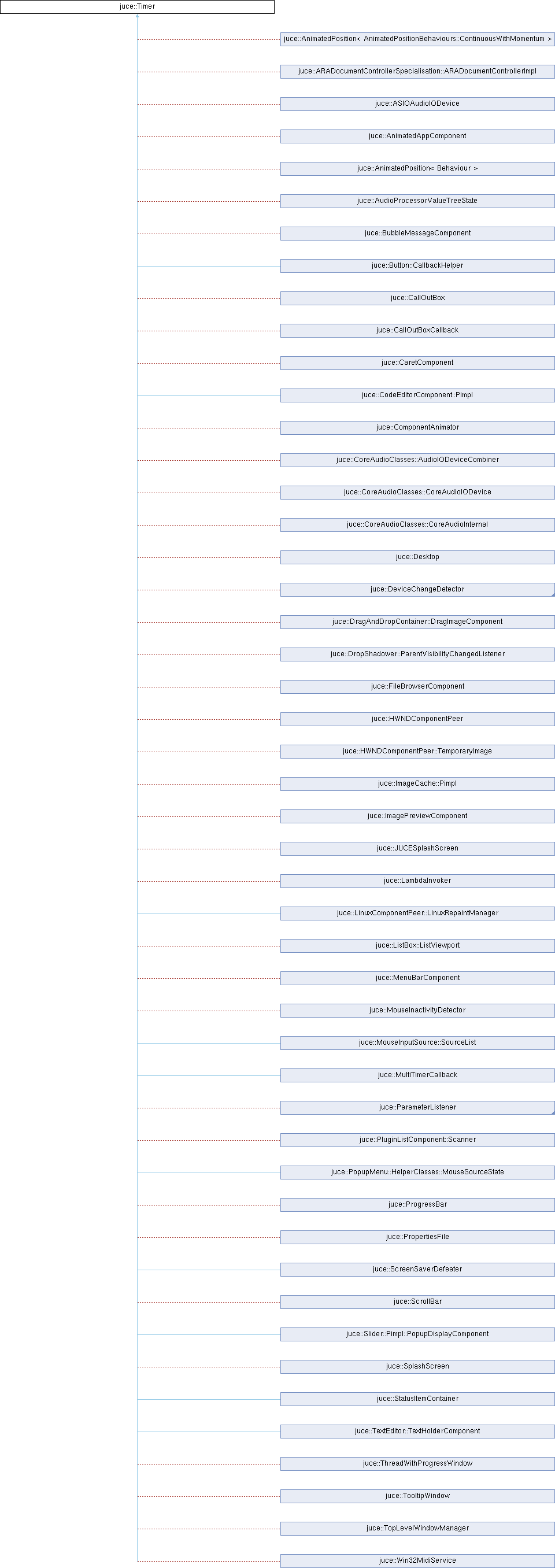

Inheritance diagram for juce::Timer:

Classes
class	TimerThread

Public Member Functions
virtual	~Timer ()
virtual void	timerCallback ()=0
void	startTimer (int intervalInMilliseconds) noexcept
void	startTimerHz (int timerFrequencyHz) noexcept
void	stopTimer () noexcept
bool	isTimerRunning () const noexcept
int	getTimerInterval () const noexcept

Static Public Member Functions
static void JUCE_CALLTYPE	callAfterDelay (int milliseconds, std::function< void()> functionToCall)
static void JUCE_CALLTYPE	callPendingTimersSynchronously ()

Protected Member Functions
	Timer () noexcept
	Timer (const Timer &) noexcept

Private Member Functions
Timer &	operator= (const Timer &)=delete

Private Attributes
size_t	positionInQueue = (size_t) -1
int	timerPeriodMs = 0

Friends
class	TimerThread

Detailed Description

Makes repeated callbacks to a virtual method at a specified time interval.

A Timer's timerCallback() method will be repeatedly called at a given interval. When you create a Timer object, it will do nothing until the startTimer() method is called, which will cause the message thread to start making callbacks at the specified interval, until stopTimer() is called or the object is deleted.

The time interval isn't guaranteed to be precise to any more than maybe 10-20ms, and the intervals may end up being much longer than requested if the system is busy. Because the callbacks are made by the main message thread, anything that blocks the message queue for a period of time will also prevent any timers from running until it can carry on.

If you need to have a single callback that is shared by multiple timers with different frequencies, then the MultiTimer class allows you to do that - its structure is very similar to the Timer class, but contains multiple timers internally, each one identified by an ID number.

See also

HighResolutionTimer, MultiTimer

@tags{Events}

Constructor & Destructor Documentation

Timer() [1/2]

juce::Timer::Timer ( )

protectednoexcept

Creates a Timer. When created, the timer is stopped, so use startTimer() to get it going.

Timer() [2/2]

juce::Timer::Timer ( const Timer & )

protectednoexcept

Creates a copy of another timer.

Note that this timer won't be started, even if the one you're copying is running.

~Timer()

juce::Timer::~Timer ( )

virtual

Destructor.

Member Function Documentation

callAfterDelay()

void JUCE_CALLTYPE juce::Timer::callAfterDelay ( int milliseconds, std::function< void()> functionToCall )

static

Invokes a lambda after a given number of milliseconds.

callPendingTimersSynchronously()

void JUCE_CALLTYPE juce::Timer::callPendingTimersSynchronously ( )

static

For internal use only: invokes any timers that need callbacks. Don't call this unless you really know what you're doing!

getTimerInterval()

int juce::Timer::getTimerInterval ( ) const

inlinenoexcept

Returns the timer's interval.

Returns

the timer's interval in milliseconds if it's running, or 0 if it's not.

isTimerRunning()

bool juce::Timer::isTimerRunning ( ) const

inlinenoexcept

Returns true if the timer is currently running.

operator=()

Timer & juce::Timer::operator= ( const Timer & )

privatedelete

startTimer()

void juce::Timer::startTimer ( int intervalInMilliseconds )

noexcept

Starts the timer and sets the length of interval required.

If the timer is already started, this will reset it, so the time between calling this method and the next timer callback will not be less than the interval length passed in.

Parameters

intervalInMilliseconds

the interval to use (any value less than 1 will be rounded up to 1)

startTimerHz()

void juce::Timer::startTimerHz ( int timerFrequencyHz )

noexcept

Starts the timer with an interval specified in Hertz. This is effectively the same as calling startTimer (1000 / timerFrequencyHz).

stopTimer()

void juce::Timer::stopTimer ( )

noexcept

Stops the timer.

No more timer callbacks will be triggered after this method returns.

Note that if you call this from a background thread while the message-thread is already in the middle of your callback, then this method will cancel any future timer callbacks, but it will return without waiting for the current one to finish. The current callback will continue, possibly still running some of your timer code after this method has returned.

timerCallback()

virtual void juce::Timer::timerCallback ( )

pure virtual

The user-defined callback routine that actually gets called periodically.

It's perfectly ok to call startTimer() or stopTimer() from within this callback to change the subsequent intervals.

Implemented in juce::AnimatedAppComponent, juce::AnimatedPosition< Behaviour >, juce::AnimatedPosition< AnimatedPositionBehaviours::ContinuousWithMomentum >, juce::ARADocumentControllerSpecialisation::ARADocumentControllerImpl, juce::ASIOAudioIODevice, juce::AudioProcessorValueTreeState, juce::BubbleMessageComponent, juce::Button::CallbackHelper, juce::CallOutBox, juce::CallOutBoxCallback, juce::CaretComponent, juce::CodeEditorComponent::Pimpl, juce::ComponentAnimator, juce::CoreAudioClasses::AudioIODeviceCombiner, juce::CoreAudioClasses::CoreAudioInternal, juce::CoreAudioClasses::CoreAudioIODevice, juce::Desktop, juce::DeviceChangeDetector, juce::DragAndDropContainer::DragImageComponent, juce::DropShadower::ParentVisibilityChangedListener, juce::FileBrowserComponent, juce::HWNDComponentPeer::TemporaryImage, juce::HWNDComponentPeer, juce::ImageCache::Pimpl, juce::ImagePreviewComponent, juce::JUCESplashScreen, juce::LambdaInvoker, juce::LinuxComponentPeer::LinuxRepaintManager, juce::ListBox::ListViewport, juce::MenuBarComponent, juce::MouseInactivityDetector, juce::MouseInputSource::SourceList, juce::MultiTimerCallback, juce::ParameterListener, juce::PluginListComponent::Scanner, juce::PopupMenu::HelperClasses::MouseSourceState, juce::ProgressBar, juce::PropertiesFile, juce::ScreenSaverDefeater, juce::ScrollBar, juce::Slider::Pimpl::PopupDisplayComponent, juce::SplashScreen, juce::StatusItemContainer, juce::TextEditor::TextHolderComponent, juce::ThreadWithProgressWindow, juce::TooltipWindow, juce::TopLevelWindowManager, and juce::Win32MidiService.

Friends And Related Symbol Documentation

TimerThread

friend class TimerThread

friend

Member Data Documentation

positionInQueue

size_t juce::Timer::positionInQueue = (size_t) -1

private

timerPeriodMs

int juce::Timer::timerPeriodMs = 0

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_events/timers/juce_Timer.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_events/timers/juce_Timer.cpp
