#include <vsteditcontroller.h>

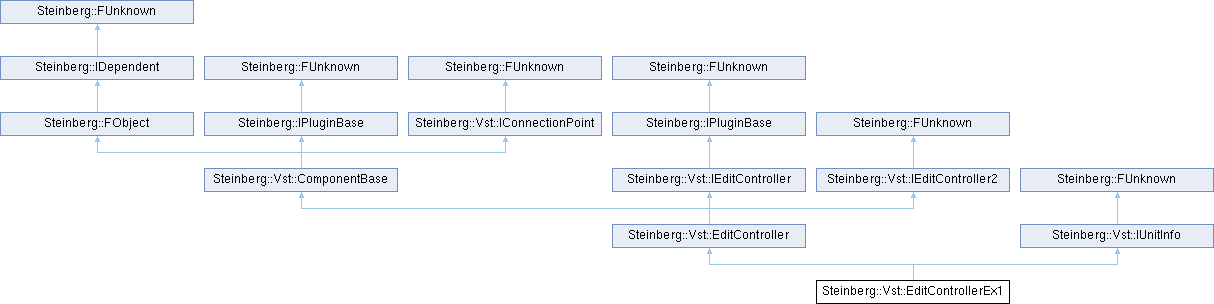

Inheritance diagram for Steinberg::Vst::EditControllerEx1:

Public Member Functions
	EditControllerEx1 ()
	~EditControllerEx1 () override
tresult PLUGIN_API	terminate () SMTG_OVERRIDE
bool	addUnit (Unit *unit)
bool	addProgramList (ProgramList *list)
ProgramList *	getProgramList (ProgramListID listId) const
tresult	notifyProgramListChange (ProgramListID listId, int32 programIndex=kAllProgramInvalid)
int32 PLUGIN_API	getUnitCount () SMTG_OVERRIDE
tresult PLUGIN_API	getUnitInfo (int32 unitIndex, UnitInfo &info) SMTG_OVERRIDE
int32 PLUGIN_API	getProgramListCount () SMTG_OVERRIDE
tresult PLUGIN_API	getProgramListInfo (int32 listIndex, ProgramListInfo &info) SMTG_OVERRIDE
tresult PLUGIN_API	getProgramName (ProgramListID listId, int32 programIndex, String128 name) SMTG_OVERRIDE
tresult PLUGIN_API	getProgramInfo (ProgramListID listId, int32 programIndex, CString attributeId, String128 attributeValue) SMTG_OVERRIDE
tresult PLUGIN_API	hasProgramPitchNames (ProgramListID listId, int32 programIndex) SMTG_OVERRIDE
tresult PLUGIN_API	getProgramPitchName (ProgramListID listId, int32 programIndex, int16 midiPitch, String128 name) SMTG_OVERRIDE
virtual tresult	setProgramName (ProgramListID listId, int32 programIndex, const String128 name)
UnitID PLUGIN_API	getSelectedUnit () SMTG_OVERRIDE
tresult PLUGIN_API	selectUnit (UnitID unitId) SMTG_OVERRIDE
tresult PLUGIN_API	getUnitByBus (MediaType, BusDirection, int32, int32, UnitID &) SMTG_OVERRIDE
tresult PLUGIN_API	setUnitProgramData (int32, int32, IBStream *) SMTG_OVERRIDE
virtual tresult	notifyUnitSelection ()
void PLUGIN_API	update (FUnknown *changedUnknown, int32 message) SMTG_OVERRIDE
Public Member Functions inherited from Steinberg::Vst::EditController
	EditController ()
tresult PLUGIN_API	setComponentState (IBStream *state) SMTG_OVERRIDE
tresult PLUGIN_API	setState (IBStream *state) SMTG_OVERRIDE
tresult PLUGIN_API	getState (IBStream *state) SMTG_OVERRIDE
int32 PLUGIN_API	getParameterCount () SMTG_OVERRIDE
tresult PLUGIN_API	getParameterInfo (int32 paramIndex, ParameterInfo &info) SMTG_OVERRIDE
tresult PLUGIN_API	getParamStringByValue (ParamID tag, ParamValue valueNormalized, String128 string) SMTG_OVERRIDE
tresult PLUGIN_API	getParamValueByString (ParamID tag, TChar *string, ParamValue &valueNormalized) SMTG_OVERRIDE
ParamValue PLUGIN_API	normalizedParamToPlain (ParamID tag, ParamValue valueNormalized) SMTG_OVERRIDE
ParamValue PLUGIN_API	plainParamToNormalized (ParamID tag, ParamValue plainValue) SMTG_OVERRIDE
ParamValue PLUGIN_API	getParamNormalized (ParamID tag) SMTG_OVERRIDE
tresult PLUGIN_API	setParamNormalized (ParamID tag, ParamValue value) SMTG_OVERRIDE
tresult PLUGIN_API	setComponentHandler (IComponentHandler *handler) SMTG_OVERRIDE
IPlugView *PLUGIN_API	createView (FIDString) SMTG_OVERRIDE
tresult PLUGIN_API	setKnobMode (KnobMode mode) SMTG_OVERRIDE
tresult PLUGIN_API	openHelp (TBool) SMTG_OVERRIDE
tresult PLUGIN_API	openAboutBox (TBool) SMTG_OVERRIDE
tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
virtual tresult	beginEdit (ParamID tag)
	to be called before a serie of performEdit
virtual tresult	performEdit (ParamID tag, ParamValue valueNormalized)
	will inform the host about the value change
virtual tresult	endEdit (ParamID tag)
	to be called after a serie of performEdit
virtual tresult	startGroupEdit ()
	calls IComponentHandler2::startGroupEdit() if host supports it
virtual tresult	finishGroupEdit ()
	calls IComponentHandler2::finishGroupEdit() if host supports it
virtual void	editorDestroyed (EditorView *)
	called from EditorView if it was destroyed
virtual void	editorAttached (EditorView *)
	called from EditorView if it was attached to a parent
virtual void	editorRemoved (EditorView *)
	called from EditorView if it was removed from a parent
virtual Parameter *	getParameterObject (ParamID tag)
virtual tresult	getParameterInfoByTag (ParamID tag, ParameterInfo &info)
virtual tresult	setDirty (TBool state)
virtual tresult	requestOpenEditor (FIDString name=ViewType::kEditor)
IComponentHandler *	getComponentHandler () const
Public Member Functions inherited from Steinberg::Vst::ComponentBase
	ComponentBase ()
	~ComponentBase () override
FUnknown *	getHostContext () const
IConnectionPoint *	getPeer () const
IMessage *	allocateMessage () const
tresult	sendMessage (IMessage *message) const
tresult	sendTextMessage (const char8 *text) const
tresult	sendMessageID (const char8 *messageID) const
virtual tresult	receiveText (const char8 *text)
tresult PLUGIN_API	connect (IConnectionPoint *other) SMTG_OVERRIDE
tresult PLUGIN_API	disconnect (IConnectionPoint *other) SMTG_OVERRIDE
tresult PLUGIN_API	notify (IMessage *message) SMTG_OVERRIDE
Public Member Functions inherited from Steinberg::FObject
	FObject ()
	default constructor...
	FObject (const FObject &)
	overloaded constructor...
virtual	~FObject ()
	destructor...
FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment
virtual FClassID	isA () const
	a local alternative to getFClassID ()
virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type
virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type
int32	getRefCount ()
	returns the current interface reference count
FUnknown *	unknownCast ()
	get FUnknown interface from object
tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()
uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()
uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()
void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes
virtual void	addDependent (IDependent *dep)
	adds dependency to the object
virtual void	removeDependent (IDependent *dep)
	removes dependency from the object
virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.
virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).
virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes
virtual bool	isEqualInstance (FUnknown *d)

Protected Types
using	ProgramListVector = std::vector<IPtr<ProgramList>>
using	ProgramIndexMap = std::map<ProgramListID, ProgramListVector::size_type>
using	UnitVector = std::vector<IPtr<Unit>>

Protected Attributes
UnitVector	units
ProgramListVector	programLists
ProgramIndexMap	programIndexMap
UnitID	selectedUnit
Protected Attributes inherited from Steinberg::Vst::EditController
IComponentHandler *	componentHandler
IComponentHandler2 *	componentHandler2
ParameterContainer	parameters
Protected Attributes inherited from Steinberg::Vst::ComponentBase
IPtr< FUnknown >	hostContext
IPtr< IConnectionPoint >	peerConnection
Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast = kWillDestroy }
Static Public Member Functions inherited from Steinberg::Vst::EditController
static KnobMode	getHostKnobMode ()
	return host knob mode
Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)
static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute
static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute
static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs
static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject
Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid
Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid
Static Public Attributes inherited from Steinberg::IPluginBase
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IConnectionPoint
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IEditController
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IEditController2
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IUnitInfo
static const FUID	iid
Static Protected Attributes inherited from Steinberg::Vst::EditController
static KnobMode	hostKnobMode = kCircularMode
Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler = nullptr

Detailed Description

Advanced implementation (support IUnitInfo) for a VST 3 edit controller.

[extends EditController]

Member Typedef Documentation

◆ ProgramIndexMap

using Steinberg::Vst::EditControllerEx1::ProgramIndexMap = std::map<ProgramListID, ProgramListVector::size_type>

protected

◆ ProgramListVector

using Steinberg::Vst::EditControllerEx1::ProgramListVector = std::vector<IPtr<ProgramList>>

protected

◆ UnitVector

using Steinberg::Vst::EditControllerEx1::UnitVector = std::vector<IPtr<Unit>>

protected

Constructor & Destructor Documentation

◆ EditControllerEx1()

Steinberg::Vst::EditControllerEx1::EditControllerEx1 ( )

◆ ~EditControllerEx1()

Steinberg::Vst::EditControllerEx1::~EditControllerEx1 ( )

override

Member Function Documentation

◆ addProgramList()

bool Steinberg::Vst::EditControllerEx1::addProgramList ( ProgramList * list )

Adds a given program list.

◆ addUnit()

bool Steinberg::Vst::EditControllerEx1::addUnit ( Unit * unit )

Adds a given unit.

◆ getProgramInfo()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramInfo	(	ProgramListID	listId,
		int32	programIndex,
		CString	attributeId,
		String128	attributeValue )

virtual

Gets for a given program list ID, program index and attributeId the associated attribute value.

Implements Steinberg::Vst::IUnitInfo.

◆ getProgramList()

ProgramList * Steinberg::Vst::EditControllerEx1::getProgramList ( ProgramListID listId ) const

Returns the ProgramList associated to a given listId.

◆ getProgramListCount()

int32 PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramListCount ( )

virtual

Component intern program structure. Gets the count of Program List.

Implements Steinberg::Vst::IUnitInfo.

◆ getProgramListInfo()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramListInfo	(	int32	listIndex,
		ProgramListInfo &	info )

virtual

Gets for a given index the Program List Info.

Implements Steinberg::Vst::IUnitInfo.

◆ getProgramName()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramName	(	ProgramListID	listId,
		int32	programIndex,
		String128	name )

virtual

Gets for a given program list ID and program index its program name.

Implements Steinberg::Vst::IUnitInfo.

◆ getProgramPitchName()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getProgramPitchName	(	ProgramListID	listId,
		int32	programIndex,
		int16	midiPitch,
		String128	name )

virtual

Gets the PitchName for a given program list ID, program index and pitch. If PitchNames are changed the plug-in should inform the host with IUnitHandler::notifyProgramListChange.

Implements Steinberg::Vst::IUnitInfo.

◆ getSelectedUnit()

UnitID PLUGIN_API Steinberg::Vst::EditControllerEx1::getSelectedUnit ( )

inlinevirtual

Gets the current selected unit.

Implements Steinberg::Vst::IUnitInfo.

◆ getUnitByBus()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getUnitByBus	(	MediaType	type,
		BusDirection	dir,
		int32	busIndex,
		int32	channel,
		UnitID &	unitId )

inlinevirtual

Gets the according unit if there is an unambiguous relation between a channel or a bus and a unit. This method mainly is intended to find out which unit is related to a given MIDI input channel.

Implements Steinberg::Vst::IUnitInfo.

◆ getUnitCount()

int32 PLUGIN_API Steinberg::Vst::EditControllerEx1::getUnitCount ( )

inlinevirtual

Returns the flat count of units.

Implements Steinberg::Vst::IUnitInfo.

◆ getUnitInfo()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::getUnitInfo	(	int32	unitIndex,
		UnitInfo &	info )

virtual

Gets UnitInfo for a given index in the flat list of unit.

Implements Steinberg::Vst::IUnitInfo.

◆ hasProgramPitchNames()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::hasProgramPitchNames	(	ProgramListID	listId,
		int32	programIndex )

virtual

Returns kResultTrue if the given program index of a given program list ID supports PitchNames.

Implements Steinberg::Vst::IUnitInfo.

◆ notifyProgramListChange()

tresult Steinberg::Vst::EditControllerEx1::notifyProgramListChange	(	ProgramListID	listId,
		int32	programIndex = kAllProgramInvalid )

Notifies the host about program list changes.

◆ notifyUnitSelection()

tresult Steinberg::Vst::EditControllerEx1::notifyUnitSelection ( )

virtual

Notifies the host about the selected Unit.

◆ selectUnit()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::selectUnit ( UnitID unitId )

inlinevirtual

Sets a new selected unit.

Implements Steinberg::Vst::IUnitInfo.

◆ setProgramName()

tresult Steinberg::Vst::EditControllerEx1::setProgramName	(	ProgramListID	listId,
		int32	programIndex,
		const String128	name )

virtual

◆ setUnitProgramData()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::setUnitProgramData	(	int32	listOrUnitId,
		int32	programIndex,
		IBStream *	data )

inlinevirtual

Receives a preset data stream.

If the component supports program list data (IProgramListData), the destination of the data stream is the program specified by list-Id and program index (first and second parameter)
- If the component supports unit data (IUnitData), the destination is the unit specified by the first parameter - in this case parameter programIndex is < 0).

Implements Steinberg::Vst::IUnitInfo.

◆ terminate()

tresult PLUGIN_API Steinberg::Vst::EditControllerEx1::terminate ( )

virtual

This function is called before the plug-in is unloaded and can be used for cleanups. You have to release all references to any host application interfaces.

Reimplemented from Steinberg::Vst::EditController.

◆ update()

void PLUGIN_API Steinberg::Vst::EditControllerEx1::update	(	FUnknown *	changedUnknown,
		int32	message )

virtual

Inform the dependent, that the passed FUnknown has changed.

Implements Steinberg::IDependent.

Member Data Documentation

◆ programIndexMap

ProgramIndexMap Steinberg::Vst::EditControllerEx1::programIndexMap

protected

◆ programLists

ProgramListVector Steinberg::Vst::EditControllerEx1::programLists

protected

◆ selectedUnit

UnitID Steinberg::Vst::EditControllerEx1::selectedUnit

protected

◆ units

UnitVector Steinberg::Vst::EditControllerEx1::units

protected

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/vst/vsteditcontroller.h
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/vst/vsteditcontroller.cpp

Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ProgramIndexMap

◆ ProgramListVector

◆ UnitVector

Constructor & Destructor Documentation

◆ EditControllerEx1()

◆ ~EditControllerEx1()

Member Function Documentation

◆ addProgramList()

◆ addUnit()

◆ getProgramInfo()

◆ getProgramList()

◆ getProgramListCount()

◆ getProgramListInfo()

◆ getProgramName()

◆ getProgramPitchName()

◆ getSelectedUnit()

◆ getUnitByBus()

◆ getUnitCount()

◆ getUnitInfo()

◆ hasProgramPitchNames()

◆ notifyProgramListChange()

◆ notifyUnitSelection()

◆ selectUnit()

◆ setProgramName()

◆ setUnitProgramData()

◆ terminate()

◆ update()

Member Data Documentation

◆ programIndexMap

◆ programLists

◆ selectedUnit

◆ units
