Steinberg::Vst::IConnectionPoint Class Reference

#include <ivstmessage.h>

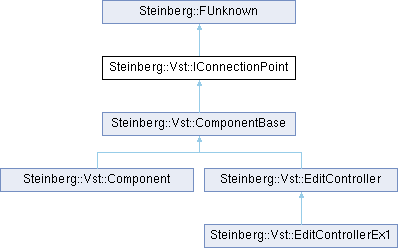

Inheritance diagram for Steinberg::Vst::IConnectionPoint:

Public Member Functions
virtual tresult PLUGIN_API	connect (IConnectionPoint *other)=0
virtual tresult PLUGIN_API	disconnect (IConnectionPoint *other)=0
virtual tresult PLUGIN_API	notify (IMessage *message)=0
Public Member Functions inherited from Steinberg::FUnknown
virtual tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj)=0
virtual uint32 PLUGIN_API	addRef ()=0
virtual uint32 PLUGIN_API	release ()=0

Static Public Attributes
static const FUID	iid
Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Detailed Description

Connect a component with another one: Vst::IConnectionPoint

• [plug imp]
• [host imp]
• [released: 3.0.0]
• [mandatory]

This interface is used for the communication of separate components. Note that some hosts will place a proxy object between the components so that they are not directly connected.

See also

vst3Communication

Member Function Documentation

connect()

virtual tresult PLUGIN_API Steinberg::Vst::IConnectionPoint::connect ( IConnectionPoint * other )

pure virtual

Connects this instance with another connection point.

Implemented in Steinberg::Vst::ComponentBase.

disconnect()

virtual tresult PLUGIN_API Steinberg::Vst::IConnectionPoint::disconnect ( IConnectionPoint * other )

pure virtual

Disconnects a given connection point from this.

Implemented in Steinberg::Vst::ComponentBase.

notify()

virtual tresult PLUGIN_API Steinberg::Vst::IConnectionPoint::notify ( IMessage * message )

pure virtual

Called when a message has been sent from the connection point to this.

Implemented in Steinberg::Vst::ComponentBase.

Member Data Documentation

iid

const FUID Steinberg::Vst::IConnectionPoint::iid

static

---

The documentation for this class was generated from the following file:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/pluginterfaces/vst/ivstmessage.h
