#include <vstcomponentbase.h>

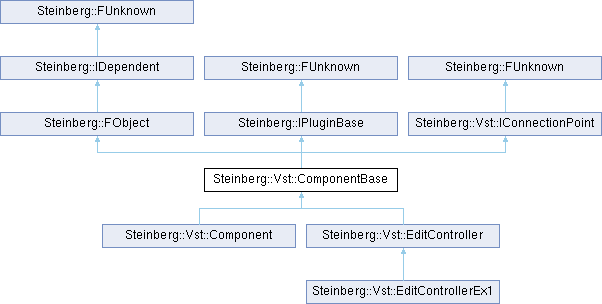

Inheritance diagram for Steinberg::Vst::ComponentBase:

Public Member Functions
	ComponentBase ()
	~ComponentBase () override
FUnknown *	getHostContext () const
IConnectionPoint *	getPeer () const
IMessage *	allocateMessage () const
tresult	sendMessage (IMessage *message) const
tresult	sendTextMessage (const char8 *text) const
tresult	sendMessageID (const char8 *messageID) const
virtual tresult	receiveText (const char8 *text)
tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
tresult PLUGIN_API	terminate () SMTG_OVERRIDE
tresult PLUGIN_API	connect (IConnectionPoint *other) SMTG_OVERRIDE
tresult PLUGIN_API	disconnect (IConnectionPoint *other) SMTG_OVERRIDE
tresult PLUGIN_API	notify (IMessage *message) SMTG_OVERRIDE
Public Member Functions inherited from Steinberg::FObject
	FObject ()
	default constructor...
	FObject (const FObject &)
	overloaded constructor...
virtual	~FObject ()
	destructor...
FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment
virtual FClassID	isA () const
	a local alternative to getFClassID ()
virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type
virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type
int32	getRefCount ()
	returns the current interface reference count
FUnknown *	unknownCast ()
	get FUnknown interface from object
tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()
uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()
uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()
void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes
virtual void	addDependent (IDependent *dep)
	adds dependency to the object
virtual void	removeDependent (IDependent *dep)
	removes dependency from the object
virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.
virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).
virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes
virtual bool	isEqualInstance (FUnknown *d)

Protected Attributes
IPtr< FUnknown >	hostContext
IPtr< IConnectionPoint >	peerConnection
Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast = kWillDestroy }
Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)
static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute
static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute
static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs
static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject
Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid
Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid
Static Public Attributes inherited from Steinberg::IPluginBase
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IConnectionPoint
static const FUID	iid
Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler = nullptr

Detailed Description

Base class for VST 3 Component and Edit Controller.

Constructor & Destructor Documentation

◆ ComponentBase()

Steinberg::Vst::ComponentBase::ComponentBase ( )

◆ ~ComponentBase()

Steinberg::Vst::ComponentBase::~ComponentBase ( )

override

Member Function Documentation

◆ allocateMessage()

IMessage * Steinberg::Vst::ComponentBase::allocateMessage ( ) const

Allocates a message instance (do not forget to release it).

◆ connect()

tresult PLUGIN_API Steinberg::Vst::ComponentBase::connect ( IConnectionPoint * other )

virtual

Connects this instance with another connection point.

Implements Steinberg::Vst::IConnectionPoint.

◆ disconnect()

tresult PLUGIN_API Steinberg::Vst::ComponentBase::disconnect ( IConnectionPoint * other )

virtual

Disconnects a given connection point from this.

Implements Steinberg::Vst::IConnectionPoint.

◆ getHostContext()

FUnknown * Steinberg::Vst::ComponentBase::getHostContext ( ) const

inline

Returns the hostContext (set by the host during initialize call).

◆ getPeer()

IConnectionPoint * Steinberg::Vst::ComponentBase::getPeer ( ) const

inline

Returns the peer for the messaging communication (you can only use IConnectionPoint::notify for communicate between peers, do not try to cast peerConnection.

◆ initialize()

tresult PLUGIN_API Steinberg::Vst::ComponentBase::initialize ( FUnknown * context )

virtual

The host passes a number of interfaces as context to initialize the plug-in class.

Note: Extensive memory allocations etc. should be performed in this method rather than in the class' constructor! If the method does NOT return kResultOk, the object is released immediately. In this case terminate is not called!

Implements Steinberg::IPluginBase.

Reimplemented in Steinberg::Vst::EditController.

◆ notify()

tresult PLUGIN_API Steinberg::Vst::ComponentBase::notify ( IMessage * message )

virtual

Called when a message has been sent from the connection point to this.

Implements Steinberg::Vst::IConnectionPoint.

◆ receiveText()

tresult Steinberg::Vst::ComponentBase::receiveText ( const char8 * text )

virtual

Receives a simple text message from the peer (max 255 characters). Text is UTF-8 encoded.

◆ sendMessage()

tresult Steinberg::Vst::ComponentBase::sendMessage ( IMessage * message ) const

Sends the given message to the peer.

◆ sendMessageID()

tresult Steinberg::Vst::ComponentBase::sendMessageID ( const char8 * messageID ) const

Sends a message with a given ID without any other payload.

◆ sendTextMessage()

tresult Steinberg::Vst::ComponentBase::sendTextMessage ( const char8 * text ) const

Sends a simple text message to the peer (max 255 characters). Text is interpreted as UTF-8.

◆ terminate()

tresult PLUGIN_API Steinberg::Vst::ComponentBase::terminate ( )

virtual

This function is called before the plug-in is unloaded and can be used for cleanups. You have to release all references to any host application interfaces.

Implements Steinberg::IPluginBase.

Reimplemented in Steinberg::Vst::EditController, and Steinberg::Vst::EditControllerEx1.

Member Data Documentation

◆ hostContext

IPtr<FUnknown> Steinberg::Vst::ComponentBase::hostContext

protected

◆ peerConnection

IPtr<IConnectionPoint> Steinberg::Vst::ComponentBase::peerConnection

protected

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/vst/vstcomponentbase.h
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/vst/vstcomponentbase.cpp
