#include <vstcomponent.h>

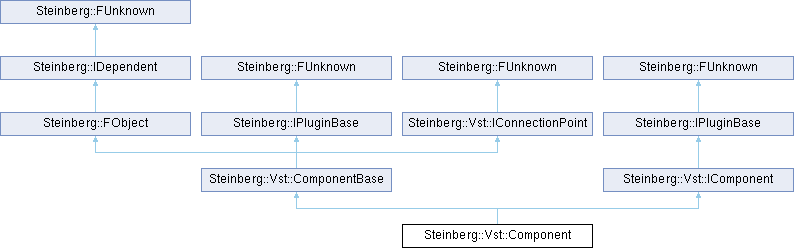

Inheritance diagram for Steinberg::Vst::Component:

Public Member Functions
	Component ()
void	setControllerClass (const FUID &cid)
tresult	removeAudioBusses ()
tresult	removeEventBusses ()
tresult	renameBus (MediaType type, BusDirection dir, int32 index, const String128 newName)
tresult PLUGIN_API	getControllerClassId (TUID classID) SMTG_OVERRIDE
tresult PLUGIN_API	setIoMode (IoMode mode) SMTG_OVERRIDE
int32 PLUGIN_API	getBusCount (MediaType type, BusDirection dir) SMTG_OVERRIDE
tresult PLUGIN_API	getBusInfo (MediaType type, BusDirection dir, int32 index, BusInfo &info) SMTG_OVERRIDE
tresult PLUGIN_API	getRoutingInfo (RoutingInfo &inInfo, RoutingInfo &outInfo) SMTG_OVERRIDE
tresult PLUGIN_API	activateBus (MediaType type, BusDirection dir, int32 index, TBool state) SMTG_OVERRIDE
tresult PLUGIN_API	setActive (TBool state) SMTG_OVERRIDE
tresult PLUGIN_API	setState (IBStream *state) SMTG_OVERRIDE
tresult PLUGIN_API	getState (IBStream *state) SMTG_OVERRIDE
tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
tresult PLUGIN_API	terminate () SMTG_OVERRIDE
Public Member Functions inherited from Steinberg::Vst::ComponentBase
	ComponentBase ()
	~ComponentBase () override
FUnknown *	getHostContext () const
IConnectionPoint *	getPeer () const
IMessage *	allocateMessage () const
tresult	sendMessage (IMessage *message) const
tresult	sendTextMessage (const char8 *text) const
tresult	sendMessageID (const char8 *messageID) const
virtual tresult	receiveText (const char8 *text)
tresult PLUGIN_API	initialize (FUnknown *context) SMTG_OVERRIDE
tresult PLUGIN_API	terminate () SMTG_OVERRIDE
tresult PLUGIN_API	connect (IConnectionPoint *other) SMTG_OVERRIDE
tresult PLUGIN_API	disconnect (IConnectionPoint *other) SMTG_OVERRIDE
tresult PLUGIN_API	notify (IMessage *message) SMTG_OVERRIDE
Public Member Functions inherited from Steinberg::FObject
	FObject ()
	default constructor...
	FObject (const FObject &)
	overloaded constructor...
virtual	~FObject ()
	destructor...
FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment
virtual FClassID	isA () const
	a local alternative to getFClassID ()
virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type
virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type
int32	getRefCount ()
	returns the current interface reference count
FUnknown *	unknownCast ()
	get FUnknown interface from object
tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()
uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()
uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()
void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes
virtual void	addDependent (IDependent *dep)
	adds dependency to the object
virtual void	removeDependent (IDependent *dep)
	removes dependency from the object
virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.
virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).
virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes
virtual bool	isEqualInstance (FUnknown *d)

Protected Member Functions
BusList *	getBusList (MediaType type, BusDirection dir)
tresult	removeAllBusses ()

Protected Attributes
FUID	controllerClass
BusList	audioInputs
BusList	audioOutputs
BusList	eventInputs
BusList	eventOutputs
Protected Attributes inherited from Steinberg::Vst::ComponentBase
IPtr< FUnknown >	hostContext
IPtr< IConnectionPoint >	peerConnection
Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast = kWillDestroy }
Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)
static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute
static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute
static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs
static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject
Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid
Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid
Static Public Attributes inherited from Steinberg::IPluginBase
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IConnectionPoint
static const FUID	iid
Static Public Attributes inherited from Steinberg::Vst::IComponent
static const FUID	iid
Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler = nullptr

Detailed Description

Default implementation for a VST 3 Component.

Can be used as base class for a VST 3 component implementation.

Constructor & Destructor Documentation

◆ Component()

Steinberg::Vst::Component::Component ( )

Constructor

Member Function Documentation

◆ activateBus()

tresult PLUGIN_API Steinberg::Vst::Component::activateBus	(	MediaType	type,
		BusDirection	dir,
		int32	index,
		TBool	state )

virtual

Called upon (de-)activating a bus in the host application. The plug-in should only processed an activated bus, the host could provide less see AudioBusBuffers in the process call (see IAudioProcessor::process) if last busses are not activated. An already activated bus does not need to be reactivated after a IAudioProcessor::setBusArrangements call.

Implements Steinberg::Vst::IComponent.

◆ getBusCount()

int32 PLUGIN_API Steinberg::Vst::Component::getBusCount	(	MediaType	type,
		BusDirection	dir )

virtual

Called after the plug-in is initialized. See MediaTypes, BusDirections

Implements Steinberg::Vst::IComponent.

◆ getBusInfo()

tresult PLUGIN_API Steinberg::Vst::Component::getBusInfo	(	MediaType	type,
		BusDirection	dir,
		int32	index,
		BusInfo &	bus )

virtual

Called after the plug-in is initialized. See MediaTypes, BusDirections

Implements Steinberg::Vst::IComponent.

◆ getBusList()

BusList * Steinberg::Vst::Component::getBusList	(	MediaType	type,
		BusDirection	dir )

protected

◆ getControllerClassId()

tresult PLUGIN_API Steinberg::Vst::Component::getControllerClassId ( TUID classId )

virtual

Called before initializing the component to get information about the controller class.

Implements Steinberg::Vst::IComponent.

◆ getRoutingInfo()

tresult PLUGIN_API Steinberg::Vst::Component::getRoutingInfo	(	RoutingInfo &	inInfo,
		RoutingInfo &	outInfo )

virtual

Retrieves routing information (to be implemented when more than one regular input or output bus exists). The inInfo always refers to an input bus while the returned outInfo must refer to an output bus!

Implements Steinberg::Vst::IComponent.

◆ getState()

tresult PLUGIN_API Steinberg::Vst::Component::getState ( IBStream * state )

virtual

Retrieves complete state of component.

Implements Steinberg::Vst::IComponent.

◆ initialize()

tresult PLUGIN_API Steinberg::Vst::Component::initialize ( FUnknown * context )

virtual

The host passes a number of interfaces as context to initialize the plug-in class.

Note: Extensive memory allocations etc. should be performed in this method rather than in the class' constructor! If the method does NOT return kResultOk, the object is released immediately. In this case terminate is not called!

Implements Steinberg::IPluginBase.

◆ removeAllBusses()

tresult Steinberg::Vst::Component::removeAllBusses ( )

protected

◆ removeAudioBusses()

tresult Steinberg::Vst::Component::removeAudioBusses ( )

Removes all Audio Busses.

◆ removeEventBusses()

tresult Steinberg::Vst::Component::removeEventBusses ( )

Removes all Event Busses.

◆ renameBus()

tresult Steinberg::Vst::Component::renameBus	(	MediaType	type,
		BusDirection	dir,
		int32	index,
		const String128	newName )

Renames a specific bus. Do not forget to inform the host about this (see IComponentHandler::restartComponent (kIoTitlesChanged)).

◆ setActive()

tresult PLUGIN_API Steinberg::Vst::Component::setActive ( TBool state )

virtual

Activates / deactivates the component.

Implements Steinberg::Vst::IComponent.

◆ setControllerClass()

void Steinberg::Vst::Component::setControllerClass ( const FUID & cid )

inline

Sets the controller Class ID associated to its component.

◆ setIoMode()

tresult PLUGIN_API Steinberg::Vst::Component::setIoMode ( IoMode mode )

virtual

Called before 'initialize' to set the component usage (optional). See IoModes

Implements Steinberg::Vst::IComponent.

◆ setState()

tresult PLUGIN_API Steinberg::Vst::Component::setState ( IBStream * state )

virtual

Sets complete state of component.

Implements Steinberg::Vst::IComponent.

◆ terminate()

tresult PLUGIN_API Steinberg::Vst::Component::terminate ( )

virtual

This function is called before the plug-in is unloaded and can be used for cleanups. You have to release all references to any host application interfaces.

Implements Steinberg::IPluginBase.

Member Data Documentation

◆ audioInputs

BusList Steinberg::Vst::Component::audioInputs

protected

◆ audioOutputs

BusList Steinberg::Vst::Component::audioOutputs

protected

◆ controllerClass

FUID Steinberg::Vst::Component::controllerClass

protected

◆ eventInputs

BusList Steinberg::Vst::Component::eventInputs

protected

◆ eventOutputs

BusList Steinberg::Vst::Component::eventOutputs

protected

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/vst/vstcomponent.h
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/vst/vstcomponent.cpp
