Steinberg::IBStream Class Reference

#include <ibstream.h>

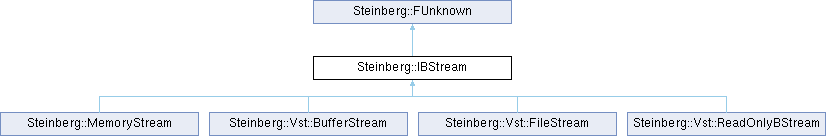

Inheritance diagram for Steinberg::IBStream:

Public Types
enum	IStreamSeekMode { kIBSeekSet = 0 , kIBSeekCur , kIBSeekEnd }

Public Member Functions
virtual tresult PLUGIN_API	read (void *buffer, int32 numBytes, int32 *numBytesRead=nullptr)=0
virtual tresult PLUGIN_API	write (void *buffer, int32 numBytes, int32 *numBytesWritten=nullptr)=0
virtual tresult PLUGIN_API	seek (int64 pos, int32 mode, int64 *result=nullptr)=0
virtual tresult PLUGIN_API	tell (int64 *pos)=0
Public Member Functions inherited from Steinberg::FUnknown
virtual tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj)=0
virtual uint32 PLUGIN_API	addRef ()=0
virtual uint32 PLUGIN_API	release ()=0

Static Public Attributes
static const FUID	iid
Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid

Detailed Description

Base class for streams.

• read/write binary data from/to stream
• get/set stream read-write position (read and write position is the same)

Member Enumeration Documentation

IStreamSeekMode

enum Steinberg::IBStream::IStreamSeekMode

Enumerator
kIBSeekSet	set absolute seek position
kIBSeekCur	set seek position relative to current position
kIBSeekEnd	set seek position relative to stream end

Member Function Documentation

read()

virtual tresult PLUGIN_API Steinberg::IBStream::read ( void * buffer, int32 numBytes, int32 * numBytesRead = nullptr )

pure virtual

Reads binary data from stream.

Parameters

buffer	: destination buffer
numBytes	: amount of bytes to be read
numBytesRead	: result - how many bytes have been read from stream (set to 0 if this is of no interest)

Implemented in Steinberg::MemoryStream, Steinberg::Vst::BufferStream, Steinberg::Vst::FileStream, and Steinberg::Vst::ReadOnlyBStream.

seek()

virtual tresult PLUGIN_API Steinberg::IBStream::seek ( int64 pos, int32 mode, int64 * result = nullptr )

pure virtual

Sets stream read-write position.

Parameters

pos	: new stream position (dependent on mode)
mode	: value of enum IStreamSeekMode
result	: new seek position (set to 0 if this is of no interest)

Implemented in Steinberg::MemoryStream, Steinberg::Vst::BufferStream, Steinberg::Vst::FileStream, and Steinberg::Vst::ReadOnlyBStream.

tell()

virtual tresult PLUGIN_API Steinberg::IBStream::tell ( int64 * pos )

pure virtual

Gets current stream read-write position.

Parameters

pos	: is assigned the current position if function succeeds

Implemented in Steinberg::MemoryStream, Steinberg::Vst::BufferStream, Steinberg::Vst::FileStream, and Steinberg::Vst::ReadOnlyBStream.

write()

virtual tresult PLUGIN_API Steinberg::IBStream::write ( void * buffer, int32 numBytes, int32 * numBytesWritten = nullptr )

pure virtual

Writes binary data to stream.

Parameters

buffer	: source buffer
numBytes	: amount of bytes to write
numBytesWritten	: result - how many bytes have been written to stream (set to 0 if this is of no interest)

Implemented in Steinberg::MemoryStream, Steinberg::Vst::BufferStream, Steinberg::Vst::FileStream, and Steinberg::Vst::ReadOnlyBStream.

Member Data Documentation

iid

const FUID Steinberg::IBStream::iid

static

---

The documentation for this class was generated from the following file:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/pluginterfaces/base/ibstream.h
