lmms::Plugin Class Reference

#include <Plugin.h>

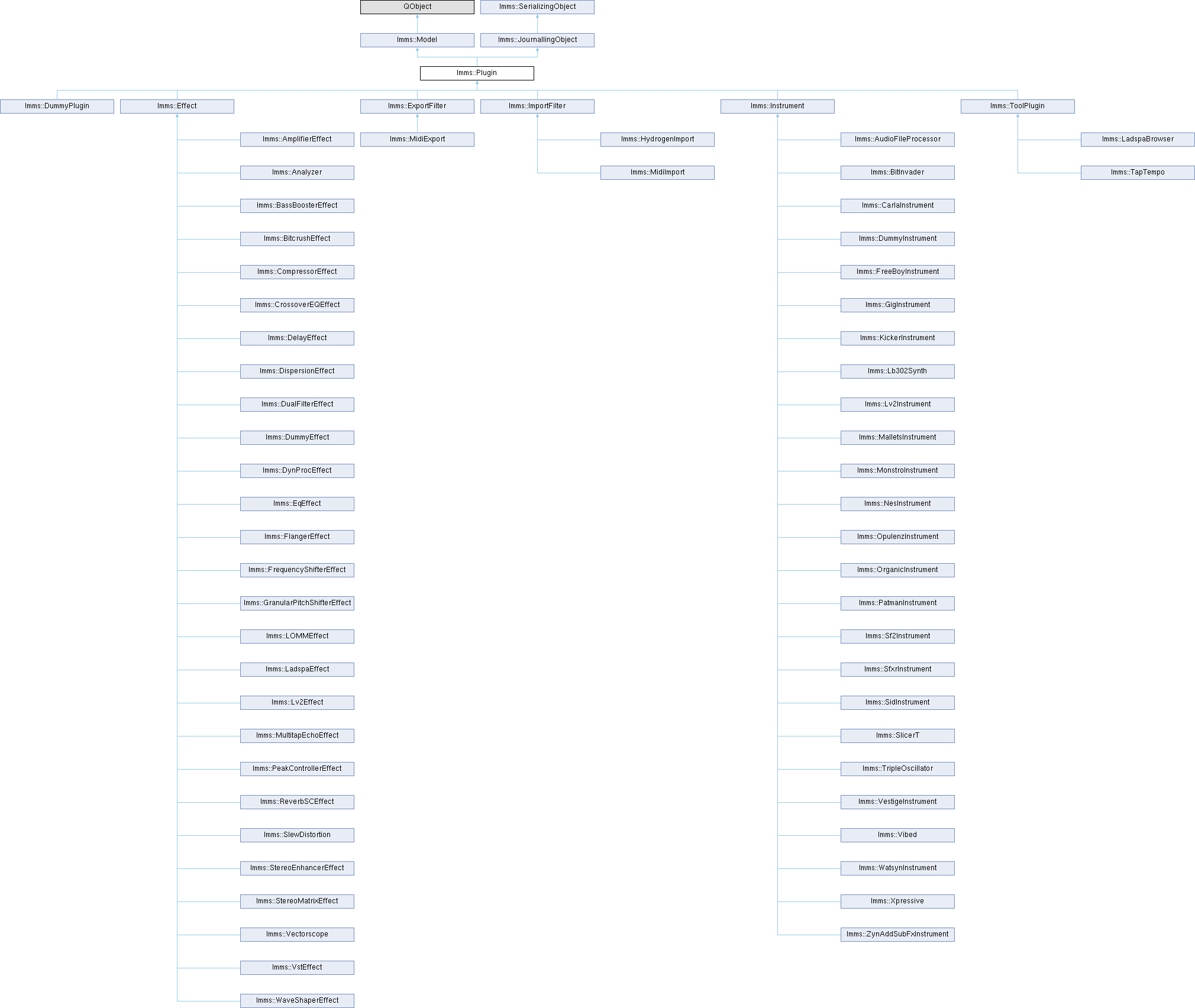

Inheritance diagram for lmms::Plugin:

Classes
struct	Descriptor

Public Types
enum class	Type {   Instrument , Effect , ImportFilter , ExportFilter ,   Tool , Library , Other , Undefined = 255 }
using	DescriptorList = QList<Descriptor*>

Public Member Functions
	Plugin (const Descriptor *descriptor, Model *parent, const Descriptor::SubPluginFeatures::Key *key=nullptr)
	~Plugin () override=default
QString	displayName () const override
	Return display-name out of sub plugin or descriptor.
const PixmapLoader *	logo () const
	Return logo out of sub plugin or descriptor.
Type	type () const
	Return plugin type.
const Descriptor *	descriptor () const
	Return plugin Descriptor.
const Descriptor::SubPluginFeatures::Key &	key () const
virtual void	loadFile (const QString &file)
virtual AutomatableModel *	childModel (const QString &modelName)
gui::PluginView *	createView (QWidget *parent)
	Create a view for the model.
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
virtual QString	nodeName () const =0
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Static Public Member Functions
static Plugin *	instantiateWithKey (const QString &pluginName, Model *parent, const Descriptor::SubPluginFeatures::Key *key, bool keyFromDnd=false)
static Plugin *	instantiate (const QString &pluginName, Model *parent, void *data)

Protected Member Functions
virtual gui::PluginView *	instantiateView (QWidget *)=0
	Create a view for the model.
void	collectErrorForUI (QString errMsg)
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)
Protected Member Functions inherited from lmms::SerializingObject
virtual void	saveSettings (QDomDocument &doc, QDomElement &element)=0
virtual void	loadSettings (const QDomElement &element)=0

Private Types
using	InstantiationHook = Plugin* (*)(Model*, void*)

Private Attributes
const Descriptor *	m_descriptor
Descriptor::SubPluginFeatures::Key	m_key

Additional Inherited Members
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()

Detailed Description

Abstract representation of a plugin

Such a plugin can be an Instrument, Effect, Tool plugin etc.

Plugins have descriptors, containing meta info, which is used especially by PluginFactory and friends.

There are also Plugin keys (class Key, confusingly under SubPluginFeatures), which contain pointers to the plugin descriptor.

Some plugins have sub plugins, e.g. there is one CALF Plugin and for each CALF effect, there is a CALF sub plugin. For those plugins, there are keys for each sub plugin. These keys also link to the superior Plugin::Descriptor. Additionally, they contain attributes that help the superior Plugin saving them and recognizing them when loading.

In case of sub plugins, the Descriptor has SubPluginFeatures. Those are a bit like values to the sub plugins' keys (in terms of a key-value- map).

Member Typedef Documentation

DescriptorList

using lmms::Plugin::DescriptorList = QList<Descriptor*>

InstantiationHook

using lmms::Plugin::InstantiationHook = Plugin* (*)(Model*, void*)

private

Member Enumeration Documentation

Type

enum class lmms::Plugin::Type

strong

Enumerator
Instrument
Effect
ImportFilter
ExportFilter
Tool
Library
Other
Undefined

Constructor & Destructor Documentation

Plugin()

Plugin::Plugin	(	const Descriptor *	descriptor,
		Model *	parent,
		const Descriptor::SubPluginFeatures::Key *	key = nullptr )

Constructor of a plugin

Parameters

key	Sub plugins must pass a key here, optional otherwise. See the key() function

~Plugin()

lmms::Plugin::~Plugin ( )

overridedefault

Member Function Documentation

childModel()

AutomatableModel * Plugin::childModel ( const QString & modelName )

virtual

Called if external source needs to change something but we cannot reference the class header. Should return null if not key not found.

Reimplemented in lmms::GigInstrument, and lmms::Sf2Instrument.

collectErrorForUI()

void Plugin::collectErrorForUI ( QString errMsg )

protected

createView()

gui::PluginView * Plugin::createView

(

QWidget *

parent

)

Create a view for the model.

descriptor()

const Descriptor * lmms::Plugin::descriptor ( ) const

inline

Return plugin Descriptor.

displayName()

QString Plugin::displayName ( ) const

overridevirtual

Return display-name out of sub plugin or descriptor.

Reimplemented from lmms::Model.

instantiate()

Plugin * Plugin::instantiate ( const QString & pluginName, Model * parent, void * data )

static

Return an instance of a plugin whose name matches to given one if specified plugin couldn't be loaded, it creates a dummy-plugin

Parameters

data	Anything the plugin expects. If this is a pointer to a sub plugin key, use instantiateWithKey instead

instantiateView()

virtual gui::PluginView * lmms::Plugin::instantiateView ( QWidget * )

protectedpure virtual

Create a view for the model.

Implemented in lmms::AudioFileProcessor, lmms::BitInvader, lmms::CarlaInstrument, lmms::DummyInstrument, lmms::DummyPlugin, lmms::Effect, lmms::FreeBoyInstrument, lmms::GigInstrument, lmms::HydrogenImport, lmms::KickerInstrument, lmms::LadspaBrowser, lmms::Lb302Synth, lmms::Lv2Instrument, lmms::MalletsInstrument, lmms::MidiExport, lmms::MidiImport, lmms::MonstroInstrument, lmms::NesInstrument, lmms::OpulenzInstrument, lmms::OrganicInstrument, lmms::PatmanInstrument, lmms::Sf2Instrument, lmms::SfxrInstrument, lmms::SidInstrument, lmms::SlicerT, lmms::TapTempo, lmms::TripleOscillator, lmms::VestigeInstrument, lmms::Vibed, lmms::WatsynInstrument, lmms::Xpressive, and lmms::ZynAddSubFxInstrument.

instantiateWithKey()

Plugin * Plugin::instantiateWithKey ( const QString & pluginName, Model * parent, const Descriptor::SubPluginFeatures::Key * key, bool keyFromDnd = false )

static

Overload if the argument passed to the plugin is a subPluginKey If you can not pass the key and are aware that it's stored in Engine::pickDndPluginKey(), use this function, too

key()

const Descriptor::SubPluginFeatures::Key & lmms::Plugin::key ( ) const

inline

Return the key referencing this plugin. If the Plugin has no sub plugin features, the key is pretty useless. If it has, this key will also contain the sub plugin attributes, and will be a key to those SubPluginFeatures.

loadFile()

void Plugin::loadFile ( const QString & file )

virtual

Can be called if a file matching supportedFileTypes should be loaded/processed with the help of this plugin

Reimplemented in lmms::AudioFileProcessor, lmms::GigInstrument, lmms::Lv2Instrument, lmms::OpulenzInstrument, lmms::PatmanInstrument, lmms::Sf2Instrument, lmms::SlicerT, lmms::VestigeInstrument, and lmms::ZynAddSubFxInstrument.

logo()

const PixmapLoader * Plugin::logo

(

)

const

Return logo out of sub plugin or descriptor.

type()

Type lmms::Plugin::type ( ) const

inline

Return plugin type.

Member Data Documentation

m_descriptor

const Descriptor* lmms::Plugin::m_descriptor

private

m_key

Descriptor::SubPluginFeatures::Key lmms::Plugin::m_key

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/Plugin.h
• /home/runner/work/lmms-fork/lmms-fork/src/core/Plugin.cpp
