#include <Lb302.h>

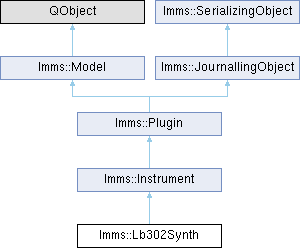

Inheritance diagram for lmms::Lb302Synth:

Public Slots
void	filterChanged ()
void	decayChanged ()
	Adjusts m_fs 's Lb302FilterKnobState::envdecay for both sampling rate and s_envInc.
void	db24Toggled ()

Public Member Functions
	Lb302Synth (InstrumentTrack *)
void	play (SampleFrame *working_buffer) override
void	playNote (NotePlayHandle nph, SampleFrame working_buffer) override
void	deleteNotePluginData (NotePlayHandle *nph) override
void	saveSettings (QDomDocument &doc, QDomElement &el) override
void	loadSettings (const QDomElement &el) override
QString	nodeName () const override
gui::PluginView *	instantiateView (QWidget *parent) override
	Create a view for the model.
Public Member Functions inherited from lmms::Instrument
	Instrument (InstrumentTrack _instrument_track, const Descriptor _descriptor, const Descriptor::SubPluginFeatures::Key *key=nullptr, Flags flags=Flag::NoFlags)
	~Instrument () override=default
virtual bool	hasNoteInput () const
virtual f_cnt_t	beatLen (NotePlayHandle *_n) const
virtual float	desiredReleaseTimeMs () const
f_cnt_t	desiredReleaseFrames () const
sample_rate_t	getSampleRate () const
bool	isSingleStreamed () const
bool	isMidiBased () const
bool	isBendable () const
virtual bool	handleMidiEvent (const MidiEvent &, const TimePos &=TimePos(), f_cnt_t offset=0)
QString	fullDisplayName () const override
virtual bool	isFromTrack (const Track *_track) const
InstrumentTrack *	instrumentTrack () const
Public Member Functions inherited from lmms::Plugin
	Plugin (const Descriptor descriptor, Model parent, const Descriptor::SubPluginFeatures::Key *key=nullptr)
	~Plugin () override=default
QString	displayName () const override
	Return display-name out of sub plugin or descriptor.
const PixmapLoader *	logo () const
	Return logo out of sub plugin or descriptor.
Type	type () const
	Return plugin type.
const Descriptor *	descriptor () const
	Return plugin Descriptor.
const Descriptor::SubPluginFeatures::Key &	key () const
virtual void	loadFile (const QString &file)
virtual AutomatableModel *	childModel (const QString &modelName)
gui::PluginView *	createView (QWidget *parent)
	Create a view for the model.
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual void	setDisplayName (const QString &displayName)
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Private Types
enum class	VcoShape { Sawtooth , Triangle , Square , RoundSquare , Moog , Sine , Exponential , WhiteNoise , BLSawtooth , BLSquare , BLTriangle , BLMoog }
enum class	VcaMode { Attack , Decay , Idle , NeverPlayed }

Private Member Functions
void	processNote (NotePlayHandle *nph)
void	process (SampleFrame *outbuf, const f_cnt_t size)
void	recalcFilter ()
Lb302Filter &	vcf ()
	Helper to get current vcf.

Private Attributes
FloatModel	m_vcfCutKnob
FloatModel	m_vcfResKnob
FloatModel	m_vcfModKnob
FloatModel	m_vcfDecKnob
FloatModel	m_vcoDetuneKnob
FloatModel	m_distKnob
IntModel	m_waveShape
FloatModel	m_slideDecKnob
BoolModel	m_slideToggle
BoolModel	m_accentToggle
BoolModel	m_deadToggle
BoolModel	m_db24Toggle
float	m_vcoInc = 0.f
	Sample increment for the frequency. Creates Sawtooth.
float	m_vcoK = 0.f
	Raw oscillator sample [-0.5, 0.5].
float	m_vcoC = 0.f
	Raw oscillator sample [-0.5, 0.5].
bool	m_newFreq = false
float	m_trueFreq = 0.f
float	m_slide = 0.f
	Current value of slide exponential curve. Nonzero=sliding.
float	m_slideInc = 0.f
	Slide base to use in next node. Nonzero=slide next note.
float	m_slideBase = 0.f
	The base m_vcoInc while sliding.
VcoShape	m_vcoShape = VcoShape::BLSawtooth
Lb302FilterKnobState	m_fs = {}
std::array< std::unique_ptr< Lb302Filter >, 2 >	m_vcfs
	Filters (just keep both loaded and switch).
f_cnt_t	m_vcfEnvPos = s_envInc
	Update counter. Updates when >= s_envInc.
f_cnt_t	m_releaseFrame = 0
float	m_vca = 0.f
	Amplifier coefficient.
float	m_noteVolume = 1.f
	The per-note volume (velocity) of the most recent note, within [0, 1].
panning_t	m_notePan = DefaultPanning
	The per-note panning of the most recent note.
VcaMode	m_vcaMode = VcaMode::NeverPlayed
NotePlayHandle *	m_playingNote = nullptr
std::array< NotePlayHandle *, s_maxPendingNotes >	m_notes {}
	Backing array for the multiple-producer single-consumer realtime-safe ring buffer queue for note events.
std::atomic_size_t	m_notesReadSeq {0}
	Sequence number indicating complete dequeue operations.
std::atomic_size_t	m_notesWriteCommitted {0}
	Sequence number indicating complete enqueue operations.
std::atomic_size_t	m_notesWriteClaimed {0}
	Sequence number indicating in-progress enqueue operations.

Static Private Attributes
static constexpr float	s_distRatio = 4.f
static constexpr f_cnt_t	s_envInc = 64
	Envelope Recalculation period
static constexpr float	s_vcaAttack = 1.f - 0.96406088f
	Amplitude attack.
static constexpr float	s_vcaInitial = 0.5f
	Initial amplifier coefficient.
static constexpr std::size_t	s_maxPendingNotes = 128
	The maximum number of note events Lb302 can process per audio buffer.
static constexpr std::size_t	s_maxNoteEnqueueRetries = s_maxPendingNotes
	The maximum number of retries permitted per enqueue operation before a note is dropped.
static constexpr std::size_t	s_notesBufMask = s_maxPendingNotes - 1
	Bitmask used to wrap arbitrary indicies within the bounds of m_notes.

Friends
class	gui::Lb302SynthView

Additional Inherited Members
Public Types inherited from lmms::Instrument
enum class	Flag { NoFlags = 0x00 , IsSingleStreamed = 0x01 , IsMidiBased = 0x02 , IsNotBendable = 0x04 }
using	Flags = lmms::Flags<Flag>
Public Types inherited from lmms::Plugin
enum class	Type { Instrument , Effect , ImportFilter , ExportFilter , Tool , Library , Other , Undefined = 255 }
using	DescriptorList = QList<Descriptor*>
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()
Static Public Member Functions inherited from lmms::Instrument
static Instrument *	instantiate (const QString &_plugin_name, InstrumentTrack _instrument_track, const Plugin::Descriptor::SubPluginFeatures::Key key, bool keyFromDnd=false)
Static Public Member Functions inherited from lmms::Plugin
static Plugin *	instantiateWithKey (const QString &pluginName, Model parent, const Descriptor::SubPluginFeatures::Key key, bool keyFromDnd=false)
static Plugin *	instantiate (const QString &pluginName, Model parent, void data)
Protected Member Functions inherited from lmms::Instrument
void	applyFadeIn (SampleFrame buf, NotePlayHandle n)
void	applyRelease (SampleFrame buf, const NotePlayHandle _n)
float	computeReleaseTimeMsByFrameCount (f_cnt_t frames) const
Protected Member Functions inherited from lmms::Plugin
void	collectErrorForUI (QString errMsg)
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Member Enumeration Documentation

◆ VcaMode

enum class lmms::Lb302Synth::VcaMode

strongprivate

Enumerator
Attack
Decay
Idle
NeverPlayed

◆ VcoShape

enum class lmms::Lb302Synth::VcoShape

strongprivate

Enumerator
Sawtooth
Triangle
Square
RoundSquare
Moog
Sine
Exponential
WhiteNoise
BLSawtooth
BLSquare
BLTriangle
BLMoog

Constructor & Destructor Documentation

◆ Lb302Synth()

lmms::Lb302Synth::Lb302Synth ( InstrumentTrack * instrumentTrack )

Member Function Documentation

◆ db24Toggled

void lmms::Lb302Synth::db24Toggled ( )

slot

◆ decayChanged

void lmms::Lb302Synth::decayChanged ( )

slot

Adjusts m_fs 's Lb302FilterKnobState::envdecay for both sampling rate and s_envInc.

◆ deleteNotePluginData()

void lmms::Lb302Synth::deleteNotePluginData ( NotePlayHandle * nph )

overridevirtual

Reimplemented from lmms::Instrument.

◆ filterChanged

void lmms::Lb302Synth::filterChanged ( )

slot

◆ instantiateView()

gui::PluginView * lmms::Lb302Synth::instantiateView ( QWidget * )

overridevirtual

Create a view for the model.

Implements lmms::Plugin.

◆ loadSettings()

void lmms::Lb302Synth::loadSettings ( const QDomElement & el )

overridevirtual

Implements lmms::SerializingObject.

◆ nodeName()

QString lmms::Lb302Synth::nodeName ( void ) const

overridevirtual

Implements lmms::SerializingObject.

◆ play()

void lmms::Lb302Synth::play ( SampleFrame * working_buffer )

overridevirtual

Reimplemented from lmms::Instrument.

◆ playNote()

void lmms::Lb302Synth::playNote	(	NotePlayHandle *	nph,
		SampleFrame *	working_buffer )

overridevirtual

Reimplemented from lmms::Instrument.

◆ process()

void lmms::Lb302Synth::process	(	SampleFrame *	outbuf,
		const f_cnt_t	size )

private

◆ processNote()

void lmms::Lb302Synth::processNote ( NotePlayHandle * nph )

private

Start a new note.

◆ recalcFilter()

void lmms::Lb302Synth::recalcFilter ( )

private

◆ saveSettings()

void lmms::Lb302Synth::saveSettings	(	QDomDocument &	doc,
		QDomElement &	el )

overridevirtual

Implements lmms::SerializingObject.

◆ vcf()

Lb302Filter & lmms::Lb302Synth::vcf ( )

inlineprivate

Helper to get current vcf.

See also: m_vcfs; db24Toggle

◆ gui::Lb302SynthView

friend class gui::Lb302SynthView

friend

Member Data Documentation

◆ m_accentToggle

BoolModel lmms::Lb302Synth::m_accentToggle

private

◆ m_db24Toggle

BoolModel lmms::Lb302Synth::m_db24Toggle

private

◆ m_deadToggle

BoolModel lmms::Lb302Synth::m_deadToggle

private

◆ m_distKnob

FloatModel lmms::Lb302Synth::m_distKnob

private

◆ m_fs

Lb302FilterKnobState lmms::Lb302Synth::m_fs = {}

private

◆ m_newFreq

bool lmms::Lb302Synth::m_newFreq = false

private

◆ m_notePan

panning_t lmms::Lb302Synth::m_notePan = DefaultPanning

private

The per-note panning of the most recent note.

◆ m_notes

std::array<NotePlayHandle*, s_maxPendingNotes> lmms::Lb302Synth::m_notes {}

private

Backing array for the multiple-producer single-consumer realtime-safe ring buffer queue for note events.

This is used to implement monophony, since multiple LMMS threads can independently send note events to an instance of Lb302.

See also: s_maxPendingNotes; m_notesReadSeq; m_notesWriteCommitted; m_notesWriteClaimed

◆ m_notesReadSeq

std::atomic_size_t lmms::Lb302Synth::m_notesReadSeq {0}

private

Sequence number indicating complete dequeue operations.

As notes are dequeued, this sequence number is incremented. It can be used as an index into m_notes if bitwise-AND'd with s_notesBufMask.

The difference between this sequence number and m_notesReadSeq is the number of currently vacant indicies in m_notes that are available to be written to, and can never exceed s_maxPendingNotes.

See also: play

◆ m_notesWriteClaimed

std::atomic_size_t lmms::Lb302Synth::m_notesWriteClaimed {0}

private

Sequence number indicating in-progress enqueue operations.

As note enqueue operations begin, this sequence number is incremented. It can be used as an index into m_notes if bitwise-AND'd with s_notesBufMask.

The difference between this sequence number and m_notesReadSeq is the number of currently occupied indicies in m_notes (even those not yet written to), and can never exceed s_maxPendingNotes.

See also: playNote

◆ m_notesWriteCommitted

std::atomic_size_t lmms::Lb302Synth::m_notesWriteCommitted {0}

private

Sequence number indicating complete enqueue operations.

As note enqueue operations complete, this sequence number is incremented. It can be used as an index into m_notes if bitwise-AND'd with s_notesBufMask.

The difference between this sequence number and m_notesReadSeq is the number of currently enqueued notes ready to be dequeued, and can never exceed s_maxPendingNotes. It should always be less than or equal to m_notesWriteClaimed.

See also: playNote

◆ m_noteVolume

float lmms::Lb302Synth::m_noteVolume = 1.f

private

The per-note volume (velocity) of the most recent note, within [0, 1].

◆ m_playingNote

NotePlayHandle* lmms::Lb302Synth::m_playingNote = nullptr

private

◆ m_releaseFrame

f_cnt_t lmms::Lb302Synth::m_releaseFrame = 0

private

◆ m_slide

float lmms::Lb302Synth::m_slide = 0.f

private

Current value of slide exponential curve. Nonzero=sliding.

◆ m_slideBase

float lmms::Lb302Synth::m_slideBase = 0.f

private

The base m_vcoInc while sliding.

◆ m_slideDecKnob

FloatModel lmms::Lb302Synth::m_slideDecKnob

private

◆ m_slideInc

float lmms::Lb302Synth::m_slideInc = 0.f

private

Slide base to use in next node. Nonzero=slide next note.

◆ m_slideToggle

BoolModel lmms::Lb302Synth::m_slideToggle

private

◆ m_trueFreq

float lmms::Lb302Synth::m_trueFreq = 0.f

private

◆ m_vca

float lmms::Lb302Synth::m_vca = 0.f

private

Amplifier coefficient.

◆ m_vcaMode

VcaMode lmms::Lb302Synth::m_vcaMode = VcaMode::NeverPlayed

private

◆ m_vcfCutKnob

FloatModel lmms::Lb302Synth::m_vcfCutKnob

private

◆ m_vcfDecKnob

FloatModel lmms::Lb302Synth::m_vcfDecKnob

private

◆ m_vcfEnvPos

f_cnt_t lmms::Lb302Synth::m_vcfEnvPos = s_envInc

private

Update counter. Updates when >= s_envInc.

◆ m_vcfModKnob

FloatModel lmms::Lb302Synth::m_vcfModKnob

private

◆ m_vcfResKnob

FloatModel lmms::Lb302Synth::m_vcfResKnob

private

◆ m_vcfs

std::array<std::unique_ptr<Lb302Filter>, 2> lmms::Lb302Synth::m_vcfs

private

Filters (just keep both loaded and switch).

◆ m_vcoC

float lmms::Lb302Synth::m_vcoC = 0.f

private

Raw oscillator sample [-0.5, 0.5].

◆ m_vcoDetuneKnob

FloatModel lmms::Lb302Synth::m_vcoDetuneKnob

private

◆ m_vcoInc

float lmms::Lb302Synth::m_vcoInc = 0.f

private

Sample increment for the frequency. Creates Sawtooth.

◆ m_vcoK

float lmms::Lb302Synth::m_vcoK = 0.f

private

Raw oscillator sample [-0.5, 0.5].

◆ m_vcoShape

VcoShape lmms::Lb302Synth::m_vcoShape = VcoShape::BLSawtooth

private

◆ m_waveShape

IntModel lmms::Lb302Synth::m_waveShape

private

◆ s_distRatio

float lmms::Lb302Synth::s_distRatio = 4.f

staticconstexprprivate

◆ s_envInc

f_cnt_t lmms::Lb302Synth::s_envInc = 64

staticconstexprprivate

Envelope Recalculation period

◆ s_maxNoteEnqueueRetries

std::size_t lmms::Lb302Synth::s_maxNoteEnqueueRetries = s_maxPendingNotes

staticconstexprprivate

The maximum number of retries permitted per enqueue operation before a note is dropped.

Enqueue operations may fail during high contention as multiple threads attempt to reserve the next spot in the ringbuffer using atomic CAS operations, or when there are already s_maxPendingNotes enqueued notes in the ringbuffer. This constant determines the maximum number of times an enqueue operation is allowed to retry under either of these circumstances before it gives up and drops the note.

This limit should never be met under normal operation and is a failsafe for catastrophic performance situations to prevent hanging in spinlocks.

See also: playNote

◆ s_maxPendingNotes

std::size_t lmms::Lb302Synth::s_maxPendingNotes = 128

staticconstexprprivate

The maximum number of note events Lb302 can process per audio buffer.

This value was arbitrarily chosen based off of stress tests with LMMS's buffer size set to its maximum value (4096 samples) to maximize the ratio of enqueue operations to dequeue operations per buffer. It may be adjusted as needed, but it must always be a power of 2.

See also: m_notes

◆ s_notesBufMask

std::size_t lmms::Lb302Synth::s_notesBufMask = s_maxPendingNotes - 1

staticconstexprprivate

Bitmask used to wrap arbitrary indicies within the bounds of m_notes.

See also: m_notesReadSeq; m_notesWriteCommitted; m_notesWriteClaimed

◆ s_vcaAttack

float lmms::Lb302Synth::s_vcaAttack = 1.f - 0.96406088f

staticconstexprprivate

Amplitude attack.

◆ s_vcaInitial

float lmms::Lb302Synth::s_vcaInitial = 0.5f

staticconstexprprivate

Initial amplifier coefficient.

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/Lb302/Lb302.h
/home/runner/work/lmms-fork/lmms-fork/plugins/Lb302/Lb302.cpp

Public Slots

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Additional Inherited Members

Member Enumeration Documentation

◆ VcaMode

◆ VcoShape

Constructor & Destructor Documentation

◆ Lb302Synth()

Member Function Documentation

◆ db24Toggled

◆ decayChanged

◆ deleteNotePluginData()

◆ filterChanged

◆ instantiateView()

◆ loadSettings()

◆ nodeName()

◆ play()

◆ playNote()

◆ process()

◆ processNote()

◆ recalcFilter()

◆ saveSettings()

◆ vcf()

Friends And Related Symbol Documentation

◆ gui::Lb302SynthView

Member Data Documentation

◆ m_accentToggle

◆ m_db24Toggle

◆ m_deadToggle

◆ m_distKnob

◆ m_fs

◆ m_newFreq

◆ m_notePan

◆ m_notes

◆ m_notesReadSeq

◆ m_notesWriteClaimed

◆ m_notesWriteCommitted

◆ m_noteVolume

◆ m_playingNote

◆ m_releaseFrame

◆ m_slide

◆ m_slideBase

◆ m_slideDecKnob

◆ m_slideInc

◆ m_slideToggle

◆ m_trueFreq

◆ m_vca

◆ m_vcaMode

◆ m_vcfCutKnob

◆ m_vcfDecKnob

◆ m_vcfEnvPos

◆ m_vcfModKnob

◆ m_vcfResKnob

◆ m_vcfs

◆ m_vcoC

◆ m_vcoDetuneKnob

◆ m_vcoInc

◆ m_vcoK

◆ m_vcoShape

◆ m_waveShape

◆ s_distRatio

◆ s_envInc

◆ s_maxNoteEnqueueRetries

◆ s_maxPendingNotes

◆ s_notesBufMask

◆ s_vcaAttack

◆ s_vcaInitial
