#include <Effect.h>

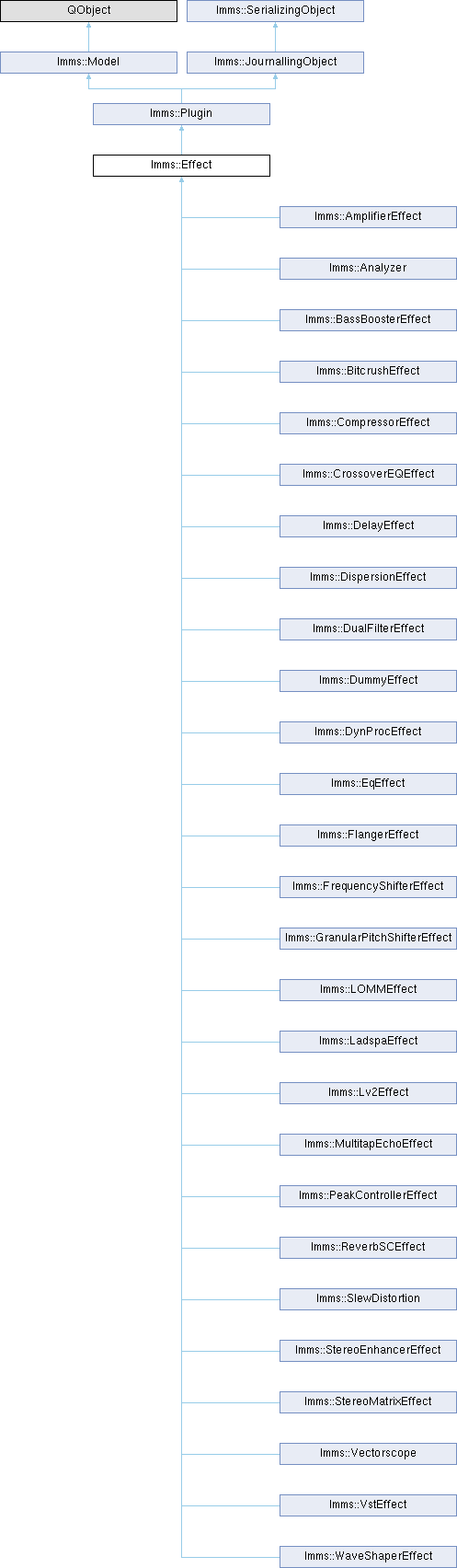

Inheritance diagram for lmms::Effect:

Public Member Functions
	Effect (const Plugin::Descriptor _desc, Model _parent, const Descriptor::SubPluginFeatures::Key *_key)
void	saveSettings (QDomDocument &_doc, QDomElement &_parent) override
void	loadSettings (const QDomElement &_this) override
QString	nodeName () const override
bool	processAudioBuffer (AudioBuffer &inOut)
	Returns true if audio was processed and should continue being processed.
bool	isOkay () const
void	setOkay (bool _state)
bool	isAwake () const
	"Awake" means the effect has not been put to sleep by auto-quit
bool	isEnabled () const
f_cnt_t	timeout () const
float	wetLevel () const
float	dryLevel () const
bool	dontRun () const
void	setDontRun (bool _state)
bool	isProcessingAudio () const
TempoSyncKnobModel *	autoQuitModel ()
bool	autoQuitEnabled () const
EffectChain *	effectChain () const
virtual EffectControls *	controls ()=0
Public Member Functions inherited from lmms::Plugin
	Plugin (const Descriptor descriptor, Model parent, const Descriptor::SubPluginFeatures::Key *key=nullptr)
	~Plugin () override=default
QString	displayName () const override
	Return display-name out of sub plugin or descriptor.
const PixmapLoader *	logo () const
	Return logo out of sub plugin or descriptor.
Type	type () const
	Return plugin type.
const Descriptor *	descriptor () const
	Return plugin Descriptor.
const Descriptor::SubPluginFeatures::Key &	key () const
virtual void	loadFile (const QString &file)
virtual AutomatableModel *	childModel (const QString &modelName)
gui::PluginView *	createView (QWidget *parent)
	Create a view for the model.
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Static Public Member Functions
static Effect *	instantiate (const QString &_plugin_name, Model _parent, Descriptor::SubPluginFeatures::Key _key)
Static Public Member Functions inherited from lmms::Plugin
static Plugin *	instantiateWithKey (const QString &pluginName, Model parent, const Descriptor::SubPluginFeatures::Key key, bool keyFromDnd=false)
static Plugin *	instantiate (const QString &pluginName, Model parent, void data)

Protected Types
enum class	ProcessStatus { Continue , ContinueIfNotQuiet , Sleep }

Protected Member Functions
virtual ProcessStatus	processImpl (SampleFrame *buf, const f_cnt_t frames)=0
virtual void	processBypassedImpl ()
gui::PluginView *	instantiateView (QWidget *) override
	Create a view for the model.
void	goToSleep ()
void	wakeUp ()
virtual void	onEnabledChanged ()
Protected Member Functions inherited from lmms::Plugin
void	collectErrorForUI (QString errMsg)
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Private Member Functions
void	handleAutoQuit (bool silentOutput)

Private Attributes
EffectChain *	m_parent
bool	m_okay
bool	m_noRun
bool	m_awake
f_cnt_t	m_quietBufferCount = 0
	The number of consecutive periods where output buffers remain below the silence threshold.
BoolModel	m_enabledModel
FloatModel	m_wetDryModel
TempoSyncKnobModel	m_autoQuitModel
bool	m_autoQuitEnabled = false

Friends
class	gui::EffectView
class	EffectChain

Additional Inherited Members
Public Types inherited from lmms::Plugin
enum class	Type { Instrument , Effect , ImportFilter , ExportFilter , Tool , Library , Other , Undefined = 255 }
using	DescriptorList = QList<Descriptor*>
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()

Member Enumeration Documentation

◆ ProcessStatus

enum class lmms::Effect::ProcessStatus

strongprotected

Enumerator
Continue	Unconditionally continue processing.
ContinueIfNotQuiet	Calculate the RMS out sum and call checkGate to determine whether to stop processing.
Sleep	Do not continue processing.

Constructor & Destructor Documentation

◆ Effect()

Effect::Effect	(	const Plugin::Descriptor *	_desc,
		Model *	_parent,
		const Descriptor::SubPluginFeatures::Key *	_key )

Member Function Documentation

◆ autoQuitEnabled()

bool lmms::Effect::autoQuitEnabled ( ) const

inline

◆ autoQuitModel()

TempoSyncKnobModel * lmms::Effect::autoQuitModel ( )

inline

◆ controls()

◆ dontRun()

bool lmms::Effect::dontRun ( ) const

inline

◆ dryLevel()

float lmms::Effect::dryLevel ( ) const

inline

◆ effectChain()

EffectChain * lmms::Effect::effectChain ( ) const

inline

◆ goToSleep()

void lmms::Effect::goToSleep ( )

inlineprotected

◆ handleAutoQuit()

void Effect::handleAutoQuit ( bool silentOutput )

private

If auto-quit is enabled ("Keep effects running even without input" setting is disabled), after "decay" ms of the output buffer remaining below the silence threshold, the effect is turned off and won't be processed again until it receives new audio input.

◆ instantiate()

Effect * Effect::instantiate	(	const QString &	_plugin_name,
		Model *	_parent,
		Descriptor::SubPluginFeatures::Key *	_key )

static

◆ instantiateView()

gui::PluginView * Effect::instantiateView ( QWidget * )

overrideprotectedvirtual

Create a view for the model.

Implements lmms::Plugin.

◆ isAwake()

bool lmms::Effect::isAwake ( ) const

inline

"Awake" means the effect has not been put to sleep by auto-quit

◆ isEnabled()

bool lmms::Effect::isEnabled ( ) const

inline

◆ isOkay()

bool lmms::Effect::isOkay ( ) const

inline

◆ isProcessingAudio()

bool lmms::Effect::isProcessingAudio ( ) const

inline

◆ loadSettings()

void Effect::loadSettings ( const QDomElement & _this )

overridevirtual

Implements lmms::SerializingObject.

◆ nodeName()

QString lmms::Effect::nodeName ( void ) const

inlineoverridevirtual

Implements lmms::SerializingObject.

◆ onEnabledChanged()

virtual void lmms::Effect::onEnabledChanged ( )

inlineprotectedvirtual

Reimplemented in lmms::DualFilterEffect.

◆ processAudioBuffer()

bool Effect::processAudioBuffer ( AudioBuffer & inOut )

Returns true if audio was processed and should continue being processed.

◆ processBypassedImpl()

virtual void lmms::Effect::processBypassedImpl ( )

inlineprotectedvirtual

Optional method that runs instead of processImpl when an effect is awake but not running.

Reimplemented in lmms::CompressorEffect, lmms::DynProcEffect, and lmms::StereoEnhancerEffect.

◆ processImpl()

virtual ProcessStatus lmms::Effect::processImpl	(	SampleFrame *	buf,
		const f_cnt_t	frames )

protectedpure virtual

The main audio processing method that runs when plugin is awake and running

Implemented in lmms::AmplifierEffect, lmms::Analyzer, lmms::BassBoosterEffect, lmms::BitcrushEffect, lmms::CompressorEffect, lmms::CrossoverEQEffect, lmms::DelayEffect, lmms::DispersionEffect, lmms::DualFilterEffect, lmms::DummyEffect, lmms::DynProcEffect, lmms::EqEffect, lmms::FlangerEffect, lmms::FrequencyShifterEffect, lmms::GranularPitchShifterEffect, lmms::LadspaEffect, lmms::LOMMEffect, lmms::Lv2Effect, lmms::MultitapEchoEffect, lmms::PeakControllerEffect, lmms::ReverbSCEffect, lmms::SlewDistortion, lmms::StereoEnhancerEffect, lmms::StereoMatrixEffect, lmms::Vectorscope, lmms::VstEffect, and lmms::WaveShaperEffect.

◆ saveSettings()

void Effect::saveSettings	(	QDomDocument &	_doc,
		QDomElement &	_parent )

overridevirtual

Implements lmms::SerializingObject.

◆ setDontRun()

void lmms::Effect::setDontRun ( bool _state )

inline

◆ setOkay()

void lmms::Effect::setOkay ( bool _state )

inline

◆ timeout()

f_cnt_t lmms::Effect::timeout ( ) const

inline

◆ wakeUp()

void lmms::Effect::wakeUp ( )

inlineprotected

◆ wetLevel()

float lmms::Effect::wetLevel ( ) const

inline

◆ EffectChain

friend class EffectChain

friend

◆ gui::EffectView

friend class gui::EffectView

friend

Member Data Documentation

◆ m_autoQuitEnabled

bool lmms::Effect::m_autoQuitEnabled = false

private

◆ m_autoQuitModel

TempoSyncKnobModel lmms::Effect::m_autoQuitModel

private

◆ m_awake

bool lmms::Effect::m_awake

private

◆ m_enabledModel

BoolModel lmms::Effect::m_enabledModel

private

◆ m_noRun

bool lmms::Effect::m_noRun

private

◆ m_okay

bool lmms::Effect::m_okay

private

◆ m_parent

EffectChain* lmms::Effect::m_parent

private

◆ m_quietBufferCount

f_cnt_t lmms::Effect::m_quietBufferCount = 0

private

The number of consecutive periods where output buffers remain below the silence threshold.

◆ m_wetDryModel

FloatModel lmms::Effect::m_wetDryModel

private

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/Effect.h
/home/runner/work/lmms-fork/lmms-fork/src/core/Effect.cpp
