#include <AutomatableModel.h>

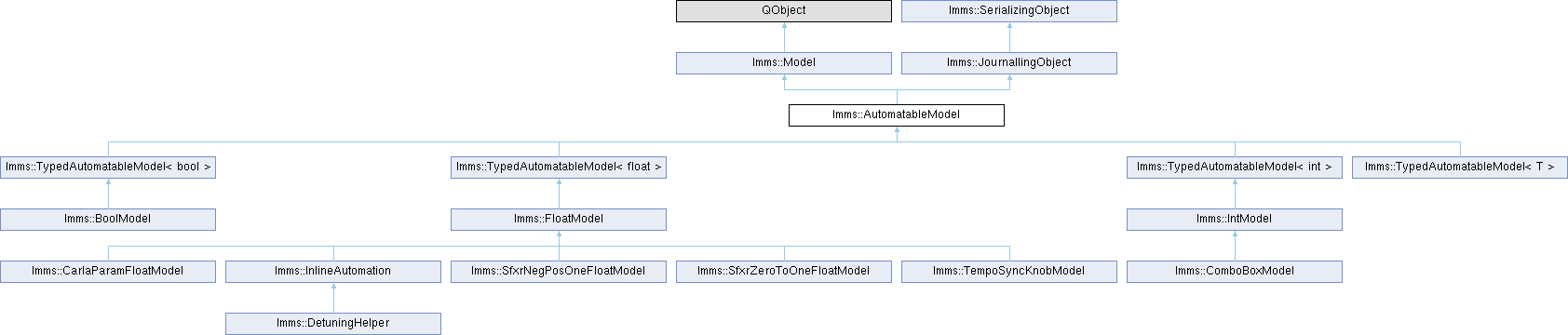

Inheritance diagram for lmms::AutomatableModel:

Classes
struct	DCastVisitor
struct	ConstDCastVisitor

Public Types
enum class	ScaleType { Linear , Logarithmic , Decibel }

Public Slots
virtual void	reset ()
void	unlink ()
void	unlinkControllerConnection ()
void	setUseControllerValue (bool b=true)

Signals
void	initValueChanged (float val)
void	destroyed (lmms::jo_id_t id)
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()

Public Member Functions
	~AutomatableModel () override
virtual void	accept (ModelVisitor &v)=0
virtual void	accept (ConstModelVisitor &v) const =0
template<class Target>
Target *	dynamicCast (bool doThrow=false)
	Return this class casted to Target.
template<class Target>
const Target *	dynamicCast (bool doThrow=false) const
	const overload, see overloaded function
bool	isAutomated () const
bool	isAutomatedOrControlled () const
ControllerConnection *	controllerConnection () const
void	setControllerConnection (ControllerConnection *c)
template<class T>
T	value (int frameOffset=0) const
float	controllerValue (int frameOffset) const
ValueBuffer *	valueBuffer ()
	Function that returns sample-exact data as a ValueBuffer.
template<class T>
T	initValue () const
bool	isAtInitValue () const
template<class T>
T	minValue () const
template<class T>
T	maxValue () const
template<class T>
T	step () const
float	scaledValue (float value) const
	Returns value scaled with the scale type and min/max values of this model.
float	inverseScaledValue (float value) const
	Returns value applied with the inverse of this model's scale type.
void	setInitValue (const float value)
void	setValue (const float value, const bool isAutomated=false)
void	incValue (int steps)
float	range () const
void	setRange (const float min, const float max, const float step=1)
void	setScaleType (ScaleType sc)
void	setScaleLogarithmic (bool setToTrue=true)
bool	isScaleLogarithmic () const
void	setStep (const float step)
float	centerValue () const
void	setCenterValue (const float centerVal)
void	linkToModel (AutomatableModel *model)
	link this to `model`, copying the value from `model`
size_t	countLinks () const
virtual void	saveSettings (QDomDocument &doc, QDomElement &element, const QString &name)
	Saves settings (value, automation links and controller connections) of AutomatableModel into specified DOM element using <name> as attribute/node name.
virtual void	loadSettings (const QDomElement &element, const QString &name)
	Loads settings (value, automation links and controller connections) of AutomatableModel from specified DOM element using <name> as attribute/node name.
QString	nodeName () const override
virtual QString	displayValue (const float val) const =0
bool	isLinked () const
bool	isValueChanged ()
float	globalAutomationValueAt (const TimePos &time)
void	setStrictStepSize (const bool b)
bool	useControllerValue () const
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual QString	displayName () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Static Public Member Functions
template<class T>
static T	castValue (const float v)
template<bool>
static bool	castValue (const float v)
static void	incrementPeriodCounter ()
static void	resetPeriodCounter ()

Protected Member Functions
	AutomatableModel (const float val=0, const float min=0, const float max=0, const float step=0, Model *parent=nullptr, const QString &displayName=QString(), bool defaultConstructed=false)
float	fittedValue (float value) const
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Private Member Functions
void	saveSettings (QDomDocument &doc, QDomElement &element) override
void	loadSettings (const QDomElement &element) override
void	setValueInternal (const float value)
AutomatableModel *	getLastLinkedModel () const
bool	isLinkedToModel (AutomatableModel *model) const
template<class T>
T	logToLinearScale (T value) const
	Scales @value from linear to logarithmic. Value should be within [0,1].
template<class T>
void	roundAt (T &value, const T &where) const

Static Private Member Functions
static bool	mustQuoteName (const QString &name)

Private Attributes
ScaleType	m_scaleType
	scale type, linear by default
float	m_value
float	m_initValue
float	m_minValue
float	m_maxValue
float	m_step
float	m_range
float	m_centerValue
bool	m_valueChanged
float	m_oldValue
	used by valueBuffer for interpolation
bool	m_hasStrictStepSize
AutomatableModel *	m_nextLink
ControllerConnection *	m_controllerConnection
	NULL if not appended to controller, otherwise connection info.
ValueBuffer	m_valueBuffer
long	m_lastUpdatedPeriod
bool	m_hasSampleExactData
QMutex	m_valueBufferMutex
bool	m_useControllerValue

Static Private Attributes
static long	s_periodCounter = 0

Member Enumeration Documentation

◆ ScaleType

enum class lmms::AutomatableModel::ScaleType

strong

Enumerator
Linear
Logarithmic
Decibel

Constructor & Destructor Documentation

◆ ~AutomatableModel()

lmms::AutomatableModel::~AutomatableModel ( )

override

◆ AutomatableModel()

lmms::AutomatableModel::AutomatableModel	(	const float	val = 0,
		const float	min = 0,
		const float	max = 0,
		const float	step = 0,
		Model *	parent = nullptr,
		const QString &	displayName = QString(),
		bool	defaultConstructed = false )

protected

Member Function Documentation

◆ accept() [1/2]

virtual void lmms::AutomatableModel::accept ( ConstModelVisitor & v ) const

pure virtual

◆ accept() [2/2]

virtual void lmms::AutomatableModel::accept ( ModelVisitor & v )

pure virtual

◆ castValue() [1/2]

template<bool>

bool lmms::AutomatableModel::castValue ( const float v )

inlinestatic

◆ castValue() [2/2]

template<class T>

T lmms::AutomatableModel::castValue ( const float v )

inlinestatic

◆ centerValue()

float lmms::AutomatableModel::centerValue ( ) const

inline

◆ controllerConnection()

ControllerConnection * lmms::AutomatableModel::controllerConnection ( ) const

inline

◆ controllerValue()

float lmms::AutomatableModel::controllerValue ( int frameOffset ) const

◆ countLinks()

size_t lmms::AutomatableModel::countLinks ( ) const

Returns: number of other models linked to this

◆ destroyed

void lmms::AutomatableModel::destroyed ( lmms::jo_id_t id )

signal

◆ displayValue()

virtual QString lmms::AutomatableModel::displayValue ( const float val ) const

pure virtual

Implemented in lmms::BoolModel, lmms::FloatModel, and lmms::IntModel.

◆ dynamicCast() [1/2]

template<class Target>

Target * lmms::AutomatableModel::dynamicCast ( bool doThrow = false )

inline

Return this class casted to Target.

Test: AutomatableModelTest.cpp

Parameters

doThrow throw an assertion if the cast fails, instead of returning a nullptr

Returns: the casted class if Target is the exact or a base class of this, nullptr otherwise

◆ dynamicCast() [2/2]

template<class Target>

const Target * lmms::AutomatableModel::dynamicCast ( bool doThrow = false ) const

inline

const overload, see overloaded function

◆ fittedValue()

float lmms::AutomatableModel::fittedValue ( float value ) const

protected

returns a value which is in range between min() and max() and aligned according to the step size (step size 0.05 -> value 0.12345 becomes 0.10 etc.). You should always call it at the end after doing your own calculations.

◆ getLastLinkedModel()

AutomatableModel * lmms::AutomatableModel::getLastLinkedModel ( ) const

private

linking is stored in a linked list ring

Returns: the model whose m_nextLink is this, or this if there are no linked models

◆ globalAutomationValueAt()

float lmms::AutomatableModel::globalAutomationValueAt ( const TimePos & time )

◆ incrementPeriodCounter()

void lmms::AutomatableModel::incrementPeriodCounter ( )

inlinestatic

◆ incValue()

void lmms::AutomatableModel::incValue ( int steps )

inline

◆ initValue()

template<class T>

T lmms::AutomatableModel::initValue ( ) const

inline

◆ initValueChanged

void lmms::AutomatableModel::initValueChanged ( float val )

signal

◆ inverseScaledValue()

float lmms::AutomatableModel::inverseScaledValue ( float value ) const

Returns value applied with the inverse of this model's scale type.

◆ isAtInitValue()

bool lmms::AutomatableModel::isAtInitValue ( ) const

inline

◆ isAutomated()

bool lmms::AutomatableModel::isAutomated ( ) const

◆ isAutomatedOrControlled()

bool lmms::AutomatableModel::isAutomatedOrControlled ( ) const

inline

◆ isLinked()

bool lmms::AutomatableModel::isLinked ( ) const

inline

◆ isLinkedToModel()

bool lmms::AutomatableModel::isLinkedToModel ( AutomatableModel * model ) const

private

Returns: true if the model is in the linked list

◆ isScaleLogarithmic()

bool lmms::AutomatableModel::isScaleLogarithmic ( ) const

inline

◆ isValueChanged()

bool lmms::AutomatableModel::isValueChanged ( )

inline

◆ linkToModel()

void lmms::AutomatableModel::linkToModel ( AutomatableModel * model )

link this to model, copying the value from model

◆ loadSettings() [1/2]

void lmms::AutomatableModel::loadSettings ( const QDomElement & element )

inlineoverrideprivatevirtual

Implements lmms::SerializingObject.

Reimplemented in lmms::InlineAutomation.

◆ loadSettings() [2/2]

void lmms::AutomatableModel::loadSettings	(	const QDomElement &	element,
		const QString &	name )

virtual

Loads settings (value, automation links and controller connections) of AutomatableModel from specified DOM element using <name> as attribute/node name.

Reimplemented in lmms::CarlaParamFloatModel, lmms::SfxrNegPosOneFloatModel, lmms::SfxrZeroToOneFloatModel, and lmms::TempoSyncKnobModel.

◆ logToLinearScale()

template<class T>

T lmms::AutomatableModel::logToLinearScale ( T value ) const

private

Scales @value from linear to logarithmic. Value should be within [0,1].

◆ maxValue()

template<class T>

T lmms::AutomatableModel::maxValue ( ) const

inline

◆ minValue()

template<class T>

T lmms::AutomatableModel::minValue ( ) const

inline

◆ mustQuoteName()

bool lmms::AutomatableModel::mustQuoteName ( const QString & name )

staticprivate

◆ nodeName()

QString lmms::AutomatableModel::nodeName ( void ) const

inlineoverridevirtual

Implements lmms::SerializingObject.

Reimplemented in lmms::DetuningHelper.

◆ range()

float lmms::AutomatableModel::range ( ) const

inline

◆ reset

void lmms::AutomatableModel::reset ( )

virtualslot

◆ resetPeriodCounter()

void lmms::AutomatableModel::resetPeriodCounter ( )

inlinestatic

◆ roundAt()

template<class T>

void lmms::AutomatableModel::roundAt	(	T &	value,
		const T &	where ) const

private

rounds value to where if it is close to it

Parameters

value will be modified to rounded value

◆ saveSettings() [1/2]

void lmms::AutomatableModel::saveSettings	(	QDomDocument &	doc,
		QDomElement &	element )

inlineoverrideprivatevirtual

Implements lmms::SerializingObject.

Reimplemented in lmms::InlineAutomation.

◆ saveSettings() [2/2]

void lmms::AutomatableModel::saveSettings	(	QDomDocument &	doc,
		QDomElement &	element,
		const QString &	name )

virtual

Saves settings (value, automation links and controller connections) of AutomatableModel into specified DOM element using <name> as attribute/node name.

Parameters

doc	TODO
element	Where this option shall be saved. Depending on the model, this can be done in an attribute or in a subnode.
name	Name to store this model as.

Reimplemented in lmms::CarlaParamFloatModel, and lmms::TempoSyncKnobModel.

◆ scaledValue()

float lmms::AutomatableModel::scaledValue ( float value ) const

Returns value scaled with the scale type and min/max values of this model.

◆ setCenterValue()

void lmms::AutomatableModel::setCenterValue ( const float centerVal )

inline

◆ setControllerConnection()

void lmms::AutomatableModel::setControllerConnection ( ControllerConnection * c )

◆ setInitValue()

void lmms::AutomatableModel::setInitValue ( const float value )

◆ setRange()

void lmms::AutomatableModel::setRange	(	const float	min,
		const float	max,
		const float	step = 1 )

◆ setScaleLogarithmic()

void lmms::AutomatableModel::setScaleLogarithmic ( bool setToTrue = true )

inline

◆ setScaleType()

void lmms::AutomatableModel::setScaleType ( ScaleType sc )

inline

◆ setStep()

void lmms::AutomatableModel::setStep ( const float step )

◆ setStrictStepSize()

void lmms::AutomatableModel::setStrictStepSize ( const bool b )

inline

◆ setUseControllerValue

void lmms::AutomatableModel::setUseControllerValue ( bool b = true )

slot

◆ setValue()

void lmms::AutomatableModel::setValue	(	const float	value,
		const bool	isAutomated = false )

◆ setValueInternal()

void lmms::AutomatableModel::setValueInternal ( const float value )

private

◆ step()

template<class T>

T lmms::AutomatableModel::step ( ) const

inline

◆ unlink

void lmms::AutomatableModel::unlink ( )

slot

◆ unlinkControllerConnection

void lmms::AutomatableModel::unlinkControllerConnection ( )

slot

◆ useControllerValue()

bool lmms::AutomatableModel::useControllerValue ( ) const

inline

◆ value()

template<class T>

T lmms::AutomatableModel::value ( int frameOffset = 0 ) const

inline

◆ valueBuffer()

ValueBuffer * lmms::AutomatableModel::valueBuffer ( )

Function that returns sample-exact data as a ValueBuffer.

Returns: pointer to model's valueBuffer when s.ex.data exists, NULL otherwise

Member Data Documentation

◆ m_centerValue

float lmms::AutomatableModel::m_centerValue

private

◆ m_controllerConnection

ControllerConnection* lmms::AutomatableModel::m_controllerConnection

private

NULL if not appended to controller, otherwise connection info.

◆ m_hasSampleExactData

bool lmms::AutomatableModel::m_hasSampleExactData

private

◆ m_hasStrictStepSize

bool lmms::AutomatableModel::m_hasStrictStepSize

private

◆ m_initValue

float lmms::AutomatableModel::m_initValue

private

◆ m_lastUpdatedPeriod

long lmms::AutomatableModel::m_lastUpdatedPeriod

private

◆ m_maxValue

float lmms::AutomatableModel::m_maxValue

private

◆ m_minValue

float lmms::AutomatableModel::m_minValue

private

◆ m_nextLink

AutomatableModel* lmms::AutomatableModel::m_nextLink

private

an AutomatableModel can be linked together with others in a linked list the list has no end, the last model is connected to the first forming a ring

◆ m_oldValue

float lmms::AutomatableModel::m_oldValue

private

used by valueBuffer for interpolation

◆ m_range

float lmms::AutomatableModel::m_range

private

◆ m_scaleType

ScaleType lmms::AutomatableModel::m_scaleType

private

scale type, linear by default

◆ m_step

float lmms::AutomatableModel::m_step

private

◆ m_useControllerValue

bool lmms::AutomatableModel::m_useControllerValue

private

◆ m_value

float lmms::AutomatableModel::m_value

private

◆ m_valueBuffer

ValueBuffer lmms::AutomatableModel::m_valueBuffer

private

◆ m_valueBufferMutex

QMutex lmms::AutomatableModel::m_valueBufferMutex

private

◆ m_valueChanged

bool lmms::AutomatableModel::m_valueChanged

private

◆ s_periodCounter

long lmms::AutomatableModel::s_periodCounter = 0

staticprivate

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/AutomatableModel.h
/home/runner/work/lmms-fork/lmms-fork/src/core/AutomatableModel.cpp

Classes

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Member Enumeration Documentation

◆ ScaleType

Constructor & Destructor Documentation

◆ ~AutomatableModel()

◆ AutomatableModel()

Member Function Documentation

◆ accept() [1/2]

◆ accept() [2/2]

◆ castValue() [1/2]

◆ castValue() [2/2]

◆ centerValue()

◆ controllerConnection()

◆ controllerValue()

◆ countLinks()

◆ destroyed

◆ displayValue()

◆ dynamicCast() [1/2]

◆ dynamicCast() [2/2]

◆ fittedValue()

◆ getLastLinkedModel()

◆ globalAutomationValueAt()

◆ incrementPeriodCounter()

◆ incValue()

◆ initValue()

◆ initValueChanged

◆ inverseScaledValue()

◆ isAtInitValue()

◆ isAutomated()

◆ isAutomatedOrControlled()

◆ isLinked()

◆ isLinkedToModel()

◆ isScaleLogarithmic()

◆ isValueChanged()

◆ linkToModel()

◆ loadSettings() [1/2]

◆ loadSettings() [2/2]

◆ logToLinearScale()

◆ maxValue()

◆ minValue()

◆ mustQuoteName()

◆ nodeName()

◆ range()

◆ reset

◆ resetPeriodCounter()

◆ roundAt()

◆ saveSettings() [1/2]

◆ saveSettings() [2/2]

◆ scaledValue()

◆ setCenterValue()

◆ setControllerConnection()

◆ setInitValue()

◆ setRange()

◆ setScaleLogarithmic()

◆ setScaleType()

◆ setStep()

◆ setStrictStepSize()

◆ setUseControllerValue

◆ setValue()

◆ setValueInternal()

◆ step()

◆ unlink

◆ unlinkControllerConnection

◆ useControllerValue()

◆ value()

◆ valueBuffer()

Member Data Documentation

◆ m_centerValue

◆ m_controllerConnection

◆ m_hasSampleExactData
