Base-class for all tracks. More...

#include <Track.h>

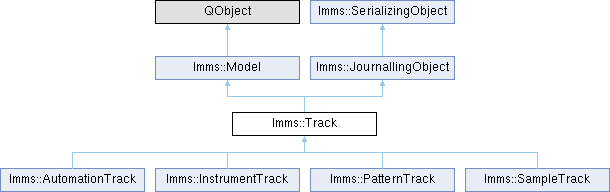

Inheritance diagram for lmms::Track:

Public Types
enum class	Type { Instrument , Pattern , Sample , Event , Video , Automation , HiddenAutomation , Count }
using	clipVector = std::vector<Clip*>

Public Slots
virtual void	setName (const QString &newName)
void	setMutedBeforeSolo (const bool muted)
void	toggleSolo ()
	Invert the track's solo state.

Signals
void	destroyedTrack ()
void	nameChanged ()
void	clipAdded (lmms::Clip *)
void	colorChanged ()
void	dataChanged ()
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()

Public Member Functions
	Track (Type type, TrackContainer *tc)
	Create a new (empty) track object.
	~Track () override
	Destroy this track.
Track *	clone ()
	Clone a track from this track.
Type	type () const
virtual bool	play (const TimePos &start, const f_cnt_t frames, const f_cnt_t frameBase, int clipNum=-1)=0
virtual gui::TrackView *	createView (gui::TrackContainerView *view)=0
virtual Clip *	createClip (const TimePos &pos)=0
virtual void	saveTrackSpecificSettings (QDomDocument &doc, QDomElement &parent, bool presetMode)=0
virtual void	loadTrackSpecificSettings (const QDomElement &element)=0
void	savePreset (QDomDocument &doc, QDomElement &element)
void	loadPreset (const QDomElement &element)
void	saveSettings (QDomDocument &doc, QDomElement &element) override
void	loadSettings (const QDomElement &element) override
Clip *	addClip (Clip *clip)
	Add another Clip into this track.
void	removeClip (Clip *clip)
	Remove a given Clip from this track.
void	deleteClips ()
	Remove all Clips from this track.
int	numOfClips ()
	Return the number of clips we contain.
auto	getClip (std::size_t clipNum) -> Clip *
	Get a Clip by number.
int	getClipNum (const Clip *clip)
	Determine the given Clip's number in our array.
const clipVector &	getClips () const
void	getClipsInRange (clipVector &clipV, const TimePos &start, const TimePos &end)
	Retrieve a list of clips that fall within a period.
void	swapPositionOfClips (int clipNum1, int clipNum2)
	Swap the position of two clips.
void	createClipsForPattern (int pattern)
void	insertBar (const TimePos &pos)
	Move all the clips after a certain time later by one bar.
void	removeBar (const TimePos &pos)
	Move all the clips after a certain time earlier by one bar.
bar_t	length () const
	Return the length of the entire track in bars.
TrackContainer *	trackContainer () const
virtual const QString &	name () const
QString	displayName () const override
int	getHeight ()
void	setHeight (int height)
void	lock ()
void	unlock ()
bool	tryLock ()
auto	color () const -> const std::optional< QColor > &
void	setColor (const std::optional< QColor > &color)
bool	isMutedBeforeSolo () const
BoolModel *	getMutedModel ()
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
virtual QString	nodeName () const =0
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Static Public Member Functions
static Track *	create (Type tt, TrackContainer *tc)
	Create a track based on the given track type and container.
static Track *	create (const QDomElement &element, TrackContainer *tc)
	Create a track inside TrackContainer from track type in a QDomElement and restore state from XML.

Protected Attributes
BoolModel	m_mutedModel
BoolModel	m_soloModel

Private Member Functions
	mapPropertyFromModel (bool, isMuted, setMuted, m_mutedModel)
	mapPropertyFromModel (bool, isSolo, setSolo, m_soloModel)
void	saveTrack (QDomDocument &doc, QDomElement &element, bool presetMode)
	Save this track's settings to file.
void	loadTrack (const QDomElement &element, bool presetMode)
	Load the settings from a file.

Private Attributes
TrackContainer *	m_trackContainer
Type	m_type
QString	m_name
int	m_height
bool	m_mutedBeforeSolo
clipVector	m_clips
QMutex	m_processingLock
std::optional< QColor >	m_color

Friends
class	gui::TrackView

Additional Inherited Members
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Detailed Description

Base-class for all tracks.

Member Typedef Documentation

◆ clipVector

using lmms::Track::clipVector = std::vector<Clip*>

Member Enumeration Documentation

◆ Type

enum class lmms::Track::Type

strong

Enumerator
Instrument
Pattern
Sample
Event
Video
Automation
HiddenAutomation
Count

Constructor & Destructor Documentation

◆ Track()

lmms::Track::Track	(	Type	type,
		TrackContainer *	tc )

Create a new (empty) track object.

The track object is the whole track, linking its contents, its automation, name, type, and so forth.

Parameters

type	The type of track (Song Editor or Pattern Editor)
tc	The track Container object to encapsulate in this track.

Todo: check the definitions of all the properties - are they OK?

< The track Model

< The track container object

< The track type

< The track's name

< For controlling track muting

< For controlling track soloing

< The clips (segments)

◆ ~Track()

lmms::Track::~Track ( )

override

Destroy this track.

Delete the clips and remove this track from the track container.

Member Function Documentation

◆ addClip()

Clip * lmms::Track::addClip ( Clip * clip )

Add another Clip into this track.

Parameters

clip	The Clip to attach to this track.

◆ clipAdded

void lmms::Track::clipAdded ( lmms::Clip * )

signal

◆ clone()

Track * lmms::Track::clone ( )

Clone a track from this track.

◆ color()

auto lmms::Track::color ( ) const -> const std::optional< QColor > &

inline

◆ colorChanged

void lmms::Track::colorChanged ( )

signal

◆ create() [1/2]

Track * lmms::Track::create	(	const QDomElement &	element,
		TrackContainer *	tc )

static

Create a track inside TrackContainer from track type in a QDomElement and restore state from XML.

Parameters

element	The QDomElement containing the type of track to create
tc	The track container to attach to

◆ create() [2/2]

Track * lmms::Track::create	(	Type	tt,
		TrackContainer *	tc )

static

Create a track based on the given track type and container.

Parameters

tt	The type of track to create
tc	The track container to attach to

◆ createClip()

virtual Clip * lmms::Track::createClip ( const TimePos & pos )

pure virtual

Implemented in lmms::AutomationTrack, lmms::InstrumentTrack, lmms::PatternTrack, and lmms::SampleTrack.

◆ createClipsForPattern()

void lmms::Track::createClipsForPattern ( int pattern )

◆ createView()

virtual gui::TrackView * lmms::Track::createView ( gui::TrackContainerView * view )

pure virtual

Implemented in lmms::AutomationTrack, lmms::InstrumentTrack, lmms::PatternTrack, and lmms::SampleTrack.

◆ dataChanged

void lmms::Model::dataChanged ( )

signal

◆ deleteClips()

void lmms::Track::deleteClips ( )

Remove all Clips from this track.

◆ destroyedTrack

void lmms::Track::destroyedTrack ( )

signal

◆ displayName()

QString lmms::Track::displayName ( ) const

inlineoverridevirtual

Reimplemented from lmms::Model.

◆ getClip()

auto lmms::Track::getClip ( std::size_t clipNum ) -> Clip *

Get a Clip by number.

If the Clip number is less than our Clip array size then fetch that numbered object from the array. Otherwise we warn the user that we've somehow requested a Clip that is too large, and create a new Clip for them.

Parameters

clipNum The number of the Clip to fetch.

Returns: the given Clip or a new one if out of range.

Todo

reject Clip numbers less than zero.

if we create a Clip here, should we somehow attach it to the track?

◆ getClipNum()

int lmms::Track::getClipNum ( const Clip * clip )

Determine the given Clip's number in our array.

Parameters

clip	The Clip to search for.

Returns: its number in our array.

◆ getClips()

const clipVector & lmms::Track::getClips ( ) const

inline

◆ getClipsInRange()

void lmms::Track::getClipsInRange	(	clipVector &	clipV,
		const TimePos &	start,
		const TimePos &	end )

Retrieve a list of clips that fall within a period.

Here we're interested in a range of clips that intersect the given time period.

We return the Clips we find in order by time, earliest Clips first.

Parameters

clipV	The list to contain the found clips.
start	The MIDI start time of the range.
end	The MIDI endi time of the range.

◆ getHeight()

int lmms::Track::getHeight ( )

inline

◆ getMutedModel()

BoolModel * lmms::Track::getMutedModel ( )

◆ insertBar()

void lmms::Track::insertBar ( const TimePos & pos )

Move all the clips after a certain time later by one bar.

Parameters

pos	The time at which we want to insert the bar.

Todo: if we stepped through this list last to first, and the list was in ascending order by Clip time, once we hit a Clip that was earlier than the insert time, we could fall out of the loop early.

◆ isMutedBeforeSolo()

bool lmms::Track::isMutedBeforeSolo ( ) const

inline

◆ length()

bar_t lmms::Track::length ( ) const

Return the length of the entire track in bars.

We step through our list of Clips and determine their end position, keeping track of the latest time found in ticks. Then we return that in bars by dividing by the number of ticks per bar.

◆ loadPreset()

void lmms::Track::loadPreset ( const QDomElement & element )

◆ loadSettings()

void lmms::Track::loadSettings ( const QDomElement & element )

overridevirtual

Implements lmms::SerializingObject.

◆ loadTrack()

void lmms::Track::loadTrack	(	const QDomElement &	element,
		bool	presetMode )

private

Load the settings from a file.

We load the track's type and muted state and solo state, then clear out our current Clip.

Then we step through the QDomElement's children and load the track-specific settings and clip states from it one at a time.

Parameters

element	the QDomElement to load track settings from
presetMode	Indicates if a preset or a full track is loaded

Todo: Load the track height.

◆ loadTrackSpecificSettings()

virtual void lmms::Track::loadTrackSpecificSettings ( const QDomElement & element )

pure virtual

Implemented in lmms::AutomationTrack, lmms::InstrumentTrack, lmms::PatternTrack, and lmms::SampleTrack.

◆ lock()

void lmms::Track::lock ( )

inline

◆ mapPropertyFromModel() [1/2]

lmms::Track::mapPropertyFromModel	(	bool	,
		isMuted	,
		setMuted	,
		m_mutedModel	)

private

◆ mapPropertyFromModel() [2/2]

lmms::Track::mapPropertyFromModel	(	bool	,
		isSolo	,
		setSolo	,
		m_soloModel	)

private

◆ name()

virtual const QString & lmms::Track::name ( ) const

inlinevirtual

◆ nameChanged

void lmms::Track::nameChanged ( )

signal

◆ numOfClips()

int lmms::Track::numOfClips ( )

Return the number of clips we contain.

Returns: the number of clips we currently contain.

◆ play()

virtual bool lmms::Track::play	(	const TimePos &	start,
		const f_cnt_t	frames,
		const f_cnt_t	frameBase,
		int	clipNum = -1 )

pure virtual

Implemented in lmms::AutomationTrack, lmms::InstrumentTrack, lmms::PatternTrack, and lmms::SampleTrack.

◆ removeBar()

void lmms::Track::removeBar ( const TimePos & pos )

Move all the clips after a certain time earlier by one bar.

Parameters

pos	The time at which we want to remove the bar.

◆ removeClip()

void lmms::Track::removeClip ( Clip * clip )

Remove a given Clip from this track.

Parameters

clip	The Clip to remove from this track.

◆ savePreset()

void lmms::Track::savePreset	(	QDomDocument &	doc,
		QDomElement &	element )

◆ saveSettings()

void lmms::Track::saveSettings	(	QDomDocument &	doc,
		QDomElement &	element )

overridevirtual

Implements lmms::SerializingObject.

◆ saveTrack()

void lmms::Track::saveTrack	(	QDomDocument &	doc,
		QDomElement &	element,
		bool	presetMode )

private

Save this track's settings to file.

We save the track type and its muted state and solo state, then append the track- specific settings. Then we iterate through the clips and save all their states in turn.

Parameters

doc	The QDomDocument to use to save
element	The The QDomElement to save into
presetMode	Describes whether to save the track as a preset or not.

Todo

Does this accurately describe the parameters? I think not!?

Save the track height

◆ saveTrackSpecificSettings()

virtual void lmms::Track::saveTrackSpecificSettings	(	QDomDocument &	doc,
		QDomElement &	parent,
		bool	presetMode )

pure virtual

Implemented in lmms::AutomationTrack, lmms::InstrumentTrack, lmms::PatternTrack, and lmms::SampleTrack.

◆ setColor()

void lmms::Track::setColor ( const std::optional< QColor > & color )

◆ setHeight()

void lmms::Track::setHeight ( int height )

inline

◆ setMutedBeforeSolo

void lmms::Track::setMutedBeforeSolo ( const bool muted )

inlineslot

◆ setName

void lmms::Track::setName ( const QString & newName )

virtualslot

Reimplemented in lmms::InstrumentTrack.

◆ swapPositionOfClips()

void lmms::Track::swapPositionOfClips	(	int	clipNum1,
		int	clipNum2 )

Swap the position of two clips.

First, we arrange to swap the positions of the two Clips in the clips list. Then we swap their start times as well.

Parameters

clipNum1	The first Clip to swap.
clipNum2	The second Clip to swap.

◆ toggleSolo

void lmms::Track::toggleSolo ( )

slot

Invert the track's solo state.

We have to go through all the tracks determining if any other track is already soloed. Then we have to save the mute state of all tracks, and set our mute state to on and all the others to off.

◆ trackContainer()

TrackContainer * lmms::Track::trackContainer ( ) const

inline

◆ tryLock()

bool lmms::Track::tryLock ( )

inline

◆ type()

Type lmms::Track::type ( ) const

inline

◆ unlock()

void lmms::Track::unlock ( )

inline

◆ gui::TrackView

friend class gui::TrackView

friend

Member Data Documentation

◆ m_clips

clipVector lmms::Track::m_clips

private

◆ m_color

std::optional<QColor> lmms::Track::m_color

private

◆ m_height

int lmms::Track::m_height

private

◆ m_mutedBeforeSolo

bool lmms::Track::m_mutedBeforeSolo

private

◆ m_mutedModel

BoolModel lmms::Track::m_mutedModel

protected

◆ m_name

QString lmms::Track::m_name

private

◆ m_processingLock

QMutex lmms::Track::m_processingLock

private

◆ m_soloModel

BoolModel lmms::Track::m_soloModel

protected

◆ m_trackContainer

TrackContainer* lmms::Track::m_trackContainer

private

◆ m_type

Type lmms::Track::m_type

private

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/Track.h
/home/runner/work/lmms-fork/lmms-fork/src/core/Track.cpp

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ clipVector

Member Enumeration Documentation

◆ Type

Constructor & Destructor Documentation

◆ Track()

◆ ~Track()

Member Function Documentation

◆ addClip()

◆ clipAdded

◆ clone()

◆ color()

◆ colorChanged

◆ create() [1/2]

◆ create() [2/2]

◆ createClip()

◆ createClipsForPattern()

◆ createView()

◆ dataChanged

◆ deleteClips()

◆ destroyedTrack

◆ displayName()

◆ getClip()

◆ getClipNum()

◆ getClips()

◆ getClipsInRange()

◆ getHeight()

◆ getMutedModel()

◆ insertBar()

◆ isMutedBeforeSolo()

◆ length()

◆ loadPreset()

◆ loadSettings()

◆ loadTrack()

◆ loadTrackSpecificSettings()

◆ lock()

◆ mapPropertyFromModel() [1/2]

◆ mapPropertyFromModel() [2/2]

◆ name()

◆ nameChanged

◆ numOfClips()

◆ play()

◆ removeBar()

◆ removeClip()

◆ savePreset()

◆ saveSettings()

◆ saveTrack()

◆ saveTrackSpecificSettings()

◆ setColor()

◆ setHeight()

◆ setMutedBeforeSolo

◆ setName

◆ swapPositionOfClips()

◆ toggleSolo

◆ trackContainer()

◆ tryLock()

◆ type()

◆ unlock()

Friends And Related Symbol Documentation

◆ gui::TrackView

Member Data Documentation

◆ m_clips

◆ m_color

◆ m_height

◆ m_mutedBeforeSolo

◆ m_mutedModel

◆ m_name

◆ m_processingLock

◆ m_soloModel
