#include <TempoSyncKnobModel.h>

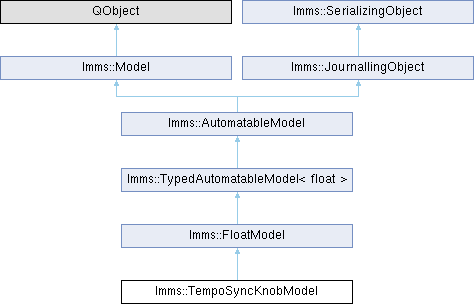

Inheritance diagram for lmms::TempoSyncKnobModel:

Public Types
enum class	SyncMode { None , DoubleWholeNote , WholeNote , HalfNote , QuarterNote , EighthNote , SixteenthNote , ThirtysecondNote , Custom }
Public Types inherited from lmms::AutomatableModel
enum class	ScaleType { Linear , Logarithmic , Decibel }

Public Slots
void	disableSync ()
void	setTempoSync (SyncMode _note_type)
void	setTempoSync (QAction *_item)
Public Slots inherited from lmms::AutomatableModel
virtual void	reset ()
void	unlink ()
void	unlinkControllerConnection ()
void	setUseControllerValue (bool b=true)

Signals
void	syncModeChanged (lmms::TempoSyncKnobModel::SyncMode _new_mode)
void	scaleChanged (float _new_scale)
Signals inherited from lmms::AutomatableModel
void	initValueChanged (float val)
void	destroyed (lmms::jo_id_t id)
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()

Public Member Functions
	TempoSyncKnobModel (const float _val, const float _min, const float _max, const float _step, const float _scale, Model *_parent, const QString &_display_name=QString())
	~TempoSyncKnobModel () override=default
void	saveSettings (QDomDocument &_doc, QDomElement &_this, const QString &name) override
	Saves settings (value, automation links and controller connections) of AutomatableModel into specified DOM element using <name> as attribute/node name.
void	loadSettings (const QDomElement &_this, const QString &name) override
	Loads settings (value, automation links and controller connections) of AutomatableModel from specified DOM element using <name> as attribute/node name.
SyncMode	syncMode () const
void	setSyncMode (SyncMode _new_mode)
float	scale () const
void	setScale (float _new_scale)
MeterModel &	getCustomMeterModel ()
MeterModel const &	getCustomMeterModel () const
Public Member Functions inherited from lmms::FloatModel
	FloatModel (float val=0, float min=0, float max=0, float step=0, Model *parent=nullptr, const QString &displayName=QString(), bool defaultConstructed=false)
float	getRoundedValue () const
int	getDigitCount () const
QString	displayValue (const float val) const override
Public Member Functions inherited from lmms::TypedAutomatableModel< float >
	AutomatableModel (const float val=0, const float min=0, const float max=0, const float step=0, Model *parent=nullptr, const QString &displayName=QString(), bool defaultConstructed=false)
float	value (int frameOffset=0) const
float	initValue () const
float	minValue () const
float	maxValue () const
Public Member Functions inherited from lmms::AutomatableModel
	~AutomatableModel () override
virtual void	accept (ModelVisitor &v)=0
virtual void	accept (ConstModelVisitor &v) const =0
template<class Target>
Target *	dynamicCast (bool doThrow=false)
	Return this class casted to Target.
template<class Target>
const Target *	dynamicCast (bool doThrow=false) const
	const overload, see overloaded function
bool	isAutomated () const
bool	isAutomatedOrControlled () const
ControllerConnection *	controllerConnection () const
void	setControllerConnection (ControllerConnection *c)
template<class T>
T	value (int frameOffset=0) const
float	controllerValue (int frameOffset) const
ValueBuffer *	valueBuffer ()
	Function that returns sample-exact data as a ValueBuffer.
template<class T>
T	initValue () const
bool	isAtInitValue () const
template<class T>
T	minValue () const
template<class T>
T	maxValue () const
template<class T>
T	step () const
float	scaledValue (float value) const
	Returns value scaled with the scale type and min/max values of this model.
float	inverseScaledValue (float value) const
	Returns value applied with the inverse of this model's scale type.
void	setInitValue (const float value)
void	setValue (const float value, const bool isAutomated=false)
void	incValue (int steps)
float	range () const
void	setRange (const float min, const float max, const float step=1)
void	setScaleType (ScaleType sc)
void	setScaleLogarithmic (bool setToTrue=true)
bool	isScaleLogarithmic () const
void	setStep (const float step)
float	centerValue () const
void	setCenterValue (const float centerVal)
void	linkToModel (AutomatableModel *model)
	link this to `model`, copying the value from `model`
size_t	countLinks () const
QString	nodeName () const override
bool	isLinked () const
bool	isValueChanged ()
float	globalAutomationValueAt (const TimePos &time)
void	setStrictStepSize (const bool b)
bool	useControllerValue () const
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual QString	displayName () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Protected Slots
void	calculateTempoSyncTime (lmms::bpm_t _bpm)
void	updateCustom ()

Private Attributes
SyncMode	m_tempoSyncMode
SyncMode	m_tempoLastSyncMode
float	m_scale
MeterModel	m_custom

Friends
class	gui::TempoSyncKnob

Additional Inherited Members
Static Public Member Functions inherited from lmms::AutomatableModel
template<class T>
static T	castValue (const float v)
template<bool>
static bool	castValue (const float v)
static void	incrementPeriodCounter ()
static void	resetPeriodCounter ()
Protected Member Functions inherited from lmms::AutomatableModel
	AutomatableModel (const float val=0, const float min=0, const float max=0, const float step=0, Model *parent=nullptr, const QString &displayName=QString(), bool defaultConstructed=false)
float	fittedValue (float value) const
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Member Enumeration Documentation

◆ SyncMode

enum class lmms::TempoSyncKnobModel::SyncMode

strong

Enumerator
None
DoubleWholeNote
WholeNote
HalfNote
QuarterNote
EighthNote
SixteenthNote
ThirtysecondNote
Custom

Constructor & Destructor Documentation

◆ TempoSyncKnobModel()

lmms::TempoSyncKnobModel::TempoSyncKnobModel	(	const float	_val,
		const float	_min,
		const float	_max,
		const float	_step,
		const float	_scale,
		Model *	_parent,
		const QString &	_display_name = QString() )

◆ ~TempoSyncKnobModel()

lmms::TempoSyncKnobModel::~TempoSyncKnobModel ( )

overridedefault

Member Function Documentation

◆ calculateTempoSyncTime

void lmms::TempoSyncKnobModel::calculateTempoSyncTime ( lmms::bpm_t _bpm )

protectedslot

◆ disableSync

void lmms::TempoSyncKnobModel::disableSync ( )

inlineslot

◆ getCustomMeterModel() [1/2]

MeterModel & lmms::TempoSyncKnobModel::getCustomMeterModel ( )

inline

◆ getCustomMeterModel() [2/2]

MeterModel const & lmms::TempoSyncKnobModel::getCustomMeterModel ( ) const

inline

◆ loadSettings()

void lmms::TempoSyncKnobModel::loadSettings	(	const QDomElement &	element,
		const QString &	name )

overridevirtual

Loads settings (value, automation links and controller connections) of AutomatableModel from specified DOM element using <name> as attribute/node name.

Reimplemented from lmms::AutomatableModel.

◆ saveSettings()

void lmms::TempoSyncKnobModel::saveSettings	(	QDomDocument &	doc,
		QDomElement &	element,
		const QString &	name )

overridevirtual

Saves settings (value, automation links and controller connections) of AutomatableModel into specified DOM element using <name> as attribute/node name.

Parameters

doc	TODO
element	Where this option shall be saved. Depending on the model, this can be done in an attribute or in a subnode.
name	Name to store this model as.

Reimplemented from lmms::AutomatableModel.

◆ scale()

float lmms::TempoSyncKnobModel::scale ( ) const

inline

◆ scaleChanged

void lmms::TempoSyncKnobModel::scaleChanged ( float _new_scale )

signal

◆ setScale()

void lmms::TempoSyncKnobModel::setScale ( float _new_scale )

◆ setSyncMode()

void lmms::TempoSyncKnobModel::setSyncMode ( SyncMode _new_mode )

◆ setTempoSync [1/2]

void lmms::TempoSyncKnobModel::setTempoSync ( QAction * _item )

slot

◆ setTempoSync [2/2]

void lmms::TempoSyncKnobModel::setTempoSync ( SyncMode _note_type )

slot

◆ syncMode()

SyncMode lmms::TempoSyncKnobModel::syncMode ( ) const

inline

◆ syncModeChanged

void lmms::TempoSyncKnobModel::syncModeChanged ( lmms::TempoSyncKnobModel::SyncMode _new_mode )

signal

◆ updateCustom

void lmms::TempoSyncKnobModel::updateCustom ( )

protectedslot

◆ gui::TempoSyncKnob

friend class gui::TempoSyncKnob

friend

Member Data Documentation

◆ m_custom

MeterModel lmms::TempoSyncKnobModel::m_custom

private

◆ m_scale

float lmms::TempoSyncKnobModel::m_scale

private

◆ m_tempoLastSyncMode

SyncMode lmms::TempoSyncKnobModel::m_tempoLastSyncMode

private

◆ m_tempoSyncMode

SyncMode lmms::TempoSyncKnobModel::m_tempoSyncMode

private

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/TempoSyncKnobModel.h
/home/runner/work/lmms-fork/lmms-fork/src/core/TempoSyncKnobModel.cpp
