juce::AudioProcessorValueTreeState::Parameter Class Reference

#include <juce_AudioProcessorValueTreeState.h>

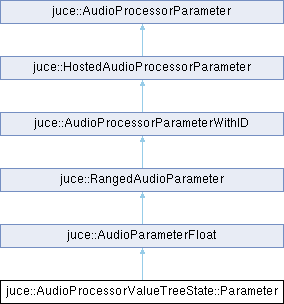

Inheritance diagram for juce::AudioProcessorValueTreeState::Parameter:

Public Member Functions
	Parameter (const ParameterID &parameterID, const String &parameterName, NormalisableRange< float > valueRange, float defaultValue, const AudioProcessorValueTreeStateParameterAttributes &attributes={})
	Parameter (const ParameterID &parameterID, const String &parameterName, const String &labelText, NormalisableRange< float > valueRange, float defaultParameterValue, std::function< String(float)> valueToTextFunction, std::function< float(const String &)> textToValueFunction, bool isMetaParameter=false, bool isAutomatableParameter=true, bool isDiscrete=false, AudioProcessorParameter::Category parameterCategory=AudioProcessorParameter::genericParameter, bool isBoolean=false)
float	getDefaultValue () const override
int	getNumSteps () const override
bool	isDiscrete () const override
bool	isBoolean () const override
Public Member Functions inherited from juce::AudioParameterFloat
	AudioParameterFloat (const ParameterID &parameterID, const String &parameterName, NormalisableRange< float > normalisableRange, float defaultValue, const AudioParameterFloatAttributes &attributes={})
	AudioParameterFloat (const ParameterID &parameterID, const String &parameterName, NormalisableRange< float > normalisableRange, float defaultValue, const String &parameterLabel, Category parameterCategory=AudioProcessorParameter::genericParameter, std::function< String(float value, int maximumStringLength)> stringFromValue=nullptr, std::function< float(const String &text)> valueFromString=nullptr)
	AudioParameterFloat (const ParameterID &parameterID, const String &parameterName, float minValue, float maxValue, float defaultValue)
	~AudioParameterFloat () override
float	get () const noexcept
	operator float () const noexcept
AudioParameterFloat &	operator= (float newValue)
const NormalisableRange< float > &	getNormalisableRange () const override
Public Member Functions inherited from juce::RangedAudioParameter
int	getNumSteps () const override
float	convertTo0to1 (float v) const noexcept
float	convertFrom0to1 (float v) const noexcept
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const AudioProcessorParameterWithIDAttributes &attributes={})
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const String &parameterLabel, Category parameterCategory=AudioProcessorParameter::genericParameter)
Public Member Functions inherited from juce::AudioProcessorParameterWithID
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const AudioProcessorParameterWithIDAttributes &attributes={})
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const String &parameterLabel, Category parameterCategory=AudioProcessorParameter::genericParameter)
String	getName (int) const override
String	getLabel () const override
Category	getCategory () const override
String	getParameterID () const override
bool	isMetaParameter () const override
bool	isAutomatable () const override
bool	isOrientationInverted () const override
Public Member Functions inherited from juce::HostedAudioProcessorParameter
	AudioProcessorParameter () noexcept=default
	AudioProcessorParameter (int versionHint)
Public Member Functions inherited from juce::AudioProcessorParameter
	AudioProcessorParameter () noexcept=default
	AudioProcessorParameter (int versionHint)
virtual	~AudioProcessorParameter ()
void	setValueNotifyingHost (float newValue)
void	beginChangeGesture ()
void	endChangeGesture ()
int	getParameterIndex () const noexcept
virtual String	getCurrentValueAsText () const
virtual StringArray	getAllValueStrings () const
int	getVersionHint () const
void	addListener (Listener *newListener)
void	removeListener (Listener *listener)
void	sendValueChangedMessageToListeners (float newValue)

Private Member Functions
void	valueChanged (float) override

Private Attributes
std::function< void()>	onValueChanged
const float	unsnappedDefault
const bool	discrete
const bool	boolean
std::atomic< float >	lastValue { -1.0f }

Friends
class	AudioProcessorValueTreeState::ParameterAdapter

Additional Inherited Members
Public Types inherited from juce::AudioProcessorParameter
enum	Category {   genericParameter = (0 << 16) | 0 , inputGain = (1 << 16) | 0 , outputGain = (1 << 16) | 1 , inputMeter = (2 << 16) | 0 ,   outputMeter = (2 << 16) | 1 , compressorLimiterGainReductionMeter = (2 << 16) | 2 , expanderGateGainReductionMeter = (2 << 16) | 3 , analysisMeter = (2 << 16) | 4 ,   otherMeter = (2 << 16) | 5 }
Public Attributes inherited from juce::AudioParameterFloat
NormalisableRange< float >	range
Public Attributes inherited from juce::AudioProcessorParameterWithID
const String	paramID
const String	name
const String	label
const Category	category

Detailed Description

A parameter class that maintains backwards compatibility with deprecated AudioProcessorValueTreeState functionality.

Previous calls to

createAndAddParameter (paramID1, paramName1, ...);

can be replaced with

using Parameter = AudioProcessorValueTreeState::Parameter;
createAndAddParameter (std::make_unique<Parameter> (paramID1, paramName1, ...));

However, a much better approach is to use the AudioProcessorValueTreeState constructor directly

using Parameter = AudioProcessorValueTreeState::Parameter;
YourAudioProcessor()
    : apvts (*this, &undoManager, "PARAMETERS", { std::make_unique<Parameter> (paramID1, paramName1, ...),
                                                  std::make_unique<Parameter> (paramID2, paramName2, ...),
                                                  ... })

Constructor & Destructor Documentation

Parameter() [1/2]

juce::AudioProcessorValueTreeState::Parameter::Parameter	(	const ParameterID &	parameterID,
		const String &	parameterName,
		NormalisableRange< float >	valueRange,
		float	defaultValue,
		const AudioProcessorValueTreeStateParameterAttributes &	attributes = {} )

Constructs a parameter instance.

Example usage:

using Parameter = AudioProcessorValueTreeState::Parameter;
using Attributes = AudioProcessorValueTreeStateParameterAttributes;

auto parameter = std::make_unique<Parameter> (ParameterID { "uniqueID", 1 },
                                              "Name",
                                              NormalisableRange<float> { 0.0f, 100.0f },
                                              50.0f,
                                              Attributes().withStringFromValueFunction (myStringFromValueFunction)
                                                          .withValueFromStringFunction (myValueFromStringFunction)
                                                          .withLabel ("%"));

Parameters

parameterID	The globally-unique identifier of this parameter
parameterName	The user-facing name of this parameter
valueRange	The valid range of values for this parameter
defaultValue	The initial parameter value
Attributes	Further advanced settings to customise the behaviour of this parameter

Parameter() [2/2]

juce::AudioProcessorValueTreeState::Parameter::Parameter ( const ParameterID & parameterID, const String & parameterName, const String & labelText, NormalisableRange< float > valueRange, float defaultParameterValue, std::function< String(float)> valueToTextFunction, std::function< float(const String &)> textToValueFunction, bool isMetaParameter = false, bool isAutomatableParameter = true, bool isDiscrete = false, AudioProcessorParameter::Category parameterCategory = AudioProcessorParameter::genericParameter, bool isBoolean = false )

inline

Member Function Documentation

getDefaultValue()

float juce::AudioProcessorValueTreeState::Parameter::getDefaultValue ( ) const

overridevirtual

This should return the default value for this parameter.

Reimplemented from juce::AudioParameterFloat.

getNumSteps()

int juce::AudioProcessorValueTreeState::Parameter::getNumSteps ( ) const

overridevirtual

Returns the number of steps that this parameter's range should be quantised into.

If you want a continuous range of values, don't override this method, and allow the default implementation to return AudioProcessor::getDefaultNumParameterSteps().

If your parameter is boolean, then you may want to make this return 2.

The value that is returned may or may not be used, depending on the host. If you want the host to display stepped automation values, rather than a continuous interpolation between successive values, you should override isDiscrete to return true.

See also

isDiscrete

Reimplemented from juce::AudioParameterFloat.

isBoolean()

bool juce::AudioProcessorValueTreeState::Parameter::isBoolean ( ) const

overridevirtual

Returns whether the parameter represents a boolean switch, typically with "On" and "Off" states.

This information may or may not be used, depending on the host. If you want the host to display a switch, rather than a two item dropdown menu, override this method to return true. You also need to override isDiscrete() to return true and getNumSteps() to return 2.

See also

isDiscrete getNumSteps

Reimplemented from juce::AudioProcessorParameter.

isDiscrete()

bool juce::AudioProcessorValueTreeState::Parameter::isDiscrete ( ) const

overridevirtual

Returns whether the parameter uses discrete values, based on the result of getNumSteps, or allows the host to select values continuously.

This information may or may not be used, depending on the host. If you want the host to display stepped automation values, rather than a continuous interpolation between successive values, override this method to return true.

See also

getNumSteps

Reimplemented from juce::AudioProcessorParameter.

valueChanged()

void juce::AudioProcessorValueTreeState::Parameter::valueChanged ( float newValue )

overrideprivatevirtual

Override this method if you are interested in receiving callbacks when the parameter value changes.

Reimplemented from juce::AudioParameterFloat.

Friends And Related Symbol Documentation

AudioProcessorValueTreeState::ParameterAdapter

friend class AudioProcessorValueTreeState::ParameterAdapter

friend

Member Data Documentation

boolean

const bool juce::AudioProcessorValueTreeState::Parameter::boolean

private

discrete

const bool juce::AudioProcessorValueTreeState::Parameter::discrete

private

lastValue

std::atomic<float> juce::AudioProcessorValueTreeState::Parameter::lastValue { -1.0f }

private

onValueChanged

std::function<void()> juce::AudioProcessorValueTreeState::Parameter::onValueChanged

private

unsnappedDefault

const float juce::AudioProcessorValueTreeState::Parameter::unsnappedDefault

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_audio_processors/utilities/juce_AudioProcessorValueTreeState.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_audio_processors/utilities/juce_AudioProcessorValueTreeState.cpp
