juce::AudioProcessorParameterWithID Class Reference

#include <juce_AudioProcessorParameterWithID.h>

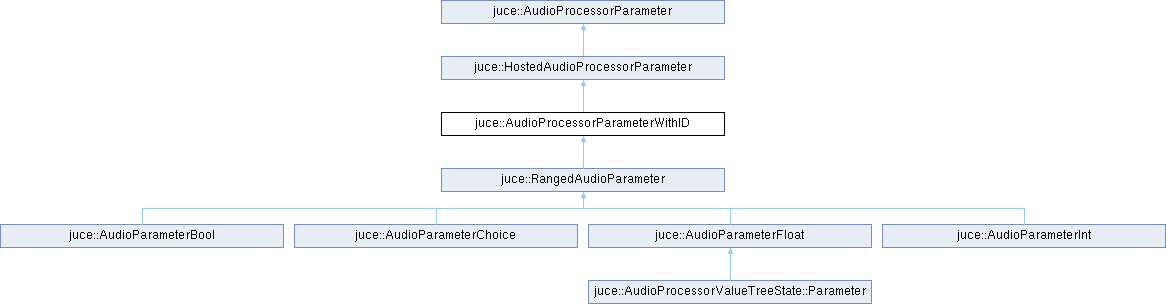

Inheritance diagram for juce::AudioProcessorParameterWithID:

Public Member Functions
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const AudioProcessorParameterWithIDAttributes &attributes={})
	AudioProcessorParameterWithID (const ParameterID &parameterID, const String &parameterName, const String &parameterLabel, Category parameterCategory=AudioProcessorParameter::genericParameter)
String	getName (int) const override
String	getLabel () const override
Category	getCategory () const override
String	getParameterID () const override
bool	isMetaParameter () const override
bool	isAutomatable () const override
bool	isOrientationInverted () const override
Public Member Functions inherited from juce::HostedAudioProcessorParameter
	AudioProcessorParameter () noexcept=default
	AudioProcessorParameter (int versionHint)
Public Member Functions inherited from juce::AudioProcessorParameter
	AudioProcessorParameter () noexcept=default
	AudioProcessorParameter (int versionHint)
virtual	~AudioProcessorParameter ()
virtual float	getValue () const =0
virtual void	setValue (float newValue)=0
void	setValueNotifyingHost (float newValue)
void	beginChangeGesture ()
void	endChangeGesture ()
virtual float	getDefaultValue () const =0
virtual int	getNumSteps () const
virtual bool	isDiscrete () const
virtual bool	isBoolean () const
virtual String	getText (float normalisedValue, int) const
virtual float	getValueForText (const String &text) const =0
int	getParameterIndex () const noexcept
virtual String	getCurrentValueAsText () const
virtual StringArray	getAllValueStrings () const
int	getVersionHint () const
void	addListener (Listener *newListener)
void	removeListener (Listener *listener)
void	sendValueChangedMessageToListeners (float newValue)

Public Attributes
const String	paramID
const String	name
const String	label
const Category	category

Private Attributes
bool	meta = false
bool	automatable = true
bool	inverted = false

Additional Inherited Members
Public Types inherited from juce::AudioProcessorParameter
enum	Category {   genericParameter = (0 << 16) | 0 , inputGain = (1 << 16) | 0 , outputGain = (1 << 16) | 1 , inputMeter = (2 << 16) | 0 ,   outputMeter = (2 << 16) | 1 , compressorLimiterGainReductionMeter = (2 << 16) | 2 , expanderGateGainReductionMeter = (2 << 16) | 3 , analysisMeter = (2 << 16) | 4 ,   otherMeter = (2 << 16) | 5 }

Detailed Description

This abstract base class is used by some AudioProcessorParameter helper classes.

See also

AudioParameterFloat, AudioParameterInt, AudioParameterBool, AudioParameterChoice

@tags{Audio}

Constructor & Destructor Documentation

AudioProcessorParameterWithID() [1/2]

juce::AudioProcessorParameterWithID::AudioProcessorParameterWithID	(	const ParameterID &	parameterID,
		const String &	parameterName,
		const AudioProcessorParameterWithIDAttributes &	attributes = {} )

The creation of this object requires providing a name and ID which will be constant for its lifetime.

Given that AudioProcessorParameterWithID is abstract, you'll probably call this constructor from a derived class constructor, e.g.

MyParameterType (String paramID, String name, String label, bool automatable)
    : AudioProcessorParameterWithID (paramID, name, AudioProcessorParameterWithIDAttributes().withLabel (label)
                                                                                             .withAutomatable (automatable))
{
}

Parameters

parameterID	Specifies the identifier, and optionally the parameter's version hint.
parameterName	The user-facing parameter name.
Attributes	Other parameter properties.

AudioProcessorParameterWithID() [2/2]

juce::AudioProcessorParameterWithID::AudioProcessorParameterWithID ( const ParameterID & parameterID, const String & parameterName, const String & parameterLabel, Category parameterCategory = AudioProcessorParameter::genericParameter )

inline

The creation of this object requires providing a name and ID which will be constant for its lifetime.

Parameters

parameterID	Used to uniquely identify the parameter
parameterName	The user-facing name of the parameter
parameterLabel	An optional label for the parameter's value
parameterCategory	The semantics of this parameter

Member Function Documentation

getCategory()

AudioProcessorParameter::Category juce::AudioProcessorParameterWithID::getCategory ( ) const

overridevirtual

Returns the parameter's category.

Reimplemented from juce::AudioProcessorParameter.

getLabel()

String juce::AudioProcessorParameterWithID::getLabel ( ) const

overridevirtual

Some parameters may be able to return a label string for their units. For example "Hz" or "%".

Implements juce::AudioProcessorParameter.

getName()

String juce::AudioProcessorParameterWithID::getName ( int maximumStringLength ) const

overridevirtual

Returns the name to display for this parameter, which should be made to fit within the given string length.

Implements juce::AudioProcessorParameter.

getParameterID()

String juce::AudioProcessorParameterWithID::getParameterID ( ) const

inlineoverridevirtual

Returns an ID that is unique to this parameter.

Parameter indices are unstable across plugin versions, which means that the parameter found at a particular index in one version of a plugin might move to a different index in the subsequent version.

Unlike the parameter index, the ID returned by this function should be somewhat stable (depending on the format of the plugin), so it is more suitable for storing/recalling automation data.

Implements juce::HostedAudioProcessorParameter.

isAutomatable()

bool juce::AudioProcessorParameterWithID::isAutomatable ( ) const

inlineoverridevirtual

Returns true if the host can automate this parameter. By default, this returns true.

Reimplemented from juce::AudioProcessorParameter.

isMetaParameter()

bool juce::AudioProcessorParameterWithID::isMetaParameter ( ) const

inlineoverridevirtual

Should return true if this parameter is a "meta" parameter. A meta-parameter is a parameter that changes other params. It is used by some hosts (e.g. AudioUnit hosts). By default this returns false.

Reimplemented from juce::AudioProcessorParameter.

isOrientationInverted()

bool juce::AudioProcessorParameterWithID::isOrientationInverted ( ) const

inlineoverridevirtual

This can be overridden to tell the host that this parameter operates in the reverse direction. (Not all plugin formats or hosts will actually use this information).

Reimplemented from juce::AudioProcessorParameter.

Member Data Documentation

automatable

bool juce::AudioProcessorParameterWithID::automatable = true

private

category

const Category juce::AudioProcessorParameterWithID::category

Provides access to the parameter's category.

inverted

bool juce::AudioProcessorParameterWithID::inverted = false

private

label

const String juce::AudioProcessorParameterWithID::label

Provides access to the parameter's label.

meta

bool juce::AudioProcessorParameterWithID::meta = false

private

name

const String juce::AudioProcessorParameterWithID::name

Provides access to the parameter's name.

paramID

const String juce::AudioProcessorParameterWithID::paramID

Provides access to the parameter's ID string.

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_audio_processors/utilities/juce_AudioProcessorParameterWithID.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_audio_processors/utilities/juce_AudioProcessorParameterWithID.cpp
