calf_plugins::audio_module< Metadata > Class Template Reference

Empty implementations for plugin functions. More...

#include <giface.h>

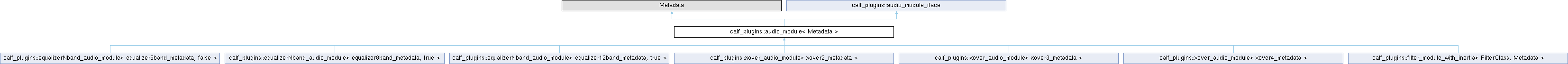

Inheritance diagram for calf_plugins::audio_module< Metadata >:

Public Types
typedef Metadata	metadata_type

Public Member Functions
	audio_module ()
void	note_on (int channel, int note, int velocity)
	Handle MIDI Note On.
void	note_off (int channel, int note, int velocity)
	Handle MIDI Note Off.
void	program_change (int channel, int program)
	Handle MIDI Program Change.
void	control_change (int channel, int controller, int value)
	Handle MIDI Control Change.
void	pitch_bend (int channel, int value)
void	channel_pressure (int channel, int value)
void	params_changed ()
	Called when params are changed (before processing).
void	activate ()
	LADSPA-esque activate function, except it is called after ports are connected, not before.
void	deactivate ()
	LADSPA-esque deactivate function.
void	set_sample_rate (uint32_t sr)
	Set sample rate for the plugin.
void	execute (int cmd_no)
	Execute menu command with given number.
virtual char *	configure (const char *key, const char *value)
	DSSI configure call.
void	send_configures (send_configure_iface *sci)
	Send all understood configure vars (none by default).
int	send_status_updates (send_updates_iface *sui, int last_serial)
	Send all supported status vars (none by default).
void	params_reset ()
	Reset parameter values for epp:trigger type parameters (ones activated by oneshot push button instead of check box).
void	post_instantiate (uint32_t)
	Called after instantiating (after all the feature pointers are set - including interfaces like progress_report_iface).
uint32_t	message_run (const void *valid_ports, void *output_ports)
virtual void	get_port_arrays (float **&ins_ptrs, float **&outs_ptrs, float **&params_ptrs)
	Return the array of input port pointers.
virtual const plugin_metadata_iface *	get_metadata_iface () const
	Return metadata object.
virtual void	set_progress_report_iface (progress_report_iface *iface)
	Set the progress report interface to communicate progress to.
void	zero_by_mask (uint32_t mask, uint32_t offset, uint32_t nsamples)
	utility function: zero port values if mask is 0
uint32_t	process_slice (uint32_t offset, uint32_t end)
	utility function: call process, and if it returned zeros in output masks, zero out the relevant output port buffers
virtual const line_graph_iface *	get_line_graph_iface () const
virtual const phase_graph_iface *	get_phase_graph_iface () const
Public Member Functions inherited from calf_plugins::audio_module_iface
virtual uint32_t	process (uint32_t offset, uint32_t numsamples, uint32_t inputs_mask, uint32_t outputs_mask)=0
	The audio processing loop; assumes numsamples <= MAX_SAMPLE_RUN, for larger buffers, call process_slice.
virtual	~audio_module_iface ()

Public Attributes
float *	ins [(Metadata::in_count !=0) ? Metadata::in_count :1]
float *	outs [(Metadata::out_count !=0) ? Metadata::out_count :1]
float *	params [Metadata::param_count]
bool	questionable_data_reported_in
bool	questionable_data_reported_out
progress_report_iface *	progress_report

Detailed Description

template<class Metadata>
class calf_plugins::audio_module< Metadata >

Empty implementations for plugin functions.

Member Typedef Documentation

metadata_type

template<class Metadata>

typedef Metadata calf_plugins::audio_module< Metadata >::metadata_type

Constructor & Destructor Documentation

audio_module()

template<class Metadata>

calf_plugins::audio_module< Metadata >::audio_module ( )

inline

Member Function Documentation

activate()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::activate ( )

inlinevirtual

LADSPA-esque activate function, except it is called after ports are connected, not before.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::bassenhancer_audio_module, calf_plugins::comp_delay_audio_module, calf_plugins::compressor_audio_module, calf_plugins::crusher_audio_module, calf_plugins::deesser_audio_module, calf_plugins::emphasis_audio_module, calf_plugins::envelopefilter_audio_module, calf_plugins::equalizer30band_audio_module, calf_plugins::equalizerNband_audio_module< BaseClass, has_lphp >, calf_plugins::equalizerNband_audio_module< equalizer12band_metadata, true >, calf_plugins::equalizerNband_audio_module< equalizer5band_metadata, false >, calf_plugins::equalizerNband_audio_module< equalizer8band_metadata, true >, calf_plugins::exciter_audio_module, calf_plugins::filter_module_with_inertia< FilterClass, Metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filter_metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filterclavier_metadata >, calf_plugins::filterclavier_audio_module, calf_plugins::flanger_audio_module, calf_plugins::gate_audio_module, calf_plugins::haas_enhancer_audio_module, calf_plugins::limiter_audio_module, calf_plugins::mono_audio_module, calf_plugins::monocompressor_audio_module, calf_plugins::monosynth_audio_module, calf_plugins::multibandcompressor_audio_module, calf_plugins::multibandenhancer_audio_module, calf_plugins::multibandgate_audio_module, calf_plugins::multibandlimiter_audio_module, calf_plugins::multichorus_audio_module, calf_plugins::multispread_audio_module, calf_plugins::organ_audio_module, calf_plugins::phaser_audio_module, calf_plugins::psyclipper_audio_module, calf_plugins::pulsator_audio_module, calf_plugins::reverb_audio_module, calf_plugins::reverse_delay_audio_module, calf_plugins::ringmodulator_audio_module, calf_plugins::rotary_speaker_audio_module, calf_plugins::saturator_audio_module, calf_plugins::sidechaincompressor_audio_module, calf_plugins::sidechaingate_audio_module, calf_plugins::sidechainlimiter_audio_module, calf_plugins::stereo_audio_module, calf_plugins::tapesimulator_audio_module, calf_plugins::transientdesigner_audio_module, calf_plugins::vintage_delay_audio_module, calf_plugins::vocoder_audio_module, calf_plugins::xover_audio_module< XoverBaseClass >, calf_plugins::xover_audio_module< xover2_metadata >, calf_plugins::xover_audio_module< xover3_metadata >, and calf_plugins::xover_audio_module< xover4_metadata >.

channel_pressure()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::channel_pressure ( int channel, int value )

inlinevirtual

Handle MIDI Channel Pressure

Parameters

value

channel pressure (0 to 127)

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::monosynth_audio_module, and calf_plugins::wavetable_audio_module.

configure()

template<class Metadata>

virtual char * calf_plugins::audio_module< Metadata >::configure ( const char * key, const char * value )

inlinevirtual

DSSI configure call.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::monosynth_audio_module, calf_plugins::organ_audio_module, calf_plugins::vintage_delay_audio_module, and calf_plugins::wavetable_audio_module.

control_change()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::control_change ( int channel, int controller, int value )

inlinevirtual

Handle MIDI Control Change.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::monosynth_audio_module, calf_plugins::organ_audio_module, calf_plugins::rotary_speaker_audio_module, and calf_plugins::wavetable_audio_module.

deactivate()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::deactivate ( )

inlinevirtual

LADSPA-esque deactivate function.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::bassenhancer_audio_module, calf_plugins::comp_delay_audio_module, calf_plugins::compressor_audio_module, calf_plugins::crusher_audio_module, calf_plugins::deesser_audio_module, calf_plugins::emphasis_audio_module, calf_plugins::envelopefilter_audio_module, calf_plugins::equalizer30band_audio_module, calf_plugins::equalizerNband_audio_module< BaseClass, has_lphp >, calf_plugins::equalizerNband_audio_module< equalizer12band_metadata, true >, calf_plugins::equalizerNband_audio_module< equalizer5band_metadata, false >, calf_plugins::equalizerNband_audio_module< equalizer8band_metadata, true >, calf_plugins::exciter_audio_module, calf_plugins::filter_module_with_inertia< FilterClass, Metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filter_metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filterclavier_metadata >, calf_plugins::filterclavier_audio_module, calf_plugins::flanger_audio_module, calf_plugins::gate_audio_module, calf_plugins::haas_enhancer_audio_module, calf_plugins::limiter_audio_module, calf_plugins::mono_audio_module, calf_plugins::monocompressor_audio_module, calf_plugins::monosynth_audio_module, calf_plugins::multibandcompressor_audio_module, calf_plugins::multibandenhancer_audio_module, calf_plugins::multibandgate_audio_module, calf_plugins::multibandlimiter_audio_module, calf_plugins::multichorus_audio_module, calf_plugins::multispread_audio_module, calf_plugins::organ_audio_module, calf_plugins::phaser_audio_module, calf_plugins::psyclipper_audio_module, calf_plugins::pulsator_audio_module, calf_plugins::reverb_audio_module, calf_plugins::reverse_delay_audio_module, calf_plugins::ringmodulator_audio_module, calf_plugins::rotary_speaker_audio_module, calf_plugins::saturator_audio_module, calf_plugins::sidechaincompressor_audio_module, calf_plugins::sidechaingate_audio_module, calf_plugins::sidechainlimiter_audio_module, calf_plugins::stereo_audio_module, calf_plugins::tapesimulator_audio_module, calf_plugins::transientdesigner_audio_module, calf_plugins::vintage_delay_audio_module, calf_plugins::vocoder_audio_module, calf_plugins::xover_audio_module< XoverBaseClass >, calf_plugins::xover_audio_module< xover2_metadata >, calf_plugins::xover_audio_module< xover3_metadata >, and calf_plugins::xover_audio_module< xover4_metadata >.

execute()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::execute ( int cmd_no )

inlinevirtual

Execute menu command with given number.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::organ_audio_module.

get_line_graph_iface()

template<class Metadata>

virtual const line_graph_iface * calf_plugins::audio_module< Metadata >::get_line_graph_iface ( ) const

inlinevirtual

Returns

line_graph_iface if any

Implements calf_plugins::audio_module_iface.

get_metadata_iface()

template<class Metadata>

virtual const plugin_metadata_iface * calf_plugins::audio_module< Metadata >::get_metadata_iface ( ) const

inlinevirtual

Return metadata object.

Implements calf_plugins::audio_module_iface.

get_phase_graph_iface()

template<class Metadata>

virtual const phase_graph_iface * calf_plugins::audio_module< Metadata >::get_phase_graph_iface ( ) const

inlinevirtual

Returns

phase_graph_iface if any

Implements calf_plugins::audio_module_iface.

get_port_arrays()

template<class Metadata>

virtual void calf_plugins::audio_module< Metadata >::get_port_arrays ( float **& ins_ptrs, float **& outs_ptrs, float **& params_ptrs )

inlinevirtual

Return the array of input port pointers.

Implements calf_plugins::audio_module_iface.

message_run()

template<class Metadata>

uint32_t calf_plugins::audio_module< Metadata >::message_run ( const void * valid_ports, void * output_ports )

inlinevirtual

Handle 'message context' port message

• output_ports pointer to bit array of output port "changed" flags, note that 0 = first audio input, not first parameter (use input_count + output_count)

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::organ_audio_module.

note_off()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::note_off ( int channel, int note, int velocity )

inlinevirtual

Handle MIDI Note Off.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::filterclavier_audio_module, calf_plugins::monosynth_audio_module, calf_plugins::organ_audio_module, and calf_plugins::wavetable_audio_module.

note_on()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::note_on ( int channel, int note, int velocity )

inlinevirtual

Handle MIDI Note On.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::filterclavier_audio_module, calf_plugins::monosynth_audio_module, calf_plugins::organ_audio_module, and calf_plugins::wavetable_audio_module.

params_changed()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::params_changed ( )

inlinevirtual

Called when params are changed (before processing).

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::bassenhancer_audio_module, calf_plugins::comp_delay_audio_module, calf_plugins::compressor_audio_module, calf_plugins::crusher_audio_module, calf_plugins::deesser_audio_module, calf_plugins::emphasis_audio_module, calf_plugins::envelopefilter_audio_module, calf_plugins::equalizer30band_audio_module, calf_plugins::equalizerNband_audio_module< BaseClass, has_lphp >, calf_plugins::equalizerNband_audio_module< equalizer12band_metadata, true >, calf_plugins::equalizerNband_audio_module< equalizer5band_metadata, false >, calf_plugins::equalizerNband_audio_module< equalizer8band_metadata, true >, calf_plugins::exciter_audio_module, calf_plugins::filter_audio_module, calf_plugins::filter_module_with_inertia< FilterClass, Metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filter_metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filterclavier_metadata >, calf_plugins::filterclavier_audio_module, calf_plugins::flanger_audio_module, calf_plugins::gate_audio_module, calf_plugins::haas_enhancer_audio_module, calf_plugins::limiter_audio_module, calf_plugins::mono_audio_module, calf_plugins::monocompressor_audio_module, calf_plugins::monosynth_audio_module, calf_plugins::multibandcompressor_audio_module, calf_plugins::multibandenhancer_audio_module, calf_plugins::multibandgate_audio_module, calf_plugins::multibandlimiter_audio_module, calf_plugins::multichorus_audio_module, calf_plugins::multispread_audio_module, calf_plugins::organ_audio_module, calf_plugins::phaser_audio_module, calf_plugins::psyclipper_audio_module, calf_plugins::pulsator_audio_module, calf_plugins::reverb_audio_module, calf_plugins::reverse_delay_audio_module, calf_plugins::ringmodulator_audio_module, calf_plugins::rotary_speaker_audio_module, calf_plugins::saturator_audio_module, calf_plugins::sidechaincompressor_audio_module, calf_plugins::sidechaingate_audio_module, calf_plugins::sidechainlimiter_audio_module, calf_plugins::stereo_audio_module, calf_plugins::tapesimulator_audio_module, calf_plugins::transientdesigner_audio_module, calf_plugins::vintage_delay_audio_module, calf_plugins::vocoder_audio_module, calf_plugins::widgets_audio_module, calf_plugins::xover_audio_module< XoverBaseClass >, calf_plugins::xover_audio_module< xover2_metadata >, calf_plugins::xover_audio_module< xover3_metadata >, and calf_plugins::xover_audio_module< xover4_metadata >.

params_reset()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::params_reset ( )

inlinevirtual

Reset parameter values for epp:trigger type parameters (ones activated by oneshot push button instead of check box).

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::flanger_audio_module, calf_plugins::phaser_audio_module, calf_plugins::pulsator_audio_module, and calf_plugins::ringmodulator_audio_module.

pitch_bend()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::pitch_bend ( int channel, int value )

inlinevirtual

Handle MIDI Pitch Bend

Parameters

value

pitch bend value (-8192 to 8191, defined as in MIDI ie. 8191 = 200 ct by default)

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::monosynth_audio_module, calf_plugins::organ_audio_module, and calf_plugins::wavetable_audio_module.

post_instantiate()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::post_instantiate ( uint32_t )

inlinevirtual

Called after instantiating (after all the feature pointers are set - including interfaces like progress_report_iface).

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::monosynth_audio_module, and calf_plugins::organ_audio_module.

process_slice()

template<class Metadata>

uint32_t calf_plugins::audio_module< Metadata >::process_slice ( uint32_t offset, uint32_t end )

inlinevirtual

utility function: call process, and if it returned zeros in output masks, zero out the relevant output port buffers

Implements calf_plugins::audio_module_iface.

program_change()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::program_change ( int channel, int program )

inlinevirtual

Handle MIDI Program Change.

Implements calf_plugins::audio_module_iface.

send_configures()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::send_configures ( send_configure_iface * sci )

inlinevirtual

Send all understood configure vars (none by default).

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::monosynth_audio_module, calf_plugins::organ_audio_module, and calf_plugins::wavetable_audio_module.

send_status_updates()

template<class Metadata>

int calf_plugins::audio_module< Metadata >::send_status_updates ( send_updates_iface * sui, int last_serial )

inlinevirtual

Send all supported status vars (none by default).

Implements calf_plugins::audio_module_iface.

set_progress_report_iface()

template<class Metadata>

virtual void calf_plugins::audio_module< Metadata >::set_progress_report_iface ( progress_report_iface * iface )

inlinevirtual

Set the progress report interface to communicate progress to.

Implements calf_plugins::audio_module_iface.

set_sample_rate()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::set_sample_rate ( uint32_t sr )

inlinevirtual

Set sample rate for the plugin.

Implements calf_plugins::audio_module_iface.

Reimplemented in calf_plugins::bassenhancer_audio_module, calf_plugins::comp_delay_audio_module, calf_plugins::compressor_audio_module, calf_plugins::crusher_audio_module, calf_plugins::deesser_audio_module, calf_plugins::emphasis_audio_module, calf_plugins::envelopefilter_audio_module, calf_plugins::equalizer30band_audio_module, calf_plugins::equalizerNband_audio_module< BaseClass, has_lphp >, calf_plugins::equalizerNband_audio_module< equalizer12band_metadata, true >, calf_plugins::equalizerNband_audio_module< equalizer5band_metadata, false >, calf_plugins::equalizerNband_audio_module< equalizer8band_metadata, true >, calf_plugins::exciter_audio_module, calf_plugins::filter_module_with_inertia< FilterClass, Metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filter_metadata >, calf_plugins::filter_module_with_inertia< dsp::biquad_filter_module, filterclavier_metadata >, calf_plugins::filterclavier_audio_module, calf_plugins::flanger_audio_module, calf_plugins::gate_audio_module, calf_plugins::haas_enhancer_audio_module, calf_plugins::limiter_audio_module, calf_plugins::mono_audio_module, calf_plugins::monocompressor_audio_module, calf_plugins::monosynth_audio_module, calf_plugins::multibandcompressor_audio_module, calf_plugins::multibandenhancer_audio_module, calf_plugins::multibandgate_audio_module, calf_plugins::multibandlimiter_audio_module, calf_plugins::multichorus_audio_module, calf_plugins::multispread_audio_module, calf_plugins::organ_audio_module, calf_plugins::phaser_audio_module, calf_plugins::psyclipper_audio_module, calf_plugins::pulsator_audio_module, calf_plugins::reverb_audio_module, calf_plugins::reverse_delay_audio_module, calf_plugins::ringmodulator_audio_module, calf_plugins::rotary_speaker_audio_module, calf_plugins::saturator_audio_module, calf_plugins::sidechaincompressor_audio_module, calf_plugins::sidechaingate_audio_module, calf_plugins::sidechainlimiter_audio_module, calf_plugins::stereo_audio_module, calf_plugins::tapesimulator_audio_module, calf_plugins::transientdesigner_audio_module, calf_plugins::vintage_delay_audio_module, calf_plugins::vocoder_audio_module, calf_plugins::wavetable_audio_module, calf_plugins::widgets_audio_module, calf_plugins::xover_audio_module< XoverBaseClass >, calf_plugins::xover_audio_module< xover2_metadata >, calf_plugins::xover_audio_module< xover3_metadata >, and calf_plugins::xover_audio_module< xover4_metadata >.

zero_by_mask()

template<class Metadata>

void calf_plugins::audio_module< Metadata >::zero_by_mask ( uint32_t mask, uint32_t offset, uint32_t nsamples )

inline

utility function: zero port values if mask is 0

Member Data Documentation

ins

template<class Metadata>

float* calf_plugins::audio_module< Metadata >::ins[(Metadata::in_count !=0) ? Metadata::in_count :1]

outs

template<class Metadata>

float* calf_plugins::audio_module< Metadata >::outs[(Metadata::out_count !=0) ? Metadata::out_count :1]

params

template<class Metadata>

float* calf_plugins::audio_module< Metadata >::params[Metadata::param_count]

progress_report

template<class Metadata>

progress_report_iface* calf_plugins::audio_module< Metadata >::progress_report

questionable_data_reported_in

template<class Metadata>

bool calf_plugins::audio_module< Metadata >::questionable_data_reported_in

questionable_data_reported_out

template<class Metadata>

bool calf_plugins::audio_module< Metadata >::questionable_data_reported_out

---

The documentation for this class was generated from the following file:

• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/giface.h
