#include <modules_dist.h>

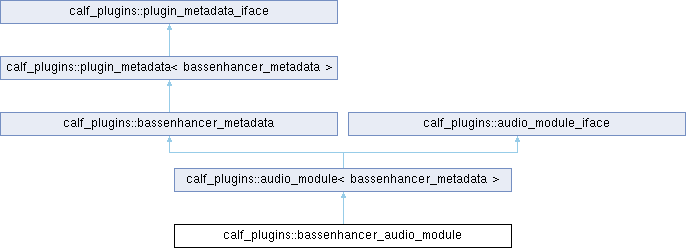

Inheritance diagram for calf_plugins::bassenhancer_audio_module:

Public Member Functions
	bassenhancer_audio_module ()
void	activate ()
	LADSPA-esque activate function, except it is called after ports are connected, not before.
void	deactivate ()
	LADSPA-esque deactivate function.
void	params_changed ()
	Called when params are changed (before processing).
void	set_sample_rate (uint32_t sr)
	Set sample rate for the plugin.
uint32_t	process (uint32_t offset, uint32_t numsamples, uint32_t inputs_mask, uint32_t outputs_mask)
	The audio processing loop; assumes numsamples <= MAX_SAMPLE_RUN, for larger buffers, call process_slice.
Public Member Functions inherited from calf_plugins::audio_module< bassenhancer_metadata >
	audio_module ()
void	note_on (int channel, int note, int velocity)
	Handle MIDI Note On.
void	note_off (int channel, int note, int velocity)
	Handle MIDI Note Off.
void	program_change (int channel, int program)
	Handle MIDI Program Change.
void	control_change (int channel, int controller, int value)
	Handle MIDI Control Change.
void	pitch_bend (int channel, int value)
void	channel_pressure (int channel, int value)
void	execute (int cmd_no)
	Execute menu command with given number.
virtual char *	configure (const char key, const char value)
	DSSI configure call.
void	send_configures (send_configure_iface *sci)
	Send all understood configure vars (none by default).
int	send_status_updates (send_updates_iface *sui, int last_serial)
	Send all supported status vars (none by default).
void	params_reset ()
	Reset parameter values for epp:trigger type parameters (ones activated by oneshot push button instead of check box).
void	post_instantiate (uint32_t)
	Called after instantiating (after all the feature pointers are set - including interfaces like progress_report_iface).
uint32_t	message_run (const void valid_ports, void output_ports)
virtual void	get_port_arrays (float &ins_ptrs, float &outs_ptrs, float **&params_ptrs)
	Return the array of input port pointers.
virtual const plugin_metadata_iface *	get_metadata_iface () const
	Return metadata object.
virtual void	set_progress_report_iface (progress_report_iface *iface)
	Set the progress report interface to communicate progress to.
void	zero_by_mask (uint32_t mask, uint32_t offset, uint32_t nsamples)
	utility function: zero port values if mask is 0
uint32_t	process_slice (uint32_t offset, uint32_t end)
	utility function: call process, and if it returned zeros in output masks, zero out the relevant output port buffers
virtual const line_graph_iface *	get_line_graph_iface () const
virtual const phase_graph_iface *	get_phase_graph_iface () const
Public Member Functions inherited from calf_plugins::plugin_metadata< bassenhancer_metadata >
const char *	get_name () const
const char *	get_id () const
const char *	get_label () const
int	get_input_count () const
int	get_output_count () const
int	get_inputs_optional () const
int	get_outputs_optional () const
int	get_param_count () const
bool	get_midi () const
bool	requires_midi () const
bool	requires_instance_access () const
bool	is_rt_capable () const
int	get_param_port_offset () const
char *	get_gui_xml (const char *prefix) const
	Return custom XML.
plugin_command_info *	get_commands () const
const parameter_properties *	get_param_props (int param_no) const
const char **	get_port_names () const
bool	is_cv (int param_no) const
	is a given parameter a control voltage?
bool	is_noisy (int param_no) const
	is the given parameter non-interpolated?
const ladspa_plugin_info &	get_plugin_info () const
bool	get_simulate_stereo_input () const
bool	sends_live_updates () const
Public Member Functions inherited from calf_plugins::plugin_metadata_iface
virtual void	get_configure_vars (std::vector< std::string > &names) const
	obtain array of names of configure variables (or NULL is none needed)
virtual const table_metadata_iface *	get_table_metadata_iface (const char *key) const
virtual	~plugin_metadata_iface ()
	Do-nothing destructor to silence compiler warning.
Public Member Functions inherited from calf_plugins::audio_module_iface
virtual	~audio_module_iface ()

Public Attributes
uint32_t	srate
bool	is_active
Public Attributes inherited from calf_plugins::audio_module< bassenhancer_metadata >
float *	ins [(bassenhancer_metadata::in_count !=0) ? bassenhancer_metadata::in_count :1]
float *	outs [(bassenhancer_metadata::out_count !=0) ? bassenhancer_metadata::out_count :1]
float *	params [bassenhancer_metadata::param_count]
bool	questionable_data_reported_in
bool	questionable_data_reported_out
progress_report_iface *	progress_report

Private Attributes
float	freq_old
float	floor_old
bool	floor_active_old
float	meter_drive
dsp::biquad_d2	lp [2][4]
dsp::biquad_d2	hp [2][2]
dsp::tap_distortion	dist [2]
dsp::bypass	bypass
vumeters	meters

Additional Inherited Members
Public Types inherited from calf_plugins::audio_module< bassenhancer_metadata >
typedef bassenhancer_metadata	metadata_type
Public Types inherited from calf_plugins::bassenhancer_metadata
enum	{ in_count = 2 , out_count = 2 , ins_optional = 1 , outs_optional = 1 , support_midi = false , require_midi = false , rt_capable = true , require_instance_access = false }
enum	{ param_bypass , param_level_in , param_level_out , param_amount , MONO_VU_METER_PARAMS , param_drive , param_blend , param_meter_drive , param_freq , param_listen , param_floor_active , param_floor , param_count }
Public Types inherited from calf_plugins::plugin_metadata< bassenhancer_metadata >
typedef plugin_metadata< bassenhancer_metadata >	metadata_class
Public Types inherited from calf_plugins::plugin_metadata_iface
enum	{ simulate_stereo_input = true , has_live_updates = true }
Static Public Attributes inherited from calf_plugins::plugin_metadata< bassenhancer_metadata >
static const char *	port_names []
static parameter_properties	param_props []
static ladspa_plugin_info	plugin_info

Constructor & Destructor Documentation

◆ bassenhancer_audio_module()

bassenhancer_audio_module::bassenhancer_audio_module ( )

Member Function Documentation

◆ activate()

void bassenhancer_audio_module::activate ( )

virtual

LADSPA-esque activate function, except it is called after ports are connected, not before.

Reimplemented from calf_plugins::audio_module< bassenhancer_metadata >.

◆ deactivate()

void bassenhancer_audio_module::deactivate ( )

virtual

LADSPA-esque deactivate function.

Reimplemented from calf_plugins::audio_module< bassenhancer_metadata >.

◆ params_changed()

void bassenhancer_audio_module::params_changed ( )

virtual

Called when params are changed (before processing).

Reimplemented from calf_plugins::audio_module< bassenhancer_metadata >.

◆ process()

uint32_t bassenhancer_audio_module::process	(	uint32_t	offset,
		uint32_t	numsamples,
		uint32_t	inputs_mask,
		uint32_t	outputs_mask )

virtual

The audio processing loop; assumes numsamples <= MAX_SAMPLE_RUN, for larger buffers, call process_slice.

Implements calf_plugins::audio_module_iface.

◆ set_sample_rate()

void bassenhancer_audio_module::set_sample_rate ( uint32_t sr )

virtual

Set sample rate for the plugin.

Reimplemented from calf_plugins::audio_module< bassenhancer_metadata >.

Member Data Documentation

◆ bypass

dsp::bypass calf_plugins::bassenhancer_audio_module::bypass

private

◆ dist

dsp::tap_distortion calf_plugins::bassenhancer_audio_module::dist[2]

private

◆ floor_active_old

bool calf_plugins::bassenhancer_audio_module::floor_active_old

private

◆ floor_old

float calf_plugins::bassenhancer_audio_module::floor_old

private

◆ freq_old

float calf_plugins::bassenhancer_audio_module::freq_old

private

◆ hp

dsp::biquad_d2 calf_plugins::bassenhancer_audio_module::hp[2][2]

private

◆ is_active

bool calf_plugins::bassenhancer_audio_module::is_active

◆ lp

dsp::biquad_d2 calf_plugins::bassenhancer_audio_module::lp[2][4]

private

◆ meter_drive

float calf_plugins::bassenhancer_audio_module::meter_drive

private

◆ meters

vumeters calf_plugins::bassenhancer_audio_module::meters

private

◆ srate

uint32_t calf_plugins::bassenhancer_audio_module::srate

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/modules_dist.h
/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/modules_dist.cpp
