calf_plugins::rotary_speaker_audio_module Class Reference

#include <modules_mod.h>

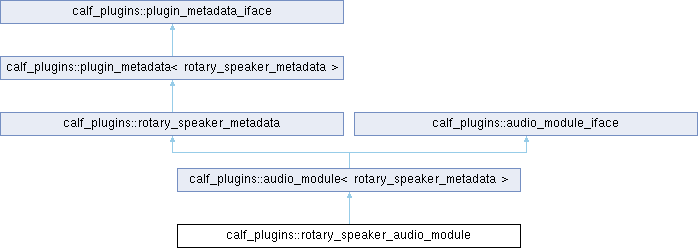

Inheritance diagram for calf_plugins::rotary_speaker_audio_module:

Public Member Functions
	rotary_speaker_audio_module ()
void	set_sample_rate (uint32_t sr)
	Set sample rate for the plugin.
void	setup ()
void	activate ()
	LADSPA-esque activate function, except it is called after ports are connected, not before.
void	deactivate ()
	LADSPA-esque deactivate function.
void	params_changed ()
	Called when params are changed (before processing).
void	set_vibrato ()
uint32_t	rpm2dphase (float rpm)
	Convert RPM speed to delta-phase.
void	update_speed ()
	Set delta-phase variables based on current calculated (and interpolated) RPM speed.
void	update_speed_manual (float delta)
bool	incr_towards (float &aspeed, float raspeed, float delta_decc, float delta_acc)
	Increase or decrease aspeed towards raspeed, with required negative and positive rate.
uint32_t	process (uint32_t offset, uint32_t nsamples, uint32_t inputs_mask, uint32_t outputs_mask)
	The audio processing loop; assumes numsamples <= MAX_SAMPLE_RUN, for larger buffers, call process_slice.
virtual void	control_change (int channel, int ctl, int val)
	Handle MIDI Control Change.
Public Member Functions inherited from calf_plugins::audio_module< rotary_speaker_metadata >
	audio_module ()
void	note_on (int channel, int note, int velocity)
	Handle MIDI Note On.
void	note_off (int channel, int note, int velocity)
	Handle MIDI Note Off.
void	program_change (int channel, int program)
	Handle MIDI Program Change.
void	pitch_bend (int channel, int value)
void	channel_pressure (int channel, int value)
void	execute (int cmd_no)
	Execute menu command with given number.
virtual char *	configure (const char *key, const char *value)
	DSSI configure call.
void	send_configures (send_configure_iface *sci)
	Send all understood configure vars (none by default).
int	send_status_updates (send_updates_iface *sui, int last_serial)
	Send all supported status vars (none by default).
void	params_reset ()
	Reset parameter values for epp:trigger type parameters (ones activated by oneshot push button instead of check box).
void	post_instantiate (uint32_t)
	Called after instantiating (after all the feature pointers are set - including interfaces like progress_report_iface).
uint32_t	message_run (const void *valid_ports, void *output_ports)
virtual void	get_port_arrays (float **&ins_ptrs, float **&outs_ptrs, float **&params_ptrs)
	Return the array of input port pointers.
virtual const plugin_metadata_iface *	get_metadata_iface () const
	Return metadata object.
virtual void	set_progress_report_iface (progress_report_iface *iface)
	Set the progress report interface to communicate progress to.
void	zero_by_mask (uint32_t mask, uint32_t offset, uint32_t nsamples)
	utility function: zero port values if mask is 0
uint32_t	process_slice (uint32_t offset, uint32_t end)
	utility function: call process, and if it returned zeros in output masks, zero out the relevant output port buffers
virtual const line_graph_iface *	get_line_graph_iface () const
virtual const phase_graph_iface *	get_phase_graph_iface () const
Public Member Functions inherited from calf_plugins::plugin_metadata< rotary_speaker_metadata >
const char *	get_name () const
const char *	get_id () const
const char *	get_label () const
int	get_input_count () const
int	get_output_count () const
int	get_inputs_optional () const
int	get_outputs_optional () const
int	get_param_count () const
bool	get_midi () const
bool	requires_midi () const
bool	requires_instance_access () const
bool	is_rt_capable () const
int	get_param_port_offset () const
char *	get_gui_xml (const char *prefix) const
	Return custom XML.
plugin_command_info *	get_commands () const
const parameter_properties *	get_param_props (int param_no) const
const char **	get_port_names () const
bool	is_cv (int param_no) const
	is a given parameter a control voltage?
bool	is_noisy (int param_no) const
	is the given parameter non-interpolated?
const ladspa_plugin_info &	get_plugin_info () const
bool	get_simulate_stereo_input () const
bool	sends_live_updates () const
Public Member Functions inherited from calf_plugins::plugin_metadata_iface
virtual void	get_configure_vars (std::vector< std::string > &names) const
	obtain array of names of configure variables (or NULL is none needed)
virtual const table_metadata_iface *	get_table_metadata_iface (const char *key) const
virtual	~plugin_metadata_iface ()
	Do-nothing destructor to silence compiler warning.
Public Member Functions inherited from calf_plugins::audio_module_iface
virtual	~audio_module_iface ()

Public Attributes
uint32_t	phase_l
	Current phases and phase deltas for bass and treble rotors.
uint32_t	dphase_l
uint32_t	phase_h
uint32_t	dphase_h
dsp::simple_delay< 1024, float >	delay
dsp::biquad_d2	crossover1l
dsp::biquad_d2	crossover1r
dsp::biquad_d2	crossover2l
dsp::biquad_d2	crossover2r
dsp::biquad_d2	damper1l
dsp::biquad_d2	damper1r
dsp::simple_delay< 8, float >	phaseshift
uint32_t	srate
dsp::bypass	bypass
vumeters	meters
int	vibrato_mode
float	mwhl_value
	Current CC1 (Modulation) value, normalized to [0, 1].
float	hold_value
	Current CC64 (Hold) value, normalized to [0, 1].
float	aspeed_l
	Current rotation speed for bass rotor - automatic mode.
float	aspeed_h
	Current rotation speed for treble rotor - automatic mode.
float	dspeed
	Desired speed (0=slow, 1=fast) - automatic mode.
float	maspeed_l
	Current rotation speed for bass rotor - manual mode.
float	maspeed_h
	Current rotation speed for treble rotor - manual mode.
int	meter_l
int	meter_h
Public Attributes inherited from calf_plugins::audio_module< rotary_speaker_metadata >
float *	ins [(rotary_speaker_metadata::in_count !=0) ? rotary_speaker_metadata::in_count :1]
float *	outs [(rotary_speaker_metadata::out_count !=0) ? rotary_speaker_metadata::out_count :1]
float *	params [rotary_speaker_metadata::param_count]
bool	questionable_data_reported_in
bool	questionable_data_reported_out
progress_report_iface *	progress_report

Additional Inherited Members
Public Types inherited from calf_plugins::audio_module< rotary_speaker_metadata >
typedef rotary_speaker_metadata	metadata_type
Public Types inherited from calf_plugins::rotary_speaker_metadata
enum	{   par_speed , par_spacing , par_shift , par_moddepth ,   par_treblespeed , par_bassspeed , par_micdistance , par_reflection ,   par_am_depth , par_test , par_meter_l , par_meter_h ,   param_bypass , param_level_in , param_level_out , STEREO_VU_METER_PARAMS ,   param_count }
enum	{   in_count = 2 , out_count = 2 , ins_optional = 0 , outs_optional = 0 ,   support_midi = true , require_midi = false , rt_capable = true , require_instance_access = false }
Public Types inherited from calf_plugins::plugin_metadata< rotary_speaker_metadata >
typedef plugin_metadata< rotary_speaker_metadata >	metadata_class
Public Types inherited from calf_plugins::plugin_metadata_iface
enum	{ simulate_stereo_input = true , has_live_updates = true }
Static Public Attributes inherited from calf_plugins::plugin_metadata< rotary_speaker_metadata >
static const char *	port_names []
static parameter_properties	param_props []
static ladspa_plugin_info	plugin_info

Constructor & Destructor Documentation

rotary_speaker_audio_module()

rotary_speaker_audio_module::rotary_speaker_audio_module

(

)

Member Function Documentation

activate()

void rotary_speaker_audio_module::activate ( )

virtual

LADSPA-esque activate function, except it is called after ports are connected, not before.

Reimplemented from calf_plugins::audio_module< rotary_speaker_metadata >.

control_change()

void rotary_speaker_audio_module::control_change ( int channel, int controller, int value )

virtual

Handle MIDI Control Change.

Reimplemented from calf_plugins::audio_module< rotary_speaker_metadata >.

deactivate()

void rotary_speaker_audio_module::deactivate ( )

virtual

LADSPA-esque deactivate function.

Reimplemented from calf_plugins::audio_module< rotary_speaker_metadata >.

incr_towards()

bool rotary_speaker_audio_module::incr_towards ( float & aspeed, float raspeed, float delta_decc, float delta_acc )

inline

Increase or decrease aspeed towards raspeed, with required negative and positive rate.

params_changed()

void rotary_speaker_audio_module::params_changed ( )

virtual

Called when params are changed (before processing).

Reimplemented from calf_plugins::audio_module< rotary_speaker_metadata >.

process()

uint32_t rotary_speaker_audio_module::process ( uint32_t offset, uint32_t numsamples, uint32_t inputs_mask, uint32_t outputs_mask )

virtual

The audio processing loop; assumes numsamples <= MAX_SAMPLE_RUN, for larger buffers, call process_slice.

Implements calf_plugins::audio_module_iface.

rpm2dphase()

uint32_t rotary_speaker_audio_module::rpm2dphase

(

float

rpm

)

Convert RPM speed to delta-phase.

set_sample_rate()

void rotary_speaker_audio_module::set_sample_rate ( uint32_t sr )

virtual

Set sample rate for the plugin.

Reimplemented from calf_plugins::audio_module< rotary_speaker_metadata >.

set_vibrato()

void rotary_speaker_audio_module::set_vibrato

(

)

setup()

void rotary_speaker_audio_module::setup

(

)

update_speed()

void rotary_speaker_audio_module::update_speed

(

)

Set delta-phase variables based on current calculated (and interpolated) RPM speed.

update_speed_manual()

void rotary_speaker_audio_module::update_speed_manual

(

float

delta

)

Member Data Documentation

aspeed_h

float calf_plugins::rotary_speaker_audio_module::aspeed_h

Current rotation speed for treble rotor - automatic mode.

aspeed_l

float calf_plugins::rotary_speaker_audio_module::aspeed_l

Current rotation speed for bass rotor - automatic mode.

bypass

dsp::bypass calf_plugins::rotary_speaker_audio_module::bypass

crossover1l

dsp::biquad_d2 calf_plugins::rotary_speaker_audio_module::crossover1l

crossover1r

dsp::biquad_d2 calf_plugins::rotary_speaker_audio_module::crossover1r

crossover2l

dsp::biquad_d2 calf_plugins::rotary_speaker_audio_module::crossover2l

crossover2r

dsp::biquad_d2 calf_plugins::rotary_speaker_audio_module::crossover2r

damper1l

dsp::biquad_d2 calf_plugins::rotary_speaker_audio_module::damper1l

damper1r

dsp::biquad_d2 calf_plugins::rotary_speaker_audio_module::damper1r

delay

dsp::simple_delay<1024, float> calf_plugins::rotary_speaker_audio_module::delay

dphase_h

uint32_t calf_plugins::rotary_speaker_audio_module::dphase_h

dphase_l

uint32_t calf_plugins::rotary_speaker_audio_module::dphase_l

dspeed

float calf_plugins::rotary_speaker_audio_module::dspeed

Desired speed (0=slow, 1=fast) - automatic mode.

hold_value

float calf_plugins::rotary_speaker_audio_module::hold_value

Current CC64 (Hold) value, normalized to [0, 1].

maspeed_h

float calf_plugins::rotary_speaker_audio_module::maspeed_h

Current rotation speed for treble rotor - manual mode.

maspeed_l

float calf_plugins::rotary_speaker_audio_module::maspeed_l

Current rotation speed for bass rotor - manual mode.

meter_h

int calf_plugins::rotary_speaker_audio_module::meter_h

meter_l

int calf_plugins::rotary_speaker_audio_module::meter_l

meters

vumeters calf_plugins::rotary_speaker_audio_module::meters

mwhl_value

float calf_plugins::rotary_speaker_audio_module::mwhl_value

Current CC1 (Modulation) value, normalized to [0, 1].

phase_h

uint32_t calf_plugins::rotary_speaker_audio_module::phase_h

phase_l

uint32_t calf_plugins::rotary_speaker_audio_module::phase_l

Current phases and phase deltas for bass and treble rotors.

phaseshift

dsp::simple_delay<8, float> calf_plugins::rotary_speaker_audio_module::phaseshift

srate

uint32_t calf_plugins::rotary_speaker_audio_module::srate

vibrato_mode

int calf_plugins::rotary_speaker_audio_module::vibrato_mode

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/modules_mod.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/modules_mod.cpp
