#include <modules_synths.h>

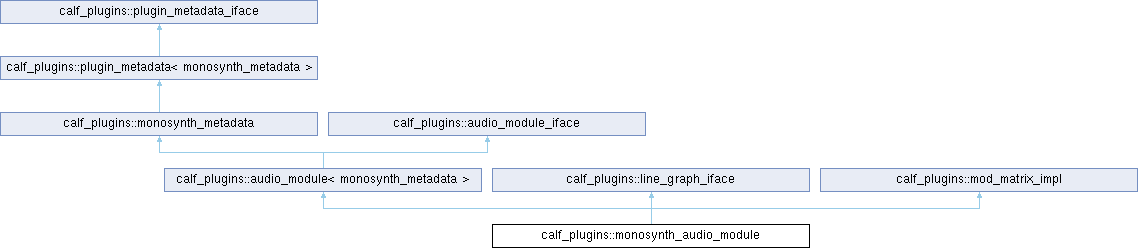

Inheritance diagram for calf_plugins::monosynth_audio_module:

Public Member Functions
	monosynth_audio_module ()
void	set_sample_rate (uint32_t sr)
	Set sample rate for the plugin.
void	delayed_note_on ()
void	end_note ()
	Release a note (physically), called from note-off handler or when note-off has been scheduled after note-on (very short queued note).
void	note_on (int channel, int note, int vel)
void	note_off (int channel, int note, int vel)
	Handle MIDI Note Off message.
void	channel_pressure (int channel, int value)
	Handle MIDI Channel Pressure.
void	pitch_bend (int, int value)
	Handle pitch bend message.
void	set_frequency ()
	Update oscillator frequency based on base frequency, detune amount, pitch bend scaling factor and sample rate.
void	control_change (int channel, int controller, int value)
	Handle control change messages.
void	params_changed ()
	Update variables from control ports.
void	activate ()
	LADSPA-esque activate function, except it is called after ports are connected, not before.
void	deactivate ()
	LADSPA-esque deactivate function.
void	post_instantiate (uint32_t)
	Called after instantiating (after all the feature pointers are set - including interfaces like progress_report_iface).
void	lookup_waveforms ()
	Set waveform addresses for oscillators.
void	calculate_buffer_oscs (float lfo)
	Run oscillators.
void	calculate_buffer_ser ()
	Run two filters in series to produce mono output samples.
void	calculate_buffer_single ()
	Run one filter to produce mono output samples.
void	calculate_buffer_stereo ()
	Run two filters (one per channel) to produce stereo output samples.
bool	get_graph (int index, int subindex, int phase, float data, int points, cairo_iface context, int *mode) const
	Retrieve filter graph (which is 'live' so it cannot be generated by get_static_graph), or fall back to get_static_graph.
bool	get_layers (int index, int generation, unsigned int &layers) const
bool	is_cv (int param_no) const
bool	is_noisy (int param_no) const
	Practically all the stuff here is noisy.
uint32_t	process (uint32_t offset, uint32_t nsamples, uint32_t inputs_mask, uint32_t outputs_mask)
	Main processing function.
virtual void	send_configures (send_configure_iface *sci)
	Send all configure variables set within a plugin to given destination (which may be limited to only those that plugin understands).
virtual char *	configure (const char key, const char value)
	DSSI configure call.
Public Member Functions inherited from calf_plugins::audio_module< monosynth_metadata >
	audio_module ()
void	program_change (int channel, int program)
	Handle MIDI Program Change.
void	execute (int cmd_no)
	Execute menu command with given number.
int	send_status_updates (send_updates_iface *sui, int last_serial)
	Send all supported status vars (none by default).
void	params_reset ()
	Reset parameter values for epp:trigger type parameters (ones activated by oneshot push button instead of check box).
uint32_t	message_run (const void valid_ports, void output_ports)
virtual void	get_port_arrays (float &ins_ptrs, float &outs_ptrs, float **&params_ptrs)
	Return the array of input port pointers.
virtual const plugin_metadata_iface *	get_metadata_iface () const
	Return metadata object.
virtual void	set_progress_report_iface (progress_report_iface *iface)
	Set the progress report interface to communicate progress to.
void	zero_by_mask (uint32_t mask, uint32_t offset, uint32_t nsamples)
	utility function: zero port values if mask is 0
uint32_t	process_slice (uint32_t offset, uint32_t end)
	utility function: call process, and if it returned zeros in output masks, zero out the relevant output port buffers
virtual const line_graph_iface *	get_line_graph_iface () const
virtual const phase_graph_iface *	get_phase_graph_iface () const
Public Member Functions inherited from calf_plugins::monosynth_metadata
	monosynth_metadata ()
virtual const table_metadata_iface *	get_table_metadata_iface (const char *key) const
	Lookup of table edit interface.
void	get_configure_vars (std::vector< std::string > &names) const
	obtain array of names of configure variables (or NULL is none needed)
Public Member Functions inherited from calf_plugins::plugin_metadata< monosynth_metadata >
const char *	get_name () const
const char *	get_id () const
const char *	get_label () const
int	get_input_count () const
int	get_output_count () const
int	get_inputs_optional () const
int	get_outputs_optional () const
int	get_param_count () const
bool	get_midi () const
bool	requires_midi () const
bool	requires_instance_access () const
bool	is_rt_capable () const
int	get_param_port_offset () const
char *	get_gui_xml (const char *prefix) const
	Return custom XML.
plugin_command_info *	get_commands () const
const parameter_properties *	get_param_props (int param_no) const
const char **	get_port_names () const
bool	is_cv (int param_no) const
	is a given parameter a control voltage?
bool	is_noisy (int param_no) const
	is the given parameter non-interpolated?
const ladspa_plugin_info &	get_plugin_info () const
bool	get_simulate_stereo_input () const
bool	sends_live_updates () const
Public Member Functions inherited from calf_plugins::plugin_metadata_iface
virtual	~plugin_metadata_iface ()
	Do-nothing destructor to silence compiler warning.
Public Member Functions inherited from calf_plugins::audio_module_iface
virtual	~audio_module_iface ()
Public Member Functions inherited from calf_plugins::line_graph_iface
virtual bool	get_moving (int index, int subindex, int &direction, float *data, int x, int y, int &offset, uint32_t &color) const
virtual bool	get_dot (int index, int subindex, int phase, float &x, float &y, int &size, cairo_iface *context) const
virtual bool	get_gridline (int index, int subindex, int phase, float &pos, bool &vertical, std::string &legend, cairo_iface *context) const
virtual std::string	get_crosshair_label (int x, int y, int sx, int sy, float q, int dB, int name, int note, int cents) const
virtual	~line_graph_iface ()
	Standard destructor to make compiler happy.
Public Member Functions inherited from calf_plugins::mod_matrix_impl
	mod_matrix_impl (dsp::modulation_entry _matrix, calf_plugins::mod_matrix_metadata _metadata)
void	calculate_modmatrix (float moddest, int moddest_count, float modsrc)
	Process modulation matrix, calculate outputs from inputs.
void	send_configures (send_configure_iface *)
char *	configure (const char key, const char value)
virtual const dsp::modulation_entry *	get_default_mod_matrix_value (int row) const

Public Attributes
uint32_t	srate
uint32_t	crate
dsp::waveform_oscillator< MONOSYNTH_WAVE_BITS >	osc1
dsp::waveform_oscillator< MONOSYNTH_WAVE_BITS >	osc2
dsp::waveform_oscillator< MONOSYNTH_WAVE_BITS >	detosc
dsp::triangle_lfo	lfo1
dsp::triangle_lfo	lfo2
dsp::simple_oscillator	unison_osc
dsp::biquad_d1_lerp	filter
dsp::biquad_d1_lerp	filter2
bool	running
	The step code is producing non-zero values.
bool	stopping
	This is the last non-zero buffer (set on calculate_step after fadeout is complete, the next calculate_step will zero running).
bool	gate
	A key is kept pressed.
bool	force_fadeout
	All notes off fadeout.
int	last_key
	Last triggered note.
float	buffer [step_size]
	Output buffers, used to ensure updates are done every step_size regardless of process buffer size.
float	buffer2 [step_size]
uint32_t	output_pos
	Read position within the buffers, on each '0' the buffers are being filled with new data by calculate_step.
int	wave1
	Waveform number - OSC1.
int	wave2
	Waveform number - OSC2.
int	prev_wave1
	Last used waveform number - OSC1.
int	prev_wave2
	Last used waveform number - OSC2.
int	filter_type
	Filter type.
int	last_filter_type
	Filter type on the last calculate_step.
float	freq
float	start_freq
float	target_freq
float	cutoff
float	fgain
float	fgain_delta
float	separation
float	detune
float	xpose1
float	xpose2
float	xfade
float	ampctl
float	fltctl
float	odcr
float	porta_time
float	lfo_bend
float	modwheel_value
	Modulation wheel position (0.f-1.f).
float	lfo_clock
	Delay counter for LFOs.
int32_t	last_pwshift1
	Last value of phase shift for pulse width emulation for OSC1.
int32_t	last_pwshift2
	Last value of phase shift for pulse width emulation for OSC2.
int32_t	last_stretch1
	Last value of stretch for osc sync emulation for OSC1.
int	queue_note_on
	Next note to play on the next calculate_step.
bool	queue_note_on_and_off
	Whether the queued note has been already released.
float	queue_vel
	Velocity of the next note to play.
int	modwheel_value_int
	Integer value for modwheel (0-16383, read from CC1 - MSBs and CC33 - LSBs).
int	legato
	Legato mode (bitmask).
dsp::adsr	envelope1
	Envelope Generators.
dsp::adsr	envelope2
dsp::keystack	stack
dsp::gain_smoothing	master
	Smoothing for master volume.
dsp::fadeout	fadeout
	Fadeout for buffer 1.
dsp::fadeout	fadeout2
	Fadeout for buffer 2.
dsp::inertia< dsp::exponential_ramp >	inertia_cutoff
	Smoothed cutoff value.
dsp::inertia< dsp::exponential_ramp >	inertia_pitchbend
	Smoothed pitch bend value.
dsp::inertia< dsp::linear_ramp >	inertia_pressure
	Smoothed channel pressure value.
dsp::modulation_entry	mod_matrix_data [mod_matrix_slots]
	Rows of the modulation matrix.
float	velocity
	Currently used velocity.
float	last_xfade
	Last value of oscillator mix ratio.
float	last_unison
	Last value of unison amount.
float	moddest [moddest_count]
	Current calculated mod matrix outputs.
Public Attributes inherited from calf_plugins::audio_module< monosynth_metadata >
float *	ins [(monosynth_metadata::in_count !=0) ? monosynth_metadata::in_count :1]
float *	outs [(monosynth_metadata::out_count !=0) ? monosynth_metadata::out_count :1]
float *	params [monosynth_metadata::param_count]
bool	questionable_data_reported_in
bool	questionable_data_reported_out
progress_report_iface *	progress_report
Public Attributes inherited from calf_plugins::monosynth_metadata
mod_matrix_metadata	mm_metadata

Static Public Attributes
static dsp::waveform_family< MONOSYNTH_WAVE_BITS > *	waves
Static Public Attributes inherited from calf_plugins::plugin_metadata< monosynth_metadata >
static const char *	port_names []
static parameter_properties	param_props []
static ladspa_plugin_info	plugin_info

Private Member Functions
void	reset ()
float	get_lfo (dsp::triangle_lfo &lfo, int param)
void	apply_fadeout ()
	Apply anti-click'n'pop fadeout (used at the end of the sound).
void	calculate_step ()
	Calculate control signals and produce step_size samples of output.
bool	is_stereo_filter () const

Static Private Member Functions
static void	precalculate_waves (progress_report_iface *reporter)

Additional Inherited Members
Public Types inherited from calf_plugins::audio_module< monosynth_metadata >
typedef monosynth_metadata	metadata_type
Public Types inherited from calf_plugins::monosynth_metadata
enum	{ wave_saw , wave_sqr , wave_pulse , wave_sine , wave_triangle , wave_varistep , wave_skewsaw , wave_skewsqr , wave_test1 , wave_test2 , wave_test3 , wave_test4 , wave_test5 , wave_test6 , wave_test7 , wave_test8 , wave_count }
enum	{ flt_lp12 , flt_lp24 , flt_2lp12 , flt_hp12 , flt_lpbr , flt_hpbr , flt_bp6 , flt_2bp6 }
enum	{ par_wave1 , par_wave2 , par_pw1 , par_pw2 , par_detune , par_osc2xpose , par_oscmode , par_oscmix , par_filtertype , par_cutoff , par_resonance , par_cutoffsep , par_env1tocutoff , par_env1tores , par_env1toamp , par_env1attack , par_env1decay , par_env1sustain , par_env1fade , par_env1release , par_keyfollow , par_legato , par_portamento , par_vel2filter , par_vel2amp , par_master , par_pwhlrange , par_lforate , par_lfodelay , par_lfofilter , par_lfopitch , par_lfopw , par_mwhl_lfo , par_scaledetune , par_env2tocutoff , par_env2tores , par_env2toamp , par_env2attack , par_env2decay , par_env2sustain , par_env2fade , par_env2release , par_stretch1 , par_window1 , par_lfo1trig , par_lfo2trig , par_lfo2rate , par_lfo2delay , par_o2unison , par_o2unisonfrq , par_osc1xpose , par_midi , param_count }
enum	{ in_count = 0 , out_count = 2 , ins_optional = 0 , outs_optional = 0 , support_midi = true , require_midi = true , rt_capable = true , require_instance_access = false }
enum	{ step_size = 64 , step_shift = 6 }
enum	{ mod_matrix_slots = 10 }
enum	{ modsrc_none , modsrc_velocity , modsrc_pressure , modsrc_modwheel , modsrc_env1 , modsrc_env2 , modsrc_lfo1 , modsrc_lfo2 , modsrc_count }
enum	{ moddest_none , moddest_attenuation , moddest_oscmix , moddest_cutoff , moddest_resonance , moddest_o1detune , moddest_o2detune , moddest_o1pw , moddest_o2pw , moddest_o1stretch , moddest_o2unisonamp , moddest_o2unisondetune , moddest_count }
Public Types inherited from calf_plugins::plugin_metadata< monosynth_metadata >
typedef plugin_metadata< monosynth_metadata >	metadata_class
Public Types inherited from calf_plugins::plugin_metadata_iface
enum	{ simulate_stereo_input = true , has_live_updates = true }
Protected Attributes inherited from calf_plugins::mod_matrix_impl
dsp::modulation_entry *	matrix
mod_matrix_metadata *	metadata
unsigned int	matrix_rows
Static Protected Attributes inherited from calf_plugins::mod_matrix_impl
static const float	scaling_coeffs [calf_plugins::mod_matrix_metadata::map_type_count][3]
	Polynomials for different scaling modes (1, x, x^2).

Detailed Description

Monosynth-in-making. Parameters may change at any point, so don't make songs with it! It lacks inertia for parameters, even for those that really need it.

Constructor & Destructor Documentation

◆ monosynth_audio_module()

monosynth_audio_module::monosynth_audio_module ( )

Member Function Documentation

◆ activate()

void monosynth_audio_module::activate ( )

virtual

LADSPA-esque activate function, except it is called after ports are connected, not before.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ apply_fadeout()

void monosynth_audio_module::apply_fadeout ( )

private

Apply anti-click'n'pop fadeout (used at the end of the sound).

◆ calculate_buffer_oscs()

void monosynth_audio_module::calculate_buffer_oscs ( float lfo )

Run oscillators.

◆ calculate_buffer_ser()

void monosynth_audio_module::calculate_buffer_ser ( )

Run two filters in series to produce mono output samples.

◆ calculate_buffer_single()

void monosynth_audio_module::calculate_buffer_single ( )

Run one filter to produce mono output samples.

◆ calculate_buffer_stereo()

void monosynth_audio_module::calculate_buffer_stereo ( )

Run two filters (one per channel) to produce stereo output samples.

◆ calculate_step()

void monosynth_audio_module::calculate_step ( )

private

Calculate control signals and produce step_size samples of output.

◆ channel_pressure()

void monosynth_audio_module::channel_pressure	(	int	channel,
		int	value )

virtual

Handle MIDI Channel Pressure.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ configure()

virtual char * calf_plugins::monosynth_audio_module::configure	(	const char *	key,
		const char *	value )

inlinevirtual

DSSI configure call.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ control_change()

void monosynth_audio_module::control_change	(	int	channel,
		int	controller,
		int	value )

virtual

Handle control change messages.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ deactivate()

void monosynth_audio_module::deactivate ( )

virtual

LADSPA-esque deactivate function.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ delayed_note_on()

void monosynth_audio_module::delayed_note_on ( )

◆ end_note()

void monosynth_audio_module::end_note ( )

Release a note (physically), called from note-off handler or when note-off has been scheduled after note-on (very short queued note).

◆ get_graph()

bool monosynth_audio_module::get_graph	(	int	index,
		int	subindex,
		int	phase,
		float *	data,
		int	points,
		cairo_iface *	context,
		int *	mode ) const

virtual

Retrieve filter graph (which is 'live' so it cannot be generated by get_static_graph), or fall back to get_static_graph.

Reimplemented from calf_plugins::line_graph_iface.

◆ get_layers()

bool calf_plugins::monosynth_audio_module::get_layers	(	int	index,
		int	generation,
		unsigned int &	layers ) const

inlinevirtual

Return which layers need to be redrawn in the next GTK drawing cycle

Parameters

index	Parameter/graph identifier (usually tied to particular plugin control port)
generation	The overall amount of drawing cycles since the last full refresh of all surfaces
layers	Bitmask defining the layers to be redrawn (see layers_flags above)

Return values

true	there's at least one layer to be redrawn; false nothing to draw in this cycle

Reimplemented from calf_plugins::line_graph_iface.

◆ get_lfo()

float monosynth_audio_module::get_lfo	(	dsp::triangle_lfo &	lfo,
		int	param )

private

◆ is_cv()

bool calf_plugins::monosynth_audio_module::is_cv ( int param_no ) const

inlinevirtual

Return values

true	if the filter 1 is to be used for the left channel and filter 2 for the right channel No CV inputs for now

Implements calf_plugins::plugin_metadata_iface.

◆ is_noisy()

bool calf_plugins::monosynth_audio_module::is_noisy ( int param_no ) const

inlinevirtual

Practically all the stuff here is noisy.

Implements calf_plugins::plugin_metadata_iface.

◆ is_stereo_filter()

bool calf_plugins::monosynth_audio_module::is_stereo_filter ( ) const

inlineprivate

Return values

false if filters are to be connected in series and sent (mono) to both channels

◆ lookup_waveforms()

void monosynth_audio_module::lookup_waveforms ( )

Set waveform addresses for oscillators.

◆ note_off()

void monosynth_audio_module::note_off	(	int	channel,
		int	note,
		int	vel )

virtual

Handle MIDI Note Off message.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ note_on()

void monosynth_audio_module::note_on	(	int	channel,
		int	note,
		int	vel )

virtual

Handle MIDI Note On message (does not immediately trigger a note, as it must start on boundary of step_size samples).

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ params_changed()

void monosynth_audio_module::params_changed ( )

virtual

Update variables from control ports.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ pitch_bend()

void calf_plugins::monosynth_audio_module::pitch_bend	(	int	,
		int	value )

inlinevirtual

Handle pitch bend message.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ post_instantiate()

void calf_plugins::monosynth_audio_module::post_instantiate ( uint32_t )

inlinevirtual

Called after instantiating (after all the feature pointers are set - including interfaces like progress_report_iface).

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ precalculate_waves()

void monosynth_audio_module::precalculate_waves ( progress_report_iface * reporter )

staticprivate

◆ process()

uint32_t monosynth_audio_module::process	(	uint32_t	offset,
		uint32_t	nsamples,
		uint32_t	inputs_mask,
		uint32_t	outputs_mask )

virtual

Main processing function.

Implements calf_plugins::audio_module_iface.

◆ reset()

void monosynth_audio_module::reset ( )

private

◆ send_configures()

virtual void calf_plugins::monosynth_audio_module::send_configures ( send_configure_iface * sci )

inlinevirtual

Send all configure variables set within a plugin to given destination (which may be limited to only those that plugin understands).

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

◆ set_frequency()

void monosynth_audio_module::set_frequency ( )

Update oscillator frequency based on base frequency, detune amount, pitch bend scaling factor and sample rate.

◆ set_sample_rate()

void monosynth_audio_module::set_sample_rate ( uint32_t sr )

virtual

Set sample rate for the plugin.

Reimplemented from calf_plugins::audio_module< monosynth_metadata >.

Member Data Documentation

◆ ampctl

float calf_plugins::monosynth_audio_module::ampctl

◆ buffer

float calf_plugins::monosynth_audio_module::buffer[step_size]

Output buffers, used to ensure updates are done every step_size regardless of process buffer size.

◆ buffer2

float calf_plugins::monosynth_audio_module::buffer2[step_size]

◆ crate

uint32_t calf_plugins::monosynth_audio_module::crate

◆ cutoff

float calf_plugins::monosynth_audio_module::cutoff

◆ detosc

dsp::waveform_oscillator<MONOSYNTH_WAVE_BITS> calf_plugins::monosynth_audio_module::detosc

◆ detune

float calf_plugins::monosynth_audio_module::detune

◆ envelope1

dsp::adsr calf_plugins::monosynth_audio_module::envelope1

Envelope Generators.

◆ envelope2

dsp::adsr calf_plugins::monosynth_audio_module::envelope2

◆ fadeout

dsp::fadeout calf_plugins::monosynth_audio_module::fadeout

Fadeout for buffer 1.

◆ fadeout2

dsp::fadeout calf_plugins::monosynth_audio_module::fadeout2

Fadeout for buffer 2.

◆ fgain

float calf_plugins::monosynth_audio_module::fgain

◆ fgain_delta

float calf_plugins::monosynth_audio_module::fgain_delta

◆ filter

dsp::biquad_d1_lerp calf_plugins::monosynth_audio_module::filter

◆ filter2

dsp::biquad_d1_lerp calf_plugins::monosynth_audio_module::filter2

◆ filter_type

int calf_plugins::monosynth_audio_module::filter_type

Filter type.

◆ fltctl

float calf_plugins::monosynth_audio_module::fltctl

◆ force_fadeout

bool calf_plugins::monosynth_audio_module::force_fadeout

All notes off fadeout.

◆ freq

float calf_plugins::monosynth_audio_module::freq

◆ gate

bool calf_plugins::monosynth_audio_module::gate

A key is kept pressed.

◆ inertia_cutoff

dsp::inertia<dsp::exponential_ramp> calf_plugins::monosynth_audio_module::inertia_cutoff

Smoothed cutoff value.

◆ inertia_pitchbend

dsp::inertia<dsp::exponential_ramp> calf_plugins::monosynth_audio_module::inertia_pitchbend

Smoothed pitch bend value.

◆ inertia_pressure

dsp::inertia<dsp::linear_ramp> calf_plugins::monosynth_audio_module::inertia_pressure

Smoothed channel pressure value.

◆ last_filter_type

int calf_plugins::monosynth_audio_module::last_filter_type

Filter type on the last calculate_step.

◆ last_key

int calf_plugins::monosynth_audio_module::last_key

Last triggered note.

◆ last_pwshift1

int32_t calf_plugins::monosynth_audio_module::last_pwshift1

Last value of phase shift for pulse width emulation for OSC1.

◆ last_pwshift2

int32_t calf_plugins::monosynth_audio_module::last_pwshift2

Last value of phase shift for pulse width emulation for OSC2.

◆ last_stretch1

int32_t calf_plugins::monosynth_audio_module::last_stretch1

Last value of stretch for osc sync emulation for OSC1.

◆ last_unison

float calf_plugins::monosynth_audio_module::last_unison

Last value of unison amount.

◆ last_xfade

float calf_plugins::monosynth_audio_module::last_xfade

Last value of oscillator mix ratio.

◆ legato

int calf_plugins::monosynth_audio_module::legato

Legato mode (bitmask).

◆ lfo1

dsp::triangle_lfo calf_plugins::monosynth_audio_module::lfo1

◆ lfo2

dsp::triangle_lfo calf_plugins::monosynth_audio_module::lfo2

◆ lfo_bend

float calf_plugins::monosynth_audio_module::lfo_bend

◆ lfo_clock

float calf_plugins::monosynth_audio_module::lfo_clock

Delay counter for LFOs.

◆ master

dsp::gain_smoothing calf_plugins::monosynth_audio_module::master

Smoothing for master volume.

◆ mod_matrix_data

dsp::modulation_entry calf_plugins::monosynth_audio_module::mod_matrix_data[mod_matrix_slots]

Rows of the modulation matrix.

◆ moddest

float calf_plugins::monosynth_audio_module::moddest[moddest_count]

Current calculated mod matrix outputs.

◆ modwheel_value

float calf_plugins::monosynth_audio_module::modwheel_value

Modulation wheel position (0.f-1.f).

◆ modwheel_value_int

int calf_plugins::monosynth_audio_module::modwheel_value_int

Integer value for modwheel (0-16383, read from CC1 - MSBs and CC33 - LSBs).

◆ odcr

float calf_plugins::monosynth_audio_module::odcr

◆ osc1

dsp::waveform_oscillator<MONOSYNTH_WAVE_BITS> calf_plugins::monosynth_audio_module::osc1

◆ osc2

dsp::waveform_oscillator<MONOSYNTH_WAVE_BITS> calf_plugins::monosynth_audio_module::osc2

◆ output_pos

uint32_t calf_plugins::monosynth_audio_module::output_pos

Read position within the buffers, on each '0' the buffers are being filled with new data by calculate_step.

◆ porta_time

float calf_plugins::monosynth_audio_module::porta_time

◆ prev_wave1

int calf_plugins::monosynth_audio_module::prev_wave1

Last used waveform number - OSC1.

◆ prev_wave2

int calf_plugins::monosynth_audio_module::prev_wave2

Last used waveform number - OSC2.

◆ queue_note_on

int calf_plugins::monosynth_audio_module::queue_note_on

Next note to play on the next calculate_step.

◆ queue_note_on_and_off

bool calf_plugins::monosynth_audio_module::queue_note_on_and_off

Whether the queued note has been already released.

◆ queue_vel

float calf_plugins::monosynth_audio_module::queue_vel

Velocity of the next note to play.

◆ running

bool calf_plugins::monosynth_audio_module::running

The step code is producing non-zero values.

◆ separation

float calf_plugins::monosynth_audio_module::separation

◆ srate

uint32_t calf_plugins::monosynth_audio_module::srate

◆ stack

dsp::keystack calf_plugins::monosynth_audio_module::stack

◆ start_freq

float calf_plugins::monosynth_audio_module::start_freq

◆ stopping

bool calf_plugins::monosynth_audio_module::stopping

This is the last non-zero buffer (set on calculate_step after fadeout is complete, the next calculate_step will zero running).

◆ target_freq

float calf_plugins::monosynth_audio_module::target_freq

◆ unison_osc

dsp::simple_oscillator calf_plugins::monosynth_audio_module::unison_osc

◆ velocity

float calf_plugins::monosynth_audio_module::velocity

Currently used velocity.

◆ wave1

int calf_plugins::monosynth_audio_module::wave1

Waveform number - OSC1.

◆ wave2

int calf_plugins::monosynth_audio_module::wave2

Waveform number - OSC2.

◆ waves

waveform_family< MONOSYNTH_WAVE_BITS > * monosynth_audio_module::waves

static

◆ xfade

float calf_plugins::monosynth_audio_module::xfade

◆ xpose1

float calf_plugins::monosynth_audio_module::xpose1

◆ xpose2

float calf_plugins::monosynth_audio_module::xpose2

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/modules_synths.h
/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/monosynth.cpp

Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Static Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ monosynth_audio_module()

Member Function Documentation

◆ activate()

◆ apply_fadeout()

◆ calculate_buffer_oscs()

◆ calculate_buffer_ser()

◆ calculate_buffer_single()

◆ calculate_buffer_stereo()

◆ calculate_step()

◆ channel_pressure()

◆ configure()

◆ control_change()

◆ deactivate()

◆ delayed_note_on()

◆ end_note()

◆ get_graph()

◆ get_layers()

◆ get_lfo()

◆ is_cv()

◆ is_noisy()

◆ is_stereo_filter()

◆ lookup_waveforms()

◆ note_off()

◆ note_on()

◆ params_changed()

◆ pitch_bend()

◆ post_instantiate()

◆ precalculate_waves()

◆ process()

◆ reset()

◆ send_configures()

◆ set_frequency()

◆ set_sample_rate()

Member Data Documentation

◆ ampctl

◆ buffer

◆ buffer2

◆ crate

◆ cutoff

◆ detosc

◆ detune

◆ envelope1

◆ envelope2

◆ fadeout

◆ fadeout2

◆ fgain

◆ fgain_delta

◆ filter

◆ filter2

◆ filter_type

◆ fltctl

◆ force_fadeout

◆ freq

◆ gate

◆ inertia_cutoff

◆ inertia_pitchbend

◆ inertia_pressure

◆ last_filter_type

◆ last_key

◆ last_pwshift1

◆ last_pwshift2

◆ last_stretch1

◆ last_unison

◆ last_xfade

◆ legato

◆ lfo1

◆ lfo2

◆ lfo_bend

◆ lfo_clock

◆ master

◆ mod_matrix_data

◆ moddest
