juce::Slider::LookAndFeelMethods Struct Reference

#include <juce_Slider.h>

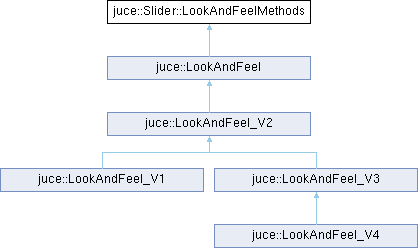

Inheritance diagram for juce::Slider::LookAndFeelMethods:

Public Member Functions
virtual	~LookAndFeelMethods ()=default
virtual void	drawLinearSlider (Graphics &, int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, const Slider::SliderStyle, Slider &)=0
virtual void	drawLinearSliderBackground (Graphics &, int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, const Slider::SliderStyle style, Slider &)=0
virtual void	drawLinearSliderThumb (Graphics &, int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, const Slider::SliderStyle, Slider &)=0
virtual int	getSliderThumbRadius (Slider &)=0
virtual void	drawRotarySlider (Graphics &, int x, int y, int width, int height, float sliderPosProportional, float rotaryStartAngle, float rotaryEndAngle, Slider &)=0
virtual Button *	createSliderButton (Slider &, bool isIncrement)=0
virtual Label *	createSliderTextBox (Slider &)=0
virtual ImageEffectFilter *	getSliderEffect (Slider &)=0
virtual Font	getSliderPopupFont (Slider &)=0
virtual int	getSliderPopupPlacement (Slider &)=0
virtual SliderLayout	getSliderLayout (Slider &)=0

Detailed Description

This abstract base class is implemented by LookAndFeel classes to provide slider drawing functionality.

Constructor & Destructor Documentation

~LookAndFeelMethods()

virtual juce::Slider::LookAndFeelMethods::~LookAndFeelMethods ( )

virtualdefault

Member Function Documentation

createSliderButton()

virtual Button * juce::Slider::LookAndFeelMethods::createSliderButton ( Slider & , bool isIncrement )

pure virtual

Implemented in juce::LookAndFeel_V1, and juce::LookAndFeel_V2.

createSliderTextBox()

virtual Label * juce::Slider::LookAndFeelMethods::createSliderTextBox ( Slider & )

pure virtual

Implemented in juce::LookAndFeel_V2, and juce::LookAndFeel_V4.

drawLinearSlider()

virtual void juce::Slider::LookAndFeelMethods::drawLinearSlider ( Graphics & , int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, const Slider::SliderStyle , Slider &  )

pure virtual

Implemented in juce::LookAndFeel_V1, juce::LookAndFeel_V2, juce::LookAndFeel_V3, and juce::LookAndFeel_V4.

drawLinearSliderBackground()

virtual void juce::Slider::LookAndFeelMethods::drawLinearSliderBackground ( Graphics & , int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, const Slider::SliderStyle style, Slider &  )

pure virtual

Implemented in juce::LookAndFeel_V2, and juce::LookAndFeel_V3.

drawLinearSliderThumb()

virtual void juce::Slider::LookAndFeelMethods::drawLinearSliderThumb ( Graphics & , int x, int y, int width, int height, float sliderPos, float minSliderPos, float maxSliderPos, const Slider::SliderStyle , Slider &  )

pure virtual

Implemented in juce::LookAndFeel_V2.

drawRotarySlider()

virtual void juce::Slider::LookAndFeelMethods::drawRotarySlider ( Graphics & , int x, int y, int width, int height, float sliderPosProportional, float rotaryStartAngle, float rotaryEndAngle, Slider &  )

pure virtual

Implemented in juce::LookAndFeel_V2, and juce::LookAndFeel_V4.

getSliderEffect()

virtual ImageEffectFilter * juce::Slider::LookAndFeelMethods::getSliderEffect ( Slider & )

pure virtual

Implemented in juce::LookAndFeel_V1, and juce::LookAndFeel_V2.

getSliderLayout()

virtual SliderLayout juce::Slider::LookAndFeelMethods::getSliderLayout ( Slider & )

pure virtual

Implemented in juce::LookAndFeel_V2.

getSliderPopupFont()

virtual Font juce::Slider::LookAndFeelMethods::getSliderPopupFont ( Slider & )

pure virtual

Implemented in juce::LookAndFeel_V2.

getSliderPopupPlacement()

virtual int juce::Slider::LookAndFeelMethods::getSliderPopupPlacement ( Slider & )

pure virtual

Implemented in juce::LookAndFeel_V2.

getSliderThumbRadius()

virtual int juce::Slider::LookAndFeelMethods::getSliderThumbRadius ( Slider & )

pure virtual

Implemented in juce::LookAndFeel_V1, juce::LookAndFeel_V2, and juce::LookAndFeel_V4.

---

The documentation for this struct was generated from the following file:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_gui_basics/widgets/juce_Slider.h
