lmms::gui::ClipView Class Reference

#include <ClipView.h>

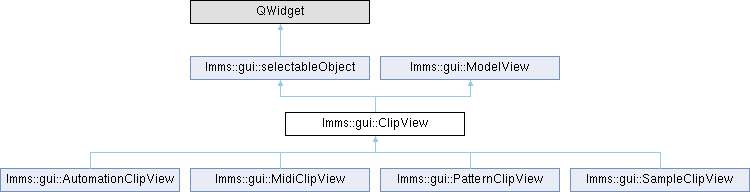

Inheritance diagram for lmms::gui::ClipView:

Public Slots
virtual bool	close ()
	Close a ClipView.
void	remove ()
	Removes a ClipView from its track view.
void	update () override
	Update a ClipView.
void	selectColor ()
void	randomizeColor ()
void	resetColor ()
Public Slots inherited from lmms::gui::selectableObject
virtual void	update ()

Public Member Functions
	ClipView (Clip *clip, TrackView *tv)
	Create a new ClipView.
	~ClipView () override
	Destroy a ClipView.
bool	fixedClips ()
	Does this ClipView have a fixed Clip?
Clip *	getClip ()
TrackView *	getTrackView ()
QColor	mutedColor () const
	CSS theming qproperty access method.
QColor	mutedBackgroundColor () const
QColor	selectedColor () const
QColor	textColor () const
QColor	textBackgroundColor () const
QColor	textShadowColor () const
QColor	patternClipBackground () const
QColor	markerColor () const
bool	gradient () const
void	setMutedColor (const QColor &c)
	CSS theming qproperty access method.
void	setMutedBackgroundColor (const QColor &c)
void	setSelectedColor (const QColor &c)
void	setTextColor (const QColor &c)
void	setTextBackgroundColor (const QColor &c)
void	setTextShadowColor (const QColor &c)
void	setPatternClipBackground (const QColor &c)
void	setGradient (const bool &b)
void	setMarkerColor (const QColor &c)
bool	needsUpdate ()
void	setNeedsUpdate (bool b)
QVector< ClipView * >	getClickedClips ()
void	copy (QVector< ClipView * > clipvs)
void	cut (QVector< ClipView * > clipvs)
void	paste ()
void	toggleSelectedAutoResize ()
QColor	getColorForDisplay (QColor)
void	setMarkerPos (int x)
void	setMarkerEnabled (bool e)
Public Member Functions inherited from lmms::gui::selectableObject
	selectableObject (QWidget *_parent)
	~selectableObject () override=default
void	setSelected (bool selected)
bool	isSelected () const
Public Member Functions inherited from lmms::gui::ModelView
	ModelView (Model *model, QWidget *widget)
virtual	~ModelView ()
virtual void	setModel (Model *model, bool isOldModelValid=true)
virtual void	unsetModel ()
Model *	model ()
const Model *	model () const
template<class T>
T *	castModel ()
template<class T>
const T *	castModel () const

Static Public Member Functions
static void	remove (QVector< ClipView * > clipvs)
static void	toggleMute (QVector< ClipView * > clipvs)

Static Public Attributes
static const int	BORDER_WIDTH = 2

Protected Types
enum class	ContextMenuAction {   Remove , Cut , Copy , Paste ,   Mute }

Protected Slots
void	updateLength ()
	Updates a ClipView's length.
void	updatePosition ()
	Updates a ClipView's position.

Protected Member Functions
virtual void	constructContextMenu (QMenu *)
void	contextMenuEvent (QContextMenuEvent *cme) override
	Set up the context menu for this ClipView.
void	contextMenuAction (ContextMenuAction action)
void	dragEnterEvent (QDragEnterEvent *dee) override
	Change the ClipView's display when something being dragged enters it.
void	dropEvent (QDropEvent *de) override
	Handle something being dropped on this ClipObjectView.
void	mousePressEvent (QMouseEvent *me) override
	Handle a mouse press on this ClipView.
void	mouseMoveEvent (QMouseEvent *me) override
	Handle a mouse movement (drag) on this ClipView.
void	mouseReleaseEvent (QMouseEvent *me) override
	Handle a mouse release on this ClipView.
void	resizeEvent (QResizeEvent *re) override
bool	unquantizedModHeld (QMouseEvent *me)
TimePos	quantizeSplitPos (TimePos)
float	pixelsPerBar ()
	How many pixels a bar takes for this ClipView.
DataFile	createClipDataFiles (const QVector< ClipView * > &clips) const
	Create a DataFile suitable for copying multiple clips.
virtual void	paintTextLabel (QString const &text, QPainter &painter)
auto	hasCustomColor () const -> bool
Protected Member Functions inherited from lmms::gui::ModelView
virtual void	modelChanged ()
QWidget *	widget ()
virtual void	doConnections ()

Protected Attributes
TrackView *	m_trackView
TimePos	m_initialClipPos
TimePos	m_initialClipEnd
bool	m_marker = false
int	m_markerPos = 0

Properties
QColor	mutedColor
QColor	mutedBackgroundColor
QColor	selectedColor
QColor	textColor
QColor	textBackgroundColor
QColor	textShadowColor
QColor	patternClipBackground
bool	gradient
QColor	markerColor

Private Types
enum class	Action {   None , Move , MoveSelection , Resize ,   ResizeLeft , Split , CopySelection , ToggleSelected }

Private Member Functions
void	setInitialPos (QPoint pos)
void	setInitialOffsets ()
	Save the offsets between all selected tracks and a clicked track.
bool	mouseMovedDistance (QMouseEvent *me, int distance)
	Detect whether the mouse moved more than n pixels on screen.
TimePos	draggedClipPos (QMouseEvent *me)
	Calculate the new position of a dragged Clip from a mouse event.
int	knifeMarkerPos (QMouseEvent *me)
void	setColor (const std::optional< QColor > &color)
	Change color of all selected clips.
virtual bool	isResizableBeforeStart ()
	Returns whether the user can left-resize this clip so that the start of the clip bounds is before the start of the clip content.
bool	splitClip (const TimePos pos)
virtual bool	destructiveSplitClip (const TimePos pos)
void	updateCursor (QMouseEvent *me)

Private Attributes
Clip *	m_clip
Action	m_action
QPoint	m_initialMousePos
QPoint	m_initialMouseGlobalPos
QVector< TimePos >	m_initialOffsets
TextFloat *	m_hint
QColor	m_mutedColor
QColor	m_mutedBackgroundColor
QColor	m_selectedColor
QColor	m_textColor
QColor	m_textBackgroundColor
QColor	m_textShadowColor
QColor	m_patternClipBackground
bool	m_gradient
QColor	m_markerColor
bool	m_needsUpdate

Static Private Attributes
static TextFloat *	s_textFloat = nullptr

Member Enumeration Documentation

Action

enum class lmms::gui::ClipView::Action

strongprivate

Enumerator
None
Move
MoveSelection
Resize
ResizeLeft
Split
CopySelection
ToggleSelected

ContextMenuAction

enum class lmms::gui::ClipView::ContextMenuAction

strongprotected

Enumerator
Remove
Cut
Copy
Paste
Mute

Constructor & Destructor Documentation

ClipView()

lmms::gui::ClipView::ClipView	(	Clip *	clip,
		TrackView *	tv )

Create a new ClipView.

Creates a new clip view for the given clip in the given track view.

Parameters

_clip	The clip to be displayed
_tv	The track view that will contain the new object

~ClipView()

lmms::gui::ClipView::~ClipView ( )

override

Destroy a ClipView.

Destroys the given ClipView.

Member Function Documentation

close

bool lmms::gui::ClipView::close ( )

virtualslot

Close a ClipView.

Closes a ClipView by asking the track view to remove us and then asking the QWidget to close us.

Returns

Boolean state of whether the QWidget was able to close.

constructContextMenu()

virtual void lmms::gui::ClipView::constructContextMenu ( QMenu * )

inlineprotectedvirtual

Reimplemented in lmms::gui::AutomationClipView, lmms::gui::MidiClipView, lmms::gui::PatternClipView, and lmms::gui::SampleClipView.

contextMenuAction()

void lmms::gui::ClipView::contextMenuAction ( ContextMenuAction action )

protected

contextMenuEvent()

void lmms::gui::ClipView::contextMenuEvent ( QContextMenuEvent * cme )

overrideprotected

Set up the context menu for this ClipView.

Set up the various context menu events that can apply to a ClipView.

Parameters

cme	The QContextMenuEvent to add the actions to.

copy()

void lmms::gui::ClipView::copy

(

QVector< ClipView * >

clipvs

)

createClipDataFiles()

DataFile lmms::gui::ClipView::createClipDataFiles ( const QVector< ClipView * > & clipViews ) const

protected

Create a DataFile suitable for copying multiple clips.

Clips in the vector are written to the "clips" node in the

DataFile. The ClipView's initial mouse position is written to the "initialMouseX" node in the DataFile. When dropped on a track, this is used to create copies of the Clips.

Parameters

clips

The trackContectObjects to save in a DataFile

cut()

void lmms::gui::ClipView::cut

(

QVector< ClipView * >

clipvs

)

destructiveSplitClip()

virtual bool lmms::gui::ClipView::destructiveSplitClip ( const TimePos pos )

inlineprivatevirtual

Destructively split this Clip into two clips. If the clip type does not implement this feature, it will default to normal splitting.

Parameters

pos	the position of the split, relative to the start of the clip

Returns

true if the clip could be split

Reimplemented in lmms::gui::MidiClipView.

dragEnterEvent()

void lmms::gui::ClipView::dragEnterEvent ( QDragEnterEvent * dee )

overrideprotected

Change the ClipView's display when something being dragged enters it.

We need to notify Qt to change our display if something being dragged has entered our 'airspace'.

Parameters

dee	The QDragEnterEvent to watch.

draggedClipPos()

TimePos lmms::gui::ClipView::draggedClipPos ( QMouseEvent * me )

private

Calculate the new position of a dragged Clip from a mouse event.

Parameters

me	The QMouseEvent

dropEvent()

void lmms::gui::ClipView::dropEvent ( QDropEvent * de )

overrideprotected

Handle something being dropped on this ClipObjectView.

When something has been dropped on this ClipView, and it's a clip, then use an instance of our dataFile reader to take the xml of the clip and turn it into something we can write over our current state.

Parameters

de	The QDropEvent to handle.

fixedClips()

bool lmms::gui::ClipView::fixedClips

(

)

Does this ClipView have a fixed Clip?

Returns whether the containing trackView has fixed Clips.

Todo

In what circumstance are they fixed?

getClickedClips()

QVector< ClipView * > lmms::gui::ClipView::getClickedClips

(

)

getClip()

Clip * lmms::gui::ClipView::getClip ( )

inline

getColorForDisplay()

QColor lmms::gui::ClipView::getColorForDisplay

(

QColor

defaultColor

)

getTrackView()

TrackView * lmms::gui::ClipView::getTrackView ( )

inline

gradient()

bool lmms::gui::ClipView::gradient

(

)

const

hasCustomColor()

auto lmms::gui::ClipView::hasCustomColor ( ) const -> bool

protected

isResizableBeforeStart()

virtual bool lmms::gui::ClipView::isResizableBeforeStart ( )

inlineprivatevirtual

Returns whether the user can left-resize this clip so that the start of the clip bounds is before the start of the clip content.

Reimplemented in lmms::gui::AutomationClipView, and lmms::gui::MidiClipView.

knifeMarkerPos()

int lmms::gui::ClipView::knifeMarkerPos ( QMouseEvent * me )

private

markerColor()

QColor lmms::gui::ClipView::markerColor

(

)

const

mouseMovedDistance()

bool lmms::gui::ClipView::mouseMovedDistance ( QMouseEvent * me, int distance )

private

Detect whether the mouse moved more than n pixels on screen.

Parameters

_me	The QMouseEvent.
distance	The threshold distance that the mouse has moved to return true.

mouseMoveEvent()

void lmms::gui::ClipView::mouseMoveEvent ( QMouseEvent * me )

overrideprotected

Handle a mouse movement (drag) on this ClipView.

Handles the various ways in which a ClipView can be used with a mouse drag.

• If in move mode, move ourselves in the track,
• or if in move-selection mode, move the entire selection,
• or if in resize mode, resize ourselves,
• otherwise ???

Parameters

me	The QMouseEvent to handle.

Todo

what does the final else case do here?

mousePressEvent()

void lmms::gui::ClipView::mousePressEvent ( QMouseEvent * me )

overrideprotected

Handle a mouse press on this ClipView.

Handles the various ways in which a ClipView can be used with a click of a mouse button.

• If our container supports rubber band selection then handle selection events.
• or if shift-left button, add this object to the selection
• or if ctrl-left button, start a drag-copy event
• or if just plain left button, resize if we're resizeable
• or if ctrl-middle button, mute the clip
• or if middle button, maybe delete the clip.

Parameters

me	The QMouseEvent to handle.

mouseReleaseEvent()

void lmms::gui::ClipView::mouseReleaseEvent ( QMouseEvent * me )

overrideprotected

Handle a mouse release on this ClipView.

If we're in move or resize mode, journal the change as appropriate. Then tidy up.

Parameters

me	The QMouseEvent to handle.

mutedBackgroundColor()

QColor lmms::gui::ClipView::mutedBackgroundColor

(

)

const

mutedColor()

QColor lmms::gui::ClipView::mutedColor

(

)

const

CSS theming qproperty access method.

needsUpdate()

bool lmms::gui::ClipView::needsUpdate

(

)

paintTextLabel()

void lmms::gui::ClipView::paintTextLabel ( QString const & text, QPainter & painter )

protectedvirtual

paste()

void lmms::gui::ClipView::paste

(

)

patternClipBackground()

QColor lmms::gui::ClipView::patternClipBackground

(

)

const

pixelsPerBar()

float lmms::gui::ClipView::pixelsPerBar ( )

protected

How many pixels a bar takes for this ClipView.

Returns

the number of pixels per bar.

quantizeSplitPos()

TimePos lmms::gui::ClipView::quantizeSplitPos ( TimePos midiPos )

protected

randomizeColor

void lmms::gui::ClipView::randomizeColor ( )

slot

remove [1/2]

void lmms::gui::ClipView::remove ( )

slot

Removes a ClipView from its track view.

Like the close() method, this asks the track view to remove this ClipView. However, the clip is scheduled for later deletion rather than closed immediately.

remove() [2/2]

void lmms::gui::ClipView::remove ( QVector< ClipView * > clipvs )

static

resetColor

void lmms::gui::ClipView::resetColor ( )

slot

resizeEvent()

void lmms::gui::ClipView::resizeEvent ( QResizeEvent * re )

inlineoverrideprotected

selectColor

void lmms::gui::ClipView::selectColor ( )

slot

selectedColor()

QColor lmms::gui::ClipView::selectedColor

(

)

const

setColor()

void lmms::gui::ClipView::setColor ( const std::optional< QColor > & color )

private

Change color of all selected clips.

Parameters

color

The new color.

setGradient()

void lmms::gui::ClipView::setGradient

(

const bool &

b

)

setInitialOffsets()

void lmms::gui::ClipView::setInitialOffsets ( )

private

Save the offsets between all selected tracks and a clicked track.

setInitialPos()

void lmms::gui::ClipView::setInitialPos ( QPoint pos )

inlineprivate

setMarkerColor()

void lmms::gui::ClipView::setMarkerColor

(

const QColor &

c

)

setMarkerEnabled()

void lmms::gui::ClipView::setMarkerEnabled ( bool e )

inline

setMarkerPos()

void lmms::gui::ClipView::setMarkerPos ( int x )

inline

setMutedBackgroundColor()

void lmms::gui::ClipView::setMutedBackgroundColor

(

const QColor &

c

)

setMutedColor()

void lmms::gui::ClipView::setMutedColor

(

const QColor &

c

)

CSS theming qproperty access method.

setNeedsUpdate()

void lmms::gui::ClipView::setNeedsUpdate

(

bool

b

)

setPatternClipBackground()

void lmms::gui::ClipView::setPatternClipBackground

(

const QColor &

c

)

setSelectedColor()

void lmms::gui::ClipView::setSelectedColor

(

const QColor &

c

)

setTextBackgroundColor()

void lmms::gui::ClipView::setTextBackgroundColor

(

const QColor &

c

)

setTextColor()

void lmms::gui::ClipView::setTextColor

(

const QColor &

c

)

setTextShadowColor()

void lmms::gui::ClipView::setTextShadowColor

(

const QColor &

c

)

splitClip()

bool lmms::gui::ClipView::splitClip ( const TimePos pos )

private

Split this Clip into two clips

Parameters

pos	the position of the split, relative to the start of the clip

Returns

true if the clip could be split

textBackgroundColor()

QColor lmms::gui::ClipView::textBackgroundColor

(

)

const

textColor()

QColor lmms::gui::ClipView::textColor

(

)

const

textShadowColor()

QColor lmms::gui::ClipView::textShadowColor

(

)

const

toggleMute()

void lmms::gui::ClipView::toggleMute ( QVector< ClipView * > clipvs )

static

toggleSelectedAutoResize()

void lmms::gui::ClipView::toggleSelectedAutoResize

(

)

unquantizedModHeld()

bool lmms::gui::ClipView::unquantizedModHeld ( QMouseEvent * me )

protected

update

void lmms::gui::ClipView::update ( )

overrideslot

Update a ClipView.

Clip's get drawn only when needed, and when a Clip is updated, it needs to be redrawn.

updateCursor()

void lmms::gui::ClipView::updateCursor ( QMouseEvent * me )

private

updateLength

void lmms::gui::ClipView::updateLength ( )

protectedslot

Updates a ClipView's length.

If this ClipView has a fixed Clip, then we must keep the width of our parent. Otherwise, calculate our width from the clip's length in pixels adding in the border.

updatePosition

void lmms::gui::ClipView::updatePosition ( )

protectedslot

Updates a ClipView's position.

Ask our track view to change our position. Then make sure that the track view is updated in case this position has changed the track view's length.

Member Data Documentation

BORDER_WIDTH

const int lmms::gui::ClipView::BORDER_WIDTH = 2

static

m_action

Action lmms::gui::ClipView::m_action

private

m_clip

Clip* lmms::gui::ClipView::m_clip

private

m_gradient

bool lmms::gui::ClipView::m_gradient

private

m_hint

TextFloat* lmms::gui::ClipView::m_hint

private

m_initialClipEnd

TimePos lmms::gui::ClipView::m_initialClipEnd

protected

m_initialClipPos

TimePos lmms::gui::ClipView::m_initialClipPos

protected

m_initialMouseGlobalPos

QPoint lmms::gui::ClipView::m_initialMouseGlobalPos

private

m_initialMousePos

QPoint lmms::gui::ClipView::m_initialMousePos

private

m_initialOffsets

QVector<TimePos> lmms::gui::ClipView::m_initialOffsets

private

m_marker

bool lmms::gui::ClipView::m_marker = false

protected

m_markerColor

QColor lmms::gui::ClipView::m_markerColor

private

m_markerPos

int lmms::gui::ClipView::m_markerPos = 0

protected

m_mutedBackgroundColor

QColor lmms::gui::ClipView::m_mutedBackgroundColor

private

m_mutedColor

QColor lmms::gui::ClipView::m_mutedColor

private

m_needsUpdate

bool lmms::gui::ClipView::m_needsUpdate

private

m_patternClipBackground

QColor lmms::gui::ClipView::m_patternClipBackground

private

m_selectedColor

QColor lmms::gui::ClipView::m_selectedColor

private

m_textBackgroundColor

QColor lmms::gui::ClipView::m_textBackgroundColor

private

m_textColor

QColor lmms::gui::ClipView::m_textColor

private

m_textShadowColor

QColor lmms::gui::ClipView::m_textShadowColor

private

m_trackView

TrackView* lmms::gui::ClipView::m_trackView

protected

s_textFloat

TextFloat * lmms::gui::ClipView::s_textFloat = nullptr

staticprivate

A pointer for that text bubble used when moving segments, etc.

In a number of situations, LMMS displays a floating text bubble beside the cursor as you move or resize elements of a track about. This pointer keeps track of it, as you only ever need one at a time.

Property Documentation

gradient

bool lmms::gui::ClipView::gradient

readwrite

markerColor

QColor lmms::gui::ClipView::markerColor

readwrite

mutedBackgroundColor

QColor lmms::gui::ClipView::mutedBackgroundColor

readwrite

mutedColor

QColor lmms::gui::ClipView::mutedColor

readwrite

patternClipBackground

QColor lmms::gui::ClipView::patternClipBackground

readwrite

selectedColor

QColor lmms::gui::ClipView::selectedColor

readwrite

textBackgroundColor

QColor lmms::gui::ClipView::textBackgroundColor

readwrite

textColor

QColor lmms::gui::ClipView::textColor

readwrite

textShadowColor

QColor lmms::gui::ClipView::textShadowColor

readwrite

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/ClipView.h
• /home/runner/work/lmms-fork/lmms-fork/src/gui/clips/ClipView.cpp
