lmms::gui::AutomationClipView Class Reference

#include <AutomationClipView.h>

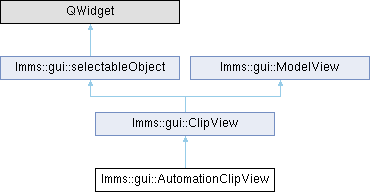

Inheritance diagram for lmms::gui::AutomationClipView:

Public Slots
void	openInAutomationEditor ()
	Opens this view's clip in the global automation editor.
void	update () override
Public Slots inherited from lmms::gui::ClipView
virtual bool	close ()
	Close a ClipView.
void	remove ()
	Removes a ClipView from its track view.
void	update () override
	Update a ClipView.
void	selectColor ()
void	randomizeColor ()
void	resetColor ()
Public Slots inherited from lmms::gui::selectableObject
virtual void	update ()

Public Member Functions
	AutomationClipView (AutomationClip *_clip, TrackView *_parent)
	~AutomationClipView () override=default
Public Member Functions inherited from lmms::gui::ClipView
	ClipView (Clip *clip, TrackView *tv)
	Create a new ClipView.
	~ClipView () override
	Destroy a ClipView.
bool	fixedClips ()
	Does this ClipView have a fixed Clip?
Clip *	getClip ()
TrackView *	getTrackView ()
QColor	mutedColor () const
	CSS theming qproperty access method.
QColor	mutedBackgroundColor () const
QColor	selectedColor () const
QColor	textColor () const
QColor	textBackgroundColor () const
QColor	textShadowColor () const
QColor	patternClipBackground () const
QColor	markerColor () const
bool	gradient () const
void	setMutedColor (const QColor &c)
	CSS theming qproperty access method.
void	setMutedBackgroundColor (const QColor &c)
void	setSelectedColor (const QColor &c)
void	setTextColor (const QColor &c)
void	setTextBackgroundColor (const QColor &c)
void	setTextShadowColor (const QColor &c)
void	setPatternClipBackground (const QColor &c)
void	setGradient (const bool &b)
void	setMarkerColor (const QColor &c)
bool	needsUpdate ()
void	setNeedsUpdate (bool b)
QVector< ClipView * >	getClickedClips ()
void	copy (QVector< ClipView * > clipvs)
void	cut (QVector< ClipView * > clipvs)
void	paste ()
void	toggleSelectedAutoResize ()
QColor	getColorForDisplay (QColor)
void	setMarkerPos (int x)
void	setMarkerEnabled (bool e)
Public Member Functions inherited from lmms::gui::selectableObject
	selectableObject (QWidget *_parent)
	~selectableObject () override=default
void	setSelected (bool selected)
bool	isSelected () const
Public Member Functions inherited from lmms::gui::ModelView
	ModelView (Model *model, QWidget *widget)
virtual	~ModelView ()
virtual void	setModel (Model *model, bool isOldModelValid=true)
virtual void	unsetModel ()
Model *	model ()
const Model *	model () const
template<class T>
T *	castModel ()
template<class T>
const T *	castModel () const

Protected Slots
void	resetName ()
void	changeName ()
void	disconnectObject (QAction *_a)
void	toggleRecording ()
void	flipY ()
void	flipX ()
Protected Slots inherited from lmms::gui::ClipView
void	updateLength ()
	Updates a ClipView's length.
void	updatePosition ()
	Updates a ClipView's position.

Protected Member Functions
void	constructContextMenu (QMenu *) override
void	mouseDoubleClickEvent (QMouseEvent *me) override
void	paintEvent (QPaintEvent *pe) override
void	dragEnterEvent (QDragEnterEvent *_dee) override
void	dropEvent (QDropEvent *_de) override
Protected Member Functions inherited from lmms::gui::ClipView
void	contextMenuEvent (QContextMenuEvent *cme) override
	Set up the context menu for this ClipView.
void	contextMenuAction (ContextMenuAction action)
void	dragEnterEvent (QDragEnterEvent *dee) override
	Change the ClipView's display when something being dragged enters it.
void	dropEvent (QDropEvent *de) override
	Handle something being dropped on this ClipObjectView.
void	mousePressEvent (QMouseEvent *me) override
	Handle a mouse press on this ClipView.
void	mouseMoveEvent (QMouseEvent *me) override
	Handle a mouse movement (drag) on this ClipView.
void	mouseReleaseEvent (QMouseEvent *me) override
	Handle a mouse release on this ClipView.
void	resizeEvent (QResizeEvent *re) override
bool	unquantizedModHeld (QMouseEvent *me)
TimePos	quantizeSplitPos (TimePos)
float	pixelsPerBar ()
	How many pixels a bar takes for this ClipView.
DataFile	createClipDataFiles (const QVector< ClipView * > &clips) const
	Create a DataFile suitable for copying multiple clips.
virtual void	paintTextLabel (QString const &text, QPainter &painter)
auto	hasCustomColor () const -> bool
Protected Member Functions inherited from lmms::gui::ModelView
virtual void	modelChanged ()
QWidget *	widget ()
virtual void	doConnections ()

Private Member Functions
void	scaleTimemapToFit (float oldMin, float oldMax)
	Preserves the auto points over different scale.
bool	isResizableBeforeStart () override
	Returns whether the user can left-resize this clip so that the start of the clip bounds is before the start of the clip content.

Private Attributes
AutomationClip *	m_clip
QPixmap	m_paintPixmap
QStaticText	m_staticTextName

Additional Inherited Members
Static Public Member Functions inherited from lmms::gui::ClipView
static void	remove (QVector< ClipView * > clipvs)
static void	toggleMute (QVector< ClipView * > clipvs)
Static Public Attributes inherited from lmms::gui::ClipView
static const int	BORDER_WIDTH = 2
Protected Types inherited from lmms::gui::ClipView
enum class	ContextMenuAction {   Remove , Cut , Copy , Paste ,   Mute }
Protected Attributes inherited from lmms::gui::ClipView
TrackView *	m_trackView
TimePos	m_initialClipPos
TimePos	m_initialClipEnd
bool	m_marker = false
int	m_markerPos = 0
Properties inherited from lmms::gui::ClipView
QColor	mutedColor
QColor	mutedBackgroundColor
QColor	selectedColor
QColor	textColor
QColor	textBackgroundColor
QColor	textShadowColor
QColor	patternClipBackground
bool	gradient
QColor	markerColor

Constructor & Destructor Documentation

AutomationClipView()

lmms::gui::AutomationClipView::AutomationClipView	(	AutomationClip *	_clip,
		TrackView *	_parent )

~AutomationClipView()

lmms::gui::AutomationClipView::~AutomationClipView ( )

overridedefault

Member Function Documentation

changeName

void lmms::gui::AutomationClipView::changeName ( )

protectedslot

constructContextMenu()

void lmms::gui::AutomationClipView::constructContextMenu ( QMenu * _cm )

overrideprotectedvirtual

Reimplemented from lmms::gui::ClipView.

disconnectObject

void lmms::gui::AutomationClipView::disconnectObject ( QAction * _a )

protectedslot

dragEnterEvent()

void lmms::gui::AutomationClipView::dragEnterEvent ( QDragEnterEvent * _dee )

overrideprotected

dropEvent()

void lmms::gui::AutomationClipView::dropEvent ( QDropEvent * _de )

overrideprotected

flipX

void lmms::gui::AutomationClipView::flipX ( )

protectedslot

flipY

void lmms::gui::AutomationClipView::flipY ( )

protectedslot

isResizableBeforeStart()

bool lmms::gui::AutomationClipView::isResizableBeforeStart ( )

inlineoverrideprivatevirtual

Returns whether the user can left-resize this clip so that the start of the clip bounds is before the start of the clip content.

Reimplemented from lmms::gui::ClipView.

mouseDoubleClickEvent()

void lmms::gui::AutomationClipView::mouseDoubleClickEvent ( QMouseEvent * me )

overrideprotected

openInAutomationEditor

void lmms::gui::AutomationClipView::openInAutomationEditor ( )

slot

Opens this view's clip in the global automation editor.

paintEvent()

void lmms::gui::AutomationClipView::paintEvent ( QPaintEvent * pe )

overrideprotected

resetName

void lmms::gui::AutomationClipView::resetName ( )

protectedslot

scaleTimemapToFit()

void lmms::gui::AutomationClipView::scaleTimemapToFit ( float oldMin, float oldMax )

private

Preserves the auto points over different scale.

toggleRecording

void lmms::gui::AutomationClipView::toggleRecording ( )

protectedslot

update

void lmms::gui::AutomationClipView::update ( )

overrideslot

Member Data Documentation

m_clip

AutomationClip* lmms::gui::AutomationClipView::m_clip

private

m_paintPixmap

QPixmap lmms::gui::AutomationClipView::m_paintPixmap

private

m_staticTextName

QStaticText lmms::gui::AutomationClipView::m_staticTextName

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/AutomationClipView.h
• /home/runner/work/lmms-fork/lmms-fork/src/gui/clips/AutomationClipView.cpp
