#include <PatternTrack.h>

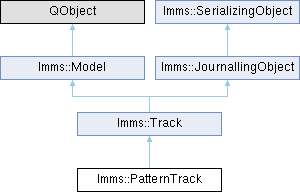

Inheritance diagram for lmms::PatternTrack:

Public Member Functions
	PatternTrack (TrackContainer *tc)
	~PatternTrack () override
bool	play (const TimePos &_start, const f_cnt_t _frames, const f_cnt_t _frame_base, int _clip_num=-1) override
gui::TrackView *	createView (gui::TrackContainerView *tcv) override
Clip *	createClip (const TimePos &pos) override
void	saveTrackSpecificSettings (QDomDocument &doc, QDomElement &parent, bool presetMode) override
void	loadTrackSpecificSettings (const QDomElement &_this) override
int	patternIndex ()
bool	automationDisabled (Track *_track)
void	disableAutomation (Track *_track)
void	enableAutomation (Track *_track)
Public Member Functions inherited from lmms::Track
	Track (Type type, TrackContainer *tc)
	Create a new (empty) track object.
	~Track () override
	Destroy this track.
Track *	clone ()
	Clone a track from this track.
Type	type () const
void	savePreset (QDomDocument &doc, QDomElement &element)
void	loadPreset (const QDomElement &element)
void	saveSettings (QDomDocument &doc, QDomElement &element) override
void	loadSettings (const QDomElement &element) override
Clip *	addClip (Clip *clip)
	Add another Clip into this track.
void	removeClip (Clip *clip)
	Remove a given Clip from this track.
void	deleteClips ()
	Remove all Clips from this track.
int	numOfClips ()
	Return the number of clips we contain.
auto	getClip (std::size_t clipNum) -> Clip *
	Get a Clip by number.
int	getClipNum (const Clip *clip)
	Determine the given Clip's number in our array.
const clipVector &	getClips () const
void	getClipsInRange (clipVector &clipV, const TimePos &start, const TimePos &end)
	Retrieve a list of clips that fall within a period.
void	swapPositionOfClips (int clipNum1, int clipNum2)
	Swap the position of two clips.
void	createClipsForPattern (int pattern)
void	insertBar (const TimePos &pos)
	Move all the clips after a certain time later by one bar.
void	removeBar (const TimePos &pos)
	Move all the clips after a certain time earlier by one bar.
bar_t	length () const
	Return the length of the entire track in bars.
TrackContainer *	trackContainer () const
virtual const QString &	name () const
QString	displayName () const override
int	getHeight ()
void	setHeight (int height)
void	lock ()
void	unlock ()
bool	tryLock ()
auto	color () const -> const std::optional< QColor > &
void	setColor (const std::optional< QColor > &color)
bool	isMutedBeforeSolo () const
BoolModel *	getMutedModel ()
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Static Public Member Functions
static PatternTrack *	findPatternTrack (int pattern_num)
static void	swapPatternTracks (Track track1, Track track2)
Static Public Member Functions inherited from lmms::Track
static Track *	create (Type tt, TrackContainer *tc)
	Create a track based on the given track type and container.
static Track *	create (const QDomElement &element, TrackContainer *tc)
	Create a track inside TrackContainer from track type in a QDomElement and restore state from XML.

Protected Member Functions
QString	nodeName () const override
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Private Types
using	infoMap = QMap<PatternTrack*, int>

Private Attributes
QList< Track * >	m_disabledTracks

Static Private Attributes
static infoMap	s_infoMap

Friends
class	gui::PatternTrackView

Additional Inherited Members
Public Types inherited from lmms::Track
enum class	Type { Instrument , Pattern , Sample , Event , Video , Automation , HiddenAutomation , Count }
using	clipVector = std::vector<Clip*>
Public Slots inherited from lmms::Track
virtual void	setName (const QString &newName)
void	setMutedBeforeSolo (const bool muted)
void	toggleSolo ()
	Invert the track's solo state.
Signals inherited from lmms::Track
void	destroyedTrack ()
void	nameChanged ()
void	clipAdded (lmms::Clip *)
void	colorChanged ()
void	dataChanged ()
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()
Protected Attributes inherited from lmms::Track
BoolModel	m_mutedModel
BoolModel	m_soloModel

Detailed Description

Track type used in the Song (Editor) to reference a pattern in the PatternStore

Member Typedef Documentation

◆ infoMap

using lmms::PatternTrack::infoMap = QMap<PatternTrack*, int>

private

Constructor & Destructor Documentation

◆ PatternTrack()

lmms::PatternTrack::PatternTrack ( TrackContainer * tc )

◆ ~PatternTrack()

lmms::PatternTrack::~PatternTrack ( )

override

Member Function Documentation

◆ automationDisabled()

bool lmms::PatternTrack::automationDisabled ( Track * _track )

inline

◆ createClip()

Clip * lmms::PatternTrack::createClip ( const TimePos & pos )

overridevirtual

Implements lmms::Track.

◆ createView()

gui::TrackView * lmms::PatternTrack::createView ( gui::TrackContainerView * tcv )

overridevirtual

Implements lmms::Track.

◆ disableAutomation()

void lmms::PatternTrack::disableAutomation ( Track * _track )

inline

◆ enableAutomation()

void lmms::PatternTrack::enableAutomation ( Track * _track )

inline

◆ findPatternTrack()

PatternTrack * lmms::PatternTrack::findPatternTrack ( int pattern_num )

static

◆ loadTrackSpecificSettings()

void lmms::PatternTrack::loadTrackSpecificSettings ( const QDomElement & _this )

overridevirtual

Implements lmms::Track.

◆ nodeName()

QString lmms::PatternTrack::nodeName ( void ) const

inlineoverrideprotectedvirtual

Implements lmms::SerializingObject.

◆ patternIndex()

int lmms::PatternTrack::patternIndex ( )

inline

◆ play()

bool lmms::PatternTrack::play	(	const TimePos &	_start,
		const f_cnt_t	_frames,
		const f_cnt_t	_frame_base,
		int	_clip_num = -1 )

overridevirtual

Implements lmms::Track.

◆ saveTrackSpecificSettings()

void lmms::PatternTrack::saveTrackSpecificSettings	(	QDomDocument &	doc,
		QDomElement &	parent,
		bool	presetMode )

overridevirtual

Implements lmms::Track.

◆ swapPatternTracks()

void lmms::PatternTrack::swapPatternTracks	(	Track *	track1,
		Track *	track2 )

static

◆ gui::PatternTrackView

friend class gui::PatternTrackView

friend

Member Data Documentation

◆ m_disabledTracks

QList<Track *> lmms::PatternTrack::m_disabledTracks

private

◆ s_infoMap

PatternTrack::infoMap lmms::PatternTrack::s_infoMap

staticprivate

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/PatternTrack.h
/home/runner/work/lmms-fork/lmms-fork/src/tracks/PatternTrack.cpp
