lmms::MidiClip Class Reference

#include <MidiClip.h>

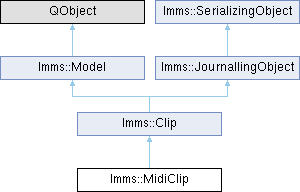

Inheritance diagram for lmms::MidiClip:

Public Types
enum class	Type { BeatClip , MelodyClip }

Public Slots
void	addSteps ()
void	cloneSteps ()
void	removeSteps ()
void	clear ()
Public Slots inherited from lmms::Clip
void	toggleMute ()
	Mutes this Clip.

Signals
void	destroyedMidiClip (lmms::MidiClip *)
void	dataChanged ()
Signals inherited from lmms::Clip
void	lengthChanged ()
void	positionChanged ()
void	destroyedClip ()
void	colorChanged ()
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()

Public Member Functions
	MidiClip (InstrumentTrack *instrumentTrack)
	~MidiClip () override
void	init ()
void	updateLength () override
Note *	addNote (const Note &_new_note, const bool _quant_pos=true)
NoteVector::const_iterator	removeNote (NoteVector::const_iterator it)
NoteVector::const_iterator	removeNote (Note *note)
Note *	noteAtStep (int _step)
void	rearrangeAllNotes ()
void	clearNotes ()
const NoteVector &	notes () const
Note *	addStepNote (int step)
void	setStep (int step, bool enabled)
void	reverseNotes (const NoteVector &notes)
	Horizontally flip the positions of the given notes.
void	splitNotes (const NoteVector &notes, TimePos pos)
void	splitNotesAlongLine (const NoteVector notes, TimePos pos1, int key1, TimePos pos2, int key2, bool deleteShortEnds)
Type	type () const
MidiClip *	previousMidiClip () const
MidiClip *	nextMidiClip () const
void	exportToXML (QDomDocument &doc, QDomElement &midiClipElement, bool onlySelectedNotes=false)
void	saveSettings (QDomDocument &_doc, QDomElement &_parent) override
void	loadSettings (const QDomElement &_this) override
QString	nodeName () const override
InstrumentTrack *	instrumentTrack () const
bool	empty ()
gui::ClipView *	createView (gui::TrackView *_tv) override
MidiClip *	clone () override
Public Member Functions inherited from lmms::Clip
	Clip (Track *track)
	Create a new Clip.
	~Clip () override
	Destroy a Clip.
Track *	getTrack () const
const QString &	name () const
void	setName (const QString &name)
QString	displayName () const override
const TimePos &	startPosition () const
TimePos	endPosition () const
const TimePos &	length () const
bool	hasTrackContainer () const
bool	isInPattern () const
bool	manuallyResizable () const
void	setAutoResize (const bool r)
	Set whether a clip has been resized yet by the user or the knife tool.
bool	getAutoResize () const
auto	color () const -> const std::optional< QColor > &
void	setColor (const std::optional< QColor > &color)
virtual void	movePosition (const TimePos &pos)
	Move this Clip's position in time.
virtual void	changeLength (const TimePos &length)
	Change the length of this Clip.
void	selectViewOnCreate (bool select)
bool	getSelectViewOnCreate ()
TimePos	startTimeOffset () const
void	setStartTimeOffset (const TimePos &startTimeOffset)
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()

Protected Slots
void	changeTimeSignature ()

Protected Member Functions
	MidiClip (const MidiClip &other)
void	updatePatternTrack ()
Protected Member Functions inherited from lmms::Clip
	Clip (const Clip &other)
	Copy a Clip.
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)

Private Member Functions
TimePos	beatClipLength () const
void	setType (Type _new_clip_type)
void	checkType ()
void	resizeToFirstTrack ()
MidiClip *	adjacentMidiClipByOffset (int offset) const

Private Attributes
InstrumentTrack *	m_instrumentTrack
Type	m_clipType
NoteVector	m_notes
int	m_steps

Friends
class	gui::MidiClipView

Additional Inherited Members
Static Public Member Functions inherited from lmms::Clip
static bool	comparePosition (const Clip *a, const Clip *b)
	Returns true if and only if a->startPosition() < b->startPosition().
static void	copyStateTo (Clip *src, Clip *dst)
	Copies the state of a Clip to another Clip.

Member Enumeration Documentation

Type

enum class lmms::MidiClip::Type

strong

Enumerator
BeatClip
MelodyClip

Constructor & Destructor Documentation

MidiClip() [1/2]

lmms::MidiClip::MidiClip

(

InstrumentTrack *

instrumentTrack

)

~MidiClip()

lmms::MidiClip::~MidiClip ( )

override

MidiClip() [2/2]

lmms::MidiClip::MidiClip ( const MidiClip & other )

protected

Member Function Documentation

addNote()

Note * lmms::MidiClip::addNote	(	const Note &	_new_note,
		const bool	_quant_pos = true )

addStepNote()

Note * lmms::MidiClip::addStepNote

(

int

step

)

addSteps

void lmms::MidiClip::addSteps ( )

slot

adjacentMidiClipByOffset()

MidiClip * lmms::MidiClip::adjacentMidiClipByOffset ( int offset ) const

private

beatClipLength()

TimePos lmms::MidiClip::beatClipLength ( ) const

private

changeTimeSignature

void lmms::MidiClip::changeTimeSignature ( )

protectedslot

checkType()

void lmms::MidiClip::checkType ( )

private

clear

void lmms::MidiClip::clear ( )

slot

clearNotes()

void lmms::MidiClip::clearNotes

(

)

clone()

MidiClip * lmms::MidiClip::clone ( )

inlineoverridevirtual

Creates a copy of this clip

Returns

pointer to the new clip object

Implements lmms::Clip.

cloneSteps

void lmms::MidiClip::cloneSteps ( )

slot

createView()

gui::ClipView * lmms::MidiClip::createView ( gui::TrackView * _tv )

overridevirtual

Implements lmms::Clip.

dataChanged

void lmms::Model::dataChanged ( )

signal

destroyedMidiClip

void lmms::MidiClip::destroyedMidiClip ( lmms::MidiClip * )

signal

empty()

bool lmms::MidiClip::empty

(

)

exportToXML()

void lmms::MidiClip::exportToXML	(	QDomDocument &	doc,
		QDomElement &	midiClipElement,
		bool	onlySelectedNotes = false )

init()

void lmms::MidiClip::init

(

)

instrumentTrack()

InstrumentTrack * lmms::MidiClip::instrumentTrack ( ) const

inline

loadSettings()

void lmms::MidiClip::loadSettings ( const QDomElement & _this )

overridevirtual

Implements lmms::SerializingObject.

nextMidiClip()

MidiClip * lmms::MidiClip::nextMidiClip

(

)

const

nodeName()

QString lmms::MidiClip::nodeName ( void ) const

inlineoverridevirtual

Implements lmms::SerializingObject.

noteAtStep()

Note * lmms::MidiClip::noteAtStep

(

int

_step

)

notes()

const NoteVector & lmms::MidiClip::notes ( ) const

inline

previousMidiClip()

MidiClip * lmms::MidiClip::previousMidiClip

(

)

const

rearrangeAllNotes()

void lmms::MidiClip::rearrangeAllNotes

(

)

removeNote() [1/2]

NoteVector::const_iterator lmms::MidiClip::removeNote

(

Note *

note

)

removeNote() [2/2]

NoteVector::const_iterator lmms::MidiClip::removeNote

(

NoteVector::const_iterator

it

)

removeSteps

void lmms::MidiClip::removeSteps ( )

slot

resizeToFirstTrack()

void lmms::MidiClip::resizeToFirstTrack ( )

private

reverseNotes()

void lmms::MidiClip::reverseNotes

(

const NoteVector &

notes

)

Horizontally flip the positions of the given notes.

saveSettings()

void lmms::MidiClip::saveSettings ( QDomDocument & _doc, QDomElement & _parent )

overridevirtual

Implements lmms::SerializingObject.

setStep()

void lmms::MidiClip::setStep	(	int	step,
		bool	enabled )

setType()

void lmms::MidiClip::setType ( Type _new_clip_type )

private

splitNotes()

void lmms::MidiClip::splitNotes	(	const NoteVector &	notes,
		TimePos	pos )

splitNotesAlongLine()

void lmms::MidiClip::splitNotesAlongLine	(	const NoteVector	notes,
		TimePos	pos1,
		int	key1,
		TimePos	pos2,
		int	key2,
		bool	deleteShortEnds )

type()

Type lmms::MidiClip::type ( ) const

inline

updateLength()

void lmms::MidiClip::updateLength ( )

overridevirtual

Reimplemented from lmms::Clip.

updatePatternTrack()

void lmms::MidiClip::updatePatternTrack ( )

protected

Friends And Related Symbol Documentation

gui::MidiClipView

friend class gui::MidiClipView

friend

Member Data Documentation

m_clipType

Type lmms::MidiClip::m_clipType

private

m_instrumentTrack

InstrumentTrack* lmms::MidiClip::m_instrumentTrack

private

m_notes

NoteVector lmms::MidiClip::m_notes

private

m_steps

int lmms::MidiClip::m_steps

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/MidiClip.h
• /home/runner/work/lmms-fork/lmms-fork/src/tracks/MidiClip.cpp
