lmms::Lv2ControlBase Class Reference

#include <Lv2ControlBase.h>

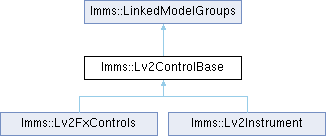

Inheritance diagram for lmms::Lv2ControlBase:

Public Member Functions
void	shutdown ()
void	init (Model *meAsModel)
const LilvPlugin *	getPlugin () const
Lv2Proc *	control (std::size_t idx)
const Lv2Proc *	control (std::size_t idx) const
bool	hasGui () const
void	setHasGui (bool val)
Public Member Functions inherited from lmms::LinkedModelGroups
virtual	~LinkedModelGroups ()=default
void	linkAllModels ()
void	saveSettings (class QDomDocument &doc, class QDomElement &that)
void	loadSettings (const class QDomElement &that)

Static Public Member Functions
static Plugin::Type	check (const LilvPlugin *m_plugin, std::vector< PluginIssue > &issues)

Protected Member Functions
	Lv2ControlBase (class Model *that, const QString &uri)
	Lv2ControlBase (const Lv2ControlBase &)=delete
	~Lv2ControlBase () override
void	reload ()
Lv2ControlBase &	operator= (const Lv2ControlBase &)=delete
LinkedModelGroup *	getGroup (std::size_t idx) override
const LinkedModelGroup *	getGroup (std::size_t idx) const override
void	copyModelsFromLmms ()
void	copyModelsToLmms () const
	Bring values from all ports to the LMMS core.
void	copyBuffersFromLmms (const SampleFrame *buf, f_cnt_t frames)
	Copy buffer passed by LMMS into our ports.
void	copyBuffersToLmms (SampleFrame *buf, f_cnt_t frames) const
	Copy our ports into buffers passed by LMMS.
void	run (f_cnt_t frames)
	Run the Lv2 plugin instance for.
void	saveSettings (QDomDocument &doc, QDomElement &that)
void	loadSettings (const QDomElement &that)
void	loadFile (const QString &file)
std::size_t	controlCount () const
QString	nodeName () const
bool	hasNoteInput () const
void	handleMidiInputEvent (const class MidiEvent &event, const class TimePos &time, f_cnt_t offset)

Private Attributes
std::vector< std::unique_ptr< Lv2Proc > >	m_procs
bool	m_hasGUI = false
unsigned	m_channelsPerProc
const LilvPlugin *	m_plugin

Detailed Description

Common base class for Lv2 plugins

This class contains a vector of Lv2Proc, usually 1 (for stereo plugins) or 2 (for mono plugins). Most of the logic is done there, this class primarily forwards work to the Lv2Proc and collects the results.

This class provides everything Lv2 plugins have in common. It's not named Lv2Plugin, because it does not inherit Instrument the Plugin subclass Effect does not inherit this class

This class would usually be a Model subclass. However, Qt doesn't allow this: inheriting only from Model will cause diamond inheritance for QObject, which will cause errors with Q_OBJECT making this a direct subclass of Instrument resp. EffectControls would require CRTP, which would make this class a template class, which would conflict with Q_OBJECT

The consequence is that this class can neither inherit QObject or Model, nor Instrument or EffectControls, which means in fact: this class contains no signals or slots, but it offers stubs for slots that shall be called by child classes this class can not override virtuals of Instrument or EffectControls, so it will offer functions that must be called by virtuals in its child class

Constructor & Destructor Documentation

Lv2ControlBase() [1/2]

lmms::Lv2ControlBase::Lv2ControlBase ( class Model * that, const QString & uri )

protected

Parameters

that	the class inheriting this class and inheriting Model; this is the same pointer as this, but a different type
uri	the Lv2 URI telling this class what plugin to construct

Lv2ControlBase() [2/2]

lmms::Lv2ControlBase::Lv2ControlBase ( const Lv2ControlBase & )

protecteddelete

~Lv2ControlBase()

lmms::Lv2ControlBase::~Lv2ControlBase ( )

overrideprotecteddefault

Member Function Documentation

check()

Plugin::Type lmms::Lv2ControlBase::check ( const LilvPlugin * m_plugin, std::vector< PluginIssue > & issues )

static

control() [1/2]

Lv2Proc * lmms::Lv2ControlBase::control ( std::size_t idx )

inline

control() [2/2]

const Lv2Proc * lmms::Lv2ControlBase::control ( std::size_t idx ) const

inline

controlCount()

std::size_t lmms::Lv2ControlBase::controlCount ( ) const

protected

copyBuffersFromLmms()

void lmms::Lv2ControlBase::copyBuffersFromLmms ( const SampleFrame * buf, f_cnt_t frames )

protected

Copy buffer passed by LMMS into our ports.

copyBuffersToLmms()

void lmms::Lv2ControlBase::copyBuffersToLmms ( SampleFrame * buf, f_cnt_t frames ) const

protected

Copy our ports into buffers passed by LMMS.

copyModelsFromLmms()

void lmms::Lv2ControlBase::copyModelsFromLmms ( )

protected

Copy values from the LMMS core (connected models, MIDI events, ...) into the respective ports

copyModelsToLmms()

void lmms::Lv2ControlBase::copyModelsToLmms ( ) const

protected

Bring values from all ports to the LMMS core.

getGroup() [1/2]

const LinkedModelGroup * lmms::Lv2ControlBase::getGroup ( std::size_t idx ) const

overrideprotectedvirtual

See also

getGroup

Implements lmms::LinkedModelGroups.

getGroup() [2/2]

LinkedModelGroup * lmms::Lv2ControlBase::getGroup ( std::size_t idx )

overrideprotectedvirtual

Derived classes must return the group with index idx, or nullptr if is out of range

Implements lmms::LinkedModelGroups.

getPlugin()

const LilvPlugin * lmms::Lv2ControlBase::getPlugin ( ) const

inline

handleMidiInputEvent()

void lmms::Lv2ControlBase::handleMidiInputEvent ( const class MidiEvent & event, const class TimePos & time, f_cnt_t offset )

protected

hasGui()

bool lmms::Lv2ControlBase::hasGui ( ) const

inline

hasNoteInput()

bool lmms::Lv2ControlBase::hasNoteInput ( ) const

protected

init()

void lmms::Lv2ControlBase::init

(

Model *

meAsModel

)

loadFile()

void lmms::Lv2ControlBase::loadFile ( const QString & file )

protected

loadSettings()

void lmms::Lv2ControlBase::loadSettings ( const QDomElement & that )

protected

nodeName()

QString lmms::Lv2ControlBase::nodeName ( void ) const

inlineprotected

operator=()

Lv2ControlBase & lmms::Lv2ControlBase::operator= ( const Lv2ControlBase & )

protecteddelete

reload()

void lmms::Lv2ControlBase::reload ( )

protected

run()

void lmms::Lv2ControlBase::run ( f_cnt_t frames )

protected

Run the Lv2 plugin instance for.

Parameters

frames

frames

saveSettings()

void lmms::Lv2ControlBase::saveSettings ( QDomDocument & doc, QDomElement & that )

protected

setHasGui()

void lmms::Lv2ControlBase::setHasGui ( bool val )

inline

shutdown()

void lmms::Lv2ControlBase::shutdown

(

)

Member Data Documentation

m_channelsPerProc

unsigned lmms::Lv2ControlBase::m_channelsPerProc

private

m_hasGUI

bool lmms::Lv2ControlBase::m_hasGUI = false

private

m_plugin

const LilvPlugin* lmms::Lv2ControlBase::m_plugin

private

m_procs

std::vector<std::unique_ptr<Lv2Proc> > lmms::Lv2ControlBase::m_procs

private

Independent processors If this is a mono effect, the vector will have size 2 in order to fulfill LMMS' requirement of having stereo input and output

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/Lv2ControlBase.h
• /home/runner/work/lmms-fork/lmms-fork/src/core/lv2/Lv2ControlBase.cpp
