#include <juce_Typeface.h>

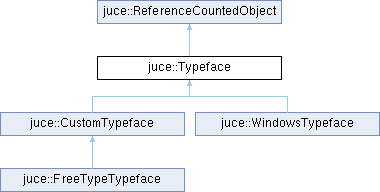

Inheritance diagram for juce::Typeface:

Classes
struct	HintingParams

Public Types
using	Ptr = ReferenceCountedObjectPtr<Typeface>

Public Member Functions
const String &	getName () const noexcept
const String &	getStyle () const noexcept
	~Typeface () override
virtual bool	isSuitableForFont (const Font &) const
virtual float	getAscent () const =0
virtual float	getDescent () const =0
virtual float	getHeightToPointsFactor () const =0
virtual float	getStringWidth (const String &text)=0
virtual void	getGlyphPositions (const String &text, Array< int > &glyphs, Array< float > &xOffsets)=0
virtual bool	getOutlineForGlyph (int glyphNumber, Path &path)=0
virtual EdgeTable *	getEdgeTableForGlyph (int glyphNumber, const AffineTransform &transform, float fontHeight)
virtual bool	isHinted () const
void	applyVerticalHintingTransform (float fontHeight, Path &path)
Public Member Functions inherited from juce::ReferenceCountedObject
void	incReferenceCount () noexcept
void	decReferenceCount () noexcept
bool	decReferenceCountWithoutDeleting () noexcept
int	getReferenceCount () const noexcept

Static Public Member Functions
static Ptr	createSystemTypefaceFor (const Font &font)
static Ptr	createSystemTypefaceFor (const void *fontFileData, size_t fontFileDataSize)
static void	setTypefaceCacheSize (int numFontsToCache)
static void	clearTypefaceCache ()
static void	scanFolderForFonts (const File &folder)

Protected Member Functions
	Typeface (const String &name, const String &style) noexcept
Protected Member Functions inherited from juce::ReferenceCountedObject
	ReferenceCountedObject ()=default
	ReferenceCountedObject (const ReferenceCountedObject &) noexcept
	ReferenceCountedObject (ReferenceCountedObject &&) noexcept
ReferenceCountedObject &	operator= (const ReferenceCountedObject &) noexcept
ReferenceCountedObject &	operator= (ReferenceCountedObject &&) noexcept
virtual	~ReferenceCountedObject ()
void	resetReferenceCount () noexcept

Static Protected Member Functions
static Ptr	getFallbackTypeface ()

Protected Attributes
String	name
String	style

Private Attributes
std::unique_ptr< HintingParams >	hintingParams
CriticalSection	hintingLock

Detailed Description

A typeface represents a size-independent font.

This base class is abstract, but calling createSystemTypefaceFor() will return a platform-specific subclass that can be used.

The CustomTypeface subclass allow you to build your own typeface, and to load and save it in the JUCE typeface format.

Normally you should never need to deal directly with Typeface objects - the Font class does everything you typically need for rendering text.

See also: CustomTypeface, Font

@tags{Graphics}

Member Typedef Documentation

◆ Ptr

using juce::Typeface::Ptr = ReferenceCountedObjectPtr<Typeface>

A handy typedef for a pointer to a typeface.

Constructor & Destructor Documentation

◆ ~Typeface()

juce::Typeface::~Typeface ( )

overridedefault

Destructor.

◆ Typeface()

juce::Typeface::Typeface	(	const String &	name,
		const String &	style )

protectednoexcept

Member Function Documentation

◆ applyVerticalHintingTransform()

void juce::Typeface::applyVerticalHintingTransform	(	float	fontHeight,
		Path &	path )

Makes an attempt at performing a good overall distortion that will scale a font of the given size to align vertically with the pixel grid. The path should be an unscaled (i.e. normalised to height of 1.0) path for a glyph.

◆ clearTypefaceCache()

void juce::Typeface::clearTypefaceCache ( )

static

Clears any fonts that are currently cached in memory.

◆ createSystemTypefaceFor() [1/2]

Typeface::Ptr juce::Typeface::createSystemTypefaceFor ( const Font & font )

static

Creates a new system typeface.

◆ createSystemTypefaceFor() [2/2]

Typeface::Ptr juce::Typeface::createSystemTypefaceFor	(	const void *	fontFileData,
		size_t	fontFileDataSize )

static

Attempts to create a font from some raw font file data (e.g. a TTF or OTF file image). The system will take its own internal copy of the data, so you can free the block once this method has returned.

◆ getAscent()

virtual float juce::Typeface::getAscent ( ) const

pure virtual

Returns the ascent of the font, as a proportion of its height. The height is considered to always be normalised as 1.0, so this will be a value less that 1.0, indicating the proportion of the font that lies above its baseline.

Implemented in juce::CustomTypeface, and juce::WindowsTypeface.

◆ getDescent()

virtual float juce::Typeface::getDescent ( ) const

pure virtual

Returns the descent of the font, as a proportion of its height. The height is considered to always be normalised as 1.0, so this will be a value less that 1.0, indicating the proportion of the font that lies below its baseline.

Implemented in juce::CustomTypeface, and juce::WindowsTypeface.

◆ getEdgeTableForGlyph()

EdgeTable * juce::Typeface::getEdgeTableForGlyph	(	int	glyphNumber,
		const AffineTransform &	transform,
		float	fontHeight )

virtual

Returns a new EdgeTable that contains the path for the given glyph, with the specified transform applied.

Reimplemented in juce::CustomTypeface.

◆ getFallbackTypeface()

Typeface::Ptr juce::Typeface::getFallbackTypeface ( )

staticprotected

◆ getGlyphPositions()

virtual void juce::Typeface::getGlyphPositions	(	const String &	text,
		Array< int > &	glyphs,
		Array< float > &	xOffsets )

pure virtual

Converts a line of text into its glyph numbers and their positions. The distances returned are based on the font having an normalised height of 1.0. You should never need to call this directly! Use Font::getGlyphPositions() instead!

Implemented in juce::CustomTypeface, and juce::WindowsTypeface.

◆ getHeightToPointsFactor()

virtual float juce::Typeface::getHeightToPointsFactor ( ) const

pure virtual

Returns the value by which you should multiply a JUCE font-height value to convert it to the equivalent point-size.

Implemented in juce::CustomTypeface, and juce::WindowsTypeface.

◆ getName()

const String & juce::Typeface::getName ( ) const

inlinenoexcept

Returns the font family of the typeface.

See also: Font::getTypefaceName

◆ getOutlineForGlyph()

virtual bool juce::Typeface::getOutlineForGlyph	(	int	glyphNumber,
		Path &	path )

pure virtual

Returns the outline for a glyph. The path returned will be normalised to a font height of 1.0.

Implemented in juce::CustomTypeface, and juce::WindowsTypeface.

◆ getStringWidth()

virtual float juce::Typeface::getStringWidth ( const String & text )

pure virtual

Measures the width of a line of text. The distance returned is based on the font having an normalised height of 1.0. You should never need to call this directly! Use Font::getStringWidth() instead!

Implemented in juce::CustomTypeface, and juce::WindowsTypeface.

◆ getStyle()

const String & juce::Typeface::getStyle ( ) const

inlinenoexcept

Returns the font style of the typeface.

See also: Font::getTypefaceStyle

◆ isHinted()

virtual bool juce::Typeface::isHinted ( ) const

inlinevirtual

Returns true if the typeface uses hinting.

◆ isSuitableForFont()

virtual bool juce::Typeface::isSuitableForFont ( const Font & ) const

inlinevirtual

Returns true if this typeface can be used to render the specified font. When called, the font will already have been checked to make sure that its name and style flags match the typeface.

◆ scanFolderForFonts()

void juce::Typeface::scanFolderForFonts ( const File & folder )

static

On some platforms, this allows a specific path to be scanned. On macOS you can load .ttf and .otf files, otherwise this is only available when using FreeType.

◆ setTypefaceCacheSize()

void juce::Typeface::setTypefaceCacheSize ( int numFontsToCache )

static

Changes the number of fonts that are cached in memory.

Member Data Documentation

◆ hintingLock

CriticalSection juce::Typeface::hintingLock

private

◆ hintingParams

std::unique_ptr<HintingParams> juce::Typeface::hintingParams

private

◆ name

String juce::Typeface::name

protected

◆ style

String juce::Typeface::style

protected

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/fonts/juce_Typeface.h
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/fonts/juce_Font.cpp
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/fonts/juce_Typeface.cpp
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/native/juce_linux_Fonts.cpp
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/native/juce_win32_Fonts.cpp
