dsp::basic_synth Struct Reference

#include <synth.h>

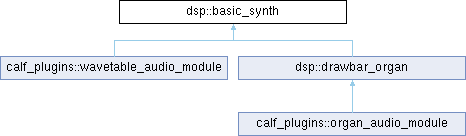

Inheritance diagram for dsp::basic_synth:

Public Member Functions
virtual void	setup (int sr)
virtual void	trim_voices ()
virtual dsp::voice *	give_voice ()
virtual void	steal_voice ()
virtual void	render_to (float(*output)[2], int nsamples)
virtual void	note_on (int note, int vel)
virtual void	percussion_note_on (int note, int vel)
virtual void	control_change (int ctl, int val)
virtual void	note_off (int note, int vel)
virtual void	pitch_bend (int amt)
	amt = -8192 to 8191
virtual void	on_pedal_release ()
virtual bool	check_percussion ()
virtual	~basic_synth ()

Protected Types
typedef basic_pool< dsp::voice * >	voice_array

Protected Member Functions
void	init_voices (int count)
void	kill_note (int note, int vel, bool just_one)
virtual dsp::voice *	alloc_voice ()=0

Protected Attributes
int	sample_rate
	Current sample rate.
bool	hold
	Hold pedal state.
bool	sostenuto
	Sostenuto pedal state.
voice_array	allocated_voices
	All voices available.
voice_array	active_voices
	Voices currently playing.
voice_array	unused_voices
	Voices allocated, but not used.
std::bitset< 128 >	gate
	Gate values for all 128 MIDI notes.
unsigned int	polyphony_limit
	Maximum allocated number of channels.

Detailed Description

Base class for all kinds of polyphonic instruments, provides somewhat reasonable voice management, pedal support - and little else. It's implemented as a base class with virtual functions, so there's some performance loss, but it shouldn't be horrible.

Todo

it would make sense to support all notes off controller too

Member Typedef Documentation

voice_array

typedef basic_pool<dsp::voice *> dsp::basic_synth::voice_array

protected

Constructor & Destructor Documentation

~basic_synth()

basic_synth::~basic_synth ( )

virtual

Member Function Documentation

alloc_voice()

virtual dsp::voice * dsp::basic_synth::alloc_voice ( )

protectedpure virtual

Implemented in calf_plugins::wavetable_audio_module, and dsp::drawbar_organ.

check_percussion()

virtual bool dsp::basic_synth::check_percussion ( )

inlinevirtual

Reimplemented in dsp::drawbar_organ.

control_change()

void basic_synth::control_change ( int ctl, int val )

virtual

Reimplemented in calf_plugins::wavetable_audio_module, and dsp::drawbar_organ.

give_voice()

dsp::voice * basic_synth::give_voice ( )

virtual

init_voices()

void basic_synth::init_voices ( int count )

protected

kill_note()

void basic_synth::kill_note ( int note, int vel, bool just_one )

protected

note_off()

void basic_synth::note_off ( int note, int vel )

virtual

Reimplemented in calf_plugins::wavetable_audio_module.

note_on()

void basic_synth::note_on ( int note, int vel )

virtual

Reimplemented in calf_plugins::wavetable_audio_module.

on_pedal_release()

void basic_synth::on_pedal_release ( )

virtual

percussion_note_on()

virtual void dsp::basic_synth::percussion_note_on ( int note, int vel )

inlinevirtual

Reimplemented in dsp::drawbar_organ.

pitch_bend()

virtual void dsp::basic_synth::pitch_bend ( int amt )

inlinevirtual

amt = -8192 to 8191

Reimplemented in calf_plugins::wavetable_audio_module, and dsp::drawbar_organ.

render_to()

void basic_synth::render_to ( float(*) output[2], int nsamples )

virtual

setup()

virtual void dsp::basic_synth::setup ( int sr )

inlinevirtual

Reimplemented in dsp::drawbar_organ.

steal_voice()

void basic_synth::steal_voice ( )

virtual

trim_voices()

void basic_synth::trim_voices ( )

virtual

Member Data Documentation

active_voices

voice_array dsp::basic_synth::active_voices

protected

Voices currently playing.

allocated_voices

voice_array dsp::basic_synth::allocated_voices

protected

All voices available.

gate

std::bitset<128> dsp::basic_synth::gate

protected

Gate values for all 128 MIDI notes.

hold

bool dsp::basic_synth::hold

protected

Hold pedal state.

polyphony_limit

unsigned int dsp::basic_synth::polyphony_limit

protected

Maximum allocated number of channels.

sample_rate

int dsp::basic_synth::sample_rate

protected

Current sample rate.

sostenuto

bool dsp::basic_synth::sostenuto

protected

Sostenuto pedal state.

unused_voices

voice_array dsp::basic_synth::unused_voices

protected

Voices allocated, but not used.

---

The documentation for this struct was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/synth.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/synth.cpp
