lmms::gui::LcdSpinBox Class Reference

#include <LcdSpinBox.h>

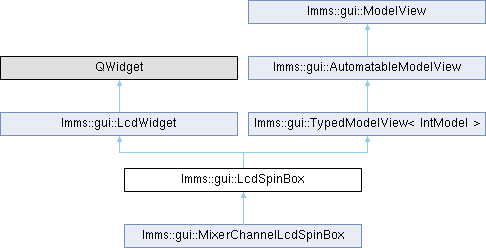

Inheritance diagram for lmms::gui::LcdSpinBox:

Public Slots
virtual void	update ()
Public Slots inherited from lmms::gui::LcdWidget
virtual void	setMarginWidth (int width)

Signals
void	manualChange ()

Public Member Functions
	LcdSpinBox (int numDigits, QWidget *parent, const QString &name=QString())
	LcdSpinBox (int numDigits, const QString &style, QWidget *parent, const QString &name=QString())
	~LcdSpinBox () override=default
void	modelChanged () override
void	setDisplayOffset (int offset)
int	displayOffset () const
	Returns internal offset for displaying values.
Public Member Functions inherited from lmms::gui::LcdWidget
	LcdWidget (QWidget *parent, const QString &name=QString(), bool leadingZero=false)
	LcdWidget (int numDigits, QWidget *parent, const QString &name=QString(), bool leadingZero=false)
	LcdWidget (int numDigits, const QString &style, QWidget *parent, const QString &name=QString(), bool leadingZero=false)
void	setValue (int value)
void	setValue (float value)
void	setLabel (const QString &label)
void	addTextForValue (int value, const QString &text)
int	numDigits () const
void	setNumDigits (int n)
QColor	textColor () const
void	setTextColor (const QColor &c)
QColor	textShadowColor () const
void	setTextShadowColor (const QColor &c)
int	cellHeight () const
void	setSeamless (bool left, bool right)
Public Member Functions inherited from lmms::gui::TypedModelView< IntModel >
	TypedModelView (Model *model, QWidget *_this)
IntModel *	model ()
const IntModel *	model () const
Public Member Functions inherited from lmms::gui::AutomatableModelView
	AutomatableModelView (Model *model, QWidget *_this)
	~AutomatableModelView () override=default
AutomatableModel *	modelUntyped ()
const AutomatableModel *	modelUntyped () const
void	setModel (Model *model, bool isOldModelValid=true) override
void	unsetModel () override
template<typename T>
T	value () const
void	setDescription (const QString &desc)
void	setUnit (const QString &unit)
void	addDefaultActions (QMenu *menu)
void	setConversionFactor (float factor)
float	getConversionFactor ()
Public Member Functions inherited from lmms::gui::ModelView
	ModelView (Model *model, QWidget *widget)
virtual	~ModelView ()
Model *	model ()
const Model *	model () const
template<class T>
T *	castModel ()
template<class T>
const T *	castModel () const

Protected Member Functions
void	contextMenuEvent (QContextMenuEvent *_me) override
void	mousePressEvent (QMouseEvent *_me) override
void	mouseMoveEvent (QMouseEvent *_me) override
void	mouseReleaseEvent (QMouseEvent *_me) override
void	wheelEvent (QWheelEvent *_we) override
void	mouseDoubleClickEvent (QMouseEvent *_me) override
Protected Member Functions inherited from lmms::gui::LcdWidget
void	paintEvent (QPaintEvent *pe) override
virtual void	updateSize ()
Protected Member Functions inherited from lmms::gui::ModelView
QWidget *	widget ()
virtual void	doConnections ()

Private Member Functions
void	enterValue ()

Private Attributes
float	m_remainder
	floating offset of spinbox in [-0.5, 0.5]
bool	m_mouseMoving
QPoint	m_lastMousePos
	mouse position in last mouseMoveEvent
int	m_displayOffset

Additional Inherited Members
Protected Attributes inherited from lmms::gui::AutomatableModelView
QString	m_description
QString	m_unit
float	m_conversionFactor
Properties inherited from lmms::gui::LcdWidget
QColor	textColor
QColor	textShadowColor
int	numDigits

Constructor & Destructor Documentation

LcdSpinBox() [1/2]

lmms::gui::LcdSpinBox::LcdSpinBox	(	int	numDigits,
		QWidget *	parent,
		const QString &	name = QString() )

LcdSpinBox() [2/2]

lmms::gui::LcdSpinBox::LcdSpinBox	(	int	numDigits,
		const QString &	style,
		QWidget *	parent,
		const QString &	name = QString() )

~LcdSpinBox()

lmms::gui::LcdSpinBox::~LcdSpinBox ( )

overridedefault

Member Function Documentation

contextMenuEvent()

void lmms::gui::LcdSpinBox::contextMenuEvent ( QContextMenuEvent * _me )

overrideprotected

displayOffset()

int lmms::gui::LcdSpinBox::displayOffset ( ) const

inline

Returns internal offset for displaying values.

enterValue()

void lmms::gui::LcdSpinBox::enterValue ( )

private

manualChange

void lmms::gui::LcdSpinBox::manualChange ( )

signal

modelChanged()

void lmms::gui::LcdSpinBox::modelChanged ( )

inlineoverridevirtual

Reimplemented from lmms::gui::ModelView.

mouseDoubleClickEvent()

void lmms::gui::LcdSpinBox::mouseDoubleClickEvent ( QMouseEvent * _me )

overrideprotected

mouseMoveEvent()

void lmms::gui::LcdSpinBox::mouseMoveEvent ( QMouseEvent * _me )

overrideprotected

mousePressEvent()

void lmms::gui::LcdSpinBox::mousePressEvent ( QMouseEvent * _me )

overrideprotectedvirtual

Reimplemented from lmms::gui::AutomatableModelView.

mouseReleaseEvent()

void lmms::gui::LcdSpinBox::mouseReleaseEvent ( QMouseEvent * _me )

overrideprotected

setDisplayOffset()

void lmms::gui::LcdSpinBox::setDisplayOffset ( int offset )

inline

Sets an offset which is always added to value of model so we can display values in a user-friendly way if they internally start at 0

update

void lmms::gui::LcdSpinBox::update ( )

virtualslot

wheelEvent()

void lmms::gui::LcdSpinBox::wheelEvent ( QWheelEvent * _we )

overrideprotected

Member Data Documentation

m_displayOffset

int lmms::gui::LcdSpinBox::m_displayOffset

private

m_lastMousePos

QPoint lmms::gui::LcdSpinBox::m_lastMousePos

private

mouse position in last mouseMoveEvent

m_mouseMoving

bool lmms::gui::LcdSpinBox::m_mouseMoving

private

m_remainder

float lmms::gui::LcdSpinBox::m_remainder

private

floating offset of spinbox in [-0.5, 0.5]

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/LcdSpinBox.h
• /home/runner/work/lmms-fork/lmms-fork/src/gui/widgets/LcdSpinBox.cpp
