#include <Knob.h>

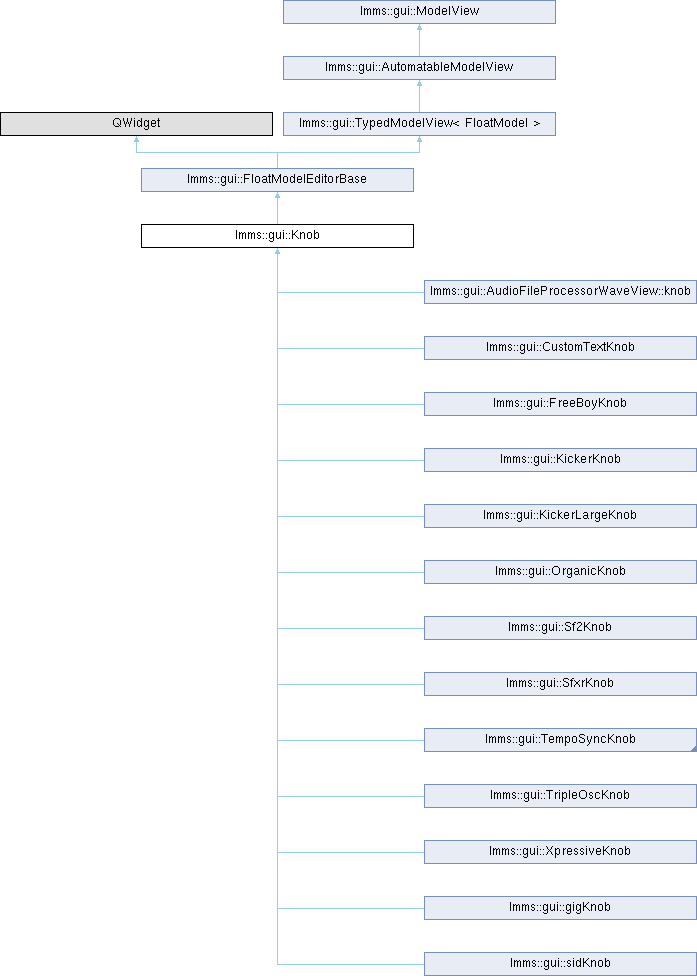

Inheritance diagram for lmms::gui::Knob:

Public Types
enum class	LabelRendering { WidgetFont , LegacyFixedFontSize }
	Determines how the label of the knob is rendered. More...
Public Types inherited from lmms::gui::FloatModelEditorBase
enum class	DirectionOfManipulation { Vertical , Horizontal }

Public Member Functions
	Knob (KnobType _knob_num, QWidget *_parent=nullptr, const QString &_name=QString())
	Construct a Knob with the given style and no label.
	Knob (KnobType knobNum, const QString &labelText, QWidget *parent=nullptr, LabelRendering labelRendering=LabelRendering::WidgetFont, const QString &name=QString())
	Construct a Knob with the given style and label text.
	Knob (KnobType knobNum, const QString &labelText, int labelPixelSize, QWidget *parent, const QString &name=QString())
	Constructs a knob with a label font in the pixel size.
	Knob (QWidget *_parent=nullptr, const QString &_name=QString())
	default ctor
	Knob (const Knob &other)=delete
const QString &	getLabel () const
void	setLabel (const QString &txt)
void	setTotalAngle (float angle)
float	innerRadius () const
void	setInnerRadius (float r)
float	outerRadius () const
void	setOuterRadius (float r)
KnobType	knobNum () const
void	setknobNum (KnobType k)
QPointF	centerPoint () const
float	centerPointX () const
void	setCenterPointX (float c)
float	centerPointY () const
void	setCenterPointY (float c)
float	lineWidth () const
void	setLineWidth (float w)
QColor	outerColor () const
void	setOuterColor (const QColor &c)
QColor	textColor () const
void	setTextColor (const QColor &c)
Public Member Functions inherited from lmms::gui::FloatModelEditorBase
	FloatModelEditorBase (DirectionOfManipulation directionOfManipulation=DirectionOfManipulation::Vertical, QWidget *_parent=nullptr, const QString &_name=QString())
	default ctor
	FloatModelEditorBase (const FloatModelEditorBase &other)=delete
void	setHintText (const QString &txt_before, const QString &txt_after)
bool	isVolumeKnob () const
void	setVolumeKnob (const bool val)
Public Member Functions inherited from lmms::gui::TypedModelView< FloatModel >
	TypedModelView (Model model, QWidget _this)
FloatModel *	model ()
const FloatModel *	model () const
Public Member Functions inherited from lmms::gui::AutomatableModelView
	AutomatableModelView (Model model, QWidget _this)
	~AutomatableModelView () override=default
AutomatableModel *	modelUntyped ()
const AutomatableModel *	modelUntyped () const
void	setModel (Model *model, bool isOldModelValid=true) override
void	unsetModel () override
template<typename T>
T	value () const
void	setDescription (const QString &desc)
void	setUnit (const QString &unit)
void	addDefaultActions (QMenu *menu)
void	setConversionFactor (float factor)
float	getConversionFactor ()
Public Member Functions inherited from lmms::gui::ModelView
	ModelView (Model model, QWidget widget)
virtual	~ModelView ()
Model *	model ()
const Model *	model () const
template<class T>
T *	castModel ()
template<class T>
const T *	castModel () const

Protected Member Functions
void	paintEvent (QPaintEvent *) override
void	changeEvent (QEvent *ev) override
bool	fixedFontSizeLabelRendering () const
void	setFixedFontSizeLabelRendering ()
Protected Member Functions inherited from lmms::gui::FloatModelEditorBase
void	contextMenuEvent (QContextMenuEvent *me) override
void	dragEnterEvent (QDragEnterEvent *dee) override
void	dropEvent (QDropEvent *de) override
void	focusOutEvent (QFocusEvent *fe) override
void	mousePressEvent (QMouseEvent *me) override
void	mouseReleaseEvent (QMouseEvent *me) override
void	mouseMoveEvent (QMouseEvent *me) override
void	mouseDoubleClickEvent (QMouseEvent *me) override
void	paintEvent (QPaintEvent *me) override
void	wheelEvent (QWheelEvent *me) override
void	enterEvent (QEnterEvent *) override
void	leaveEvent (QEvent *event) override
virtual float	getValue (const QPoint &p)
virtual QString	displayValue () const
void	doConnections () override
void	showTextFloat (int msecBeforeDisplay, int msecDisplayTime)
void	setPosition (const QPoint &p)
float	pageSize () const
Protected Member Functions inherited from lmms::gui::ModelView
virtual void	modelChanged ()
QWidget *	widget ()

Properties
float	innerRadius
float	outerRadius
float	centerPointX
float	centerPointY
float	lineWidth
QColor	outerColor
QColor	lineActiveColor
QColor	lineInactiveColor
QColor	arcActiveColor
QColor	arcInactiveColor
KnobType	knobNum
QColor	textColor

Private Member Functions
void	initUi (const QString &_name)
	to be called by ctors
void	onKnobNumUpdated ()
	to be called when you updated m_knobNum
QLineF	calculateLine (const QPointF &_mid, float _radius, float _innerRadius=1) const
void	drawKnob (QPainter *_p)
void	drawLabel (QPainter &p)
bool	updateAngle ()
int	angleFromValue (float value, float minValue, float maxValue, float totalAngle) const
void	updateFixedSize ()

Private Attributes
QString	m_label
bool	m_fixedFontSizeLabelRendering = false
std::unique_ptr< QPixmap >	m_knobPixmap
float	m_totalAngle
int	m_angle
QImage	m_cache
QPointF	m_centerPoint
float	m_innerRadius
float	m_outerRadius
float	m_lineWidth
QColor	m_outerColor
QColor	m_lineActiveColor
QColor	m_lineInactiveColor
QColor	m_arcActiveColor
QColor	m_arcInactiveColor
QColor	m_textColor
KnobType	m_knobNum

Additional Inherited Members
Signals inherited from lmms::gui::FloatModelEditorBase
void	sliderPressed ()
void	sliderReleased ()
void	sliderMoved (float value)
Protected Attributes inherited from lmms::gui::FloatModelEditorBase
bool	m_volumeKnob
FloatModel	m_volumeRatio
QPoint	m_lastMousePos
	mouse position in last mouseMoveEvent
float	m_leftOver
bool	m_buttonPressed
DirectionOfManipulation	m_directionOfManipulation
Protected Attributes inherited from lmms::gui::AutomatableModelView
QString	m_description
QString	m_unit
float	m_conversionFactor
Static Protected Attributes inherited from lmms::gui::FloatModelEditorBase
static SimpleTextFloat *	s_textFloat = nullptr

Member Enumeration Documentation

◆ LabelRendering

enum class lmms::gui::Knob::LabelRendering

strong

Determines how the label of the knob is rendered.

Labels can be rendered using the font that is set for the knob or using a font with a fixed size which is determined by SMALL_FONT_SIZE.

Enumerator

WidgetFont

Renders the label using the font that is set for the widget.

The space that's needed for the label is determined using the font metrics of the knob's font.

LegacyFixedFontSize

Renders the labels in legacy mode. This uses a fixed font size and does not adhere to the font size that's set for the widget's font.

Deprecated: Do not use this mode in new code as it is considered deprecated and might be removed in the future.

Constructor & Destructor Documentation

◆ Knob() [1/5]

lmms::gui::Knob::Knob	(	KnobType	_knob_num,
		QWidget *	_parent = nullptr,
		const QString &	_name = QString() )

Construct a Knob with the given style and no label.

Parameters

_knob_num	Style of the knob
_parent	Parent widget
_name	Object name of the widget

◆ Knob() [2/5]

lmms::gui::Knob::Knob	(	KnobType	knobNum,
		const QString &	labelText,
		QWidget *	parent = nullptr,
		LabelRendering	labelRendering = LabelRendering::WidgetFont,
		const QString &	name = QString() )

Construct a Knob with the given style and label text.

Parameters

knobNum	Style of the knob
labelText	Text for the label
parent	Parent widget
labelRendering	Determines if the label uses the widget font or a font with a fixed size of 12 pixels (LegacyFixedFontSize). The default is to use the widget font.
name	Object name of the widget

◆ Knob() [3/5]

lmms::gui::Knob::Knob	(	KnobType	knobNum,
		const QString &	labelText,
		int	labelPixelSize,
		QWidget *	parent,
		const QString &	name = QString() )

Constructs a knob with a label font in the pixel size.

Parameters

knobNum	Style of the knob
labelText	Text for the label
labelPixelSize	Pixel size for the label
parent	Parent widget
name	Object name of the widget

◆ Knob() [4/5]

lmms::gui::Knob::Knob	(	QWidget *	_parent = nullptr,
		const QString &	_name = QString() )

default ctor

◆ Knob() [5/5]

lmms::gui::Knob::Knob ( const Knob & other )

delete

Member Function Documentation

◆ angleFromValue()

int lmms::gui::Knob::angleFromValue	(	float	value,
		float	minValue,
		float	maxValue,
		float	totalAngle ) const

inlineprivate

◆ calculateLine()

QLineF lmms::gui::Knob::calculateLine	(	const QPointF &	_mid,
		float	_radius,
		float	_innerRadius = 1 ) const

private

◆ centerPoint()

QPointF lmms::gui::Knob::centerPoint ( ) const

◆ centerPointX()

float lmms::gui::Knob::centerPointX ( ) const

◆ centerPointY()

float lmms::gui::Knob::centerPointY ( ) const

◆ changeEvent()

void lmms::gui::Knob::changeEvent ( QEvent * ev )

overrideprotected

◆ drawKnob()

void lmms::gui::Knob::drawKnob ( QPainter * _p )

private

◆ drawLabel()

void lmms::gui::Knob::drawLabel ( QPainter & p )

private

◆ fixedFontSizeLabelRendering()

bool lmms::gui::Knob::fixedFontSizeLabelRendering ( ) const

inlineprotected

Affects how the label of the knob is rendered.

The default mode returns false. The height of the label text is taken into account when a new fixed size is computed for the Knob. When the label text is painted the descent of the font is used to compute the base line. The default mode returns false.

Enabling fixed font size rendering mode leads to the following behavior:

The height of the label is not taken into account when the new fixed height of the Knob is computed. Instead a fixed size of 10 is added for the label.
When the knob is painted the baseline of the font is always set to 2 pixels away from the lower side of the Knob's rectangle.
The label is always rendered with a size of SMALL_FONT_SIZE.

◆ getLabel()

const QString & lmms::gui::Knob::getLabel ( ) const

◆ initUi()

void lmms::gui::Knob::initUi ( const QString & _name )

private

to be called by ctors

◆ innerRadius()

float lmms::gui::Knob::innerRadius ( ) const

◆ knobNum()

KnobType lmms::gui::Knob::knobNum ( ) const

◆ lineWidth()

float lmms::gui::Knob::lineWidth ( ) const

◆ onKnobNumUpdated()

void lmms::gui::Knob::onKnobNumUpdated ( )

private

to be called when you updated m_knobNum

◆ outerColor()

QColor lmms::gui::Knob::outerColor ( ) const

◆ outerRadius()

float lmms::gui::Knob::outerRadius ( ) const

◆ paintEvent()

void lmms::gui::Knob::paintEvent ( QPaintEvent * )

overrideprotected

◆ setCenterPointX()

void lmms::gui::Knob::setCenterPointX ( float c )

◆ setCenterPointY()

void lmms::gui::Knob::setCenterPointY ( float c )

◆ setFixedFontSizeLabelRendering()

void lmms::gui::Knob::setFixedFontSizeLabelRendering ( )

protected

Set the button to legacy rendering mode which uses a fixed font size and that does not take the size of the widget's font into account.

This can be thought of as a legacy mode which reinstates the old behavior of the knob.

See also: fixedFontSizeLabelRendering().

◆ setInnerRadius()

void lmms::gui::Knob::setInnerRadius ( float r )

◆ setknobNum()

void lmms::gui::Knob::setknobNum ( KnobType k )

◆ setLabel()

void lmms::gui::Knob::setLabel ( const QString & txt )

◆ setLineWidth()

void lmms::gui::Knob::setLineWidth ( float w )

◆ setOuterColor()

void lmms::gui::Knob::setOuterColor ( const QColor & c )

◆ setOuterRadius()

void lmms::gui::Knob::setOuterRadius ( float r )

◆ setTextColor()

void lmms::gui::Knob::setTextColor ( const QColor & c )

◆ setTotalAngle()

void lmms::gui::Knob::setTotalAngle ( float angle )

◆ textColor()

QColor lmms::gui::Knob::textColor ( ) const

◆ updateAngle()

bool lmms::gui::Knob::updateAngle ( )

private

◆ updateFixedSize()

void lmms::gui::Knob::updateFixedSize ( )

private

Member Data Documentation

◆ m_angle

int lmms::gui::Knob::m_angle

private

◆ m_arcActiveColor

QColor lmms::gui::Knob::m_arcActiveColor

private

◆ m_arcInactiveColor

QColor lmms::gui::Knob::m_arcInactiveColor

private

◆ m_cache

QImage lmms::gui::Knob::m_cache

private

◆ m_centerPoint

QPointF lmms::gui::Knob::m_centerPoint

private

◆ m_fixedFontSizeLabelRendering

bool lmms::gui::Knob::m_fixedFontSizeLabelRendering = false

private

◆ m_innerRadius

float lmms::gui::Knob::m_innerRadius

private

◆ m_knobNum

KnobType lmms::gui::Knob::m_knobNum

private

◆ m_knobPixmap

std::unique_ptr<QPixmap> lmms::gui::Knob::m_knobPixmap

private

◆ m_label

QString lmms::gui::Knob::m_label

private

◆ m_lineActiveColor

QColor lmms::gui::Knob::m_lineActiveColor

private

◆ m_lineInactiveColor

QColor lmms::gui::Knob::m_lineInactiveColor

private

◆ m_lineWidth

float lmms::gui::Knob::m_lineWidth

private

◆ m_outerColor

QColor lmms::gui::Knob::m_outerColor

private

◆ m_outerRadius

float lmms::gui::Knob::m_outerRadius

private

◆ m_textColor

QColor lmms::gui::Knob::m_textColor

private

◆ m_totalAngle

float lmms::gui::Knob::m_totalAngle

private

Property Documentation

◆ arcActiveColor

QColor lmms::gui::Knob::arcActiveColor

◆ arcInactiveColor

QColor lmms::gui::Knob::arcInactiveColor

◆ centerPointX

float lmms::gui::Knob::centerPointX

readwrite

◆ centerPointY

float lmms::gui::Knob::centerPointY

readwrite

◆ innerRadius

float lmms::gui::Knob::innerRadius

readwrite

◆ knobNum

KnobType lmms::gui::Knob::knobNum

readwrite

◆ lineActiveColor

QColor lmms::gui::Knob::lineActiveColor

◆ lineInactiveColor

QColor lmms::gui::Knob::lineInactiveColor

◆ lineWidth

float lmms::gui::Knob::lineWidth

readwrite

◆ outerColor

QColor lmms::gui::Knob::outerColor

readwrite

◆ outerRadius

float lmms::gui::Knob::outerRadius

readwrite

◆ textColor

QColor lmms::gui::Knob::textColor

readwrite

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/Knob.h
/home/runner/work/lmms-fork/lmms-fork/src/gui/widgets/Knob.cpp

Public Types

Public Member Functions

Protected Member Functions

Properties

Private Member Functions

Private Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ LabelRendering

Constructor & Destructor Documentation

◆ Knob() [1/5]

◆ Knob() [2/5]

◆ Knob() [3/5]

◆ Knob() [4/5]

◆ Knob() [5/5]

Member Function Documentation

◆ angleFromValue()

◆ calculateLine()

◆ centerPoint()

◆ centerPointX()

◆ centerPointY()

◆ changeEvent()

◆ drawKnob()

◆ drawLabel()

◆ fixedFontSizeLabelRendering()

◆ getLabel()

◆ initUi()

◆ innerRadius()

◆ knobNum()

◆ lineWidth()

◆ onKnobNumUpdated()

◆ outerColor()

◆ outerRadius()

◆ paintEvent()

◆ setCenterPointX()

◆ setCenterPointY()

◆ setFixedFontSizeLabelRendering()

◆ setInnerRadius()

◆ setknobNum()

◆ setLabel()

◆ setLineWidth()

◆ setOuterColor()

◆ setOuterRadius()

◆ setTextColor()

◆ setTotalAngle()

◆ textColor()

◆ updateAngle()

◆ updateFixedSize()

Member Data Documentation

◆ m_angle

◆ m_arcActiveColor

◆ m_arcInactiveColor

◆ m_cache

◆ m_centerPoint

◆ m_fixedFontSizeLabelRendering

◆ m_innerRadius

◆ m_knobNum

◆ m_knobPixmap

◆ m_label

◆ m_lineActiveColor

◆ m_lineInactiveColor

◆ m_lineWidth

◆ m_outerColor

◆ m_outerRadius

◆ m_textColor

◆ m_totalAngle

Property Documentation

◆ arcActiveColor

◆ arcInactiveColor

◆ centerPointX

◆ centerPointY

◆ innerRadius

◆ knobNum

◆ lineActiveColor

◆ lineInactiveColor

◆ lineWidth

◆ outerColor

◆ outerRadius

◆ textColor
