lmms::gui::BarModelEditor Class Reference

#include <BarModelEditor.h>

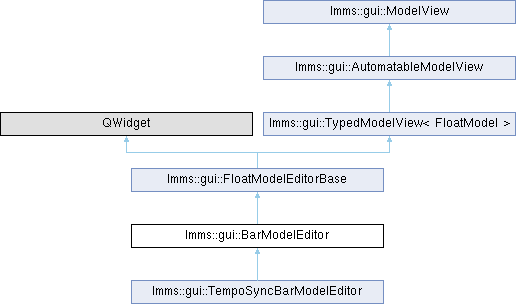

Inheritance diagram for lmms::gui::BarModelEditor:

Public Member Functions
	BarModelEditor (QString text, FloatModel *floatModel, QWidget *parent=nullptr)
QSizePolicy	sizePolicy () const
QSize	minimumSizeHint () const override
QSize	sizeHint () const override
QBrush const &	getBackgroundBrush () const
void	setBackgroundBrush (QBrush const &backgroundBrush)
QBrush const &	getBarBrush () const
void	setBarBrush (QBrush const &barBrush)
QColor const &	getTextColor () const
void	setTextColor (QColor const &textColor)
Public Member Functions inherited from lmms::gui::FloatModelEditorBase
	FloatModelEditorBase (DirectionOfManipulation directionOfManipulation=DirectionOfManipulation::Vertical, QWidget *_parent=nullptr, const QString &_name=QString())
	default ctor
	FloatModelEditorBase (const FloatModelEditorBase &other)=delete
void	setHintText (const QString &txt_before, const QString &txt_after)
bool	isVolumeKnob () const
void	setVolumeKnob (const bool val)
Public Member Functions inherited from lmms::gui::TypedModelView< FloatModel >
	TypedModelView (Model *model, QWidget *_this)
FloatModel *	model ()
const FloatModel *	model () const
Public Member Functions inherited from lmms::gui::AutomatableModelView
	AutomatableModelView (Model *model, QWidget *_this)
	~AutomatableModelView () override=default
AutomatableModel *	modelUntyped ()
const AutomatableModel *	modelUntyped () const
void	setModel (Model *model, bool isOldModelValid=true) override
void	unsetModel () override
template<typename T>
T	value () const
void	setDescription (const QString &desc)
void	setUnit (const QString &unit)
void	addDefaultActions (QMenu *menu)
void	setConversionFactor (float factor)
float	getConversionFactor ()
Public Member Functions inherited from lmms::gui::ModelView
	ModelView (Model *model, QWidget *widget)
virtual	~ModelView ()
Model *	model ()
const Model *	model () const
template<class T>
T *	castModel ()
template<class T>
const T *	castModel () const

Protected Member Functions
void	paintEvent (QPaintEvent *event) override
Protected Member Functions inherited from lmms::gui::FloatModelEditorBase
void	contextMenuEvent (QContextMenuEvent *me) override
void	dragEnterEvent (QDragEnterEvent *dee) override
void	dropEvent (QDropEvent *de) override
void	focusOutEvent (QFocusEvent *fe) override
void	mousePressEvent (QMouseEvent *me) override
void	mouseReleaseEvent (QMouseEvent *me) override
void	mouseMoveEvent (QMouseEvent *me) override
void	mouseDoubleClickEvent (QMouseEvent *me) override
void	paintEvent (QPaintEvent *me) override
void	wheelEvent (QWheelEvent *me) override
void	enterEvent (QEnterEvent *) override
void	leaveEvent (QEvent *event) override
virtual float	getValue (const QPoint &p)
virtual QString	displayValue () const
void	doConnections () override
void	showTextFloat (int msecBeforeDisplay, int msecDisplayTime)
void	setPosition (const QPoint &p)
float	pageSize () const
Protected Member Functions inherited from lmms::gui::ModelView
virtual void	modelChanged ()
QWidget *	widget ()

Properties
QBrush	backgroundBrush
QBrush	barBrush
QColor	textColor

Private Attributes
QString const	m_text
QBrush	m_backgroundBrush
QBrush	m_barBrush
QColor	m_textColor

Additional Inherited Members
Public Types inherited from lmms::gui::FloatModelEditorBase
enum class	DirectionOfManipulation { Vertical , Horizontal }
Signals inherited from lmms::gui::FloatModelEditorBase
void	sliderPressed ()
void	sliderReleased ()
void	sliderMoved (float value)
Protected Attributes inherited from lmms::gui::FloatModelEditorBase
bool	m_volumeKnob
FloatModel	m_volumeRatio
QPoint	m_lastMousePos
	mouse position in last mouseMoveEvent
float	m_leftOver
bool	m_buttonPressed
DirectionOfManipulation	m_directionOfManipulation
Protected Attributes inherited from lmms::gui::AutomatableModelView
QString	m_description
QString	m_unit
float	m_conversionFactor
Static Protected Attributes inherited from lmms::gui::FloatModelEditorBase
static SimpleTextFloat *	s_textFloat = nullptr

Constructor & Destructor Documentation

BarModelEditor()

lmms::gui::BarModelEditor::BarModelEditor	(	QString	text,
		FloatModel *	floatModel,
		QWidget *	parent = nullptr )

Member Function Documentation

getBackgroundBrush()

QBrush const & lmms::gui::BarModelEditor::getBackgroundBrush

(

)

const

getBarBrush()

QBrush const & lmms::gui::BarModelEditor::getBarBrush

(

)

const

getTextColor()

QColor const & lmms::gui::BarModelEditor::getTextColor

(

)

const

minimumSizeHint()

QSize lmms::gui::BarModelEditor::minimumSizeHint ( ) const

override

paintEvent()

void lmms::gui::BarModelEditor::paintEvent ( QPaintEvent * event )

overrideprotected

setBackgroundBrush()

void lmms::gui::BarModelEditor::setBackgroundBrush

(

QBrush const &

backgroundBrush

)

setBarBrush()

void lmms::gui::BarModelEditor::setBarBrush

(

QBrush const &

barBrush

)

setTextColor()

void lmms::gui::BarModelEditor::setTextColor

(

QColor const &

textColor

)

sizeHint()

QSize lmms::gui::BarModelEditor::sizeHint ( ) const

override

sizePolicy()

QSizePolicy lmms::gui::BarModelEditor::sizePolicy

(

)

const

Member Data Documentation

m_backgroundBrush

QBrush lmms::gui::BarModelEditor::m_backgroundBrush

private

m_barBrush

QBrush lmms::gui::BarModelEditor::m_barBrush

private

m_text

QString const lmms::gui::BarModelEditor::m_text

private

m_textColor

QColor lmms::gui::BarModelEditor::m_textColor

private

Property Documentation

backgroundBrush

QBrush lmms::gui::BarModelEditor::backgroundBrush

readwrite

barBrush

QBrush lmms::gui::BarModelEditor::barBrush

readwrite

textColor

QColor lmms::gui::BarModelEditor::textColor

readwrite

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/BarModelEditor.h
• /home/runner/work/lmms-fork/lmms-fork/src/gui/widgets/BarModelEditor.cpp
