juce::LowLevelGraphicsSoftwareRenderer Class Reference

#include <juce_LowLevelGraphicsSoftwareRenderer.h>

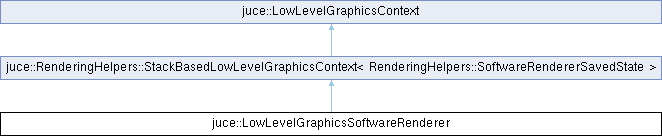

Inheritance diagram for juce::LowLevelGraphicsSoftwareRenderer:

Public Member Functions
	LowLevelGraphicsSoftwareRenderer (const Image &imageToRenderOnto)
	LowLevelGraphicsSoftwareRenderer (const Image &imageToRenderOnto, Point< int > origin, const RectangleList< int > &initialClip)
	~LowLevelGraphicsSoftwareRenderer () override
Public Member Functions inherited from juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >
bool	isVectorDevice () const override
void	setOrigin (Point< int > o) override
void	addTransform (const AffineTransform &t) override
float	getPhysicalPixelScaleFactor () override
Rectangle< int >	getClipBounds () const override
bool	isClipEmpty () const override
bool	clipRegionIntersects (const Rectangle< int > &r) override
bool	clipToRectangle (const Rectangle< int > &r) override
bool	clipToRectangleList (const RectangleList< int > &r) override
void	excludeClipRectangle (const Rectangle< int > &r) override
void	clipToPath (const Path &path, const AffineTransform &t) override
void	clipToImageAlpha (const Image &im, const AffineTransform &t) override
void	saveState () override
void	restoreState () override
void	beginTransparencyLayer (float opacity) override
void	endTransparencyLayer () override
void	setFill (const FillType &fillType) override
void	setOpacity (float newOpacity) override
void	setInterpolationQuality (Graphics::ResamplingQuality quality) override
void	fillRect (const Rectangle< int > &r, bool replace) override
void	fillRectList (const RectangleList< float > &list) override
void	fillPath (const Path &path, const AffineTransform &t) override
void	drawImage (const Image &im, const AffineTransform &t) override
void	drawGlyph (int glyphNumber, const AffineTransform &t) override
void	drawLine (const Line< float > &line) override
void	setFont (const Font &newFont) override
const Font &	getFont () override
Public Member Functions inherited from juce::LowLevelGraphicsContext
virtual	~LowLevelGraphicsContext ()=default
virtual void	fillRect (const Rectangle< float > &)=0
virtual bool	drawTextLayout (const AttributedString &, const Rectangle< float > &)

Additional Inherited Members
Protected Member Functions inherited from juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >
	StackBasedLowLevelGraphicsContext (RenderingHelpers::SoftwareRendererSavedState *initialState)
Protected Member Functions inherited from juce::LowLevelGraphicsContext
	LowLevelGraphicsContext ()=default
Protected Attributes inherited from juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >
RenderingHelpers::SavedStateStack< RenderingHelpers::SoftwareRendererSavedState >	stack

Detailed Description

A lowest-common-denominator implementation of LowLevelGraphicsContext that does all its rendering in memory.

User code is not supposed to create instances of this class directly - do all your rendering via the Graphics class instead.

@tags{Graphics}

Constructor & Destructor Documentation

LowLevelGraphicsSoftwareRenderer() [1/2]

juce::LowLevelGraphicsSoftwareRenderer::LowLevelGraphicsSoftwareRenderer

(

const Image &

imageToRenderOnto

)

Creates a context to render into an image.

LowLevelGraphicsSoftwareRenderer() [2/2]

juce::LowLevelGraphicsSoftwareRenderer::LowLevelGraphicsSoftwareRenderer	(	const Image &	imageToRenderOnto,
		Point< int >	origin,
		const RectangleList< int > &	initialClip )

Creates a context to render into a clipped subsection of an image.

~LowLevelGraphicsSoftwareRenderer()

juce::LowLevelGraphicsSoftwareRenderer::~LowLevelGraphicsSoftwareRenderer ( )

override

Destructor.

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/contexts/juce_LowLevelGraphicsSoftwareRenderer.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_graphics/contexts/juce_LowLevelGraphicsSoftwareRenderer.cpp
