juce::AudioPluginInstance Class Reference

#include <juce_AudioPluginInstance.h>

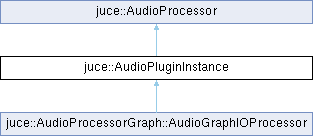

Inheritance diagram for juce::AudioPluginInstance:

Classes
struct	Parameter

Public Types
using	HostedParameter = HostedAudioProcessorParameter
Public Types inherited from juce::AudioProcessor
enum	ProcessingPrecision { singlePrecision , doublePrecision }
enum class	Realtime { no , yes }
enum	WrapperType {   wrapperType_Undefined = 0 , wrapperType_VST , wrapperType_VST3 , wrapperType_AudioUnit ,   wrapperType_AudioUnitv3 , wrapperType_AAX , wrapperType_Standalone , wrapperType_Unity ,   wrapperType_LV2 }
using	ChangeDetails = AudioProcessorListener::ChangeDetails

Public Member Functions
	~AudioPluginInstance () override=default
virtual void	fillInPluginDescription (PluginDescription &) const =0
PluginDescription	getPluginDescription () const
virtual void	getExtensions (ExtensionsVisitor &) const
void	addHostedParameter (std::unique_ptr< HostedParameter >)
void	addHostedParameterGroup (std::unique_ptr< AudioProcessorParameterGroup >)
void	setHostedParameterTree (AudioProcessorParameterGroup)
HostedParameter *	getHostedParameter (int index) const
virtual void *	getPlatformSpecificData ()
String	getParameterID (int index) override
float	getParameter (int parameterIndex) override
void	setParameter (int parameterIndex, float newValue) override
const String	getParameterName (int parameterIndex) override
String	getParameterName (int parameterIndex, int maximumStringLength) override
const String	getParameterText (int parameterIndex) override
String	getParameterText (int parameterIndex, int maximumStringLength) override
int	getParameterNumSteps (int parameterIndex) override
bool	isParameterDiscrete (int parameterIndex) const override
bool	isParameterAutomatable (int parameterIndex) const override
float	getParameterDefaultValue (int parameterIndex) override
String	getParameterLabel (int parameterIndex) const override
bool	isParameterOrientationInverted (int parameterIndex) const override
bool	isMetaParameter (int parameterIndex) const override
AudioProcessorParameter::Category	getParameterCategory (int parameterIndex) const override
Public Member Functions inherited from juce::AudioProcessor
virtual	~AudioProcessor ()
virtual const String	getName () const =0
virtual StringArray	getAlternateDisplayNames () const
virtual void	prepareToPlay (double sampleRate, int maximumExpectedSamplesPerBlock)=0
virtual void	releaseResources ()=0
virtual void	memoryWarningReceived ()
virtual void	processBlock (AudioBuffer< float > &buffer, MidiBuffer &midiMessages)=0
virtual void	processBlock (AudioBuffer< double > &buffer, MidiBuffer &midiMessages)
virtual void	processBlockBypassed (AudioBuffer< float > &buffer, MidiBuffer &midiMessages)
virtual void	processBlockBypassed (AudioBuffer< double > &buffer, MidiBuffer &midiMessages)
int	getBusCount (bool isInput) const noexcept
Bus *	getBus (bool isInput, int busIndex) noexcept
const Bus *	getBus (bool isInput, int busIndex) const noexcept
virtual bool	canAddBus (bool isInput) const
virtual bool	canRemoveBus (bool isInput) const
bool	addBus (bool isInput)
bool	removeBus (bool isInput)
bool	setBusesLayout (const BusesLayout &)
bool	setBusesLayoutWithoutEnabling (const BusesLayout &)
BusesLayout	getBusesLayout () const
AudioChannelSet	getChannelLayoutOfBus (bool isInput, int busIndex) const noexcept
bool	setChannelLayoutOfBus (bool isInput, int busIndex, const AudioChannelSet &layout)
int	getChannelCountOfBus (bool isInput, int busIndex) const noexcept
bool	enableAllBuses ()
bool	disableNonMainBuses ()
int	getChannelIndexInProcessBlockBuffer (bool isInput, int busIndex, int channelIndex) const noexcept
int	getOffsetInBusBufferForAbsoluteChannelIndex (bool isInput, int absoluteChannelIndex, int &busIndex) const noexcept
template<typename FloatType>
AudioBuffer< FloatType >	getBusBuffer (AudioBuffer< FloatType > &processBlockBuffer, bool isInput, int busIndex) const
bool	checkBusesLayoutSupported (const BusesLayout &) const
virtual bool	supportsDoublePrecisionProcessing () const
ProcessingPrecision	getProcessingPrecision () const noexcept
bool	isUsingDoublePrecision () const noexcept
void	setProcessingPrecision (ProcessingPrecision newPrecision) noexcept
AudioPlayHead *	getPlayHead () const noexcept
int	getTotalNumInputChannels () const noexcept
int	getTotalNumOutputChannels () const noexcept
int	getMainBusNumInputChannels () const noexcept
int	getMainBusNumOutputChannels () const noexcept
template<size_t numLayouts>
BusesLayout	getNextBestLayoutInLayoutList (const BusesLayout &layouts, const short(&channelLayoutList)[numLayouts][2])
double	getSampleRate () const noexcept
int	getBlockSize () const noexcept
int	getLatencySamples () const noexcept
void	setLatencySamples (int newLatency)
virtual double	getTailLengthSeconds () const =0
virtual bool	acceptsMidi () const =0
virtual bool	producesMidi () const =0
virtual bool	supportsMPE () const
virtual bool	isMidiEffect () const
const CriticalSection &	getCallbackLock () const noexcept
void	suspendProcessing (bool shouldBeSuspended)
bool	isSuspended () const noexcept
virtual void	reset ()
virtual AudioProcessorParameter *	getBypassParameter () const
bool	isNonRealtime () const noexcept
Realtime	isRealtime () const noexcept
virtual void	setNonRealtime (bool isNonRealtime) noexcept
virtual AudioProcessorEditor *	createEditor ()=0
virtual bool	hasEditor () const =0
AudioProcessorEditor *	getActiveEditor () const noexcept
AudioProcessorEditor *	createEditorIfNeeded ()
void	updateHostDisplay (const ChangeDetails &details=ChangeDetails::getDefaultFlags())
void	addParameter (AudioProcessorParameter *)
void	addParameterGroup (std::unique_ptr< AudioProcessorParameterGroup >)
const AudioProcessorParameterGroup &	getParameterTree () const
void	setParameterTree (AudioProcessorParameterGroup &&newTree)
virtual void	refreshParameterList ()
const Array< AudioProcessorParameter * > &	getParameters () const
virtual int	getNumPrograms ()=0
virtual int	getCurrentProgram ()=0
virtual void	setCurrentProgram (int index)=0
virtual const String	getProgramName (int index)=0
virtual void	changeProgramName (int index, const String &newName)=0
virtual void	getStateInformation (juce::MemoryBlock &destData)=0
virtual void	getCurrentProgramStateInformation (juce::MemoryBlock &destData)
virtual void	setStateInformation (const void *data, int sizeInBytes)=0
virtual void	setCurrentProgramStateInformation (const void *data, int sizeInBytes)
virtual void	numChannelsChanged ()
virtual void	numBusesChanged ()
virtual void	processorLayoutsChanged ()
virtual void	addListener (AudioProcessorListener *newListener)
virtual void	removeListener (AudioProcessorListener *listenerToRemove)
virtual void	setPlayHead (AudioPlayHead *newPlayHead)
void	setPlayConfigDetails (int numIns, int numOuts, double sampleRate, int blockSize)
void	setRateAndBufferSizeDetails (double sampleRate, int blockSize) noexcept
virtual int32	getAAXPluginIDForMainBusConfig (const AudioChannelSet &mainInputLayout, const AudioChannelSet &mainOutputLayout, bool idForAudioSuite) const
virtual CurveData	getResponseCurve (CurveData::Type) const
void	editorBeingDeleted (AudioProcessorEditor *) noexcept
virtual void	updateTrackProperties (const TrackProperties &properties)
virtual int	getNumParameters ()
void	beginParameterChangeGesture (int parameterIndex)
void	endParameterChangeGesture (int parameterIndex)
void	setParameterNotifyingHost (int parameterIndex, float newValue)
int	getNumInputChannels () const noexcept
int	getNumOutputChannels () const noexcept
const String	getInputSpeakerArrangement () const noexcept
const String	getOutputSpeakerArrangement () const noexcept
virtual const String	getInputChannelName (int channelIndex) const
virtual const String	getOutputChannelName (int channelIndex) const
virtual bool	isInputChannelStereoPair (int index) const
virtual bool	isOutputChannelStereoPair (int index) const

Protected Member Functions
	AudioPluginInstance ()=default
	AudioPluginInstance (const BusesProperties &ioLayouts)
template<size_t numLayouts>
	AudioPluginInstance (const short channelLayoutList[numLayouts][2])
Protected Member Functions inherited from juce::AudioProcessor
	AudioProcessor ()
	AudioProcessor (const BusesProperties &ioLayouts)
	AudioProcessor (const std::initializer_list< const short[2]> &channelLayoutList)
virtual bool	isBusesLayoutSupported (const BusesLayout &) const
virtual bool	canApplyBusesLayout (const BusesLayout &layouts) const
virtual bool	applyBusLayouts (const BusesLayout &layouts)
virtual bool	canApplyBusCountChange (bool isInput, bool isAddingBuses, BusProperties &outNewBusProperties)
void	sendParamChangeMessageToListeners (int parameterIndex, float newValue)

Private Member Functions
void	assertOnceOnDeprecatedMethodUse () const noexcept
void	addParameter (AudioProcessorParameter *)
void	addParameterGroup (std::unique_ptr< AudioProcessorParameterGroup >)
void	setParameterTree (AudioProcessorParameterGroup &&newTree)

Static Private Attributes
static bool	deprecationAssertiontriggered = false

Additional Inherited Members
Static Public Member Functions inherited from juce::AudioProcessor
static bool	containsLayout (const BusesLayout &layouts, const std::initializer_list< const short[2]> &channelLayoutList)
template<size_t numLayouts>
static bool	containsLayout (const BusesLayout &layouts, const short(&channelLayoutList)[numLayouts][2])
static int	getDefaultNumParameterSteps () noexcept
static const char *	getWrapperTypeDescription (AudioProcessor::WrapperType) noexcept
static void	copyXmlToBinary (const XmlElement &xml, juce::MemoryBlock &destData)
static std::unique_ptr< XmlElement >	getXmlFromBinary (const void *data, int sizeInBytes)
static void JUCE_CALLTYPE	setTypeOfNextNewPlugin (WrapperType)
Public Attributes inherited from juce::AudioProcessor
const WrapperType	wrapperType
Protected Attributes inherited from juce::AudioProcessor
std::atomic< AudioPlayHead * >	playHead { nullptr }

Detailed Description

Base class for an active instance of a plugin.

This derives from the AudioProcessor class, and adds some extra functionality that helps when wrapping dynamically loaded plugins.

This class is not needed when writing plugins, and you should never need to derive your own sub-classes from it. The plugin hosting classes use it internally and will return AudioPluginInstance objects which wrap external plugins.

See also

AudioProcessor, AudioPluginFormat

@tags{Audio}

Member Typedef Documentation

HostedParameter

using juce::AudioPluginInstance::HostedParameter = HostedAudioProcessorParameter

Constructor & Destructor Documentation

~AudioPluginInstance()

juce::AudioPluginInstance::~AudioPluginInstance ( )

overridedefault

Destructor.

Make sure that you delete any UI components that belong to this plugin before deleting the plugin.

AudioPluginInstance() [1/3]

juce::AudioPluginInstance::AudioPluginInstance ( )

protecteddefault

AudioPluginInstance() [2/3]

juce::AudioPluginInstance::AudioPluginInstance ( const BusesProperties & ioLayouts )

inlineprotected

AudioPluginInstance() [3/3]

template<size_t numLayouts>

juce::AudioPluginInstance::AudioPluginInstance ( const short channelLayoutList[numLayouts][2] )

inlineprotected

Member Function Documentation

addHostedParameter()

void juce::AudioPluginInstance::addHostedParameter

(

std::unique_ptr< HostedParameter >

param

)

Adds a parameter to this instance.

See also

AudioProcessor::addParameter()

addHostedParameterGroup()

void juce::AudioPluginInstance::addHostedParameterGroup

(

std::unique_ptr< AudioProcessorParameterGroup >

group

)

Adds multiple parameters to this instance.

In debug mode, this will also check that all added parameters derive from HostedParameter.

See also

AudioProcessor::addParameterGroup()

addParameter()

void juce::AudioProcessor::addParameter ( AudioProcessorParameter * param )

private

Adds a parameter to the AudioProcessor.

The parameter object will be managed and deleted automatically by the AudioProcessor when no longer needed.

addParameterGroup()

void juce::AudioProcessor::addParameterGroup ( std::unique_ptr< AudioProcessorParameterGroup > group )

private

Adds a group of parameters to the AudioProcessor.

All the parameter objects contained within the group will be managed and deleted automatically by the AudioProcessor when no longer needed.

See also

addParameter

assertOnceOnDeprecatedMethodUse()

void juce::AudioPluginInstance::assertOnceOnDeprecatedMethodUse ( ) const

privatenoexcept

fillInPluginDescription()

virtual void juce::AudioPluginInstance::fillInPluginDescription ( PluginDescription & ) const

pure virtual

Fills-in the appropriate parts of this plugin description object.

Implemented in juce::AudioProcessorGraph::AudioGraphIOProcessor.

getExtensions()

void juce::AudioPluginInstance::getExtensions ( ExtensionsVisitor & visitor ) const

virtual

Allows retrieval of information related to the inner workings of a particular plugin format, such as the AEffect* of a VST, or the handle of an AudioUnit.

To use this, create a new class derived from ExtensionsVisitor, and override each of the visit member functions. If this AudioPluginInstance wraps a VST3 plugin the visitVST3() member will be called, while if the AudioPluginInstance wraps an unknown format the visitUnknown() member will be called. The argument of the visit function can be queried to extract information related to the AudioPluginInstance's implementation.

getHostedParameter()

AudioPluginInstance::HostedParameter * juce::AudioPluginInstance::getHostedParameter

(

int

index

)

const

Gets the parameter at a particular index.

If you want to find lots of parameters by their IDs, you should probably build and use a map<String, HostedParameter*> by looping through all parameters.

getParameter()

float juce::AudioPluginInstance::getParameter ( int parameterIndex )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterCategory()

AudioProcessorParameter::Category juce::AudioPluginInstance::getParameterCategory ( int parameterIndex ) const

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterDefaultValue()

float juce::AudioPluginInstance::getParameterDefaultValue ( int parameterIndex )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterID()

String juce::AudioPluginInstance::getParameterID ( int index )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterLabel()

String juce::AudioPluginInstance::getParameterLabel ( int parameterIndex ) const

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterName() [1/2]

const String juce::AudioPluginInstance::getParameterName ( int parameterIndex )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterName() [2/2]

String juce::AudioPluginInstance::getParameterName ( int parameterIndex, int maximumStringLength )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterNumSteps()

int juce::AudioPluginInstance::getParameterNumSteps ( int parameterIndex )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterText() [1/2]

const String juce::AudioPluginInstance::getParameterText ( int parameterIndex )

overridevirtual

Reimplemented from juce::AudioProcessor.

getParameterText() [2/2]

String juce::AudioPluginInstance::getParameterText ( int parameterIndex, int maximumStringLength )

overridevirtual

Reimplemented from juce::AudioProcessor.

getPlatformSpecificData()

void * juce::AudioPluginInstance::getPlatformSpecificData ( )

virtual

Use the new typesafe visitor-based interface rather than this function.

Returns a pointer to some kind of platform-specific data about the plugin. E.g. For a VST, this value can be cast to an AEffect*. For an AudioUnit, it can be cast to an AudioUnit handle.

getPluginDescription()

PluginDescription juce::AudioPluginInstance::getPluginDescription

(

)

const

Returns a PluginDescription for this plugin. This is just a convenience method to avoid calling fillInPluginDescription.

isMetaParameter()

bool juce::AudioPluginInstance::isMetaParameter ( int parameterIndex ) const

overridevirtual

Reimplemented from juce::AudioProcessor.

isParameterAutomatable()

bool juce::AudioPluginInstance::isParameterAutomatable ( int parameterIndex ) const

overridevirtual

Reimplemented from juce::AudioProcessor.

isParameterDiscrete()

bool juce::AudioPluginInstance::isParameterDiscrete ( int parameterIndex ) const

overridevirtual

Reimplemented from juce::AudioProcessor.

isParameterOrientationInverted()

bool juce::AudioPluginInstance::isParameterOrientationInverted ( int parameterIndex ) const

overridevirtual

Reimplemented from juce::AudioProcessor.

setHostedParameterTree()

void juce::AudioPluginInstance::setHostedParameterTree

(

AudioProcessorParameterGroup

group

)

Adds multiple parameters to this instance.

In debug mode, this will also check that all added parameters derive from HostedParameter.

See also

AudioProcessor::setParameterTree()

setParameter()

void juce::AudioPluginInstance::setParameter ( int parameterIndex, float newValue )

overridevirtual

Reimplemented from juce::AudioProcessor.

setParameterTree()

void juce::AudioProcessor::setParameterTree ( AudioProcessorParameterGroup && newTree )

private

Sets the group of parameters managed by this AudioProcessor.

Replacing the tree after your AudioProcessor has been constructed will crash many hosts, so don't do it! You may, however, change parameter and group names by iterating the tree returned by getParameterTree(). Afterwards, call updateHostDisplay() to inform the host of the changes. Not all hosts support dynamic changes to parameters and group names.

Member Data Documentation

deprecationAssertiontriggered

bool juce::AudioPluginInstance::deprecationAssertiontriggered = false

staticprivate

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_audio_processors/processors/juce_AudioPluginInstance.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_audio_processors/processors/juce_AudioPluginInstance.cpp
