calf_plugins::param_control Class Reference

#include <gui.h>

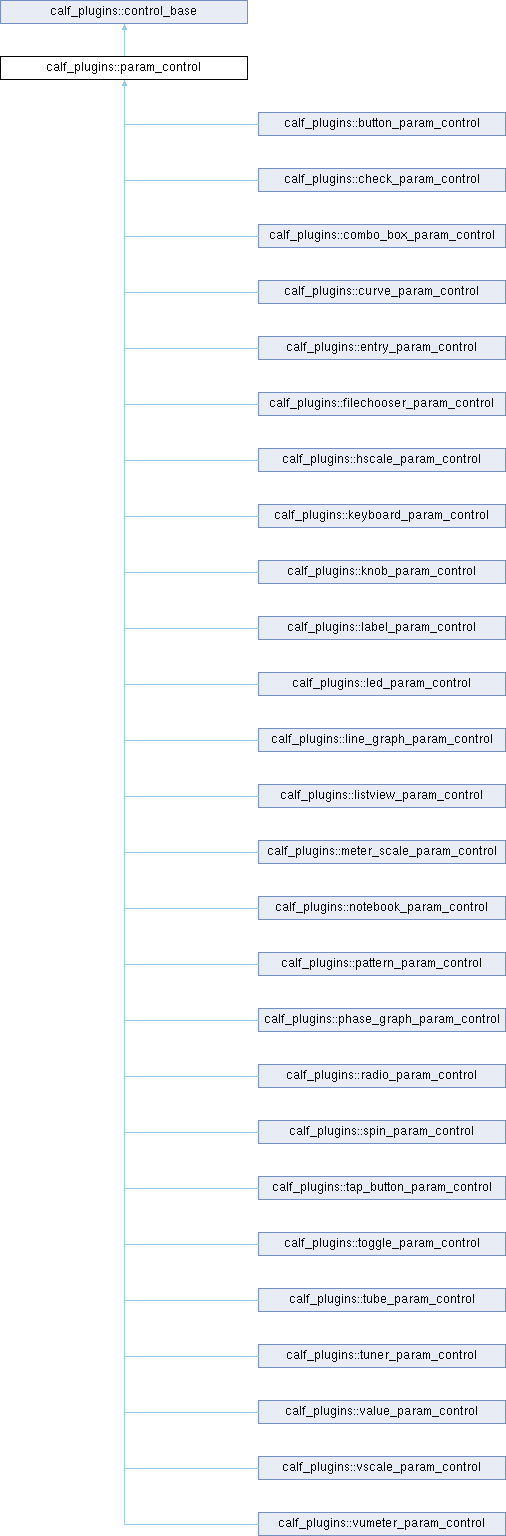

Inheritance diagram for calf_plugins::param_control:

Classes
struct	guard_change

Public Member Functions
	param_control ()
const parameter_properties &	get_props ()
virtual GtkWidget *	create (plugin_gui *_gui)
virtual GtkWidget *	create (plugin_gui *_gui, int _param_no)=0
	called to create a widget for a control
virtual void	get ()=0
	called to transfer the value from control to parameter(s)
virtual void	set ()=0
	called to transfer the value from parameter(s) to control
virtual void	created ()
	called after the control is created
virtual void	configure (const char *key, const char *value)
	called on DSSI configure()
virtual void	hook_params ()
	called from created() to add hooks for parameters
virtual void	add_context_menu_handler ()
	called from created() to add context menu handlers
virtual void	on_idle ()
virtual	~param_control ()
virtual void	do_popup_menu ()
virtual void	create_value_entry (GtkWidget *widget, int x, int y)
virtual void	destroy_value_entry ()
Public Member Functions inherited from calf_plugins::control_base
void	require_attribute (const char *name)
void	require_int_attribute (const char *name)
int	get_int (const char *name, int def_value=0)
float	get_float (const char *name, float def_value=0.f)
std::vector< double >	get_vector (const char *name, std::string &value)
virtual bool	is_container ()
virtual void	set_visibilty (bool state)
virtual void	add (control_base *ctl)
virtual void	set_std_properties ()
	called from created() to set all the properties
virtual	~control_base ()

Static Public Member Functions
static gboolean	on_button_press_event (GtkWidget *widget, GdkEventButton *event, void *user_data)
static gboolean	on_popup_menu (GtkWidget *widget, void *user_data)
static gboolean	value_entry_action (GtkEntry *widget, GdkEvent *event, void *user_data)
static gboolean	value_entry_unfocus (GtkWidget *widget, GdkEventFocus *event, void *user_data)
static gboolean	value_entry_click (GtkWidget *widget, GdkEventButton *event, void *user_data)

Public Attributes
int	param_no
std::string	param_variable
int	in_change
bool	has_entry
float	old_displayed_value
Public Attributes inherited from calf_plugins::control_base
GtkWidget *	widget
std::string	control_name
xml_attribute_map	attribs
plugin_gui *	gui

Protected Attributes
GtkWidget *	entrywin

Additional Inherited Members
Public Types inherited from calf_plugins::control_base
typedef std::map< std::string, std::string >	xml_attribute_map

Constructor & Destructor Documentation

param_control()

param_control::param_control

(

)

~param_control()

param_control::~param_control ( )

virtual

Member Function Documentation

add_context_menu_handler()

void param_control::add_context_menu_handler ( )

virtual

called from created() to add context menu handlers

configure()

virtual void calf_plugins::param_control::configure ( const char * key, const char * value )

inlinevirtual

called on DSSI configure()

create() [1/2]

GtkWidget * param_control::create ( plugin_gui * _gui )

virtual

Reimplemented from calf_plugins::control_base.

create() [2/2]

virtual GtkWidget * calf_plugins::param_control::create ( plugin_gui * _gui, int _param_no )

pure virtual

called to create a widget for a control

Implemented in calf_plugins::button_param_control, calf_plugins::check_param_control, calf_plugins::combo_box_param_control, calf_plugins::curve_param_control, calf_plugins::entry_param_control, calf_plugins::filechooser_param_control, calf_plugins::hscale_param_control, calf_plugins::keyboard_param_control, calf_plugins::knob_param_control, calf_plugins::label_param_control, calf_plugins::led_param_control, calf_plugins::line_graph_param_control, calf_plugins::listview_param_control, calf_plugins::meter_scale_param_control, calf_plugins::notebook_param_control, calf_plugins::pattern_param_control, calf_plugins::phase_graph_param_control, calf_plugins::radio_param_control, calf_plugins::spin_param_control, calf_plugins::tap_button_param_control, calf_plugins::toggle_param_control, calf_plugins::tube_param_control, calf_plugins::tuner_param_control, calf_plugins::value_param_control, calf_plugins::vscale_param_control, and calf_plugins::vumeter_param_control.

create_value_entry()

void param_control::create_value_entry ( GtkWidget * widget, int x, int y )

virtual

created()

void param_control::created ( )

virtual

called after the control is created

Reimplemented from calf_plugins::control_base.

Reimplemented in calf_plugins::notebook_param_control.

destroy_value_entry()

void param_control::destroy_value_entry ( )

virtual

do_popup_menu()

void param_control::do_popup_menu ( )

virtual

get()

virtual void calf_plugins::param_control::get ( )

pure virtual

called to transfer the value from control to parameter(s)

Implemented in calf_plugins::button_param_control, calf_plugins::check_param_control, calf_plugins::combo_box_param_control, calf_plugins::curve_param_control, calf_plugins::entry_param_control, calf_plugins::filechooser_param_control, calf_plugins::hscale_param_control, calf_plugins::keyboard_param_control, calf_plugins::knob_param_control, calf_plugins::label_param_control, calf_plugins::led_param_control, calf_plugins::line_graph_param_control, calf_plugins::listview_param_control, calf_plugins::meter_scale_param_control, calf_plugins::notebook_param_control, calf_plugins::pattern_param_control, calf_plugins::phase_graph_param_control, calf_plugins::radio_param_control, calf_plugins::spin_param_control, calf_plugins::tap_button_param_control, calf_plugins::toggle_param_control, calf_plugins::tube_param_control, calf_plugins::tuner_param_control, calf_plugins::value_param_control, calf_plugins::vscale_param_control, and calf_plugins::vumeter_param_control.

get_props()

const parameter_properties & calf_plugins::param_control::get_props ( )

inline

hook_params()

void param_control::hook_params ( )

virtual

called from created() to add hooks for parameters

on_button_press_event()

gboolean param_control::on_button_press_event ( GtkWidget * widget, GdkEventButton * event, void * user_data )

static

on_idle()

virtual void calf_plugins::param_control::on_idle ( )

inlinevirtual

Reimplemented in calf_plugins::line_graph_param_control, calf_plugins::phase_graph_param_control, and calf_plugins::tuner_param_control.

on_popup_menu()

gboolean calf_plugins::param_control::on_popup_menu ( GtkWidget * widget, void * user_data )

static

set()

virtual void calf_plugins::param_control::set ( )

pure virtual

called to transfer the value from parameter(s) to control

Implemented in calf_plugins::button_param_control, calf_plugins::check_param_control, calf_plugins::combo_box_param_control, calf_plugins::curve_param_control, calf_plugins::entry_param_control, calf_plugins::filechooser_param_control, calf_plugins::hscale_param_control, calf_plugins::keyboard_param_control, calf_plugins::knob_param_control, calf_plugins::label_param_control, calf_plugins::led_param_control, calf_plugins::line_graph_param_control, calf_plugins::listview_param_control, calf_plugins::meter_scale_param_control, calf_plugins::notebook_param_control, calf_plugins::pattern_param_control, calf_plugins::phase_graph_param_control, calf_plugins::radio_param_control, calf_plugins::spin_param_control, calf_plugins::tap_button_param_control, calf_plugins::toggle_param_control, calf_plugins::tube_param_control, calf_plugins::tuner_param_control, calf_plugins::value_param_control, calf_plugins::vscale_param_control, and calf_plugins::vumeter_param_control.

value_entry_action()

gboolean param_control::value_entry_action ( GtkEntry * widget, GdkEvent * event, void * user_data )

static

value_entry_click()

gboolean calf_plugins::param_control::value_entry_click ( GtkWidget * widget, GdkEventButton * event, void * user_data )

static

value_entry_unfocus()

gboolean param_control::value_entry_unfocus ( GtkWidget * widget, GdkEventFocus * event, void * user_data )

static

Member Data Documentation

entrywin

GtkWidget* calf_plugins::param_control::entrywin

protected

has_entry

bool calf_plugins::param_control::has_entry

in_change

int calf_plugins::param_control::in_change

old_displayed_value

float calf_plugins::param_control::old_displayed_value

param_no

int calf_plugins::param_control::param_no

param_variable

std::string calf_plugins::param_control::param_variable

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/gui.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/gui_controls.cpp
