calf_plugins::control_base Class Reference

#include <gui.h>

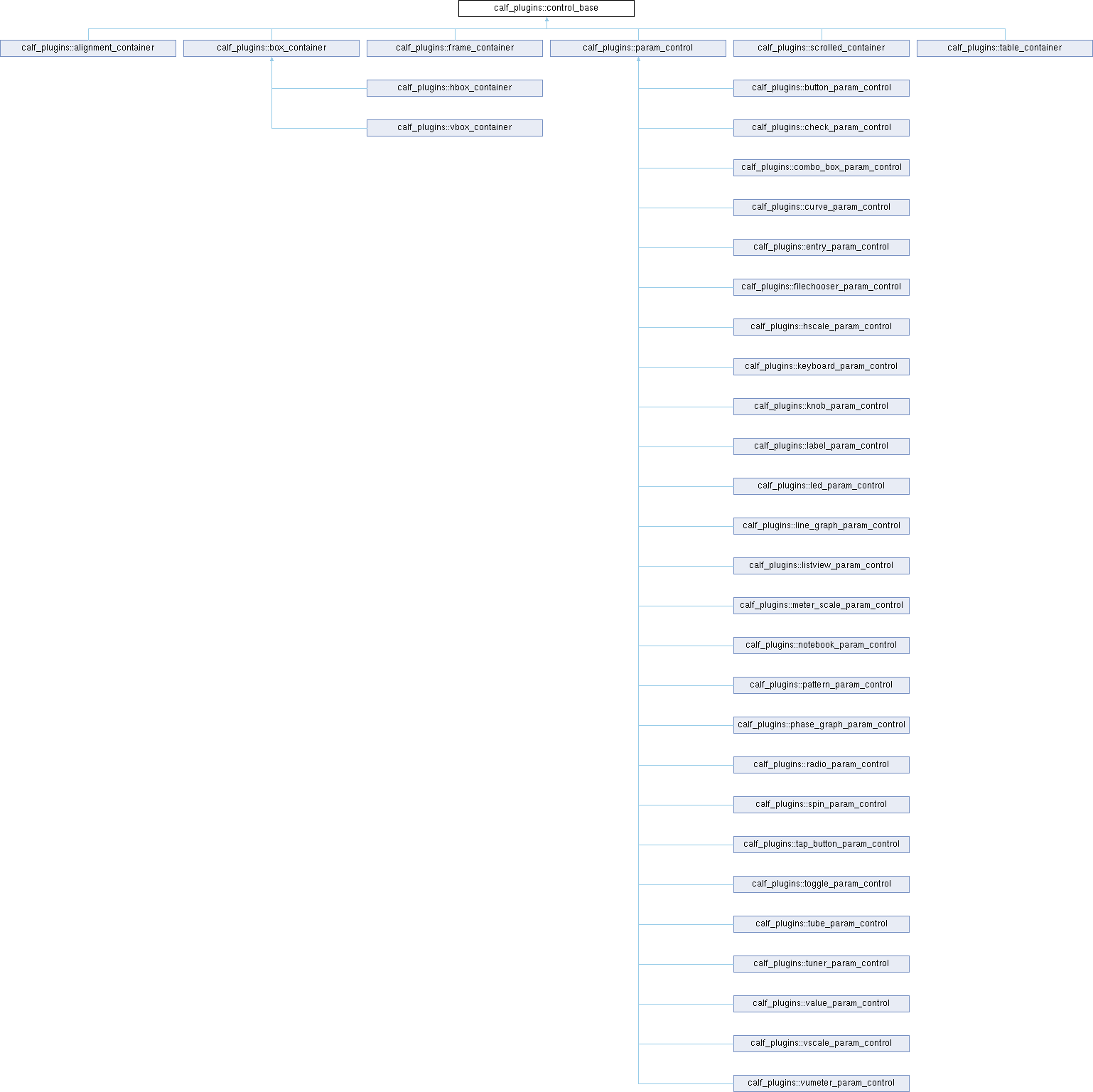

Inheritance diagram for calf_plugins::control_base:

Public Types
typedef std::map< std::string, std::string >	xml_attribute_map

Public Member Functions
void	require_attribute (const char *name)
void	require_int_attribute (const char *name)
int	get_int (const char *name, int def_value=0)
float	get_float (const char *name, float def_value=0.f)
std::vector< double >	get_vector (const char *name, std::string &value)
virtual GtkWidget *	create (plugin_gui *_gui)
virtual bool	is_container ()
virtual void	set_visibilty (bool state)
virtual void	add (control_base *ctl)
virtual void	set_std_properties ()
	called from created() to set all the properties
virtual void	created ()
	called after the control is created
virtual	~control_base ()

Public Attributes
GtkWidget *	widget
std::string	control_name
xml_attribute_map	attribs
plugin_gui *	gui

Member Typedef Documentation

xml_attribute_map

typedef std::map<std::string, std::string> calf_plugins::control_base::xml_attribute_map

Constructor & Destructor Documentation

~control_base()

virtual calf_plugins::control_base::~control_base ( )

inlinevirtual

Member Function Documentation

add()

virtual void calf_plugins::control_base::add ( control_base * ctl )

inlinevirtual

Reimplemented in calf_plugins::box_container, calf_plugins::notebook_param_control, calf_plugins::scrolled_container, and calf_plugins::table_container.

create()

virtual GtkWidget * calf_plugins::control_base::create ( plugin_gui * _gui )

inlinevirtual

Reimplemented in calf_plugins::alignment_container, calf_plugins::frame_container, calf_plugins::hbox_container, calf_plugins::param_control, calf_plugins::scrolled_container, calf_plugins::table_container, and calf_plugins::vbox_container.

created()

void control_base::created ( )

virtual

called after the control is created

Reimplemented in calf_plugins::notebook_param_control, and calf_plugins::param_control.

get_float()

float control_base::get_float	(	const char *	name,
		float	def_value = 0.f )

get_int()

int control_base::get_int	(	const char *	name,
		int	def_value = 0 )

get_vector()

std::vector< double > control_base::get_vector	(	const char *	name,
		std::string &	value )

is_container()

virtual bool calf_plugins::control_base::is_container ( )

inlinevirtual

Reimplemented in calf_plugins::notebook_param_control.

require_attribute()

void control_base::require_attribute

(

const char *

name

)

require_int_attribute()

void control_base::require_int_attribute

(

const char *

name

)

set_std_properties()

void control_base::set_std_properties ( )

virtual

called from created() to set all the properties

set_visibilty()

void control_base::set_visibilty ( bool state )

virtual

Member Data Documentation

attribs

xml_attribute_map calf_plugins::control_base::attribs

control_name

std::string calf_plugins::control_base::control_name

gui

plugin_gui* calf_plugins::control_base::gui

widget

GtkWidget* calf_plugins::control_base::widget

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/gui.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/gui_controls.cpp
