lmms::Lv2Ports::PortBase Struct Reference

#include <Lv2Ports.h>

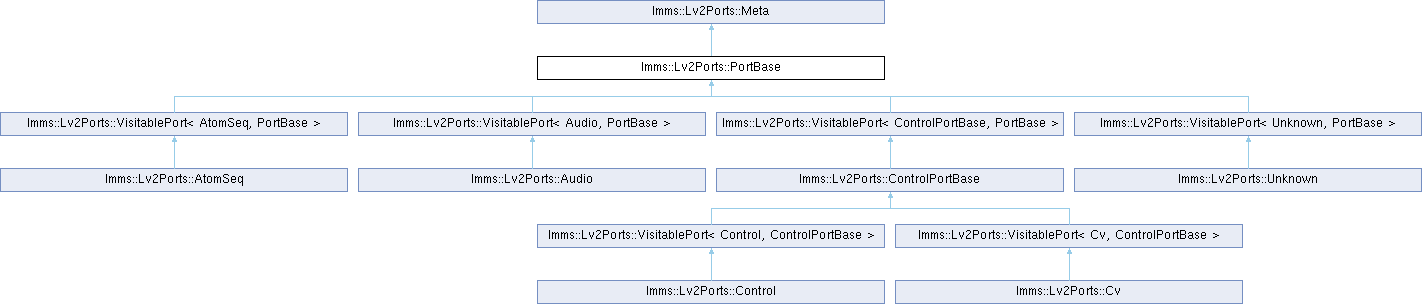

Inheritance diagram for lmms::Lv2Ports::PortBase:

Public Member Functions
virtual void	accept (Visitor &v)=0
virtual void	accept (ConstVisitor &v) const =0
QString	name () const
QString	uri () const
virtual	~PortBase ()=default
Public Member Functions inherited from lmms::Lv2Ports::Meta
std::vector< PluginIssue >	get (const LilvPlugin *plugin, std::size_t portNum)
float	def () const
float	min (sample_rate_t sr) const
float	max (sample_rate_t sr) const

Public Attributes
const LilvPort *	m_port = nullptr
const LilvPlugin *	m_plugin = nullptr
Public Attributes inherited from lmms::Lv2Ports::Meta
Type	m_type = Type::Unknown
Flow	m_flow = Flow::Unknown
Vis	m_vis = Vis::Generic
bool	m_logarithmic = false
bool	m_optional = false
bool	m_used = true

Constructor & Destructor Documentation

~PortBase()

virtual lmms::Lv2Ports::PortBase::~PortBase ( )

virtualdefault

Member Function Documentation

accept() [1/2]

virtual void lmms::Lv2Ports::PortBase::accept ( ConstVisitor & v ) const

pure virtual

accept() [2/2]

virtual void lmms::Lv2Ports::PortBase::accept ( Visitor & v )

pure virtual

Implemented in lmms::Lv2Ports::VisitablePort< AtomSeq, PortBase >, lmms::Lv2Ports::VisitablePort< Audio, PortBase >, lmms::Lv2Ports::VisitablePort< Control, ControlPortBase >, lmms::Lv2Ports::VisitablePort< ControlPortBase, PortBase >, lmms::Lv2Ports::VisitablePort< Cv, ControlPortBase >, and lmms::Lv2Ports::VisitablePort< Unknown, PortBase >.

name()

QString lmms::Lv2Ports::PortBase::name

(

)

const

uri()

QString lmms::Lv2Ports::PortBase::uri

(

)

const

Member Data Documentation

m_plugin

const LilvPlugin* lmms::Lv2Ports::PortBase::m_plugin = nullptr

m_port

const LilvPort* lmms::Lv2Ports::PortBase::m_port = nullptr

---

The documentation for this struct was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/Lv2Ports.h
• /home/runner/work/lmms-fork/lmms-fork/src/core/lv2/Lv2Ports.cpp
