zyncarla::AudioOut Class Reference

#include <AudioOut.h>

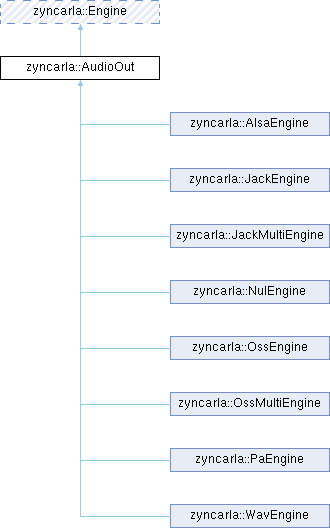

Inheritance diagram for zyncarla::AudioOut:

Public Member Functions
	AudioOut (const SYNTH_T &synth)
virtual	~AudioOut ()
void	setSamplerate (int _samplerate)
int	getSampleRate ()
void	setBufferSize (int _bufferSize)
void	bufferingSize (int nBuffering)
int	bufferingSize ()
virtual void	setAudioEn (bool nval)=0
virtual bool	getAudioEn () const =0
Public Member Functions inherited from zyncarla::Engine
	Engine ()
virtual	~Engine ()
virtual bool	Start ()=0
virtual void	Stop ()=0

Protected Member Functions
const Stereo< float * >	getNext ()

Protected Attributes
const SYNTH_T &	synth
int	samplerate
int	bufferSize

Additional Inherited Members
Public Attributes inherited from zyncarla::Engine
std::string	name

Constructor & Destructor Documentation

AudioOut()

AudioOut::AudioOut

(

const SYNTH_T &

synth

)

~AudioOut()

AudioOut::~AudioOut ( )

virtual

Member Function Documentation

bufferingSize() [1/2]

int zyncarla::AudioOut::bufferingSize

(

)

bufferingSize() [2/2]

void zyncarla::AudioOut::bufferingSize

(

int

nBuffering

)

Sets the Frame Size for output

getAudioEn()

virtual bool zyncarla::AudioOut::getAudioEn ( ) const

pure virtual

Implemented in zyncarla::AlsaEngine, zyncarla::JackEngine, zyncarla::JackMultiEngine, zyncarla::NulEngine, zyncarla::OssEngine, zyncarla::OssMultiEngine, zyncarla::PaEngine, and zyncarla::WavEngine.

getNext()

const Stereo< float * > AudioOut::getNext ( )

protected

Get the next sample for output. (has nsamples sampled at a rate of samplerate)

getSampleRate()

int AudioOut::getSampleRate

(

)

Sets the Samples required per Out of this driver not a realtime opperation

setAudioEn()

virtual void zyncarla::AudioOut::setAudioEn ( bool nval )

pure virtual

Implemented in zyncarla::AlsaEngine, zyncarla::JackEngine, zyncarla::JackMultiEngine, zyncarla::NulEngine, zyncarla::OssEngine, zyncarla::OssMultiEngine, zyncarla::PaEngine, and zyncarla::WavEngine.

setBufferSize()

void AudioOut::setBufferSize

(

int

_bufferSize

)

setSamplerate()

void AudioOut::setSamplerate

(

int

_samplerate

)

Sets the Sample Rate of this Output (used for getNext()).

Member Data Documentation

bufferSize

int zyncarla::AudioOut::bufferSize

protected

samplerate

int zyncarla::AudioOut::samplerate

protected

synth

const SYNTH_T& zyncarla::AudioOut::synth

protected

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/native-plugins/external/zynaddsubfx/Nio/AudioOut.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/native-plugins/external/zynaddsubfx/Nio/AudioOut.cpp
