#include <SubWindow.h>

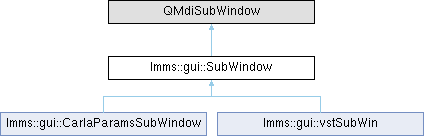

Inheritance diagram for lmms::gui::SubWindow:

Public Slots
void	detach ()
void	attach ()
void	setVisible (bool visible) override

Signals
void	focusLost ()

Public Member Functions
	SubWindow (QWidget *parent=nullptr, Qt::WindowFlags windowFlags=QFlag(0))
QRect	getTrueNormalGeometry () const
	SubWindow::getTrueNormalGeometry.
QBrush	activeColor () const
QColor	textShadowColor () const
QColor	borderColor () const
QMargins	decorationMargins () const
void	setActiveColor (const QBrush &b)
void	setTextShadowColor (const QColor &c)
void	setBorderColor (const QColor &c)
int	titleBarHeight () const
int	frameWidth () const
bool	isDetachable () const
void	setDetachable (bool on)
bool	isDetached () const
void	setDetached (bool on)
void	updateTitleBar ()

Protected Member Functions
void	moveEvent (QMoveEvent *event) override
	SubWindow::moveEvent.
void	resizeEvent (QResizeEvent *event) override
	SubWindow::resizeEvent.
void	paintEvent (QPaintEvent *pe) override
	SubWindow::paintEvent.
void	changeEvent (QEvent *event) override
	SubWindow::changeEvent.
void	showEvent (QShowEvent *e) override
bool	eventFilter (QObject obj, QEvent event) override
	SubWindow::eventFilter.

Properties
QBrush	activeColor
QColor	textShadowColor
QColor	borderColor

Private Slots
void	focusChanged (QMdiSubWindow *subWindow)

Private Member Functions
void	adjustTitleBar ()
	SubWindow::adjustTitleBar.

Static Private Member Functions
static void	elideText (QLabel *label, QString text)
	SubWindow::elideText.

Private Attributes
const QSize	m_buttonSize
const int	m_titleBarHeight
QPushButton *	m_closeBtn
QPushButton *	m_maximizeBtn
QPushButton *	m_restoreBtn
QPushButton *	m_detachBtn
QBrush	m_activeColor
QColor	m_textShadowColor
QColor	m_borderColor
QPoint	m_position
QRect	m_trackedNormalGeom
QLabel *	m_windowTitle
QGraphicsDropShadowEffect *	m_shadow
bool	m_hasFocus
bool	m_isDetachable

Detailed Description

The SubWindow class.

Because of a bug in the QMdiSubWindow class to save the right position and size of a subwindow in a project and because of the inability for customizing the title bar appearance, lmms implements its own subwindow class.

Constructor & Destructor Documentation

◆ SubWindow()

lmms::gui::SubWindow::SubWindow	(	QWidget *	parent = nullptr,
		Qt::WindowFlags	windowFlags = QFlag(0) )

Member Function Documentation

◆ activeColor()

QBrush lmms::gui::SubWindow::activeColor ( ) const

◆ adjustTitleBar()

void lmms::gui::SubWindow::adjustTitleBar ( )

private

SubWindow::adjustTitleBar.

Our title bar needs buttons for maximize/restore and close in the right upper corner. We check if the subwindow is maximizable and put the buttons on the right positions. At next we calculate the width of the title label and call elideText() for adding the window title to m_windowTitle (which is a QLabel)

◆ attach

void lmms::gui::SubWindow::attach ( )

slot

◆ borderColor()

QColor lmms::gui::SubWindow::borderColor ( ) const

◆ changeEvent()

void lmms::gui::SubWindow::changeEvent ( QEvent * event )

overrideprotected

SubWindow::changeEvent.

Triggers if the window title changes and calls adjustTitleBar().

Parameters

Event

◆ decorationMargins()

QMargins lmms::gui::SubWindow::decorationMargins ( ) const

◆ detach

void lmms::gui::SubWindow::detach ( )

slot

◆ elideText()

void lmms::gui::SubWindow::elideText	(	QLabel *	label,
		QString	text )

staticprivate

SubWindow::elideText.

Stores the given text into the given label. Shorts the text if it's too big for the labels width and adds three dots (...)

Parameters

label	- holds a pointer to the QLabel
text	- the text which will be stored (and if needed broken down) into the QLabel.

◆ eventFilter()

bool lmms::gui::SubWindow::eventFilter	(	QObject *	obj,
		QEvent *	event )

overrideprotected

SubWindow::eventFilter.

Override of QMdiSubWindow's event filter. This is not how regular eventFilters work, it is never installed explicitly. Instead, it is installed by Qt and conveniently installs itself onto the child widget. Despite relying on internal implementation details, as of writing this it seems to be the best way to do so as soon as the widget is set.

◆ focusChanged

void lmms::gui::SubWindow::focusChanged ( QMdiSubWindow * subWindow )

privateslot

◆ focusLost

void lmms::gui::SubWindow::focusLost ( )

signal

◆ frameWidth()

int lmms::gui::SubWindow::frameWidth ( ) const

◆ getTrueNormalGeometry()

QRect lmms::gui::SubWindow::getTrueNormalGeometry ( ) const

SubWindow::getTrueNormalGeometry.

same as QWidet::normalGeometry, but works properly under X11 see https://bugreports.qt.io/browse/QTBUG-256

◆ isDetachable()

bool lmms::gui::SubWindow::isDetachable ( ) const

◆ isDetached()

bool lmms::gui::SubWindow::isDetached ( ) const

◆ moveEvent()

void lmms::gui::SubWindow::moveEvent ( QMoveEvent * event )

overrideprotected

SubWindow::moveEvent.

overrides the QMdiSubWindow::moveEvent() for saving the position of the subwindow into m_trackedNormalGeom. This position will be saved with the project because of an Qt bug which doesn't save the right position. look at: https://bugreports.qt.io/browse/QTBUG-256

Parameters

Event

◆ paintEvent()

void lmms::gui::SubWindow::paintEvent ( QPaintEvent * pe )

overrideprotected

SubWindow::paintEvent.

This draws our new title bar with custom colors and draws a window icon on the left upper corner.

◆ resizeEvent()

void lmms::gui::SubWindow::resizeEvent ( QResizeEvent * event )

overrideprotected

SubWindow::resizeEvent.

At first we give the event to QMdiSubWindow::resizeEvent() which handles the event on its behavior.

On every resize event we have to adjust our title label.

At last we store the current size into m_trackedNormalGeom. This size will be saved with the project because of an Qt bug which doesn't save the right size. look at: https://bugreports.qt.io/browse/QTBUG-256

Parameters

Event

◆ setActiveColor()

void lmms::gui::SubWindow::setActiveColor ( const QBrush & b )

◆ setBorderColor()

void lmms::gui::SubWindow::setBorderColor ( const QColor & c )

◆ setDetachable()

void lmms::gui::SubWindow::setDetachable ( bool on )

◆ setDetached()

void lmms::gui::SubWindow::setDetached ( bool on )

◆ setTextShadowColor()

void lmms::gui::SubWindow::setTextShadowColor ( const QColor & c )

◆ setVisible

void lmms::gui::SubWindow::setVisible ( bool visible )

overrideslot

◆ showEvent()

void lmms::gui::SubWindow::showEvent ( QShowEvent * e )

overrideprotected

◆ textShadowColor()

QColor lmms::gui::SubWindow::textShadowColor ( ) const

◆ titleBarHeight()

int lmms::gui::SubWindow::titleBarHeight ( ) const

◆ updateTitleBar()

void lmms::gui::SubWindow::updateTitleBar ( )

Member Data Documentation

◆ m_activeColor

QBrush lmms::gui::SubWindow::m_activeColor

private

◆ m_borderColor

QColor lmms::gui::SubWindow::m_borderColor

private

◆ m_buttonSize

const QSize lmms::gui::SubWindow::m_buttonSize

private

◆ m_closeBtn

QPushButton* lmms::gui::SubWindow::m_closeBtn

private

◆ m_detachBtn

QPushButton* lmms::gui::SubWindow::m_detachBtn

private

◆ m_hasFocus

bool lmms::gui::SubWindow::m_hasFocus

private

◆ m_isDetachable

bool lmms::gui::SubWindow::m_isDetachable

private

◆ m_maximizeBtn

QPushButton* lmms::gui::SubWindow::m_maximizeBtn

private

◆ m_position

QPoint lmms::gui::SubWindow::m_position

private

◆ m_restoreBtn

QPushButton* lmms::gui::SubWindow::m_restoreBtn

private

◆ m_shadow

QGraphicsDropShadowEffect* lmms::gui::SubWindow::m_shadow

private

◆ m_textShadowColor

QColor lmms::gui::SubWindow::m_textShadowColor

private

◆ m_titleBarHeight

const int lmms::gui::SubWindow::m_titleBarHeight

private

◆ m_trackedNormalGeom

QRect lmms::gui::SubWindow::m_trackedNormalGeom

private

◆ m_windowTitle

QLabel* lmms::gui::SubWindow::m_windowTitle

private

Property Documentation

◆ activeColor

QBrush lmms::gui::SubWindow::activeColor

readwrite

◆ borderColor

QColor lmms::gui::SubWindow::borderColor

readwrite

◆ textShadowColor

QColor lmms::gui::SubWindow::textShadowColor

readwrite

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/include/SubWindow.h
/home/runner/work/lmms-fork/lmms-fork/src/gui/SubWindow.cpp
