lmms::gui::LadspaMatrixControlDialog Class Reference

#include <LadspaMatrixControlDialog.h>

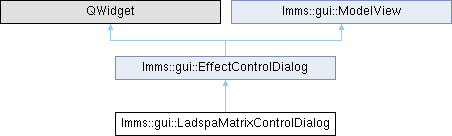

Inheritance diagram for lmms::gui::LadspaMatrixControlDialog:

Public Member Functions
	LadspaMatrixControlDialog (LadspaControls *ctl)
Public Member Functions inherited from lmms::gui::EffectControlDialog
	EffectControlDialog (EffectControls *controls)
	~EffectControlDialog () override=default
Public Member Functions inherited from lmms::gui::ModelView
	ModelView (Model *model, QWidget *widget)
virtual	~ModelView ()
virtual void	setModel (Model *model, bool isOldModelValid=true)
virtual void	unsetModel ()
Model *	model ()
const Model *	model () const
template<class T>
T *	castModel ()
template<class T>
const T *	castModel () const

Private Slots
void	updateEffectView (LadspaControls *ctl)

Private Member Functions
bool	needsLinkColumn () const
	Checks if a link column is needed for the current effect controls.
void	arrangeControls (QWidget *parent, QGridLayout *gridLayout)
	Arranges widgets for the current controls in a grid/matrix layout.
QWidget *	createMatrixWidget ()
	Creates a widget that holds the widgets of the current controls in a matrix arrangement.
LadspaControls *	getLadspaControls () const
ch_cnt_t	getChannelCount () const

Private Attributes
QScrollArea *	m_scrollArea
LedCheckBox *	m_stereoLink

Additional Inherited Members
Protected Member Functions inherited from lmms::gui::ModelView
virtual void	modelChanged ()
QWidget *	widget ()
virtual void	doConnections ()
Protected Attributes inherited from lmms::gui::EffectControlDialog
EffectControls *	m_effectControls

Constructor & Destructor Documentation

LadspaMatrixControlDialog()

lmms::gui::LadspaMatrixControlDialog::LadspaMatrixControlDialog

(

LadspaControls *

ctl

)

Member Function Documentation

arrangeControls()

void lmms::gui::LadspaMatrixControlDialog::arrangeControls ( QWidget * parent, QGridLayout * gridLayout )

private

Arranges widgets for the current controls in a grid/matrix layout.

Parameters

parent	The parent of all created widgets
gridLayout	The layout into which the controls are organized

createMatrixWidget()

QWidget * lmms::gui::LadspaMatrixControlDialog::createMatrixWidget ( )

private

Creates a widget that holds the widgets of the current controls in a matrix arrangement.

Parameters

ladspaControls

Returns

getChannelCount()

ch_cnt_t lmms::gui::LadspaMatrixControlDialog::getChannelCount ( ) const

private

getLadspaControls()

LadspaControls * lmms::gui::LadspaMatrixControlDialog::getLadspaControls ( ) const

private

needsLinkColumn()

bool lmms::gui::LadspaMatrixControlDialog::needsLinkColumn ( ) const

private

Checks if a link column is needed for the current effect controls.

Returns

true if a link column is needed.

updateEffectView

void lmms::gui::LadspaMatrixControlDialog::updateEffectView ( LadspaControls * ctl )

privateslot

Member Data Documentation

m_scrollArea

QScrollArea* lmms::gui::LadspaMatrixControlDialog::m_scrollArea

private

m_stereoLink

LedCheckBox* lmms::gui::LadspaMatrixControlDialog::m_stereoLink

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/LadspaMatrixControlDialog.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/LadspaMatrixControlDialog.cpp
