lmms::gui::Editor Class Reference

Superclass for editors with a toolbar. More...

#include <Editor.h>

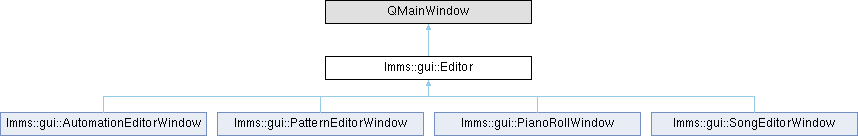

Inheritance diagram for lmms::gui::Editor:

Public Slots
void	togglePlayStop ()
	Called by pressing the space key. Plays or stops.
void	togglePause ()
	Called by pressing shift+space. Toggles pause state.

Public Member Functions
void	setPauseIcon (bool displayPauseIcon=true)
QAction *	playAction () const

Static Public Member Functions
static Editor *	lastPlayedEditor ()

Protected Slots
virtual void	play ()
virtual void	record ()
virtual void	recordAccompany ()
virtual void	toggleStepRecording ()
virtual void	stop ()

Protected Member Functions
DropToolBar *	addDropToolBarToTop (QString const &windowTitle)
DropToolBar *	addDropToolBar (Qt::ToolBarArea whereToAdd, QString const &windowTitle)
DropToolBar *	addDropToolBar (QWidget *parent, Qt::ToolBarArea whereToAdd, QString const &windowTitle)
void	keyPressEvent (QKeyEvent *ke) override
	Editor (bool record=false, bool record_step=false)
	Constructor.
	~Editor () override=default

Protected Attributes
DropToolBar *	m_toolBar
QAction *	m_playAction
QAction *	m_recordAction
QAction *	m_recordAccompanyAction
QAction *	m_toggleStepRecordingAction
QAction *	m_stopAction

Private Slots
void	toggleMaximize ()

Static Private Attributes
static Editor *	s_lastPlayedEditor = nullptr

Detailed Description

Superclass for editors with a toolbar.

Those editors include the Song Editor, the Automation Editor, B&B Editor, and the Piano Roll.

Constructor & Destructor Documentation

Editor()

lmms::gui::Editor::Editor ( bool record = false, bool record_step = false )

protected

Constructor.

Parameters

record

If set true, the editor's toolbar will contain record buttons in addition to the play and stop buttons.

~Editor()

lmms::gui::Editor::~Editor ( )

overrideprotecteddefault

Member Function Documentation

addDropToolBar() [1/2]

DropToolBar * lmms::gui::Editor::addDropToolBar ( Qt::ToolBarArea whereToAdd, QString const & windowTitle )

protected

addDropToolBar() [2/2]

DropToolBar * lmms::gui::Editor::addDropToolBar ( QWidget * parent, Qt::ToolBarArea whereToAdd, QString const & windowTitle )

protected

addDropToolBarToTop()

DropToolBar * lmms::gui::Editor::addDropToolBarToTop ( QString const & windowTitle )

protected

keyPressEvent()

void lmms::gui::Editor::keyPressEvent ( QKeyEvent * ke )

overrideprotected

lastPlayedEditor()

Editor * lmms::gui::Editor::lastPlayedEditor ( )

inlinestatic

play

virtual void lmms::gui::Editor::play ( )

inlineprotectedvirtualslot

Reimplemented in lmms::gui::PianoRollWindow.

playAction()

QAction * lmms::gui::Editor::playAction

(

)

const

record

virtual void lmms::gui::Editor::record ( )

inlineprotectedvirtualslot

Reimplemented in lmms::gui::PianoRollWindow.

recordAccompany

virtual void lmms::gui::Editor::recordAccompany ( )

inlineprotectedvirtualslot

Reimplemented in lmms::gui::PianoRollWindow.

setPauseIcon()

void lmms::gui::Editor::setPauseIcon

(

bool

displayPauseIcon = true

)

stop

virtual void lmms::gui::Editor::stop ( )

inlineprotectedvirtualslot

Reimplemented in lmms::gui::PianoRollWindow.

toggleMaximize

void lmms::gui::Editor::toggleMaximize ( )

privateslot

togglePause

void lmms::gui::Editor::togglePause ( )

slot

Called by pressing shift+space. Toggles pause state.

togglePlayStop

void lmms::gui::Editor::togglePlayStop ( )

slot

Called by pressing the space key. Plays or stops.

toggleStepRecording

virtual void lmms::gui::Editor::toggleStepRecording ( )

inlineprotectedvirtualslot

Reimplemented in lmms::gui::PianoRollWindow.

Member Data Documentation

m_playAction

QAction* lmms::gui::Editor::m_playAction

protected

m_recordAccompanyAction

QAction* lmms::gui::Editor::m_recordAccompanyAction

protected

m_recordAction

QAction* lmms::gui::Editor::m_recordAction

protected

m_stopAction

QAction* lmms::gui::Editor::m_stopAction

protected

m_toggleStepRecordingAction

QAction* lmms::gui::Editor::m_toggleStepRecordingAction

protected

m_toolBar

DropToolBar* lmms::gui::Editor::m_toolBar

protected

s_lastPlayedEditor

Editor* lmms::gui::Editor::s_lastPlayedEditor = nullptr

inlinestaticprivate

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/include/Editor.h
• /home/runner/work/lmms-fork/lmms-fork/src/gui/editors/Editor.cpp
