lmms::AutoDetectMidiController Class Reference

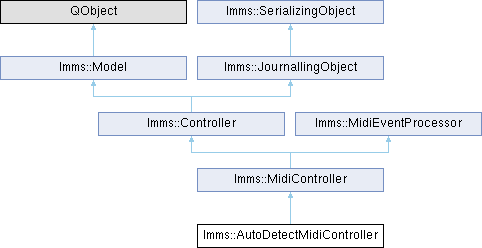

Inheritance diagram for lmms::AutoDetectMidiController:

Public Slots
void	reset ()
Public Slots inherited from lmms::MidiController
gui::ControllerDialog *	createDialog (QWidget *_parent) override
void	updateName ()
Public Slots inherited from lmms::Controller
virtual gui::ControllerDialog *	createDialog (QWidget *_parent)
virtual void	setName (const QString &_new_name)

Public Member Functions
	AutoDetectMidiController (Model *parent)
	~AutoDetectMidiController () override=default
void	processInEvent (const MidiEvent &event, const TimePos &time, f_cnt_t offset=0) override
MidiController *	copyToMidiController (Model *parent)
void	useDetected ()
Public Member Functions inherited from lmms::MidiController
	MidiController (Model *_parent)
	~MidiController () override=default
void	processInEvent (const MidiEvent &_me, const TimePos &_time, f_cnt_t offset=0) override
void	processOutEvent (const MidiEvent &_me, const TimePos &_time, f_cnt_t offset=0) override
void	saveSettings (QDomDocument &_doc, QDomElement &_this) override
void	loadSettings (const QDomElement &_this) override
QString	nodeName () const override
void	subscribeReadablePorts (const MidiPort::Map &_map)
Public Member Functions inherited from lmms::Controller
	Controller (ControllerType _type, Model *_parent, const QString &_display_name)
	~Controller () override
virtual float	currentValue (int _offset)
virtual ValueBuffer *	valueBuffer ()
bool	isSampleExact () const
void	setSampleExact (bool _exact)
ControllerType	type () const
bool	frequentUpdates () const
virtual const QString &	name () const
void	addConnection (ControllerConnection *)
void	removeConnection (ControllerConnection *)
int	connectionCount () const
bool	hasModel (const Model *m) const
Public Member Functions inherited from lmms::Model
	Model (Model *parent, QString displayName=QString(), bool defaultConstructed=false)
	~Model () override=default
bool	isDefaultConstructed () const
Model *	parentModel () const
virtual QString	displayName () const
virtual void	setDisplayName (const QString &displayName)
virtual QString	fullDisplayName () const
Public Member Functions inherited from lmms::JournallingObject
	JournallingObject ()
	~JournallingObject () override
jo_id_t	id () const
void	saveJournallingState (const bool newState)
void	restoreJournallingState ()
void	addJournalCheckPoint ()
QDomElement	saveState (QDomDocument &_doc, QDomElement &_parent) override
void	restoreState (const QDomElement &_this) override
bool	isJournalling () const
void	setJournalling (const bool _sr)
bool	testAndSetJournalling (const bool newState)
bool	isJournallingStateStackEmpty () const
Public Member Functions inherited from lmms::SerializingObject
	SerializingObject ()
virtual	~SerializingObject ()
void	setHook (SerializingObjectHook *_hook)
SerializingObjectHook *	hook ()
Public Member Functions inherited from lmms::MidiEventProcessor
	MidiEventProcessor ()=default
virtual	~MidiEventProcessor ()=default

Private Attributes
int	m_detectedMidiChannel
int	m_detectedMidiController
QString	m_detectedMidiPort

Additional Inherited Members
Public Types inherited from lmms::Controller
enum class	ControllerType { Dummy , Lfo , Midi , Peak }
Signals inherited from lmms::Controller
void	valueChanged ()
Signals inherited from lmms::Model
void	dataChanged ()
void	dataUnchanged ()
void	propertiesChanged ()
Static Public Member Functions inherited from lmms::Controller
static Controller *	create (ControllerType _tt, Model *_parent)
static Controller *	create (const QDomElement &_this, Model *_parent)
static float	fittedValue (float _val)
static long	runningPeriods ()
static unsigned int	runningFrames ()
static float	runningTime ()
static void	triggerFrameCounter ()
static void	resetFrameCounter ()
Static Public Attributes inherited from lmms::MidiController
static constexpr int	NONE = -1
Protected Member Functions inherited from lmms::MidiController
void	updateValueBuffer () override
Protected Member Functions inherited from lmms::Controller
virtual float	value (int _offset)
Protected Member Functions inherited from lmms::JournallingObject
void	changeID (jo_id_t _id)
Protected Attributes inherited from lmms::MidiController
MidiPort	m_midiPort
float	m_lastValue
float	m_previousValue
Protected Attributes inherited from lmms::Controller
ValueBuffer	m_valueBuffer
long	m_bufferLastUpdated
float	m_currentValue
bool	m_sampleExact
int	m_connectionCount
QString	m_name
ControllerType	m_type
Static Protected Attributes inherited from lmms::Controller
static ControllerVector	s_controllers
static long	s_periods = 0

Constructor & Destructor Documentation

AutoDetectMidiController()

lmms::AutoDetectMidiController::AutoDetectMidiController ( Model * parent )

inline

~AutoDetectMidiController()

lmms::AutoDetectMidiController::~AutoDetectMidiController ( )

overridedefault

Member Function Documentation

copyToMidiController()

MidiController * lmms::AutoDetectMidiController::copyToMidiController ( Model * parent )

inline

processInEvent()

void lmms::AutoDetectMidiController::processInEvent ( const MidiEvent & event, const TimePos & time, f_cnt_t offset = 0 )

inlineoverridevirtual

Implements lmms::MidiEventProcessor.

reset

void lmms::AutoDetectMidiController::reset ( )

inlineslot

useDetected()

void lmms::AutoDetectMidiController::useDetected ( )

inline

Member Data Documentation

m_detectedMidiChannel

int lmms::AutoDetectMidiController::m_detectedMidiChannel

private

m_detectedMidiController

int lmms::AutoDetectMidiController::m_detectedMidiController

private

m_detectedMidiPort

QString lmms::AutoDetectMidiController::m_detectedMidiPort

private

---

The documentation for this class was generated from the following file:

• /home/runner/work/lmms-fork/lmms-fork/src/gui/modals/ControllerConnectionDialog.cpp
