juce::RelativeCoordinatePositionerBase Class Reference

#include <juce_RelativeCoordinatePositioner.h>

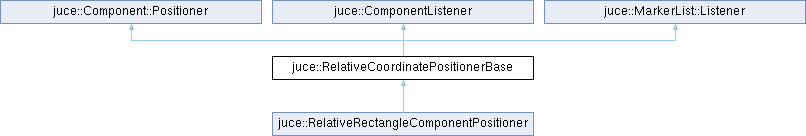

Inheritance diagram for juce::RelativeCoordinatePositionerBase:

Classes
class	ComponentScope
class	DependencyFinderScope

Public Member Functions
	RelativeCoordinatePositionerBase (Component &)
	~RelativeCoordinatePositionerBase () override
void	componentMovedOrResized (Component &, bool, bool) override
void	componentParentHierarchyChanged (Component &) override
void	componentChildrenChanged (Component &) override
void	componentBeingDeleted (Component &) override
void	markersChanged (MarkerList *) override
void	markerListBeingDeleted (MarkerList *) override
void	apply ()
bool	addCoordinate (const RelativeCoordinate &)
bool	addPoint (const RelativePoint &)
Public Member Functions inherited from juce::Component::Positioner
	Positioner (Component &component) noexcept
virtual	~Positioner ()=default
Component &	getComponent () const noexcept
virtual void	applyNewBounds (const Rectangle< int > &newBounds)=0
Public Member Functions inherited from juce::ComponentListener
virtual	~ComponentListener ()=default
virtual void	componentBroughtToFront (Component &component)
virtual void	componentVisibilityChanged (Component &component)
virtual void	componentNameChanged (Component &component)
virtual void	componentEnablementChanged (Component &component)
Public Member Functions inherited from juce::MarkerList::Listener
virtual	~Listener ()=default

Protected Member Functions
virtual bool	registerCoordinates ()=0
virtual void	applyToComponentBounds ()=0

Private Member Functions
void	registerComponentListener (Component &)
void	registerMarkerListListener (MarkerList *)
void	unregisterListeners ()

Private Attributes
Array< Component * >	sourceComponents
Array< MarkerList * >	sourceMarkerLists
bool	registeredOk

Friends
class	DependencyFinderScope

Detailed Description

Base class for Component::Positioners that are based upon relative coordinates.

@tags{GUI}

Constructor & Destructor Documentation

RelativeCoordinatePositionerBase()

juce::RelativeCoordinatePositionerBase::RelativeCoordinatePositionerBase

(

Component &

comp

)

~RelativeCoordinatePositionerBase()

juce::RelativeCoordinatePositionerBase::~RelativeCoordinatePositionerBase ( )

override

Member Function Documentation

addCoordinate()

bool juce::RelativeCoordinatePositionerBase::addCoordinate

(

const RelativeCoordinate &

coord

)

addPoint()

bool juce::RelativeCoordinatePositionerBase::addPoint

(

const RelativePoint &

point

)

apply()

void juce::RelativeCoordinatePositionerBase::apply

(

)

applyToComponentBounds()

virtual void juce::RelativeCoordinatePositionerBase::applyToComponentBounds ( )

protectedpure virtual

Implemented in juce::RelativeRectangleComponentPositioner.

componentBeingDeleted()

void juce::RelativeCoordinatePositionerBase::componentBeingDeleted ( Component & component )

overridevirtual

Called when the component is in the process of being deleted.

This callback is made from inside the destructor, so be very, very cautious about what you do in here.

In particular, bear in mind that it's the Component base class's destructor that calls this - so if the object that's being deleted is a subclass of Component, then the subclass layers of the object will already have been destructed when it gets to this point!

Parameters

component

the component that was deleted

Reimplemented from juce::ComponentListener.

componentChildrenChanged()

void juce::RelativeCoordinatePositionerBase::componentChildrenChanged ( Component & component )

overridevirtual

Called when the component has children added or removed, or their z-order changes.

Parameters

component

the component whose children have changed

See also

Component::childrenChanged, Component::addChildComponent, Component::removeChildComponent

Reimplemented from juce::ComponentListener.

componentMovedOrResized()

void juce::RelativeCoordinatePositionerBase::componentMovedOrResized ( Component & component, bool wasMoved, bool wasResized )

overridevirtual

Called when the component's position or size changes.

Parameters

component	the component that was moved or resized
wasMoved	true if the component's top-left corner has just moved
wasResized	true if the component's width or height has just changed

See also

Component::setBounds, Component::resized, Component::moved

Reimplemented from juce::ComponentListener.

componentParentHierarchyChanged()

void juce::RelativeCoordinatePositionerBase::componentParentHierarchyChanged ( Component & component )

overridevirtual

Called to indicate that the component's parents have changed.

When a component is added or removed from its parent, all of its children will produce this notification (recursively - so all children of its children will also be called as well).

Parameters

component

the component that this listener is registered with

See also

Component::parentHierarchyChanged

Reimplemented from juce::ComponentListener.

markerListBeingDeleted()

void juce::RelativeCoordinatePositionerBase::markerListBeingDeleted ( MarkerList * markerList )

overridevirtual

Called when the given marker list is being deleted.

Reimplemented from juce::MarkerList::Listener.

markersChanged()

void juce::RelativeCoordinatePositionerBase::markersChanged ( MarkerList * markerList )

overridevirtual

Called when something in the given marker list changes.

Implements juce::MarkerList::Listener.

registerComponentListener()

void juce::RelativeCoordinatePositionerBase::registerComponentListener ( Component & comp )

private

registerCoordinates()

virtual bool juce::RelativeCoordinatePositionerBase::registerCoordinates ( )

protectedpure virtual

Implemented in juce::RelativeRectangleComponentPositioner.

registerMarkerListListener()

void juce::RelativeCoordinatePositionerBase::registerMarkerListListener ( MarkerList * list )

private

unregisterListeners()

void juce::RelativeCoordinatePositionerBase::unregisterListeners ( )

private

Friends And Related Symbol Documentation

DependencyFinderScope

friend class DependencyFinderScope

friend

Member Data Documentation

registeredOk

bool juce::RelativeCoordinatePositionerBase::registeredOk

private

sourceComponents

Array<Component*> juce::RelativeCoordinatePositionerBase::sourceComponents

private

sourceMarkerLists

Array<MarkerList*> juce::RelativeCoordinatePositionerBase::sourceMarkerLists

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_gui_basics/positioning/juce_RelativeCoordinatePositioner.h
• /home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/modules/juce_gui_basics/positioning/juce_RelativeCoordinatePositioner.cpp
