#include <organ.h>

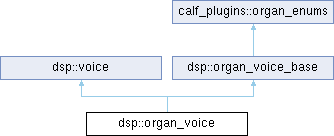

Inheritance diagram for dsp::organ_voice:

Public Member Functions
	organ_voice ()
void	reset ()
	reset voice to default state (used when a voice is to be reused)
void	note_on (int note, int vel)
	a note was pressed
void	note_off (int)
	a note was released
virtual float	get_priority ()
virtual void	steal ()
	very fast note off
void	render_block (int current_snapshot)
virtual int	get_current_note ()
	return the note used by this voice
virtual bool	get_active ()
	check if voice can be removed from active voice list
void	update_pitch ()
bool	use_percussion ()
Public Member Functions inherited from dsp::voice
	voice ()
virtual void	setup (int sr)
	reset voice to default state (used when a voice is to be reused)
virtual void	render_to (float(*buf)[2], int nsamples)=0
	render voice data to buffer
virtual	~voice ()
	empty virtual destructor
Public Member Functions inherited from dsp::organ_voice_base
void	update_pitch ()
void	render_percussion_to (float(*buf)[2], int nsamples)
void	perc_note_on (int note, int vel)
void	perc_note_off (int note, int vel)
void	perc_reset ()

Protected Types
enum	{ Channels = 2 , BlockSize = 64 , EnvCount = organ_parameters::EnvCount , FilterCount = organ_parameters::FilterCount , MaxSampleRun = calf_plugins::MAX_SAMPLE_RUN }

Protected Attributes
union {
float output_buffer [BlockSize][Channels]
float aux_buffers [3][BlockSize][Channels]
};
dsp::fixed_point< int64_t, 52 >	phase
dsp::fixed_point< int64_t, 52 >	dphase
dsp::biquad_d1	filterL [2]
dsp::biquad_d1	filterR [2]
adsr	envs [EnvCount]
dsp::inertia< dsp::linear_ramp >	expression
scanner_vibrato	vibrato
float	velocity
bool	perc_released
bool	finishing
	The envelopes have ended and the voice is in final fadeout stage.
dsp::inertia< dsp::exponential_ramp >	inertia_pitchbend
Protected Attributes inherited from dsp::organ_voice_base
int	note
dsp::decay	amp
dsp::decay	pamp
	percussion FM carrier amplitude envelope
dsp::decay	fm_amp
	percussion FM modulator amplitude envelope
dsp::fixed_point< int64_t, 20 >	pphase
dsp::fixed_point< int64_t, 20 >	dpphase
dsp::fixed_point< int64_t, 20 >	modphase
dsp::fixed_point< int64_t, 20 >	moddphase
float	fm_keytrack
int &	sample_rate_ref
bool &	released_ref
float	rel_age_const
	pamp per-sample (linear) step during release stage (calculated on release so that it will take 30ms for it to go from "current value at release point" to 0)

Additional Inherited Members
Public Types inherited from dsp::organ_voice_base
typedef waveform_family< ORGAN_WAVE_BITS >	small_wave_family
typedef waveform_family< ORGAN_BIG_WAVE_BITS >	big_wave_family
Public Types inherited from calf_plugins::organ_enums
enum	{ par_drawbar1 , par_drawbar2 , par_drawbar3 , par_drawbar4 , par_drawbar5 , par_drawbar6 , par_drawbar7 , par_drawbar8 , par_drawbar9 , par_frequency1 , par_frequency2 , par_frequency3 , par_frequency4 , par_frequency5 , par_frequency6 , par_frequency7 , par_frequency8 , par_frequency9 , par_waveform1 , par_waveform2 , par_waveform3 , par_waveform4 , par_waveform5 , par_waveform6 , par_waveform7 , par_waveform8 , par_waveform9 , par_detune1 , par_detune2 , par_detune3 , par_detune4 , par_detune5 , par_detune6 , par_detune7 , par_detune8 , par_detune9 , par_phase1 , par_phase2 , par_phase3 , par_phase4 , par_phase5 , par_phase6 , par_phase7 , par_phase8 , par_phase9 , par_pan1 , par_pan2 , par_pan3 , par_pan4 , par_pan5 , par_pan6 , par_pan7 , par_pan8 , par_pan9 , par_routing1 , par_routing2 , par_routing3 , par_routing4 , par_routing5 , par_routing6 , par_routing7 , par_routing8 , par_routing9 , par_foldover , par_percdecay , par_perclevel , par_percwave , par_percharm , par_percvel2amp , par_percfmdecay , par_percfmdepth , par_percfmwave , par_percfmharm , par_percvel2fm , par_perctrigger , par_percstereo , par_filterchain , par_filter1type , par_master , par_f1cutoff , par_f1res , par_f1env1 , par_f1env2 , par_f1env3 , par_f1keyf , par_f2cutoff , par_f2res , par_f2env1 , par_f2env2 , par_f2env3 , par_f2keyf , par_eg1attack , par_eg1decay , par_eg1sustain , par_eg1release , par_eg1velscl , par_eg1ampctl , par_eg2attack , par_eg2decay , par_eg2sustain , par_eg2release , par_eg2velscl , par_eg2ampctl , par_eg3attack , par_eg3decay , par_eg3sustain , par_eg3release , par_eg3velscl , par_eg3ampctl , par_lforate , par_lfoamt , par_lfowet , par_lfophase , par_lfomode , par_lfotype , par_transpose , par_detune , par_polyphony , par_quadenv , par_pwhlrange , par_bassfreq , par_bassgain , par_treblefreq , par_treblegain , par_midi , param_count }
enum	organ_waveform { wave_sine , wave_sinepl1 , wave_sinepl2 , wave_sinepl3 , wave_ssaw , wave_ssqr , wave_spls , wave_saw , wave_sqr , wave_pulse , wave_sinepl05 , wave_sqr05 , wave_halfsin , wave_clvg , wave_bell , wave_bell2 , wave_w1 , wave_w2 , wave_w3 , wave_w4 , wave_w5 , wave_w6 , wave_w7 , wave_w8 , wave_w9 , wave_dsaw , wave_dsqr , wave_dpls , wave_count_small , wave_strings = wave_count_small , wave_strings2 , wave_sinepad , wave_bellpad , wave_space , wave_choir , wave_choir2 , wave_choir3 , wave_count , wave_count_big = wave_count - wave_count_small }
enum	{ ampctl_none , ampctl_direct , ampctl_f1 , ampctl_f2 , ampctl_all , ampctl_count }
enum	{ lfotype_allpass = 0 , lfotype_cv1 , lfotype_cv2 , lfotype_cv3 , lfotype_cvfull , lfotype_count }
enum	{ lfomode_off = 0 , lfomode_direct , lfomode_filter1 , lfomode_filter2 , lfomode_voice , lfomode_global , lfomode_count }
enum	{ perctrig_first = 0 , perctrig_each , perctrig_eachplus , perctrig_polyphonic , perctrig_count }
Static Public Member Functions inherited from dsp::organ_voice_base
static small_wave_family &	get_wave (int wave)
static big_wave_family &	get_big_wave (int wave)
static void	precalculate_waves (calf_plugins::progress_report_iface *reporter)
Public Attributes inherited from dsp::voice
int	sample_rate
bool	released
bool	sostenuto
bool	stolen
Public Attributes inherited from dsp::organ_voice_base
organ_parameters *	parameters
Protected Member Functions inherited from dsp::organ_voice_base
	organ_voice_base (organ_parameters *_parameters, int &_sample_rate_ref, bool &_released_ref)
float	wave (float *data, dsp::fixed_point< int, 20 > ph)
float	big_wave (float *data, dsp::fixed_point< int64_t, 20 > &ph)
Static Protected Attributes inherited from dsp::organ_voice_base
static small_wave_family(*	waves )[wave_count_small]
static big_wave_family(*	big_waves )[wave_count_big]

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
Channels
BlockSize
EnvCount
FilterCount
MaxSampleRun

Constructor & Destructor Documentation

◆ organ_voice()

dsp::organ_voice::organ_voice ( )

inline

Member Function Documentation

◆ get_active()

virtual bool dsp::organ_voice::get_active ( )

inlinevirtual

check if voice can be removed from active voice list

Implements dsp::voice.

◆ get_current_note()

virtual int dsp::organ_voice::get_current_note ( )

inlinevirtual

return the note used by this voice

Implements dsp::voice.

◆ get_priority()

virtual float dsp::organ_voice::get_priority ( )

inlinevirtual

Reimplemented from dsp::voice.

◆ note_off()

void organ_voice::note_off ( int vel )

virtual

a note was released

Implements dsp::voice.

◆ note_on()

void organ_voice::note_on	(	int	note,
		int	vel )

virtual

a note was pressed

Implements dsp::voice.

◆ render_block()

void organ_voice::render_block ( int current_snapshot )

◆ reset()

void organ_voice::reset ( )

virtual

reset voice to default state (used when a voice is to be reused)

Implements dsp::voice.

◆ steal()

void organ_voice::steal ( )

virtual

very fast note off

Implements dsp::voice.

◆ update_pitch()

void organ_voice::update_pitch ( )

◆ use_percussion()

bool dsp::organ_voice::use_percussion ( )

inline

Member Data Documentation

◆ [union]

union { ... } dsp::organ_voice

◆ aux_buffers

float dsp::organ_voice::aux_buffers[3][BlockSize][Channels]

◆ dphase

dsp::fixed_point<int64_t, 52> dsp::organ_voice::dphase

protected

◆ envs

adsr dsp::organ_voice::envs[EnvCount]

protected

◆ expression

dsp::inertia<dsp::linear_ramp> dsp::organ_voice::expression

protected

◆ filterL

dsp::biquad_d1 dsp::organ_voice::filterL[2]

protected

◆ filterR

dsp::biquad_d1 dsp::organ_voice::filterR[2]

protected

◆ finishing

bool dsp::organ_voice::finishing

protected

The envelopes have ended and the voice is in final fadeout stage.

◆ inertia_pitchbend

dsp::inertia<dsp::exponential_ramp> dsp::organ_voice::inertia_pitchbend

protected

◆ output_buffer

float dsp::organ_voice::output_buffer[BlockSize][Channels]

◆ perc_released

bool dsp::organ_voice::perc_released

protected

◆ phase

dsp::fixed_point<int64_t, 52> dsp::organ_voice::phase

protected

◆ velocity

float dsp::organ_voice::velocity

protected

◆ vibrato

scanner_vibrato dsp::organ_voice::vibrato

protected

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/calf/organ.h
/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/organ.cpp
