#include <pluginview.h>

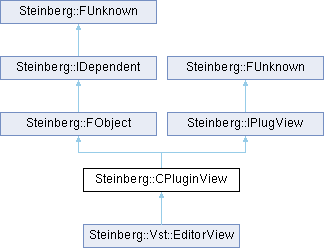

Inheritance diagram for Steinberg::CPluginView:

Public Member Functions
	CPluginView (const ViewRect *rect=nullptr)
virtual	~CPluginView ()
const ViewRect &	getRect () const
void	setRect (const ViewRect &r)
bool	isAttached () const
virtual void	attachedToParent ()
virtual void	removedFromParent ()
tresult PLUGIN_API	isPlatformTypeSupported (FIDString type) SMTG_OVERRIDE
tresult PLUGIN_API	attached (void *parent, FIDString type) SMTG_OVERRIDE
tresult PLUGIN_API	removed () SMTG_OVERRIDE
tresult PLUGIN_API	onWheel (float) SMTG_OVERRIDE
tresult PLUGIN_API	onKeyDown (char16, int16, int16) SMTG_OVERRIDE
tresult PLUGIN_API	onKeyUp (char16, int16, int16) SMTG_OVERRIDE
tresult PLUGIN_API	getSize (ViewRect *size) SMTG_OVERRIDE
tresult PLUGIN_API	onSize (ViewRect *newSize) SMTG_OVERRIDE
tresult PLUGIN_API	onFocus (TBool) SMTG_OVERRIDE
tresult PLUGIN_API	setFrame (IPlugFrame *frame) SMTG_OVERRIDE
tresult PLUGIN_API	canResize () SMTG_OVERRIDE
tresult PLUGIN_API	checkSizeConstraint (ViewRect *) SMTG_OVERRIDE
Public Member Functions inherited from Steinberg::FObject
	FObject ()
	default constructor...
	FObject (const FObject &)
	overloaded constructor...
virtual	~FObject ()
	destructor...
FObject &	operator= (const FObject &)
	overloads operator "=" as the reference assignment
virtual FClassID	isA () const
	a local alternative to getFClassID ()
virtual bool	isA (FClassID s) const
	evaluates if the passed ID is of the FObject type
virtual bool	isTypeOf (FClassID s, bool=true) const
	evaluates if the passed ID is of the FObject type
int32	getRefCount ()
	returns the current interface reference count
FUnknown *	unknownCast ()
	get FUnknown interface from object
tresult PLUGIN_API	queryInterface (const TUID _iid, void **obj) SMTG_OVERRIDE
	please refer to FUnknown::queryInterface ()
uint32 PLUGIN_API	addRef () SMTG_OVERRIDE
	please refer to FUnknown::addref ()
uint32 PLUGIN_API	release () SMTG_OVERRIDE
	please refer to FUnknown::release ()
void PLUGIN_API	update (FUnknown *, int32) SMTG_OVERRIDE
	empty virtual method that should be overridden by derived classes for data updates upon changes
virtual void	addDependent (IDependent *dep)
	adds dependency to the object
virtual void	removeDependent (IDependent *dep)
	removes dependency from the object
virtual void	changed (int32 msg=kChanged)
	Inform all dependents, that the object has changed.
virtual void	deferUpdate (int32 msg=kChanged)
	Similar to triggerUpdates, except only delivered in idle (usefull in collecting updates).
virtual void	updateDone (int32)
	empty virtual method that should be overridden by derived classes
virtual bool	isEqualInstance (FUnknown *d)

Protected Attributes
ViewRect	rect
void *	systemWindow {nullptr}
IPlugFrame *	plugFrame {nullptr}
Protected Attributes inherited from Steinberg::FObject
int32	refCount
	COM-model local reference count.

Additional Inherited Members
Public Types inherited from Steinberg::IDependent
enum	ChangeMessage { kWillChange , kChanged , kDestroyed , kWillDestroy , kStdChangeMessageLast = kWillDestroy }
Static Public Member Functions inherited from Steinberg::FObject
static FClassID	getFClassID ()
	return Class ID as an ASCII string (statically)
static void	setUpdateHandler (IUpdateHandler *handler)
	set method for the local attribute
static IUpdateHandler *	getUpdateHandler ()
	get method for the local attribute
static bool	classIDsEqual (FClassID ci1, FClassID ci2)
	compares (evaluates) 2 class IDs
static FObject *	unknownToObject (FUnknown *unknown)
	pointer conversion from FUnknown to FObject
Static Public Attributes inherited from Steinberg::FObject
static const FUID	iid
Static Public Attributes inherited from Steinberg::IDependent
static const FUID	iid
Static Public Attributes inherited from Steinberg::FUnknown
static const FUID	iid
Static Public Attributes inherited from Steinberg::IPlugView
static const FUID	iid
Static Protected Attributes inherited from Steinberg::FObject
static IUpdateHandler *	gUpdateHandler = nullptr

Detailed Description

Plug-In view default implementation.

Can be used as base class for an IPlugView implementation.

Constructor & Destructor Documentation

◆ CPluginView()

Steinberg::CPluginView::CPluginView ( const ViewRect * rect = nullptr )

◆ ~CPluginView()

Steinberg::CPluginView::~CPluginView ( )

virtual

Member Function Documentation

◆ attached()

tresult PLUGIN_API Steinberg::CPluginView::attached	(	void *	parent,
		FIDString	type )

virtual

The parent window of the view has been created, the (platform) representation of the view should now be created as well. Note that the parent is owned by the caller and you are not allowed to alter it in any way other than adding your own views. Note that in this call the plug-in could call a IPlugFrame::resizeView ()!

Parameters

parent	: platform handle of the parent window or view
type	: Platform UI Types which should be created

Implements Steinberg::IPlugView.

◆ attachedToParent()

virtual void Steinberg::CPluginView::attachedToParent ( )

inlinevirtual

Calls when this view will be attached to its parent view.

Reimplemented in Steinberg::Vst::EditorView.

◆ canResize()

tresult PLUGIN_API Steinberg::CPluginView::canResize ( )

inlinevirtual

Is view sizable by user.

Implements Steinberg::IPlugView.

◆ checkSizeConstraint()

tresult PLUGIN_API Steinberg::CPluginView::checkSizeConstraint ( ViewRect * rect )

inlinevirtual

On live resize this is called to check if the view can be resized to the given rect, if not adjust the rect to the allowed size.

Implements Steinberg::IPlugView.

◆ getRect()

const ViewRect & Steinberg::CPluginView::getRect ( ) const

inline

Returns its current frame rectangle.

◆ getSize()

tresult PLUGIN_API Steinberg::CPluginView::getSize ( ViewRect * size )

virtual

Returns the size of the platform representation of the view.

Implements Steinberg::IPlugView.

◆ isAttached()

bool Steinberg::CPluginView::isAttached ( ) const

inline

Checks if this view is attached to its parent view.

◆ isPlatformTypeSupported()

tresult PLUGIN_API Steinberg::CPluginView::isPlatformTypeSupported ( FIDString type )

virtual

Is Platform UI Type supported

Parameters

type	: IDString of Platform UI Types

Implements Steinberg::IPlugView.

◆ onFocus()

tresult PLUGIN_API Steinberg::CPluginView::onFocus ( TBool state )

inlinevirtual

Focus changed message.

Implements Steinberg::IPlugView.

◆ onKeyDown()

tresult PLUGIN_API Steinberg::CPluginView::onKeyDown	(	char16	key,
		int16	keyCode,
		int16	modifiers )

inlinevirtual

Handling of keyboard events : Key Down.

Parameters

key	: unicode code of key
keyCode	: virtual keycode for non ascii keys - see VirtualKeyCodes in keycodes.h
modifiers	: any combination of modifiers - see KeyModifier in keycodes.h

Returns: kResultTrue if the key is handled, otherwise kResultFalse.
Please note that kResultTrue must only be returned if the key has really been handled. Otherwise key command handling of the host might be blocked!

Implements Steinberg::IPlugView.

◆ onKeyUp()

tresult PLUGIN_API Steinberg::CPluginView::onKeyUp	(	char16	key,
		int16	keyCode,
		int16	modifiers )

inlinevirtual

Handling of keyboard events : Key Up.

Parameters

key	: unicode code of key
keyCode	: virtual keycode for non ascii keys - see VirtualKeyCodes in keycodes.h
modifiers	: any combination of KeyModifier - see KeyModifier in keycodes.h

Returns: kResultTrue if the key is handled, otherwise return kResultFalse.

Implements Steinberg::IPlugView.

◆ onSize()

tresult PLUGIN_API Steinberg::CPluginView::onSize ( ViewRect * newSize )

virtual

Resizes the platform representation of the view to the given rect. Note that if the plug-in requests a resize (IPlugFrame::resizeView ()) onSize has to be called afterward.

Implements Steinberg::IPlugView.

◆ onWheel()

tresult PLUGIN_API Steinberg::CPluginView::onWheel ( float distance )

inlinevirtual

Handling of mouse wheel.

Implements Steinberg::IPlugView.

◆ removed()

tresult PLUGIN_API Steinberg::CPluginView::removed ( )

virtual

The parent window of the view is about to be destroyed. You have to remove all your own views from the parent window or view.

Implements Steinberg::IPlugView.

◆ removedFromParent()

virtual void Steinberg::CPluginView::removedFromParent ( )

inlinevirtual

Calls when this view will be removed from its parent view.

Reimplemented in Steinberg::Vst::EditorView.

◆ setFrame()

tresult PLUGIN_API Steinberg::CPluginView::setFrame ( IPlugFrame * frame )

inlinevirtual

Sets IPlugFrame object to allow the plug-in to inform the host about resizing.

Implements Steinberg::IPlugView.

◆ setRect()

void Steinberg::CPluginView::setRect ( const ViewRect & r )

inline

Sets a new frame rectangle.

Member Data Documentation

◆ plugFrame

IPlugFrame* Steinberg::CPluginView::plugFrame {nullptr}

protected

◆ rect

ViewRect Steinberg::CPluginView::rect

protected

◆ systemWindow

void* Steinberg::CPluginView::systemWindow {nullptr}

protected

The documentation for this class was generated from the following files:

/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/common/pluginview.h
/home/runner/work/lmms-fork/lmms-fork/plugins/CarlaBase/carla/source/includes/vst3sdk/public.sdk/source/common/pluginview.cpp
