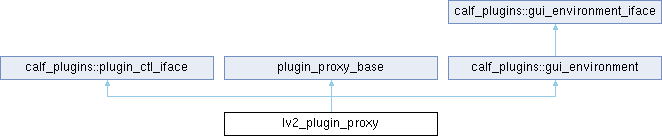

Inheritance diagram for lv2_plugin_proxy:

Public Member Functions
	lv2_plugin_proxy (const plugin_metadata_iface md, LV2UI_Write_Function wf, LV2UI_Controller c, const LV2_Feature const *f)
virtual float	get_param_value (int param_no)
virtual void	set_param_value (int param_no, float value)
	Set value of given parameter.
virtual bool	activate_preset (int bank, int program)
	Load preset with given number.
virtual char *	configure (const char key, const char value)
	Override for a method in plugin_ctl_iface - trivial delegation to base class.
virtual float	get_level (unsigned int port)
virtual void	execute (int command_no)
	Execute menu command with given number.
virtual void	send_configures (send_configure_iface *sci)
	Send all configure variables set within a plugin to given destination (which may be limited to only those that plugin understands).
virtual int	send_status_updates (send_updates_iface *sui, int last_serial)
virtual const plugin_metadata_iface *	get_metadata_iface () const
	Return metadata object.
virtual const line_graph_iface *	get_line_graph_iface () const
	Override for a method in plugin_ctl_iface - trivial delegation to base class.
virtual const phase_graph_iface *	get_phase_graph_iface () const
	Override for a method in plugin_ctl_iface - trivial delegation to base class.
Public Member Functions inherited from calf_plugins::plugin_ctl_iface
virtual void	clear_preset ()
	Restore all state (parameters and configure vars) to default values - implemented in giface.cpp.
virtual bool	blobcall (const char *command, const std::string &request, std::string &result)
virtual int	get_write_serial (int param_no)
virtual void	add_automation (uint32_t source, const automation_range &dest)
	Add or update parameter automation routing.
virtual void	delete_automation (uint32_t source, int param_no)
	Remove parameter automation routing.
virtual void	get_automation (int param_no, std::multimap< uint32_t, automation_range > &dests)
virtual uint32_t	get_last_automation_source ()
	Return the source identifier for the most recently seen control change that could be used for automation.
virtual void	send_automation_configures (send_configure_iface *)
virtual	~plugin_ctl_iface ()
	Do-nothing destructor to silence compiler warning.
Public Member Functions inherited from plugin_proxy_base
	plugin_proxy_base (const plugin_metadata_iface metadata, LV2UI_Write_Function wf, LV2UI_Controller c, const LV2_Feature const *features)
void	send_float_to_host (int param_no, float value)
	Send a float value to a control port in the host.
char *	configure (const char key, const char value)
	Send a string value to a string port in the host, by name (configure-like mechanism).
void	send_configures (send_configure_iface *sci)
	Obtain the list of variables from the plugin.
void	enable_all_sends ()
	Enable sending to host for all ports.
void	resolve_instance ()
	Obtain instance pointers.
const line_graph_iface *	get_line_graph_iface () const
	Obtain line graph interface if available.
const phase_graph_iface *	get_phase_graph_iface () const
	Obtain phase graph interface if available.
uint32_t	map_urid (const char *uri)
	Map an URI to an integer value using a given URID map.
Public Member Functions inherited from calf_plugins::gui_environment
	gui_environment ()
virtual bool	check_condition (const char *name)
virtual calf_utils::config_db_iface *	get_config_db ()
virtual calf_utils::gui_config *	get_config ()
virtual calf_plugins::image_factory *	get_image_factory ()
	~gui_environment ()
Public Member Functions inherited from calf_plugins::gui_environment_iface
virtual	~gui_environment_iface ()

Public Attributes
plugin_gui *	gui
	Plugin GTK+ GUI object pointer.
int	source_id
	Glib source ID for update timer.
Public Attributes inherited from plugin_proxy_base
const plugin_metadata_iface *	plugin_metadata
LV2UI_Write_Function	write_function
LV2UI_Controller	controller
LV2_Handle	instance_handle
	Handle to the plugin instance.
LV2_Extension_Data_Feature *	data_access
	Data access feature instance.
const LV2_URID_Map *	urid_map
	URID map feature.
lv2_external_ui_host *	ext_ui_host
	External UI host feature (must be set when instantiating external UI plugins).
bool	atom_present
uint32_t	property_type
uint32_t	string_type
uint32_t	event_transfer
plugin_ctl_iface *	instance
	Instance pointer - usually NULL unless the host supports instance-access extension.
vector< bool >	sends
	If true, a given parameter (not port) may be sent to host - it is blocked when the parameter is written to by the host.
map< string, int >	params_by_name
	Map of parameter name to parameter index (used for mapping configure values to string ports).
vector< float >	params
	Values of parameters (float control ports).
int	param_count
	Number of parameters (non-audio ports).
int	param_offset
	Number of the first parameter port.
gulong	widget_destroyed_signal
	Signal handler for main widget destroyed.
gulong	window_destroyed_signal
	Signal handler for external window destroyed.
Public Attributes inherited from calf_plugins::gui_environment
std::set< std::string >	conditions
image_factory	images

Detailed Description

Plugin controller that uses LV2 host with help of instance/data access to remotely control a plugin from the GUI

Constructor & Destructor Documentation

◆ lv2_plugin_proxy()

lv2_plugin_proxy::lv2_plugin_proxy	(	const plugin_metadata_iface *	md,
		LV2UI_Write_Function	wf,
		LV2UI_Controller	c,
		const LV2_Feature const	f )

inline

Member Function Documentation

◆ activate_preset()

virtual bool lv2_plugin_proxy::activate_preset	(	int	bank,
		int	program )

inlinevirtual

Load preset with given number.

Implements calf_plugins::plugin_ctl_iface.

◆ configure()

virtual char * lv2_plugin_proxy::configure	(	const char *	key,
		const char *	value )

inlinevirtual

Override for a method in plugin_ctl_iface - trivial delegation to base class.

Implements calf_plugins::plugin_ctl_iface.

◆ execute()

virtual void lv2_plugin_proxy::execute ( int cmd_no )

inlinevirtual

Execute menu command with given number.

Implements calf_plugins::plugin_ctl_iface.

◆ get_level()

virtual float lv2_plugin_proxy::get_level ( unsigned int port )

inlinevirtual

Returns: volume level for port'th port (if supported by the implementation, currently only jack_host<Module> implements that by measuring signal level on plugin ports)

Implements calf_plugins::plugin_ctl_iface.

◆ get_line_graph_iface()

virtual const line_graph_iface * lv2_plugin_proxy::get_line_graph_iface ( ) const

inlinevirtual

Override for a method in plugin_ctl_iface - trivial delegation to base class.

Implements calf_plugins::plugin_ctl_iface.

◆ get_metadata_iface()

virtual const plugin_metadata_iface * lv2_plugin_proxy::get_metadata_iface ( ) const

inlinevirtual

Return metadata object.

Implements calf_plugins::plugin_ctl_iface.

◆ get_param_value()

virtual float lv2_plugin_proxy::get_param_value ( int param_no )

inlinevirtual

Returns: value of given parameter

Implements calf_plugins::plugin_ctl_iface.

◆ get_phase_graph_iface()

virtual const phase_graph_iface * lv2_plugin_proxy::get_phase_graph_iface ( ) const

inlinevirtual

Override for a method in plugin_ctl_iface - trivial delegation to base class.

Implements calf_plugins::plugin_ctl_iface.

◆ send_configures()

virtual void lv2_plugin_proxy::send_configures ( send_configure_iface * )

inlinevirtual

Send all configure variables set within a plugin to given destination (which may be limited to only those that plugin understands).

Implements calf_plugins::plugin_ctl_iface.

◆ send_status_updates()

virtual int lv2_plugin_proxy::send_status_updates	(	send_updates_iface *	sui,
		int	last_serial )

inlinevirtual

Update status variables changed since last_serial

Returns: new last_serial

Implements calf_plugins::plugin_ctl_iface.

◆ set_param_value()

virtual void lv2_plugin_proxy::set_param_value	(	int	param_no,
		float	value )

inlinevirtual

Set value of given parameter.

Implements calf_plugins::plugin_ctl_iface.

Member Data Documentation

◆ gui

plugin_gui* lv2_plugin_proxy::gui

Plugin GTK+ GUI object pointer.

◆ source_id

int lv2_plugin_proxy::source_id

Glib source ID for update timer.

The documentation for this struct was generated from the following file:

/home/runner/work/lmms-fork/lmms-fork/plugins/LadspaEffect/calf/veal/src/lv2gui.cpp
